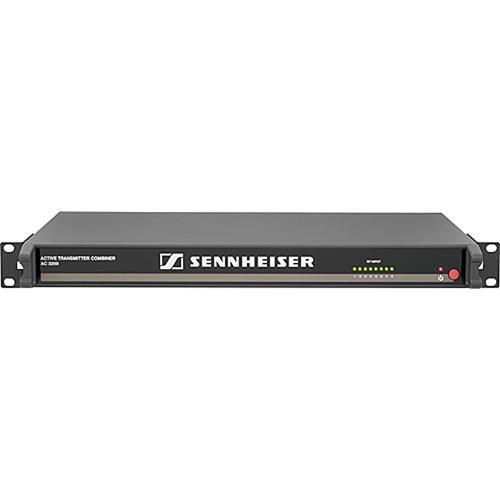

User Manual for Sennheiser AC 3200 8 to 1 Broadband Active Antenna Combiner Click to enlarge the picture
Contents of the user manual for the Sennheiser AC 3200 8 to 1
- Product category: Antenna Accessories Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Antenna Accessories
|
User manual for the Sennheiser AC 3200 8 to 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Sennheiser AC 3200 8 to 1 Broadband Active Antenna Combiner combines the RF (Radio Frequency) signals from 8 wireless monitoring transmitters, into a single output that significantly reduces wire clutter and RF intermodulation. The AC 3200 is compatible with Sennheiser SR series listening system transmitters, operates over a broadband frequency range of 500 to 870MHz and easily covers long ranges with a maximum input of 250mW. - Active 8-channel 0dB transmitter combiner with highly constant RF output power over the entire frequency range
- Significant improvement of RF performance for multi-channel systems
- Broadband RF design to cover the UHF frequency range from 500-870MHz
- Maximum input power of 250mW
- LEDs on the front show whether a signal is present at the RF input
- Compatible with SR 3054, SR 3056, SR 3254, SR 3256, SR 300 and SR 350 transmitters
In the Box Sennheiser AC 3200 8 to 1 Broadband Active Antenna Combiner (500 to 870MHz) AC 3200 3 Mains Cable (EU/UK/US) 4 x 4 Self-Adhesive Device Feet Instruction Manual 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser AC 3200 8 to 1 Broadband Active Antenna Combiner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser AC 3200 Specs | # Of Channels | 8 | | RF Input | BNC x8 | | RF Output | BNC x1 | | RF Frequency Range | 500 to 870MHz | | Attenuation / Gain | 0dB (+/- 1.5dB) | | Operating Voltage | 100 - 240VAC / 50 - 60Hz | | Weight | 8.81 lb (4000 g) | | Dimensions | 17.1 x 1.7 x 9.8" (436 x 44 x 250mm) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
