User Manual for Sennheiser AC 3200-II High-Power 8:1 Antenna Combiner Click to enlarge the picture
Contents of the user manual for the Sennheiser AC 3200-II High-Power 8:1 Antenna
- Product category: Antenna Accessories Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Antenna Accessories
|
User manual for the Sennheiser AC 3200-II High-Power 8:1 Antenna contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

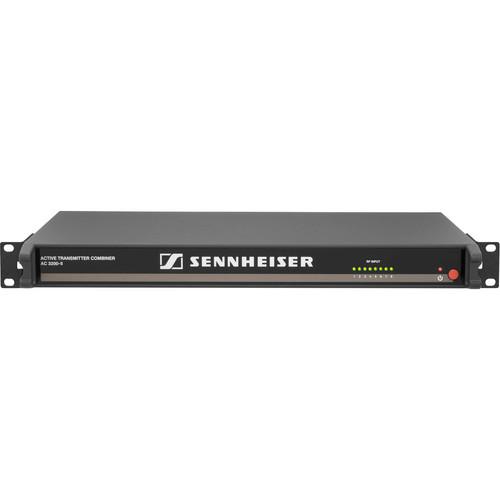

Product description The AC 3200-II High-Power 8:1 Antenna Combiner from Sennheiser is designed for large multi-channel wireless monitoring systems. It combines up to 8 channels for transmission via 1 antenna with a broadband design covering 500 to 870 MHz. It significantly reduces intermodulation of wireless monitoring transmitters while keeping backstage clutter to a minimum. Long distances can be covered reliably as the AC 3200 combiner accepts up to 250mW of input power. - Compatible with SR 2050XP IEM, SR 2000XP IEM, SR 300 IEM G3, and legacy EW and 3000 Series monitor transmitters
- Active 8-channel, 0 dB transmitter combiner with highly constant RF output power over the entire frequency range
- Significant improvement of RF performance for multi-channel systems
- Broadband RF design to cover the UHF frequency range from 500 to 870 MHz
- Maximum input power of 250mW
- LEDs on the front show whether a signal is present at the RF input
UPC: 615104226005 In the Box Sennheiser AC 3200-II High-Power 8:1 Antenna Combiner NT12-125D In-Line Power Supply 3 x Power Cable (US/EU/UK) 4 x Self-Adhesive Device Foot Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser AC 3200-II High-Power 8:1 Antenna Combiner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser AC3200-II Specs | Impedance | 50 Ω | | Attenuation | 0 dB (± 1 dB) | | Power Consumption | 90 W (maximum) | | RF Frequency Range | 500 to 870 MHz | | Power Supply | 12 VDC | | Antenna Connector | BNC | | Current Consumption | Maximum 7.5 A | | Operating Temperature | 14 to 113°F (-10 to +45°C) | | Dimensions | 17.1 x 8.4 x 1.7" (436.0 x 215.0 x 44.0 mm) | | Weight | Approximately 8.8 lb (4.0 kg) | | | | Package Weight | 14.75 lb | | Box Dimensions (LxWxH) | 21.1 x 13.0 x 6.0" |
