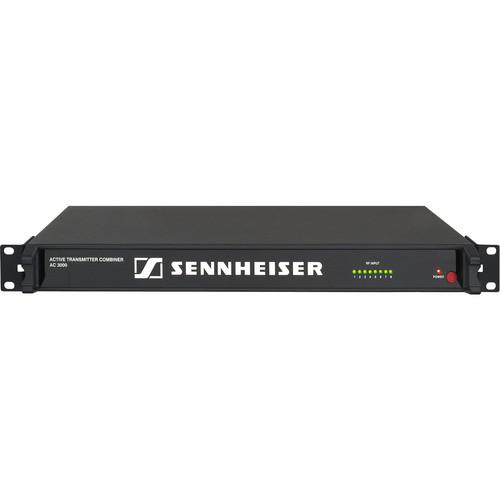

User Manual for Sennheiser AC3000 Custom Active Antenna Combiner Click to enlarge the picture
Contents of the user manual for the Sennheiser AC3000 Custom Active Antenna Combiner
- Product category: Antenna Accessories Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Antenna Accessories
|
User manual for the Sennheiser AC3000 Custom Active Antenna Combiner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Sennheiser AC3000 Custom is a broadband antenna combiner for up to eight monitoring system transmitters. The AC3000 Custom reduces the RF output of all eight transmitters and sends the signal through a single output, which greatly reduced inter-modulation, interference and noise issues. Unlike the standard AC3000, the AC3000 Custom is modified for use with the Sennheiser SR2020-D-US wireless conference system. - Custom Modified
- The AC3000 Custom is modified for use with SR2020-D-US wireless conference system.
- Eight to One Transmitter Combiner
- The AC3000 combines radio frequency signal from up to eight in-ear monitor transmitters to a single antenna output.
- Broadband Design
- The AC3000 covers the whole UHF frequency range from 470 - 870MHz and is compatible with the SR 3054, SR 3056 and SR 300 G2 transmitters.
- LED Input Indicators
- LEDs are featured for RF input level indication.
Additional Features - Significant improvement of RF performance for multi-channel systems
- Robust 19" housing in 3000 series design
- Compatible with SR 3054, SR 3056, SR 3254, SR 3256 and SR 300 G2 transmitters
In the Box Sennheiser AC3000 Custom Active Antenna Combiner Rackmount Kit 4 x Plastic Feet 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser AC3000 Custom Active Antenna Combiner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser AC3000 Specs | # Of Channels | 8 | | RF Input | BNC x8 | | RF Output | BNC | | Impedance | 50Ω | | Antenna Connector | BNC | | Output Power | Max. 100 mW RF input power per channel | | RF Frequency Range | 470 - 870 MHz | | Transmission | Transmission loss: 0dB (± 1dB) | | Attenuation / Gain | 0 dB (+/- 1 dB) | | Operating Voltage | 100 - 240V 50/60Hz
Mains Frequency: 50 - 60Hz | | Weight | Not Specified By Manufacturer | | Dimensions | 19-inch (Width), 1 Rack Space |
