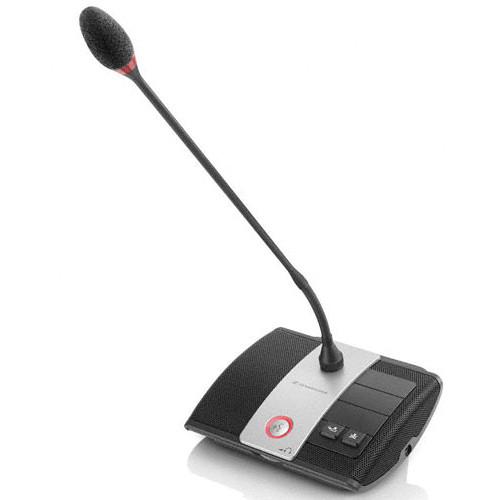

User Manual for Sennheiser ADN-W C4 Wireless Chairperson Unit and 19.7" Gooceneck with ME36 Hypercardioid Capsule Click to enlarge the picture
Contents of the user manual for the Sennheiser ADN-W C4 Wireless Chairperson Unit
- Product category: Assistive Listening Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Assistive Listening Systems
|
User manual for the Sennheiser ADN-W C4 Wireless Chairperson Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The ADN-W C4 Wireless Chairperson Unit and 19.7" Gooceneck with ME36 Hypercardioid Capsule by Sennheiser is for controlling delegate units in conference meetings. It is used in applications such as video conferencing, meeting rooms, boardrooms and more. It features 128-bit AES encryption and provides interference-free transmission in the 2.4 GHz and 5 GHz bands. Built with a microphone key that functions either as an On/Off switch or as a Request-to-speak button. A Next key to grant speaking privileges and a Priority key to deactivate all active conference units is also provided. The ADN-W C4 unit is built with a broadband twin loudspeaker system for decentralized sound reinforcement. A screw-on microphone socket is provided to connect an ADN-W gooseneck microphone. The unit offers more than 20 hours operating time with exchangeable ADN-W BA battery packs. This unit can be charged in the ADN-W case or using a separate power supply. Battery pack, gooseneck and mic capsule are included. (The case is sold separately.) - Over 20 hours operating time on Lithium-Ion battery packs
- Next key / Priority key for controlling delegate units
- 3.5 mm headphone socket and headphone volume control
In the Box Sennheiser ADN-W C4 Wireless Chairperson Unit and 19.7" Gooceneck with ME36 Hypercardioid Capsule ADN-W Mic 36-50 Rechargeable Battery Pack Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser ADN-W C4 Wireless Chairperson Unit and 19.7" Gooceneck with ME36 Hypercardioid Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser ADN-W C4 Specs | Frequency Range | 2.4 / 5.1 to 5.9 GHz | | RF Output Power | 25 to 100 mW | | Antenna Connector | Built-in PCB antennas with pattern diversity | | Coverage Area | Max: 30 m / 100' to ADN-W AM antenna module | | Power Supply | 7.4 VDC via ADN-W BA battery pack | | Charging Time | Approx. 4 hours | | Gooseneck | 19.7" (50 cm) gooseneck with ME36 hypercardioid capsule | | Frequency Response | 40 Hz to 20 kHz | | Audio Capability | 16-bit / 32 kHz | | Headphone Connector | 1/8" (3.5 mm) stereo jack socket | | Volume Control | Headphone: Yes | | Headphone Output Level | 50 mW / 16 Ω | | Operating Time | Approx. 20 hours with battery pack | | Operating Temperature | 41 to 113°F (5 to 45°C) | | Operating Relative Humidity | 20 to 80% | | Dimensions (W x L x H) | 7.3 x 7.1 x 2.6" (185 x 180 x 67 mm) without gooseneck microphone | | Weight | 2.07 lb (940 g) including battery pack
Mic: 4.2 oz (119 g) |
