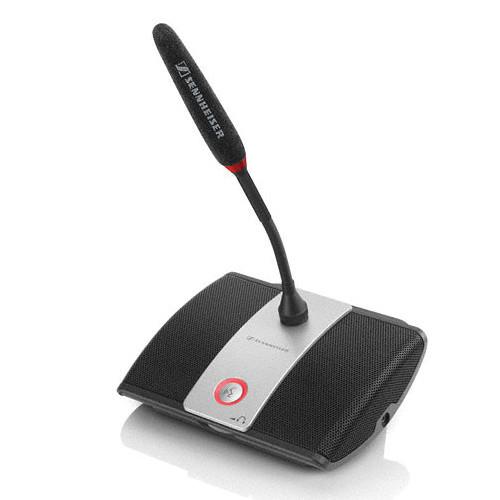

User Manual for Sennheiser ADN-WD4 Wireless Delegate Unit and 19.7" Gooseneck with ME36 Hypercardioid Capsule Click to enlarge the picture
Contents of the user manual for the Sennheiser ADN-WD4 Wireless Delegate Unit and
- Product category: Assistive Listening Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Assistive Listening Systems
|
User manual for the Sennheiser ADN-WD4 Wireless Delegate Unit and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The ADN-WD4 Wireless Delegate Unit and 19.7" Gooseneck with ME36 Hypercardioid Capsule by Sennheiser is for controlling delegate units in conference meetings. It is used in applications such as video conferencing, meeting rooms, boardrooms and more. It features 128-bit AES encryption and provides interference-free transmission in the 2.4 GHz and 5 GHz bands. It is built with a microphone key that functions either as an On/Off switch or as a Request-to-speak button. The ADN-WD4 unit is built with a broadband twin loudspeaker system for decentralized sound reinforcement. A screw-on microphone socket is provided to connect an ADN-W gooseneck microphone. The unit offers more than 20 hours operating time with exchangeable ADN-W BA battery packs. This unit can be charged in the ADN-W case or using a separate power supply. Battery pack, gooseneck and microphone capsule are included. (Case is sold separately.) - Over 20 hours operating time on Lithium-Ion battery packs
- Wireless delegate unit offers great speech intelligibility and ease of use
In the Box Sennheiser ADN-WD4 Wireless Delegate Unit and 19.7" Gooseneck with ME36 Hypercardioid Capsule Battery Pack ADN-W 36-50 Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser ADN-WD4 Wireless Delegate Unit and 19.7" Gooseneck with ME36 Hypercardioid Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser ADN-W D4 Specs | Frequency Range | 2.4 / 5.1 to 5.9 GHz | | RF Output Power | 25 to 100 mW | | Antenna Connector | Inbuilt PCB antennas with pattern diversity | | Coverage Area | Max: 30 m / 100' to ADN-W AM | | Power Supply | 7.4 VDC via ADN-W BA | | Charging Time | Approx. 4 hours | | Gooseneck | 19.7" (50 cm) gooseneck with ME36 lobar capsule | | Frequency Response | 40 Hz to 20 kHz | | Audio Capability | 16 bit / 32 kHz | | Headphone Output Level | 50 mW / 16 Ω | | Operating Time | Approx. 20 hours with battery pack | | Operating Temperature | 41 to 113 ° F (5 to 45 ° C) | | Operating Relative Humidity | 20 to 80% | | Dimensions (W x L x H) | 7.3 x 7.1 x 2.6" (185 x 180 x 67 mm) | | Weight | 33 oz (940 g)
Mic: 4.1 oz (116g) |
