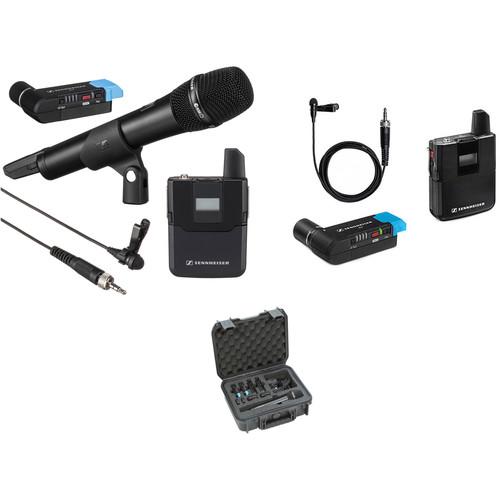

Sennheiser AVX 2-Person Digital Camera-Mount Wireless

User Manual for Sennheiser AVX 2-Person Digital Camera-Mount Wireless Combo Microphone System with Case Kit

• Product category: Wireless Systems Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Wireless Systems

Product description

• Sennheiser AVX-Combo SET Digital Camera-Mount Wireless Combo Microphone System (1.9 GHz)
  • Sennheiser AVX Digital Wireless Audio System: Hands-On Review
  The ultra-compact Sennheiser AVX-Combo SET provides professional videographers, video journalists, or vloggers with a dependable wireless microphone system that's so easy to use, it's like having a dedicated sound engineer on set handling audio tasks.Made with simplicity in mind, but without compromising audio quality, this self-configuring digital system handles time-consuming frequency setup and mic-level adjustments for you, so you're ready to shoot within seconds. Now, you can focus on the other critical elements vying for your attention during a shoot, and confidently record crisp, clear audio on your camcorder, DSLR, or mirrorless camera.This combo set offers a flexible solution by including a bodypack transmitter, an ME 2-II omnidirectional lavalier mic, and a handheld transmitter equipped with an MMD 42 omnidirectional capsule. The lav provides a discreet hands-free mic option, while the handheld reporter mic features enhanced wind reduction and a wide, forgiving pickup pattern that delivers intelligible speech, even when the mic is moving between speakers. The system is ideal for wedding and corporate videos, documentaries, or outdoor interviews.It should be noted that while this system includes two microphones, only one can be used at a time.

  It Goes Where You Go

  • • The lightweight AVX system is easy to carry with you when every ounce counts.
    • The roadworthy bodypack transmitter features a rugged metal chassis with a form factor even smaller than the EW G4. A locking connector ensures that your lav doesn’t detach at a critical moment, while a convenient switch allows you to mute your mic. The display shows battery life and signal strength.
    • The robust handheld transmitter also features a rugged metal chassis and a display that shows battery life and signal strength.
    • The discreet receiver plugs directly into the XLR input of your camcorder and rotates 320° to get out of the way of lights or other accessories you may have mounted on your camera. An AF button on the receiver allows you to adjust the output level to your camera, if necessary. In addition, the receiver comes with a shoe mount and 3.5mm output cable, making it a great fit for DSLR and mirrorless shooters.

  Setup Made Simple

  Automatically Finds a Clean Channel
  • • The digital AVX automatically finds the cleanest frequency in the 1.9 GHz band as soon as you power up the receiver.
  Fast Pairing
  • • A long press of the Pair button on both receiver and transmitter links the two devices. Once the indicator LED turns green, you’re good to go.
    (Note that the AVX is a peer-to-peer system, meaning the transmitter can only be paired with one receiver).

  Clear and Natural Speech

  • • The ever-popular ME 2-II omnidirectional lavalier microphone delivers a natural sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the speaker's head moves away from the mic.
    • The handheld transmitter features an interchangeable MMD 42 dynamic omnidirectional capsule that minimizes handling and wind noise to deliver a clear sound in live reporting and broadcasting environments.
    • If you are working on a trade-show floor, busy street, or at a sporting event, you can swap out the included omni capsule with an MMD 835 cardioid capsule (available separately), that's better suited for noisy environments.
    • The AVX's automatic mic-level control takes full advantage of the system's wide dynamic range to deliver consistent speech without clipping and distortion, even when your talent goes from a whisper to a shout.
    • The system delivers 24-bit/48 kHz audio with an extended 20 Hz to 20 kHz frequency response, for pristine, nuanced recordings.

  Protected Wireless Transmission

  • • The AVX operates in the license-free 1.9 GHz band—away from TV and Wi-Fi interference—to create a wireless peer-to-peer connection, for clean audio without dropouts at a range up to 98’.
    • The system automatically finds the cleanest frequency, free from RF interference.
    • If interference is detected, the AVX automatically increases the power on the transmitter—up to 250 mW—to overcome the problem.
    • If the increase in power isn’t sufficient, the system substitutes a clear frequency well before the audio signal itself is affected, for clean, worry-free sound.

  Smart Power Management

  • • The AVX transmitters and receiver feature removable, lithium-ion batteries that are recharged via the USB port.
    • The transmitters give you up to 15 hours of battery life, while the receiver is limited to 4 hours.
    • The receiver turns itself on and off when it senses phantom power from your camcorder, extending battery life in the field.
    • All three components can also be powered through their USB ports allowing them to run for numerous hours on a USB power pack or indefinitely if you have access to AC.
    • The included BA 30 battery for the bodypack transmitter, BA 10 for the handheld transmitter, and BA 20 for the receiver are also available separately, so you can have fully charged spare batteries ready in the field.

  Other Features

  • • Up to eight AVX systems can operate simultaneously in the same area
    • AES 256-bit encryption for secure communication
    • Made in Germany
  UPC: 615104133501
• Sennheiser AVX-ME2 SET Digital Camera-Mount Wireless Omni Lavalier Microphone System (1.9 GHz)
  • Sennheiser AVX Digital Wireless Audio System: Hands-On Review
  The ultra-compact Sennheiser AVX-ME2 SET provides professional videographers, video journalists, and vloggers with a dependable wireless microphone system that's so easy to use, it's like having a dedicated sound engineer on set handling audio tasks.Made with simplicity in mind, but without compromising audio quality, this self-configuring digital system handles time-consuming frequency setup and mic-level adjustments for you, so you're ready to shoot within seconds. Now, you can focus on the other critical elements vying for your attention during a shoot, and confidently record crisp, clear audio on your camcorder, DSLR, or mirrorless camera.In addition to a bodypack transmitter and camera-mount receiver, this set comes with a black ME 2-II omnidirectional lavalier mic, ideal for projects ranging from wedding and corporate videos to documentaries and hands-free interviews.

  It Goes Where You Go

  • • The lightweight AVX system is easy to carry with you when every ounce counts. The roadworthy bodypack transmitter features a rugged metal chassis with a form factor even smaller than the ew G4. Its locking connector ensures that your lav doesn’t detach at a critical moment, while a convenient switch allows you to mute your mic. The display shows battery life and signal strength.
    • The discreet receiver plugs directly into the XLR input of your camcorder and rotates 320° to get out of the way of lights or other accessories you may have mounted on your camera. An AF button on the receiver allows you to adjust the output level to your camera, if necessary. In addition, the receiver comes with a shoe mount and 3.5mm output cable, making it a great fit for DSLR and mirrorless shooters.

  Setup Made Simple

  Automatically Finds a Clean Channel
  • • The digital AVX automatically finds the cleanest frequency in the 1.9 GHz band as soon as you power up the receiver.
  Fast Pairing
  • • A long press of the Pair button on both receiver and transmitter links the two devices. Once the indicator LED turns green, you’re good to go.
    (Note that the AVX is a peer-to-peer system, meaning the transmitter can only be paired with one receiver.)

  Clear and Natural Speech

  • • The ever-popular ME 2-II omnidirectional lavalier microphone delivers a natural sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the speaker's head moves away from the mic.
    • The AVX's automatic mic-level control takes full advantage of the system's wide dynamic range to deliver consistent speech without clipping and distortion, even when your talent goes from a whisper to a shout.
    • The system delivers 24-bit/48 kHz audio with an extended 20 Hz to 20 kHz frequency response, for pristine, nuanced recordings.

  Protected Wireless Transmission

  • • The AVX operates in the license-free 1.9 GHz band—away from TV and Wi-Fi interference—to create a wireless peer-to-peer connection, for clean audio without dropouts at a range up to 98’.
    • The system automatically finds the cleanest frequency, free from RF interference.
    • If interference is detected, the AVX automatically increases the power on the transmitter—up to 250 mW—to overcome the problem.
    • If the increase in power isn’t sufficient, the system substitutes a clear frequency well before the audio signal itself is affected, for clean, worry-free sound.

  Smart Power Management

  • • The AVX transmitter and receiver both feature removable, lithium-ion batteries that are recharged via the USB port.
    • The transmitter gives you up to 15 hours of battery life, while the receiver is limited to 4 hours.
    • The receiver turns itself on and off when it senses phantom power from your camcorder, extending battery life in the field.
    • The transmitter and receiver can also be powered through their USB ports, allowing them to run for numerous hours on a USB power pack or indefinitely, if you have access to AC.
    • The included BA 30 battery for the transmitter and BA 20 for the receiver are also available separately, so you can have fully charged spare batteries ready in the field.

  Other Features

  • • Up to eight AVX systems can operate simultaneously in the same area
    • AES 256-bit encryption for secure communication
    • Made in Germany
  UPC: 615104243057
• SKB iSeries 3I-1209-4-BH2 Waterproof Case for Sennheiser AVX Wireless Mic Systems
  • Sennheiser AVX Digital Wireless Audio System: Hands-On Review
  The iSeries 3I-1209-4-BH2 Waterproof Case from SKB features a custom foam interior designed to accommodate up to two Sennheiser AVX wireless mic systems, including two EKP XLR receivers, two SK bodypack transmitters, one AVX-835 handheld mic transmitter, and five spare batteries. It also features a large accessory pocket for MKE2 lavalier mics, cables, shoe mounts, and more. Lightweight (at 3.6 lb), the injection-molded waterproof case is constructed from high-strength polypropylene copolymer resin, and is equipped with a built-in gasket for an airtight and submersible seal (IP67-rated). Furthermore, the case resists corrosion, solvents, fungus, and impact damage. The molded-in hinge, trigger-release latch system, snap-down rubber over-molded cushion-grip handle, and automatic ambient pressure-equalization valve all contribute to its military-grade design.
  • Form-cut interior accommodates up to two EKP XLR receivers, two SK bodypack transmitters, one AVX-835 handheld mic transmitter, five spare batteries (2 x EKP, 2 x SK, 1 x AVX-835)
  • One large accessory pocket for MKE2 lavalier mics, cables, shoe mounts, and more
  • High-strength injection-molded polypropylene copolymer resin case
  • Submersible design with water- and dust-proof gasket seal (IP67-rated)
  • Resistant to impact damage, UV, solvents, corrosion, and fungus
  • Automatic ambient pressure-equalization valve
  • Stainless-steel molded-in hinges
  • Trigger-release latch system
  • Comfortable, snap-down rubber over-molded cushion-grip handle
  • Lightweight at 3.6 lb
  • Made in the USA
  UPC: 789270999282

• AVX-Combo SET Digital Camera-Mount Wireless Combo Microphone System (1.9 GHz) wsbcqccxywcuxfufffbzsrc
• ME 2-II Omnidirectional Lavalier Microphone (Black)
• Clip
• Metal Windscreen
• SK AVX Digital Bodypack Transmitter (1.9 GHz)
• BA 30 Rechargeable Battery Pack
• Pouch
• SKM AVX 4 Digital Handheld Transmitter with No Microphone Capsule (1.9 GHz)
• MMD 42-1 Omnidirectional Dynamic Microphone Capsule
• BA 10 Rechargeable Battery Pack
• Mic Clip
• Pouch
• AVX EKP Camera-Mount Plug-In Receiver (1.9 GHz)
• BA 20 Rechargeable Battery Pack
• XLR to 3.5mm Cable
• Shoe Mount
• Belt Clip
• USB Charger
• USB Charging Cable
• Limited 2-Year Warranty

• AVX-ME2 SET Digital Camera-Mount Wireless Omni Lavalier Microphone System (1.9 GHz)

• SKB - iSeries 3I-1209-4-BH2 Waterproof Case for Sennheiser AVX Wireless Mic Systems wsbcqccxywcuxfufffbzsrc

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser AVX-Combo SET Digital Camera-Mount Wireless Combo Microphone System (1.9 GHz)

  Wireless Transmission	Digital 1.9 GHz
  Included Transmitters	1 x Bodypack with Microphone 1 x Handheld
  Diversity	Antenna Diversity
  RF Frequency Band	1920 to 1930 MHz
  Max Operating Range	98' / 29.9 m (Line of Sight)
  Max Systems per Setup	8
  Sample Rate/Resolution	48 kHz / 24-Bit
  Latency	19 ms
  Dynamic Range	>120 dBA
  Encryption	AES 256
  Modulation	GFSK (with Back Channel)

  Form Factor	Camera-Mount
  Mounting Options	Plug-In, Shoe-Mount (with Included Hardware)
  Antenna	1 x External, Fixed (Top-Mount)
  Number of Audio Channels	1
  Audio I/O	1 x XLR 3-Pin Male Unbalanced Output
  Audio Output Level	XLR Output: -30 to 0 dB (Unbalanced)
  Network I/O	None
  Network Protocols	None
  Word Clock I/O	None
  USB Port	1 x Micro-USB (Bus Power, Charging)
  Approximate RF Sensitivity	15 dBm
  Power Requirements	Battery, USB Bus Power
  Battery Type	1 x Sennheiser Accupack (Included)
  Approx. Battery Life	4 Hours (Lithium Rechargeable)
  Display & Indicators	1 x LED (Battery Status, Level)
  Housing	Metal
  Dimensions	0.8 x 2.0 x 3.2" / 21.0 x 51.0 x 81.0 mm
  Weight	3.1 oz / 87.0 g (with Batteries)

  Form Factor	Bodypack with Microphone
  RF Output Power	Up to 250 mW
  Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
  Pad	None
  Muting	Mute Switch
  Audio Input Level	1.5 V RMS (Mic Level) 3.1 V RMS (Line Level)
  Signal Processing	None
  Frequency Response	20 Hz to 20 kHz (Line)
  Antenna	1 x External, Fixed (Beltpack)
  Power Requirements	Battery, USB Bus Power
  Battery Type	1 x Sennheiser Accupack (Included)
  Approx. Battery Life	15 Hours (Lithium Rechargeable)
  USB Port	1 x Micro-USB (Bus Power, Charging)
  Display & Indicators	1 x LCD (Battery Status, Signal Strength)
  Housing	Metal
  Dimensions	0.9 x 2.6 x 3.9" / 24.0 x 65.0 x 100.0 mm
  Weight	3.1 oz / 87.0 g (without Batteries)

  Form Factor	Lavalier
  Sound Field	Mono
  Transducer	Condenser
  Polar Pattern	Omnidirectional
  Frequency Range	50 Hz to 18 kHz
  Equivalent Noise Level	36 dB A-Weighted
  Maximum SPL	130 dB SPL Peak
  Output Connectors	1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
  Cable Length	5.25' / 1.6 m
  Operating Voltage	7.5 V
  Diameter	0.41" / 10.5 mm

  Form Factor	Handheld
  RF Output Power	Up to 250 mW
  Audio I/O	None
  Frequency Response	50 Hz to 20 kHz (Mic)
  Antenna	1 x External, Fixed (Handheld)
  Power Requirements	Battery, USB Bus Power
  Battery Type	1 x Sennheiser Accupack (Included)
  Approx. Battery Life	15 Hours (Lithium Rechargeable)
  USB Port	1 x Micro-USB (Bus Power, Charging)
  Display & Indicators	1 x LCD (Battery Status, Signal Strength)
  Housing	Metal
  Dimensions	1.6 x 10.8" / 40.0 x 275.0 mm
  Weight	9.9 oz / 282.0 g (without Batteries)

  Form Factor	Handheld Capsule
  Sound Field	Mono
  Transducer	Dynamic
  Polar Pattern	Omnidirectional
  Maximum SPL	154 dB SPL Peak
  Sensitivity	1.8 mV/Pa

  Box Dimensions (LxWxH)	12.7 x 6.8 x 3.0"

• Sennheiser AVX-ME2 SET Digital Camera-Mount Wireless Omni Lavalier Microphone System (1.9 GHz)

  Wireless Transmission	Digital 1.9 GHz
  Included Transmitters	1 x Bodypack with Microphone
  Diversity	Antenna Diversity
  RF Frequency Band	1920 to 1930 MHz
  Max Operating Range	98' / 29.9 m (Line of Sight)
  Max Systems per Setup	8
  Sample Rate/Resolution	48 kHz / 24-Bit
  Latency	19 ms
  Dynamic Range	>120 dBA
  Encryption	AES 256
  Modulation	GFSK (with Back Channel)

  Form Factor	Camera-Mount
  Mounting Options	Plug-In, Shoe-Mount (with Included Hardware)
  Antenna	1 x External, Fixed (Top-Mount)
  Number of Audio Channels	1
  Audio I/O	1 x XLR 3-Pin Male Unbalanced Output
  Audio Output Level	XLR Output: -30 to 0 dB (Unbalanced)
  Network I/O	None
  Network Protocols	None
  Word Clock I/O	None
  USB Port	1 x Micro-USB (Bus Power, Charging)
  Approximate RF Sensitivity	15 dBm
  Power Requirements	Battery, USB Bus Power
  Battery Type	1 x Sennheiser Accupack (Included)
  Approx. Battery Life	4 Hours (Lithium Rechargeable)
  Display & Indicators	1 x LED (Battery Status, Level)
  Housing	Metal
  Dimensions	0.8 x 2.0 x 3.2" / 21.0 x 51.0 x 81.0 mm
  Weight	3.1 oz / 87.0 g (with Batteries)

  Form Factor	Bodypack with Microphone
  RF Output Power	Up to 250 mW
  Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
  Pad	None
  Muting	Mute Switch
  Audio Input Level	1.5 V RMS (Mic Level) 3.1 V RMS (Line Level)
  Signal Processing	None
  Frequency Response	20 Hz to 20 kHz (Line)
  Antenna	1 x External, Fixed (Beltpack)
  Power Requirements	Battery, USB Bus Power
  Battery Type	1 x Sennheiser Accupack (Included)
  Approx. Battery Life	15 Hours (Lithium Rechargeable)
  USB Port	1 x Micro-USB (Bus Power, Charging)
  Display & Indicators	1 x LCD (Battery Status, Signal Strength)
  Housing	Metal
  Dimensions	0.9 x 2.6 x 3.9" / 24.0 x 65.0 x 100.0 mm
  Weight	3.1 oz / 87.0 g (without Batteries)

  Form Factor	Lavalier
  Sound Field	Mono
  Transducer	Condenser
  Polar Pattern	Omnidirectional
  Frequency Range	50 Hz to 18 kHz
  Equivalent Noise Level	36 dB A-Weighted
  Maximum SPL	130 dB SPL Peak
  Output Connectors	1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
  Cable Length	5.25' / 1.6 m
  Operating Voltage	7.5 V
  Diameter	0.41" / 10.5 mm

  Box Dimensions (LxWxH)	12.7 x 6.8 x 3.0"

• SKB iSeries 3I-1209-4-BH2 Waterproof Case for Sennheiser AVX Wireless Mic Systems

  Material of Construction	High-strength injection-molded polypropylene copolymer resin case Custom form-cut PE (polyethylene) foam interior
  Water and Dust Resistance	Submersible with water- and dust-proof gasket seal (MIL-STD-C-4150J, IP67-rated)
  Construction	Resistant to impact damage Resistant to UV, solvents, corrosion, fungus (MIL-STD-810F) Automatic ambient pressure-equalization valve (MIL-STD-648C) Stainless-steel molded-in hinges Trigger-release latch system
  Carrying / Transport Options	Snap-down rubber over-molded cushion-grip handle
  Interior Dimensions (L x W x D)	12.00 x 9.00 x 4.50" / 30.48 x 22.86 x 11.43 cm
  Exterior Dimensions (L x W x D)	13.18 x 11.12 x 5.21" / 33.48 x 28.24 x 13.23 cm
  Weight	3.6 lb / 1.63 kg

  Box Dimensions (LxWxH)	13.6 x 11.9 x 6.2"

Rating

Discussion
