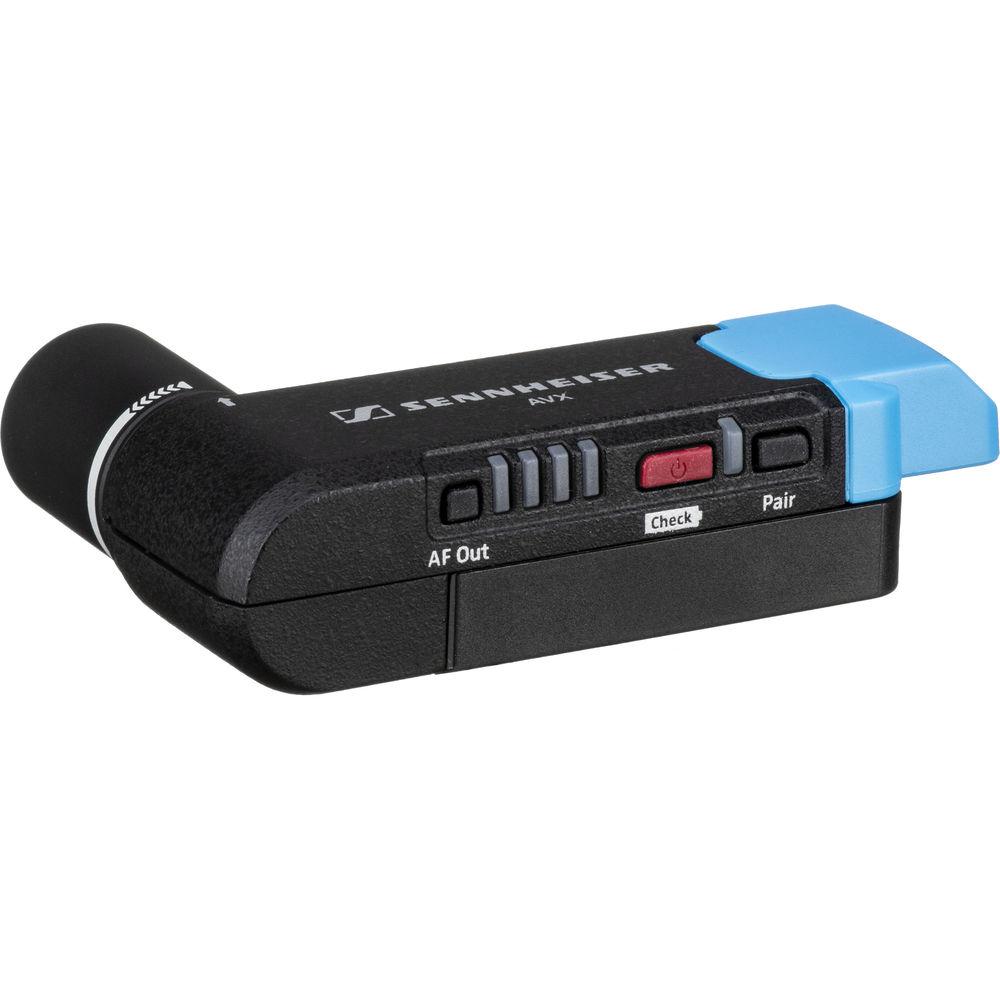

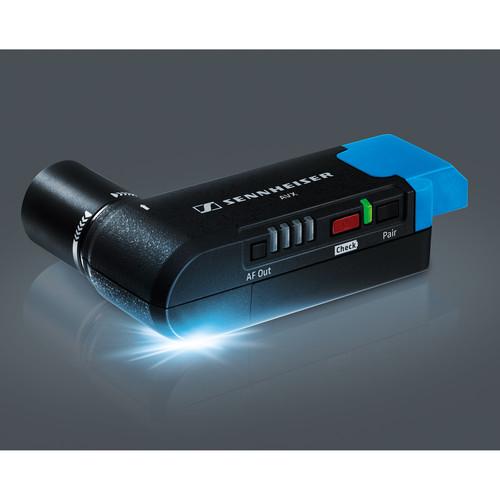

User Manual for Sennheiser AVX EKP Camera-Mount Plug-In Receiver Click to enlarge the picture
Contents of the user manual for the Sennheiser AVX EKP Camera-Mount Plug-In Receiver
- Product category: Wireless Receivers Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Receivers
 |
User manual for the Sennheiser AVX EKP Camera-Mount Plug-In Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

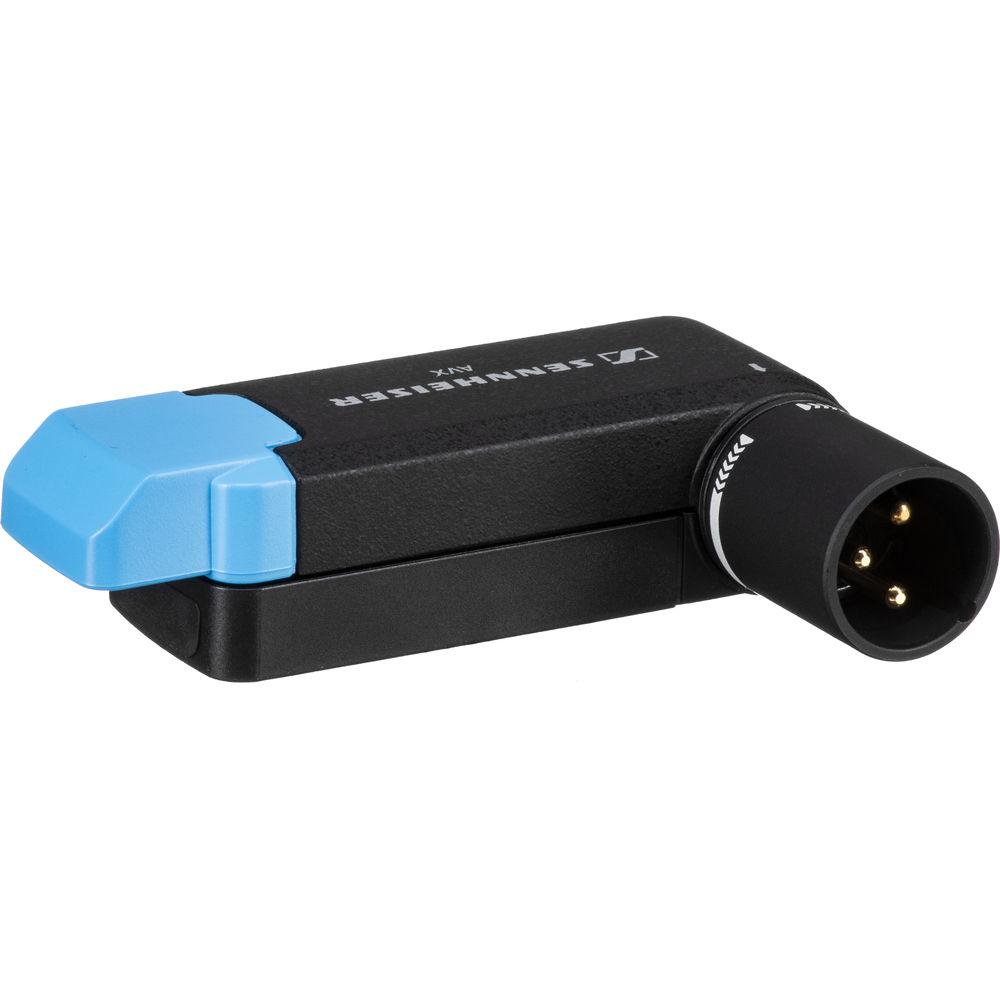

Product description Hands-On Review: Sennheiser AVX Camera-Mount Combo Wireless Set Read More Designed in collaboration with creative professionals for film and electronic news gathering (ENG) applications, the Sennheiser AVX EKP Camera-Mount Plug-In Receiver features an innovative pivoting design for attaching to a video camera's XLR microphone input without getting in the way of other camera accessories. The receiver rotates both clockwise and counter clockwise. It will click into place as opposed to a tension based design.
The digital receiver is fully self-configuring which makes setup fast and easy, while the system's link protection helps ensure reliable audio transmission. The unit will switch on and off automatically with the +48V phantom power from the camera to save battery power. It will automatically match the camera's input sensitivity without having to adjust the audio level on the wireless microphone.
The receiver comes equipped with a set of accessories for operation with DSLR cameras including a BA 20 Energy Pack, a light shoe mount, an XLR to 3.5mm adapter for use with DSLRs, a belt clip, a USB cable, and a USB charger. - Optimized Dynamic Range
- Manages overload and distortions
- Plug and Record
- Enables fast setup
- Link Protection
- Maintains reliable transmission
- Plugs Directly Into XLR Audio Input
- Eliminates loose dangling cables for a more streamlined setup
- Ultra Compact Receiver
- Offers less weight with better space-savings
- Switches On/Off by P48 Phantom Power
- Maximizes operation time
- Auto Frequency Management
- Streamlines and simplifies the setup process
- AES 256 Encryption
- Protects the system from signal interception by unauthorized parties
- License Free Operation
- Provides a convenient wireless transmission solution
- Metal Housing
- Enables daily use for professional applications
UPC: 615104243088 In the Box Sennheiser AVX EKP Camera-Mount Plug-In Receiver (1.9 GHz) BA 20 Energy Pack XLR to 1/8" (3.5 mm) DSLR Adapter Cable Light Shoe Mount Belt Clip USB Cable USB Charger Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser AVX EKP Camera-Mount Plug-In Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser EKP AVX Specs | | | Frequency Response | 20 to 20,000 Hz | | Dynamic Range | > 120 dB (A) | | THD | Typical 0.1% | | Audio Sampling | 24-bit at 48 kHz | | Signal to Noise Ratio | > 90 dB (A) | | RF Frequency Range | 1880 to 1930 MHz (Country Specific) | | Modulation | GFSK with Return Channel | | Diversity | TDMA Fast Switching Antenna Diversity | | Latency | 19 ms | | Temperature Range | Operation: 14 to 131° F / -10 to +55° C
Storage: -4 to 158°F / -20 to +70°C | | Simultaneous Operation of Units | Up to 8 Units under Optimal Conditions | | | | RF Sensitivity | <-90 dBm | | Transmission Power | Typical 15 dBm E.I.R.P. | | Audio Output | XLR Male, Balanced | | Audio Output Level | -30 dBu to 0 dBu in 4 Steps | | Power Supply | BA 20 (Li-ION 3.7 VDC), Alternative USB | | Operation Time | > 4 Hours | | Weight | 3 oz / 85 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 12.7 x 6.7 x 2.9" |
