User Manual for Sennheiser Dante Kit MEB 114-S with SL DI 4 XLR Dante Interface & Four MEB 114-S Boundary Layer Microphones Click to enlarge the picture
Contents of the user manual for the Sennheiser Dante Kit MEB 114-S with
- Product category: Gooseneck Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Gooseneck Microphones
|
User manual for the Sennheiser Dante Kit MEB 114-S with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

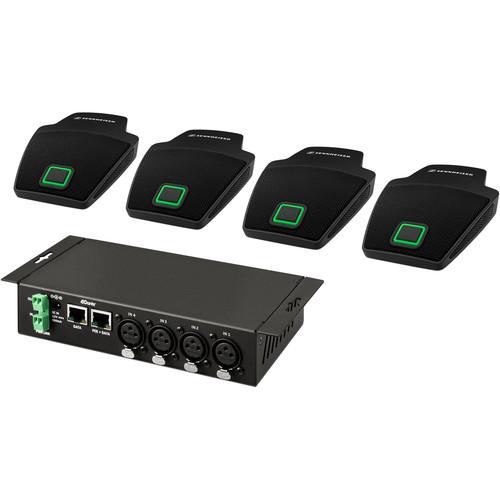

Product description The Dante Kit MEB 114-S from Sennheiser is composed of a SL DI 4 XLR Dante interface and four MEB 114-S boundary layer microphones. The included microphones feature a programmable microphone button and a bi-color LED ring for status indication. Their rugged housing and high-quality microphone capsule provides speech intelligibility.

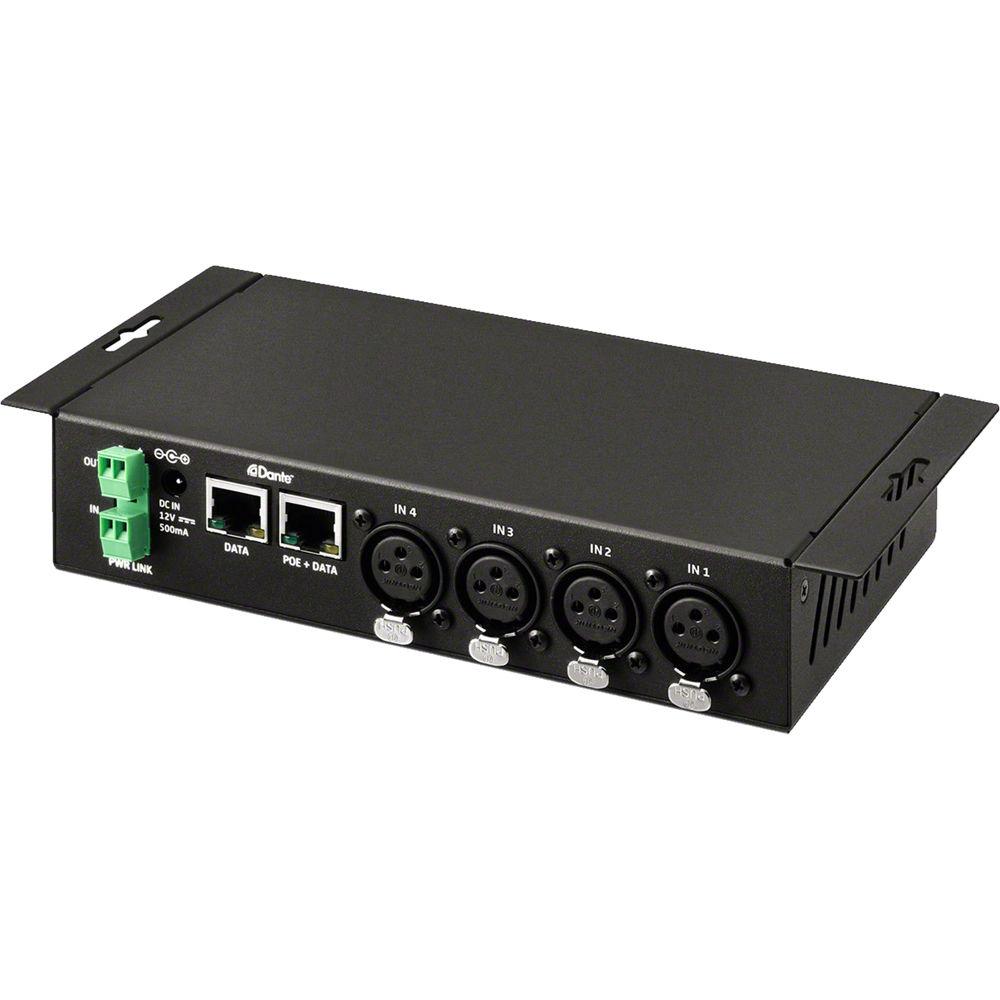

The SL DI 4 XLR four-input Dante interface allows for adding analog microphone systems to a Dante system. Sennheiser XLR microphones, wireless microphone receivers, and SpeechLine Wired installation microphones are compatible with the SL DI 4 XLR interface. - SL DI 4 XLR Four Input Dante Preamp & Interface The SL DI 4 XLR from Sennheiser is a four input Dante preamp and interface for wireless microphone receivers with mic/line inputs to a Dante system. It can be mounted and used almost anywhere close to audio sources and minimizing interference-prone analog wiring in wireless applications. Featuring four balanced mix/line inputs, each with software-selectable 48V phantom power and different gain levels, the interface provides front-panel LED indicators for showing each channel's gain and phantom power status, which makes for easy troubleshooting. Plus, it has two network connections to allow Dante Daisy Chaining. This allows you to have multiple SL DI 4 XLR units and use a single Cat-5 home-run connection to a network switch for daisy chaining power. The unit is powered by either an external 12 VDC or any PoE (Power over Ethernet) network switch. All adjustable parameters such as mic/line gain and phantom power are software controlled.
- Four XLR balanced and RF filtered mic/line inputs
- Gain is individually adjustable per channel via software
- 802.3af compliant PoE (Power over Ethernet) powered to work with any compliant PoE network switch, or an external +12 VDC power supply
- 48V phantom power – powers virtually all types of phantom powered microphones typically used in installed AV systems. Phantom power is switchable per channel via software
- ID LED allows easy identification of the SL DI 4 XLR
- Dante Daisy Chaining allows multiple SL DI 4 XLRs to be connected over a single home run to the Ethernet switch

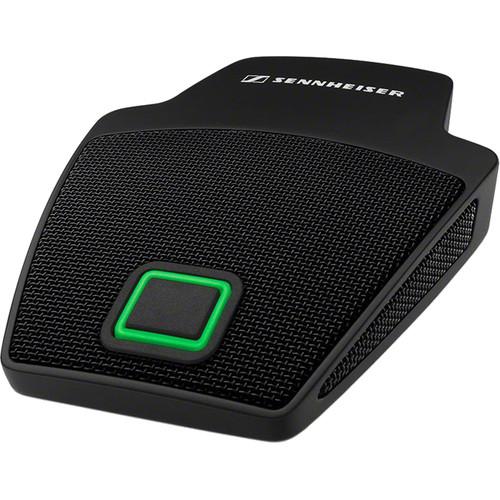

UPC: 615104271395 - MEB 114-S Cardioid Boundary Microphone (Black) The black MEB 114-S Cardioid Boundary Microphone from Sennheiser is for capturing audio in applications such as conferences, teleconferences, presentations in boardrooms, lecture halls, school auditoriums and more. It features a cardioid polar pattern and has a frequency response of 40 Hz to 20 kHz. It also features programmable modes for On, On/Off, PTT, and PTM modes and TTL Logic out for media/camera control systems. It is built with a bi-color LED status indicator.The MEB 114-S boundary microphone allows easy surface installation on tables or ceiling tiles. It is powered by 48V phantom power. This mic provides excellent speech intelligibility and features a low frequency roll off switch on the underside of the unit. The MEB 114 terminates in a mini XLR-3 pin connector. A 9.8' output cable is included to connect to a mixer-amplifier.
- A cardioid pattern has a wide directional characteristic. Sound hitting the rear of the microphone is filtered out completely
- Programmable modes for On, On/Off, PTT, PTM modes
- TTL logic out for media/camera control systems
- Unobtrusive boundary microphone allows for surface installation on tables or ceiling tiles
- Exceptional immunity from RF interference
UPC: 615104230392 In the Box Bundle Items SL DI 4 XLR Four Input Dante Preamp & Interface cyvuebfdvecwduxbru 4 x MEB 114-S Cardioid Boundary Microphone (Black) - 9.8' Mini XLR to 3-Pin XLR Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser Dante Kit MEB 114-S with SL DI 4 XLR Dante Interface & Four MEB 114-S Boundary Layer Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SL DI 4 XLR Four Input Dante Preamp & Interface
| Input Type | Balanced and RF filtered | Gain | 0 dB, +15 dB, + 30 dB, +45 dB, software selectable 10 dB pad, software selectable | Input Impedance | >1.8 kOhms @ any gain | Maximum Input Levels | +18 dBu @ 0 dB gain, with pad +8 dBu @ 0 dB gain, no pad -7 dBu @ +15 dB gain, no pad -22 dBu @ +30 dB gain, no pad -36 dBu @ +45 dB gain, no pad | Phantom Power | +48 V, 10 mAh per input, software selectable | | EIN | -113 dBu | THD+N | <0.02 % @ any gain Input signal 3 dB below maximum | Frequency Response | 20 Hz - 20 kHz | | Type | Standard Ethernet | Connector | Single RJ-45 | Cable | Quality: Cat-5 | Transmission Speed | 100 Mbps | Daisy Chain | 2 units when powered by 802.3af PoE 3 units when powered by external +12 VDC power supply (Sennheiser NT 12-50CS) | | Power Requirements | Class 0 802.3af PoE PD compliant +12 VDC | Power Consumption | 2.7 W (225 mAh) @ +12 VDC, no phantom power 5.5 W (460 mAh) @ +12 VDC, 10 mAh phantom power load per input | Operating Temperature | 32 to 104°F (0 to 40°C) | Dimensions (W x H x D) | 8.6 x 1.5 x 4.7" (219 x 38 x 120 mm) | Weight | 1.7 lb (0.77 kg) | | Box Dimensions (LxWxH) | 12.8 x 7.2 x 2.55" | - MEB 114-S Cardioid Boundary Microphone (Black)
| Transducer | Condenser | Polar Pattern | Cardioid | Frequency Range | 40 Hz to 20 kHz | Equivalent Noise Level | 29 dB A-Weighted 39 dB CCIR | Maximum SPL | 140 dB SPL | Impedance | 200 Ohms | Sensitivity | 10 mV/Pa | Dynamic Range | 111 dB A-Weighted | | Output Connectors | 1 x 5-Pin XLR | Operating Current Consumption | 5.3 mA | Operating Voltage | 48 V | Operating Temperature | 14.00 to 122.00°F / -10 to 50°C | Length | 3.94" / 100 mm | Diameter | 0.98" / 25 mm | Weight | 10.26 oz / 291 g | | Box Dimensions (LxWxH) | 8.1 x 6.8 x 2.4" |
