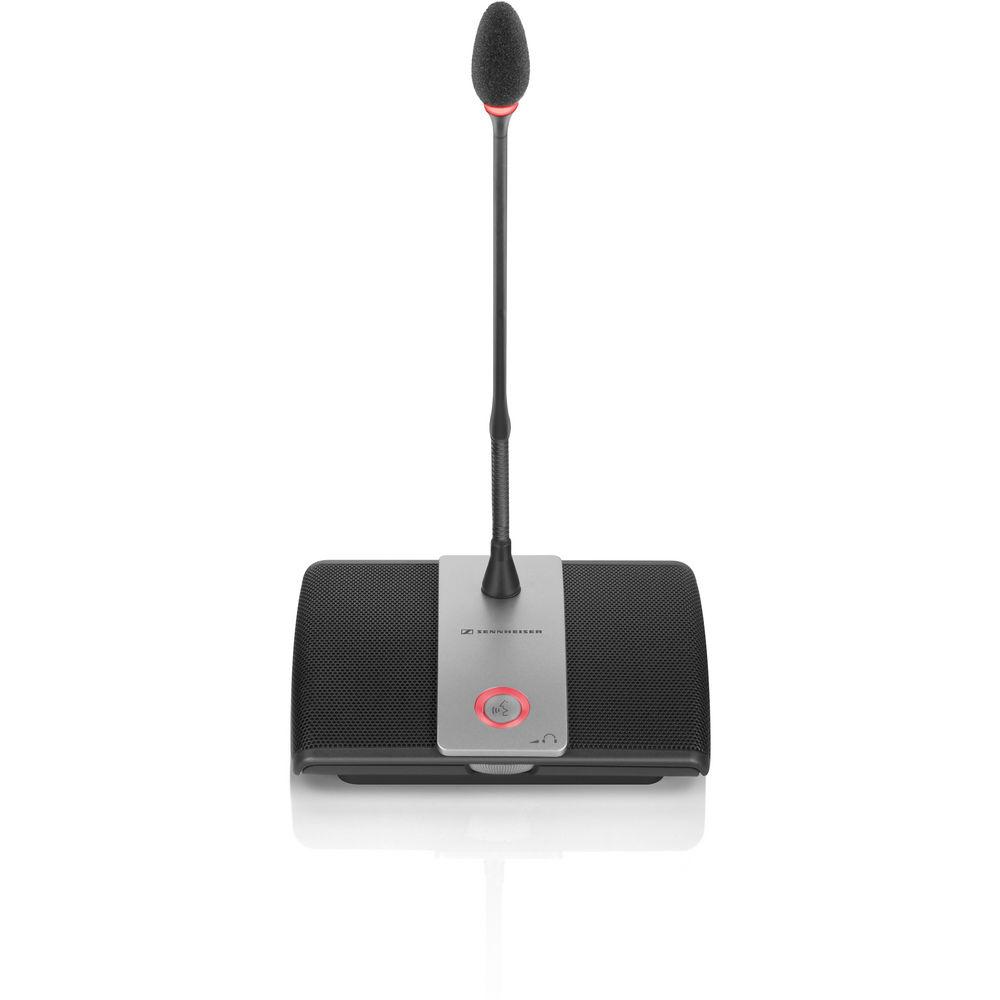

Product description The Sennheiser ADN C1 Digital Chairperson Conferencing Unit is part of Sennheiser's ADN conferencing system. The device connects to the ADN CU1 central unit via Cat 5 cable and functions as a chairperson's microphone and playback speaker. The unit features a flexible 15" super-cardioid gooseneck microphone for capturing audio and dual loudspeakers within the base for audio playback. The microphone unit gives the chairperson control over the list of delegates who have requested to speak when the conference system is set in request mode. The chairperson grants permission to the next person on the request to speak list by pressing the next button. At any time, the chairperson can mute and speak over any delegate simply by pressing and holding the priority key button. - Gooseneck Microphone
- For adjusting to the needs of different people, the unit features a flexible 15" gooseneck microphone
- Super-Cardioid Capsule
- The microphone features a super-cardioid capsule to reduce ambient noise while capturing the sound in front of the microphone
- Microphone Key Button
- When the system is set to direct access or override mode, you simply press and hold down the microphone key button at the base of the unit to speak. When the system is set to request mode, pressing the microphone key button will add you to the list of speakers who are waiting to speak
- Next Button
- When the request mode is active, the chairperson can grant permission to speak to the next person on the request to speak list by pressing the next button
- Priority Button
- At any time, the chairperson may mute all the delegates from speaking and speak over them by pressing and holding the priority button
- LED Indicators
- When the microphone is active, the microphone button on the base of the unit and the LED signal indicator ring below the capsule will glow red
- DSP Limiter
- To prevent clipping, the unit features a built-in DSP limiter
- Headphone Out
- For listening with headphones, the unit includes a 3.5mm headphone jack with volume control

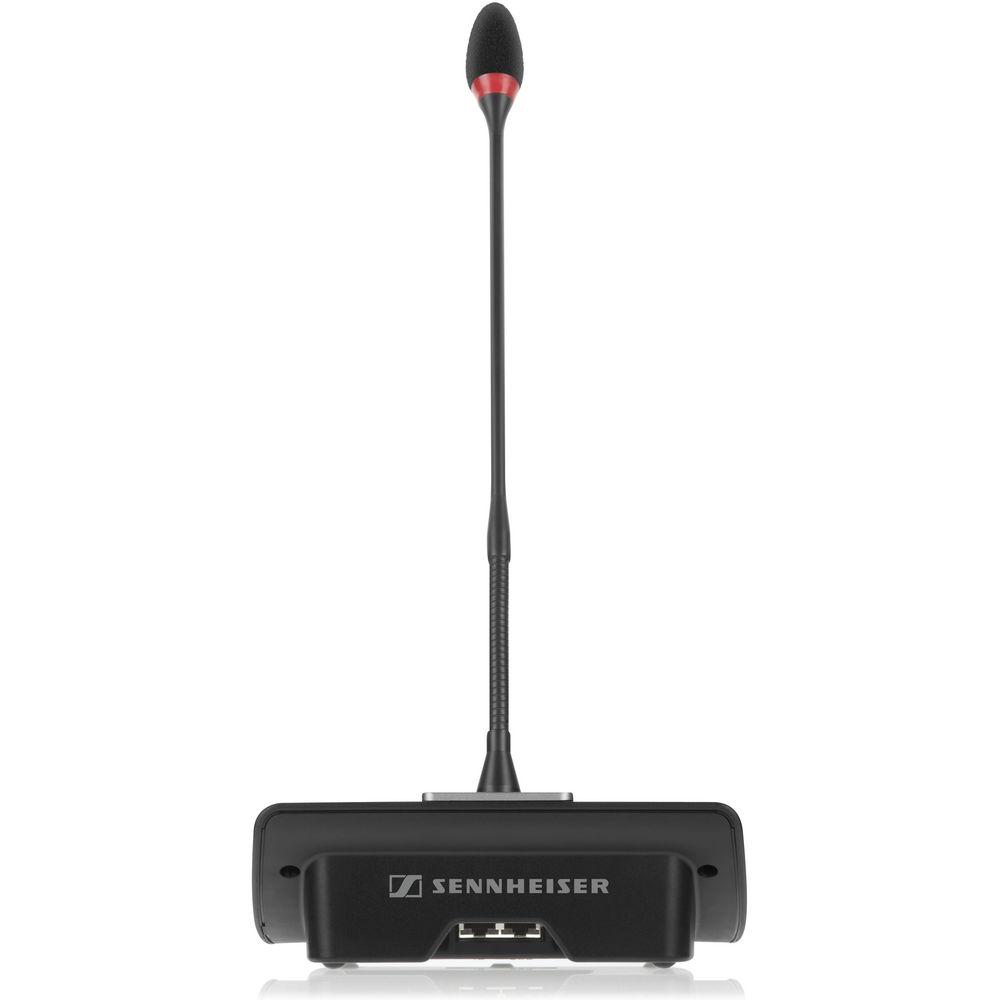

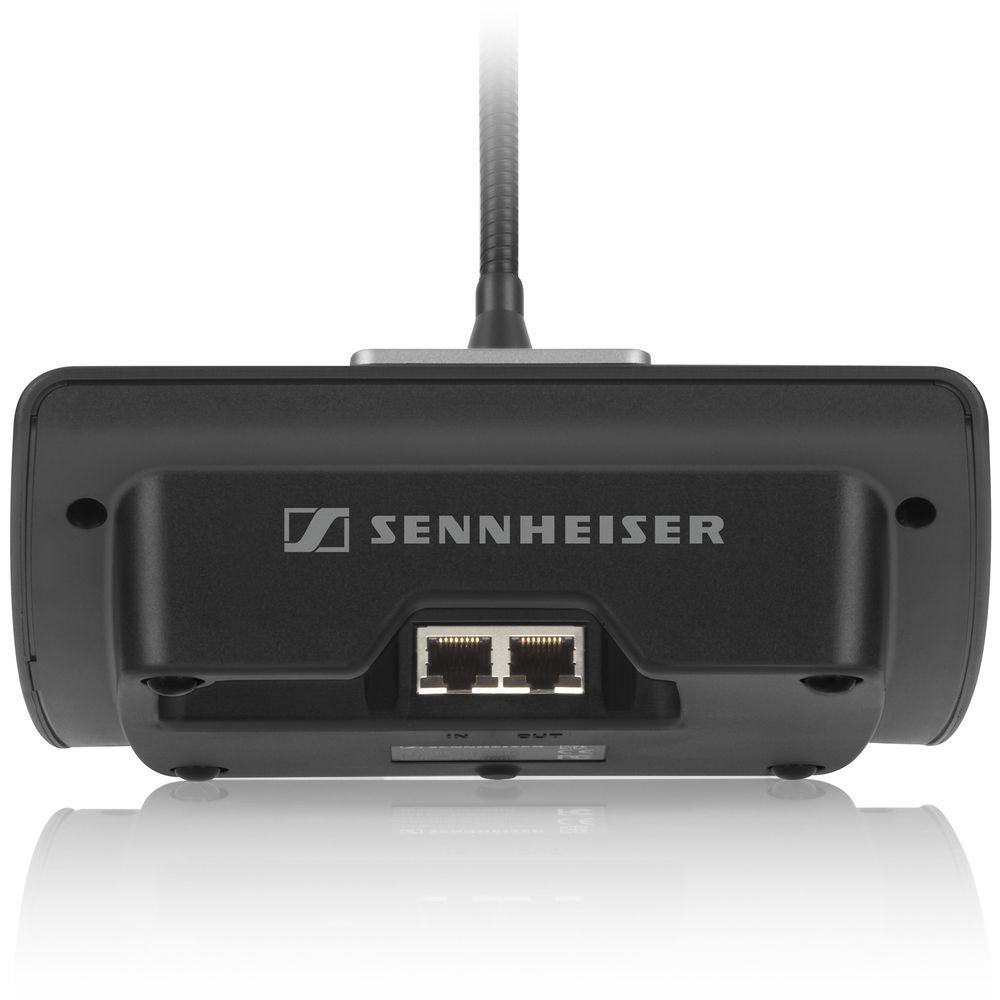

- Hidden Cable Connectors
- The Cat 5 cables connect to the bottom of the conference unit so that the jacks are not visible
- Optional Strain Relief Adapter
- For permanent installations, a cable strain relief adapter may be attached to the base of the unit. This adapter prevents the cables from being accidentally pulled out
UPC: 615104167872 In the Box Sennheiser Digital Chairperson Conference Unit with 15" Gooseneck Microphone Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser Digital Chairperson Conference Unit with 15" Gooseneck Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser ADN C1 Specs | | | Pick-up Pattern | Super-cardioid | | Frequency Response | 190 to 14,500 Hz | | LED INDICATORS | 1 x LED signal Ring
1 x LED in microphone key button | | Headphone Connector | 3.5 mm stereo jack socket | | Output Level | At headphone socket: 50 mW at 16Ω | | THD | 0.03% at 50 mW at 16Ω | | Supply Voltage | 35 to 52.8 V | | Power Consumption | 2 W (without reproduction via loudspeakers) | | | | Frequency Response | 100 to 14,500 Hz | | Signal to Noise Ratio | > 70 dB (A-weighted) | | | | Temperature Range | operation: 10 to 40°C
storage: -25 to 70°C | | Relative Humidity | operation: 10 to 80%
storage: 10 to 90% | | Dimensions (W x H x D) | Without Gooseneck: 7.3 x 2.5 x 5.5" (18.5 x 6.3 x 14 cm)
Gooseneck: 15" (38 cm) | | Weight | 24.7 oz (700 g) | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 19.6 x 7.9 x 6.1" |
