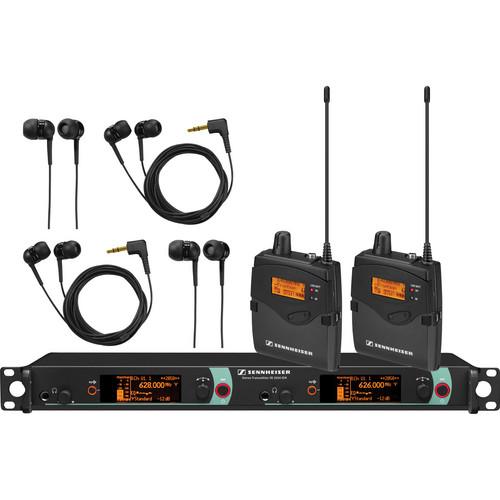

User Manual for Sennheiser Dual Channel Stereo IEM System A Click to enlarge the picture
Contents of the user manual for the Sennheiser Dual Channel Stereo IEM System
- Product category: In-Ear Monitoring Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser In-Ear Monitoring Systems
|
User manual for the Sennheiser Dual Channel Stereo IEM System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description Combining superior construction with artistic and technical freedom, the Sennheiser Dual Channel Stereo IEM System A (516 - 558 MHz) is built for professional use, yet affordable enough to fit the budget of even a modest size venue, post-production house, audio studio or mobile broadcast setup. The system is both rugged and reliable; it was designed to be portable, rack-mountable and road dependable. This particular Dual Channel Stereo IEM System was designed specifically for the 516 - 558 MHz frequency range and features Sennheiser's twin channel, wireless SR 2050-XP IEM Audio Transmitter and two EK 2000 IEM Portable Monitoring Diversity Receivers. The system also comes with four sets of matching Sennheiser IE4 Earphones for Wireless Monitor Applications.The heart of Sennheiser's Dual Channel Stereo IEM System is the reliable, versatile and durable twin channel SR 2050-XP IEM Wireless Monitoring / Audio Sound Transmitter. Road-tested and ultra-dependable, the wireless transmitter is housed in a rugged 1RU rack-mountable metal chassis. It features a substantial frequency bank system with 26 banks and each one supports 32 selectable channels. With such a sweeping span of frequency choices, users should have no problem finding a pristine, clear signal that's free from interference. Plus, for added flexibility, the SR 2050-XP IEM even supports switchable radio frequency (RF) output powers with 10, 30, 50 and 100 mW options. This combination of range, durability and versatility makes it an ideal solution for a variety of in-ear monitoring (IEM) applications ranging from the concert-hall stage and professional studio, to the back of a mobile production van and everywhere in between.The receiving end of the twin channel SR 2050-XP IEM are the two Sennheiser EK 2000 IEM Diversity Receivers. They're intended for use with their monitoring systems and are completely compatible with any of the Sennheiser SK series transmitters. Together the twin transmitter and receivers provide reliable audio monitoring during stage performances, broadcasts and more. Plus, the EK 2000 IEM features adaptive diversity reception to reduce drop-outs. Each one is equipped with six banks of up to 32 tunable channels as well, and run on two 1.5 V AA batteries. Acting as an extended antenna for the accompanying receivers, the IE 4 In-Ear Earphones provide excellent sound quality and comfort with a wide dynamic range. They include three sizes of interchangeable ear tips, which help deliver the best fit for comfort and sound isolation, as well as increased bass. Small and mighty, they are an integral part of the Sennheiser Dual Channel Stereo IEM System. Features for Sennheiser SR 2050 IEM Audio Transmitter A (516 - 558 MHz) - Dual wireless monitoring transmitter and dual audio sound transmitter
- Choose from up to 3000 frequencies in a 75 MHz range
- Features 26 banks with 32 channels in each bank and frequency settings in 25 kHz steps
- Rugged 1RU all-metal housing with integrated power supply unit
- Switchable RF output power for additional flexibility
- Enhanced frequency response for additional bass
- Built-in 5-band graphic EQ allows you to shape audio
- Receivers can be configured from the transmitter menu and synchronized via the infrared interface
- Easy-to-use WSM PC software for monitoring and control
- Intuitive interface with a two-color backlit graphic display
- Pilot tone transmission ensures interference-free operation
- Adjustable headphone connection
Features for Sennheiser EK 2000 IEM Portable Monitoring Diversity Receiver - Up to 3000 frequencies in up to 75 MHz switching bandwidth
- Up to 32 compatible presets in each of 20 fixed frequency banks
- Sturdy all-metal housing and six banks with up to 32 tunable channels
- Adaptive diversity technology for high reliability
- Pilot tone squelch can be set in 2dB steps for interference-free reception
- Frequency scan feature searches for available reception frequencies
- Wireless synchronization of receiver parameters from transmitter
- User-friendly menu interface with a backlit graphic display
- HDX compander for crystal clear sound and enhanced AF frequency response
- Backlit graphic display and four-stage battery status display
- Auto-lock feature to prevent settings from being changed accidentally
- Hi Boost, adjustable limiter, stereo/focus mode and selectable balance on receiver
- Wide range of accessories for virtually any use and charging contacts for recharging BA2015
Features for Sennheiser IE 4 In-Ear Wireless Monitoring Stereo Earphones - Designed with wide range for better bass and a more natural sound reproduction
- Stereo earphones feature a rugged cable design for enhanced durability
- Three sizes (small/medium/large) of interchangeable ear tips
UPC: 615104173910 In the Box Sennheiser Dual Channel Stereo IEM System A (516 - 558 MHz) SR 2050-XP IEM A (516 - 558 MHz) 3 x Main Cables (EU/UK/US) 2 x Rod Antennas 4 x Device Feet 2 x EK 2000-IEM Portable Monitoring Diversity Receiver 4 x IE 4 In-Ear Stereo Earphones for Wireless Monitor Applications Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser Dual Channel Stereo IEM System A in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser US2000IEM2-A Specs | | | Channels | Dual Channel | | Frequency Response | 25 Hz - 15 kHz | | Modulation | FM / MPX-Stereo | | RF Frequency Range | 516 - 558 MHz (A) | | Carrier Frequency | 3000 (max) | | Presets | 32 (max) | | Switching | 75 MHz (max) | | RF Output | Up to 100mW | | Deviation | ±24 kHz (Nominal)
±48 kHz (Peak) | | Compander | HDX | | Signal to Noise Ratio | >90dB(A) | | Total Harmonic Distortion (THD) | <0.9% | | Antenna | BNC x 2 | | Connectors | BNC Antenna Connectors x 2 XLR Connectors x 2 1/4" (6.35 mm) Jacks x 2 | | Input Voltage | +22dBu (max) | | Power | AC 100 - 240 V, 50/60 Hz | | Current Consumption | 0.2A | | Dimensions (WxDxH) | 17.2 x 8.5 x 1.7" (43.6 x 21.5 x 4.3 cm) | | Weight | 6.4 lb (2.9 kg) | | | | Overall Frequency Response | 25 Hz - 15 kHz | | Type of Receiver | FM / MPX-Stereo | | RF Carrier Frequency Range | 516 - 558 MHz (A) | | Signal-to-Noise Ratio | >90dB(A) | | # Of Channels | 32 (max) | | Type of Output(s) | 1/8" (3.5 mm) Mini-Jack | | Power Requirements | AA Alkaline Batteries (1.5 V) x 2 Last up to 4 - 6 Hrs | | Display | LCD | | Dimensions (WxHxD) | 3.22 x 2.52 x 0.94" (8.2 x 6.4 x 2.4 cm) | | Weight | 7.05 oz (200 g) | | | | Type | In-Ear Dynamic | | Frequency Range | Not specified by manufacturer | | Impedance | 16 Ohms | | Sensitivity | 106dB | | Maximum Input Power | Not specified by manufacturer | | Connectors | 1/8" (3.5 mm) Mini-Plug | | Cable Length | 55.2" (140.2 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 11.85 lb | | Box Dimensions (LxWxH) | 23.3 x 14.4 x 8.2" |
