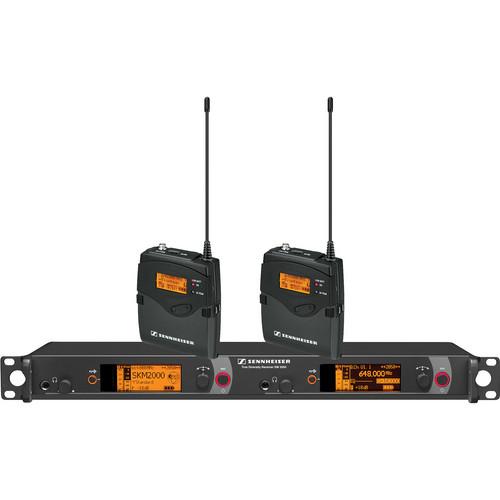

Product description This Sennheiser Dual Channel Wireless Monitoring System consists of the SR 2050-XP IEM Dual Wireless Transmitter and a pair of EK 2000 IEM Adaptive Diversity Receivers. The system features up to 3000 frequencies, with 20 fixed frequency banks and up to 32 compatible presets. There are 10mW, 30mW, 50mW and 100mW RF output settings for versatile use, and an internal 5-band EQ for optimum tonal and audio frequency adjustment.Sennheiser's adaptive diversity technology minimizes drop-out and interference while maximizing range and clarity. Additional features include infrared syncing between the transmitter and receiver, and software control support using the Sennheiser WSM PC software. The system is an ideal solution for performance monitoring applications, speech monitoring and more. SR 2050-XP IEM Dual-Channel Wireless Transmitter - Rugged 19" all-metal housing with integrated power supply unit
- Up to 3000 frequencies in up to 75 MHz switching bandwidth
- 20 fixed frequency banks with up to 32 compatible presets
- 6 banks each with up to 32 tunable channels
- Frequency setting in 25 kHz steps
- Switchable RF output power for versatile use
- Enhanced audio frequency response in bass range
- Integrated 5-band graphic equalizer
- Receivers can be configured from the transmitter menu
- Can be synchronized with the receiver using infrared interface
- Wide range of accessories for virtually any use
- Monitoring and control using Sennheiser WSM PC software
- User-friendly menu interface with two-color backlit graphic display (red as a warning)
- Pilot tone transmission for interference-free operation
- Adjustable headphone connection
- Wide range of accessories for virtually any use
EK 2000 IEM Wireless Bodypack Receiver - Up to 3000 frequencies in up to 75 MHz switching bandwidth
- 20 fixed frequency banks with up to 32 compatible presets
- 6 banks with up to 32 tunable channels
- Adaptive diversity technology for high reliability
- Pilot tone squelch can be set in 2 dB steps for interference-free reception
- Frequency scan feature searches for available reception frequencies
- Wireless synchronization of receiver parameters from transmitter
- User-friendly menu interface with a backlit graphic display
- HDX compander for crystal clear sound
- Enhanced AF frequency response
- 4-stage battery status display
- Charging contacts for recharging BA2015
- Auto-lock feature to prevent settings from being changed accidentally
- Hi Boost, adjustable limiter, stereo/focus mode, selectable balance on receiver
- Wide range of accessories for virtually any use
In the Box Sennheiser Dual Channel Wireless Monitoring System SR 2050 Twin IEM Audio Transmitter (G - 566-608MHz) czabwqswftdczdcwqsrdbavebuxaxdctf 2 x EK 2000 Battery-Powered Diversity Receiver (G - 566-608MHz) 2 x IE4 Earphones Supplementary Frequency Sheet Instruction Manual Supplementary License Sheet 3 x Mains Cables (EU, UK, and US) Rod Antenna 4 Device Feet 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser Dual Channel Wireless Monitoring System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser US2000BP2-G Specs | | | Modulation | FM, MPX-Stereo | | Frequency | Gw / 558 - 626MHz | | Carrier Frequency | Max. 3,000 | | Presets | 32 | | Bandwidth | Max. 75MHz | | RF Output | 100mW | | Deviation | +/- 24kHz (Nominal)
+/- 48kHz (Peak) | | Compander | HDX | | Signal-to-Noise Ratio | > 90 dB(A) | | THD | < 0.9% | | Antenna | 2x BNC | | Frequency Response | 25Hz to 15kHz | | Connector | 4x XLR, 4x 1/4" Phone (6.5mm) Jack | | Input Voltage | + 22dBu Max | | Headphones | > 100 mW (32 Ohms) | | Power Supply | 100 to 240 VAC, 50/60Hz | | Consumption | 0.2A | | Dimensions | 17.16 x 8.46 x 1.70" (436 x 215 x 43mm) | | Weight | 6.39 lb (2.9 kg) | | | | Modulation | FM, MPX-Stereo | | Frequency | Gw / 558 - 626MHz | | Carrier Frequency | Max. 3,000 | | Presets | Max. 32 | | Bandwidth | Max. 75Hz | | Signal-to-Noise Ratio | > 90 dB(A) | | Squelch | off, 5 - 25 dBμV in 2 dB steps | | Frequency Response | 25 - 15,000 Hz | | Audio Output Power | 100 mW @ 32Ω | | Connector | 3.5 mm jack | | Operating Voltage | 2 x 1.5 V (AA)
4 to 6 hours | | Dimensions | 3.22 x 2.51 x 0.94" (82 x 64 x 24mm) | | Weight | 0.44 lb (200g) |
