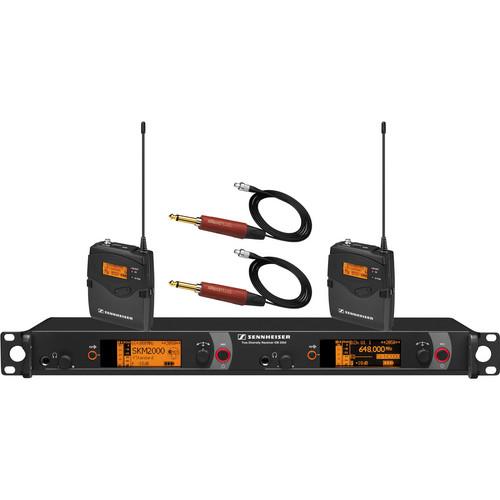

User Manual for Sennheiser Dual Wireless Instrument System Click to enlarge the picture
Contents of the user manual for the Sennheiser Dual Wireless Instrument System
- Product category: Guitar Wireless Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Guitar Wireless
|
User manual for the Sennheiser Dual Wireless Instrument System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Dual Wireless Instrument System (A / 516 - 558 MHz) by Sennheiser features the EM 2050 Dual Wireless Receiver, two SK 2000-XP bodypack transmitters and two CL14 1/4" instrument cables allowing you to connect line instruments such as electric guitars, violins and more. The system yields up to 3000 UHF frequencies and 20 fixed frequency bands with up to 64 compatible presets.An integrated active splitter provides up to 16 channels without using external splitters and True Diversity technology minimizes RF noise and drop-out while increasing range and clarity. Ethernet allows the system to be networked with a PC and remotely controlled with Sennheiser's WSM software. Additional features include an integrated EQ and guitar tuner, channel scanning, infrared syncing between the transmitter and receiver, user-friendly back-lit LCD interface, adjustable headphone output and more. EM 2050 - Rugged 19" all-metal housing with integrated power supply unit
- Up to 3000 frequencies in up to 75 MHz switching bandwidth
- 20 fixed frequency bands with up to 64 compatible presets
- 6 banks each with up to 64 tunable channels
- True diversity technology for best reception quality
- Integrated antenna splitter for cascading up to 8 devices without using additional splitters
- Pilot tone squelch for interference-free operation
- Scan feature within the channel band system
- Continuous scanning together with Sennheiser's Wireless Systems Manager
- Frequency setting in 25 kHz steps
- Squelch setting always visible on the display
- Antenna cables for active antenna supply
- Transformer-balanced audio outputs
- HDX noise reduction system with signal-to-noise ratio less than 120 dB(A)
- Ethernet for connecting to a PC
- Monitoring and control using Sennheiser WSM PC software
- User-friendly menu interface with two-color backlit graphic display (red as a warning)
- Transmitters can be configured from the receiver menu
- Transmitters can be synchronized over the infrared interface
- 4 selectable equalizer presets
- Soundcheck mode for monitoring transmission conditions
- Adjustable headphone connection
SK 2000-XP - Up to 75 MHz switching bandwidth
- Twenty fixed frequency banks with up to 64 compatible presets
- Six banks each with up to 64 tunable channels
- Frequency setting in 25 kHz steps
- Pilot tone squelch for interference-free operation
- External battery recharging contacts
- Backlit, keystroke activated display on transmitter
- Auto-lock feature to prevent buttons from accidently being pressed
- Features audio and RF muting
- Transmitters can be configured from the receiver menu
- Can be synchronized with the receiver using infrared interface
- Wide range of accessories available for use with most any microphone or instrument
- Enhanced audio frequency response in the low-frequency range for optimum use with bass guitars
- Input sensitivity above 60 dB can be set in 3 dB steps
In the Box Sennheiser Dual Wireless Instrument System (A / 516 - 558 MHz) EM 2050 Rack-mount Receiver 2 x SK 2000 Bodypack Transmitters 2 x CL14 Instrument Cables 3 x Mains Cables 2 x Rod Antennas 4 x Self-adhesive Device Feet 2 x AA 1.5 V Batteries Limited 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser Dual Wireless Instrument System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser US2000BP2-INST-A Specs | | | Frequency | 516 - 558 MHz | | Carrier Frequency | Max. 3,000 | | Presets | 64 | | Bandwidth | Max. 75MHz | | Squelch | off, 5 - 25 dBμV can be set in 2dB steps | | Intermodulation Distortion | ≥ 75 dB | | Antenna Connector | 2 BNC (50Ω) | | Gain | 0 dB ±0.5 dB based on antenna inputs | | Operating Temperature | -10 °C - + 55 °C | | Deviation | +/- 48kHz (Peak) | | Compander | HDX | | Signal-to-Noise Ratio | > 90 dB(A) | | THD | < 0.9% | | Frequency Response | 25Hz to 15kHz | | Connector | XLR-3 + 1/4" Phone (6.3mm) jack x4 | | Power Supply | 100 to 240 VAC, 50/60Hz | | Consumption | 0.2A | | Dimensions | 17.16 x 8.46 x 1.69" (436 x 215 x 43mm) | | Weight | 6.39 lb (2.9 kg) | | | | Type | SK 2000-XP Bodypack | | Modulation | FM | | Frequency | 516 - 558 MHz | | Carrier Frequency | 3000 max. | | Presets | 64 | | Bandwidth | 75 MHz max. | | RF Output Power | Selectable: 10, 30, 50, or 100 mW | | Deviation | Nominal: +/- 24kHz
Peak: +/- 48kHz | | Compander | HDX | | Frequency Response | Line: 25 - 18,000 Hz
Mic: 80 - 18,000 Hz | | THD | < 0.9% | | Signal-to-Noise Ratio | > 120 dB(A) (@ 1 mV, peak deviation) | | Compliant Standards | CE
FCC IC | | Audio Input | Audio input connector: Sennheiser (3-pin) socket | | Power | 2 x 1.5 V (AA)
Operating time (transmitter): typ. 8 hours
Max. input voltage: 3 Veff (mic + line) | | Input Impedance | Mic: 40 kohm
Line: 1 Mohm | | Dimensions | 3.22 x 2.51 x 0.94" (82 x 64 x 24mm) | | Weight | 5.64oz (160 g) | | | | Package Weight | 16.35 lb | | Box Dimensions (LxWxH) | 21.5 x 12.25 x 11.25" |
