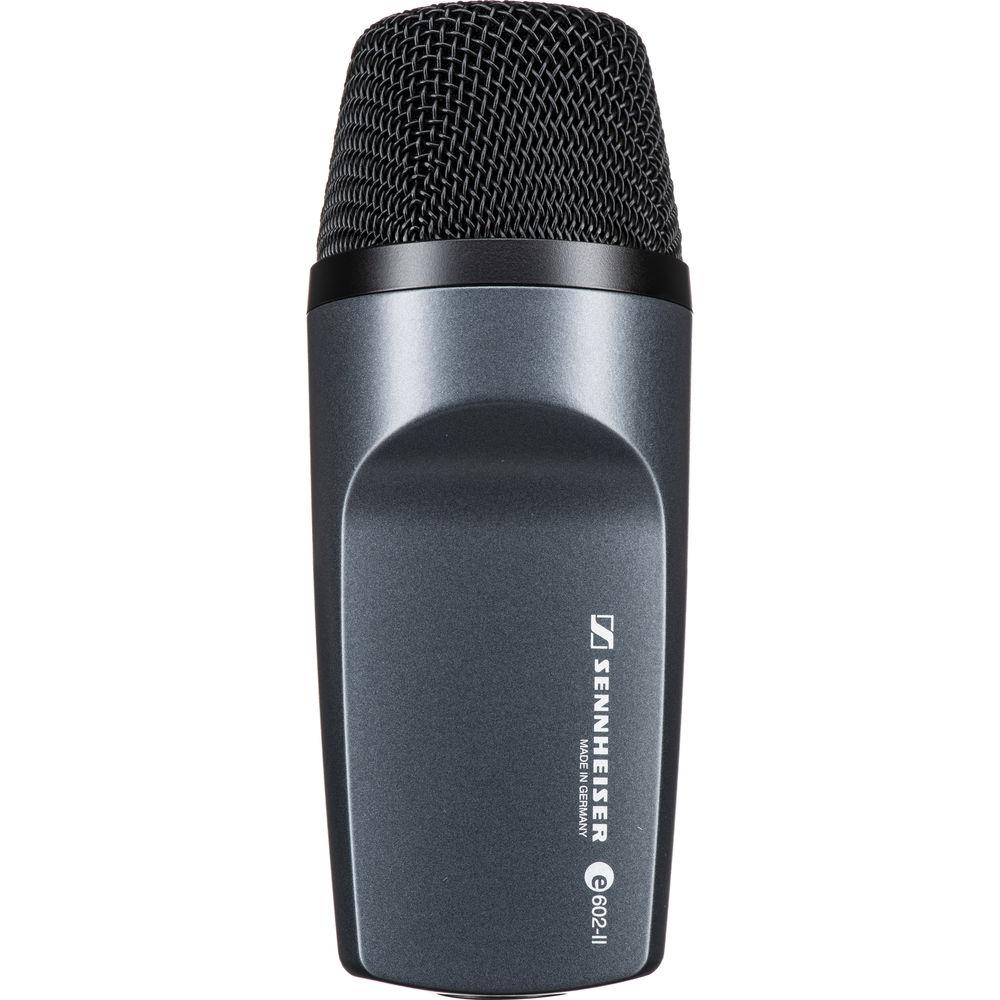

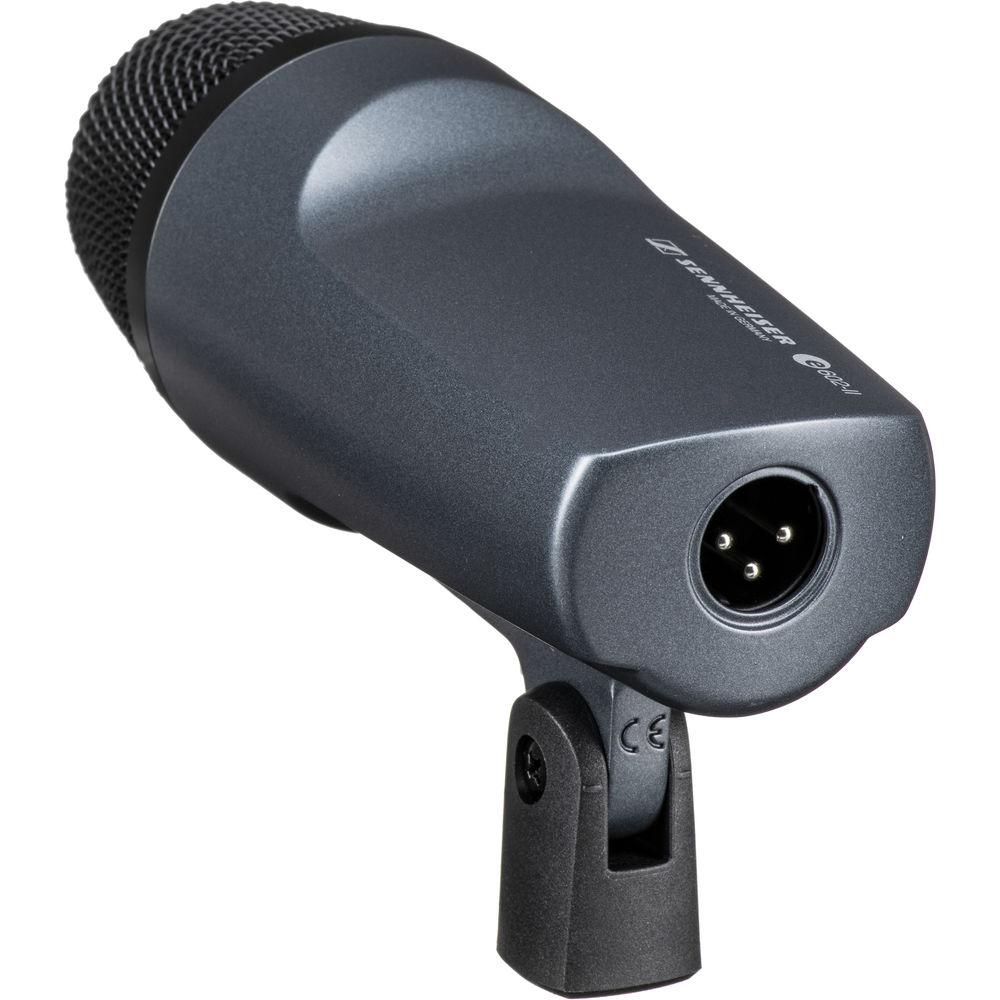

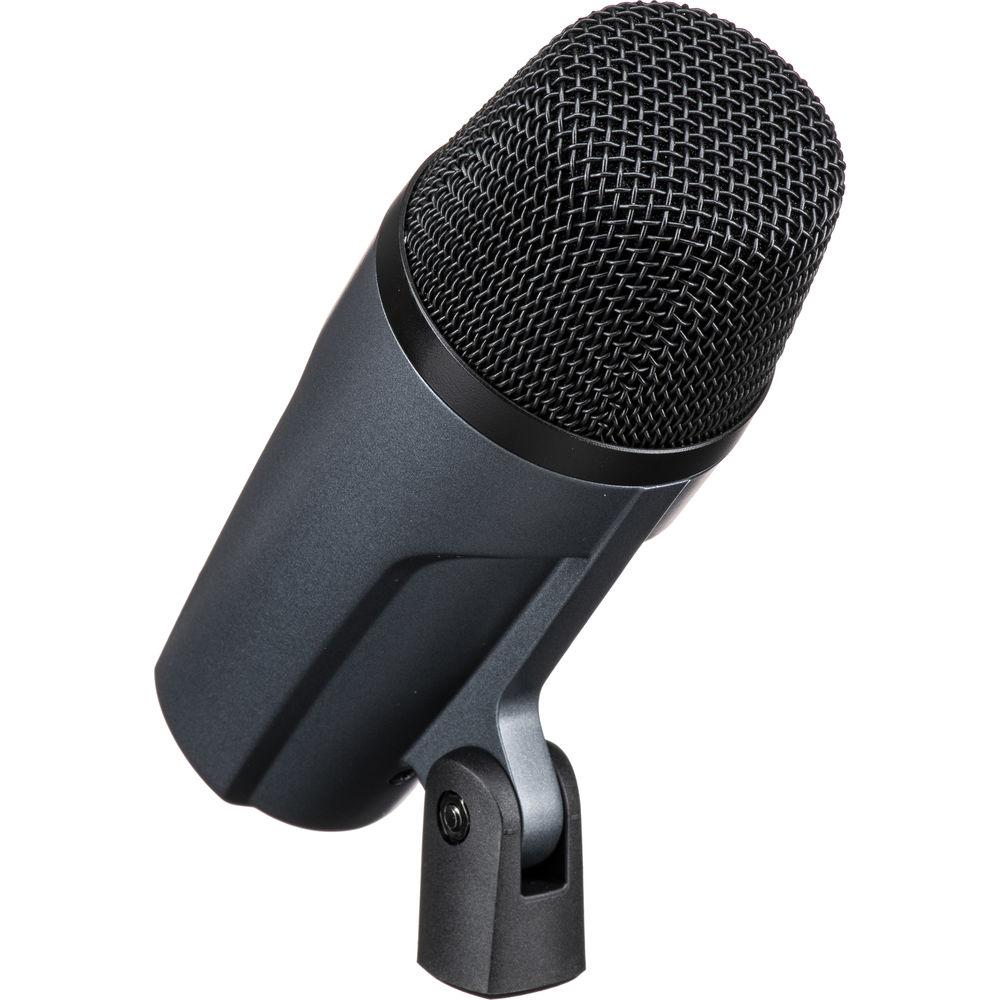

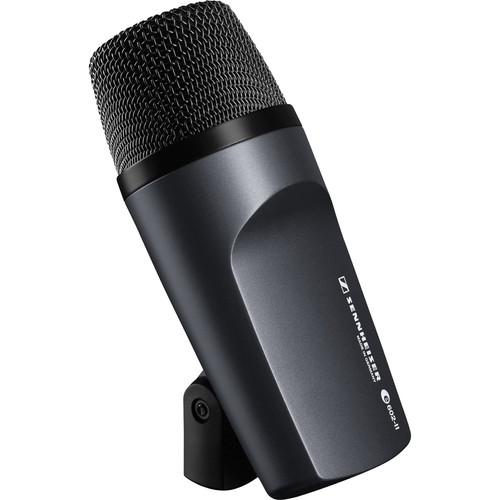

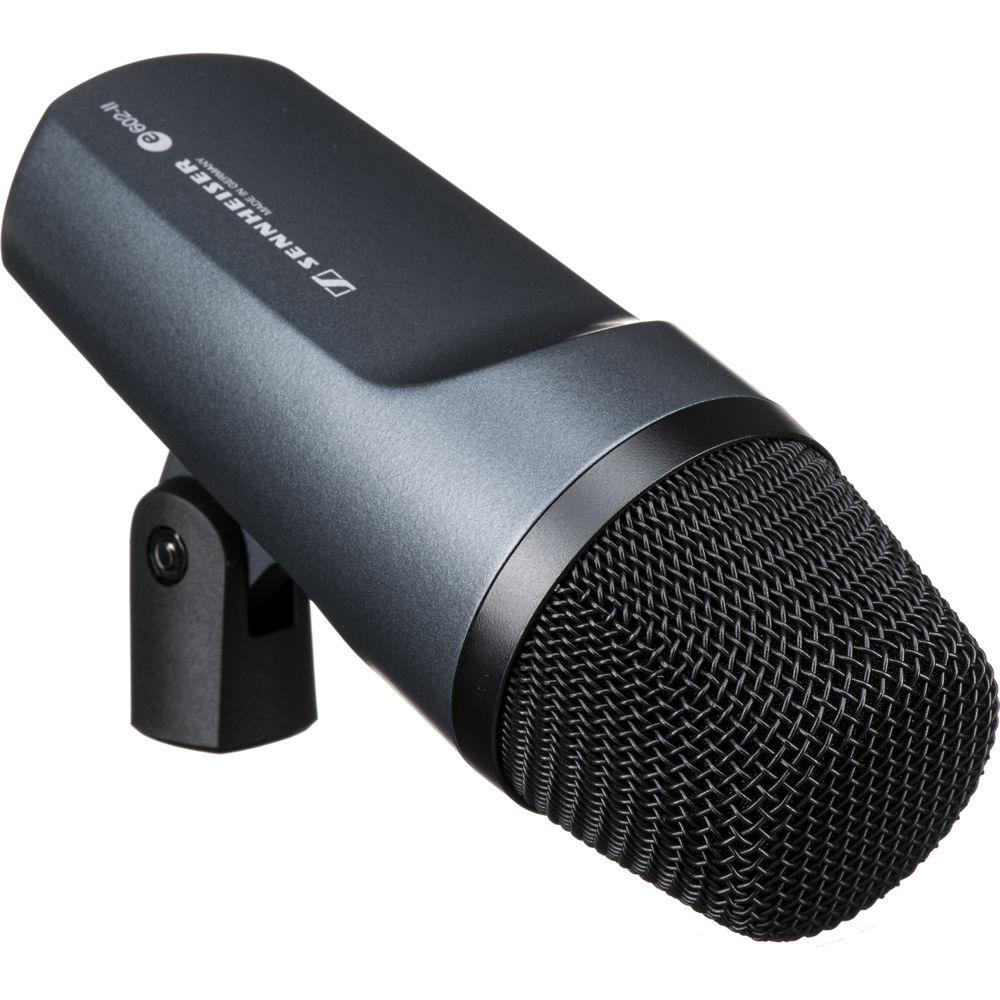

User Manual for Sennheiser e 602 II Cardioid Dynamic Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser e 602 II Cardioid Dynamic
- Product category: Instrument Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Instrument Microphones
 |
User manual for the Sennheiser e 602 II Cardioid Dynamic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Sennheiser e 602 II is a cardioid dynamic instrument microphone offering high SPL handling, fast transient response, and extended low-frequency capture of instruments such as bass drums, bass guitar cabinets, tuba, and more in recording sessions and live stage applications. The microphone features a dynamic element with a lightweight voice coil and a built-in hum-compensating coil for picking up loud sources devoid of noise and distortion.The cardioid polar pattern minimizes off-axis noise and feedback that might occur near monitor speakers or other instruments, making it ideal for use on stage or in the studio. With a frequency response of 20 Hz to 16 kHz, the mic is capable of reproducing sub-bass tones without sacrificing high-end definition. An integrated stand mount enables easy placement of the rugged, lightweight aluminum body, and provides a pivoting angle for optimal positioning. The e 602 II includes a pouch for safe storage and convenient transport. - Extended Low-Frequency Response
- The e 602 II features a fast transient response and an extended low-frequency response down to 20 Hz, making it well suited for kick drum, bass guitar, and other low-frequency instruments
- Cardioid Polar Pattern
- With a cardioid polar pattern and frequency-independent directivity, the e 602 II provides isolation from nearby signals
- Humbucking Coil
- The lightweight high-performance voice coil and an integrated hum-compensating coil contribute to the microphone's low-noise output

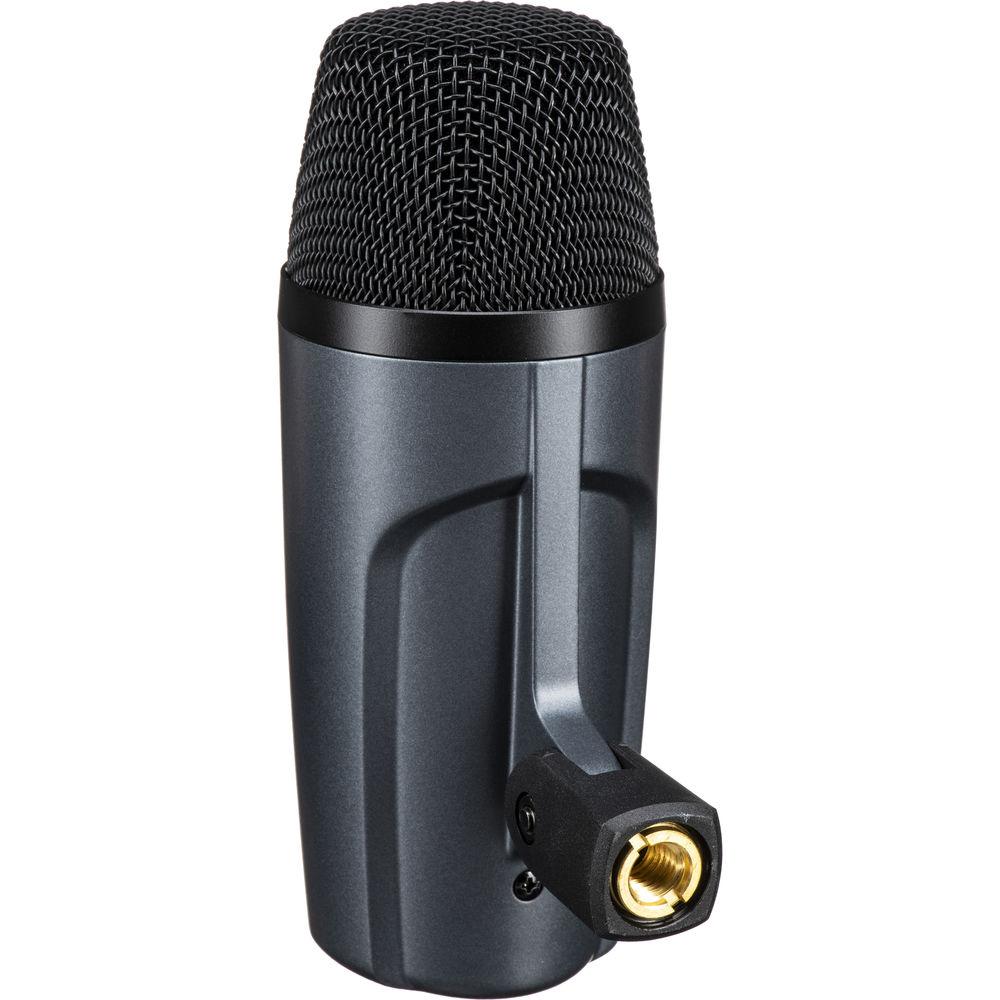

- Integrated Stand Mount
- The integrated mount enables easy placement and positioning
- Rugged Construction
- Constructed with a lightweight and durable aluminum body, the e 602 II is ideal for rigorous use in live sound reinforcement applications as well as studio sessions

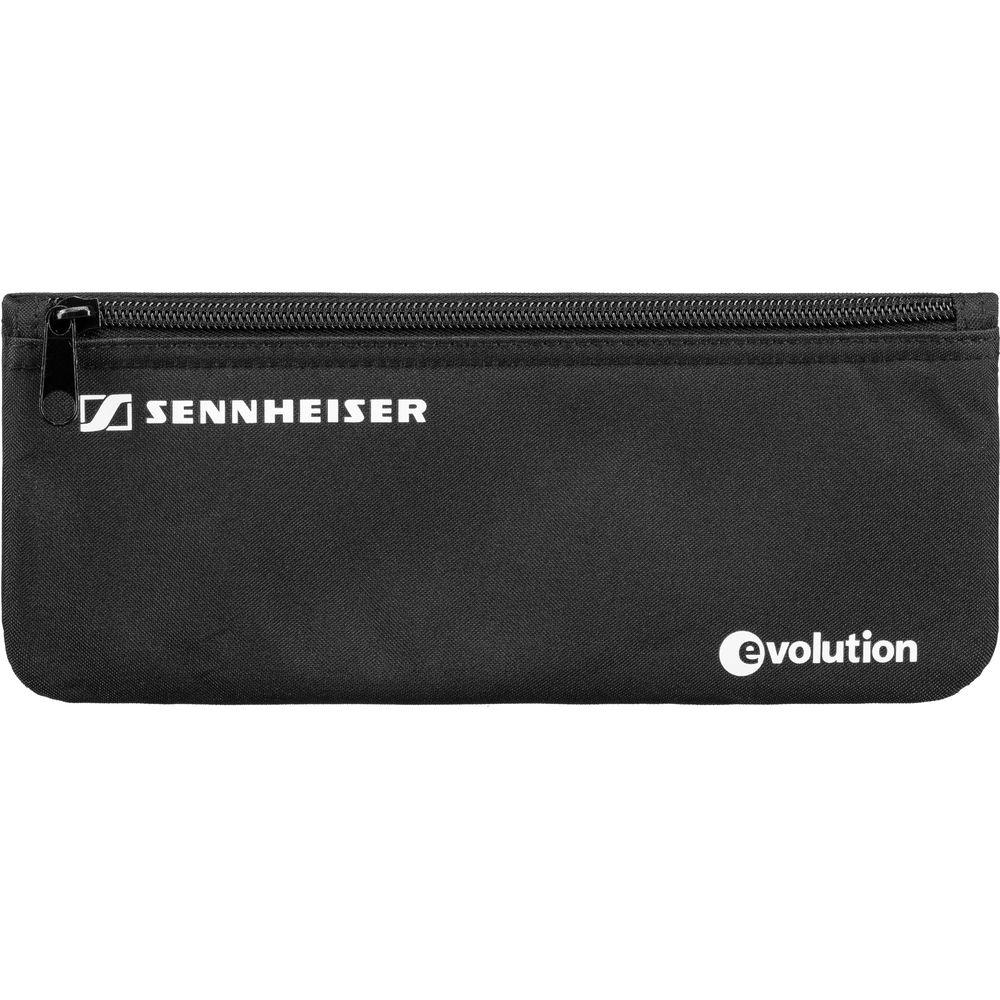

UPC: 615104120747 In the Box Sennheiser e 602 II Cardioid Dynamic Instrument Microphone Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser e 602 II Cardioid Dynamic Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser E602 II Specs | Transducer | Dynamic | | Polar Pattern | Cardioid | | Frequency Response | 20 Hz to 16 kHz | | Sensitivity | 0.25 mV/Pa (in free field, no load, 1 kHz)
0.9 mV/Pa (in free field, no load, 50 Hz) | | Nominal Impedance | 350 Ohms | | Minimum Terminating Impedance | 1000 Ohms | | Power Requirements | None | | Output Connector | XLR 3-pin male | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions (Diam. x L) | 2.4 x 6.0" / 6.0 x 15.3 cm | | Weight | 11.2 oz / 318 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 10.2 x 4.7 x 3.2" |
