User manual
Sennheiser e 602 II Cardioid Instrument

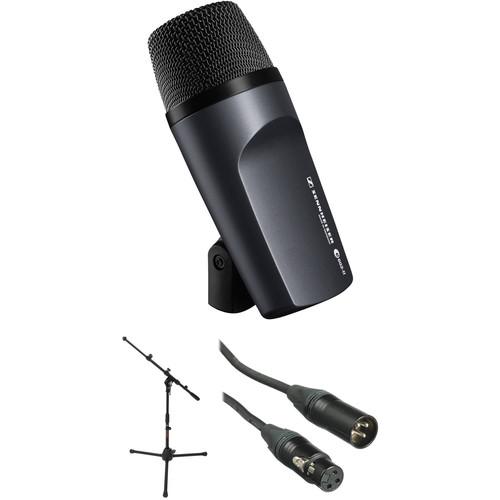

User Manual for Sennheiser e 602 II Cardioid Instrument Microphone with Stand and Cable Kit

• Product category: Instrument Microphones Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Instrument Microphones

Product description

• Sennheiser e 602 II Cardioid Dynamic Instrument Microphone The Sennheiser e 602 II is a cardioid dynamic instrument microphone offering high SPL handling, fast transient response, and extended low-frequency capture of instruments such as bass drums, bass guitar cabinets, tuba, and more in recording sessions and live stage applications. The microphone features a dynamic element with a lightweight voice coil and a built-in hum-compensating coil for picking up loud sources devoid of noise and distortion.The cardioid polar pattern minimizes off-axis noise and feedback that might occur near monitor speakers or other instruments, making it ideal for use on stage or in the studio. With a frequency response of 20 Hz to 16 kHz, the mic is capable of reproducing sub-bass tones without sacrificing high-end definition. An integrated stand mount enables easy placement of the rugged, lightweight aluminum body, and provides a pivoting angle for optimal positioning. The e 602 II includes a pouch for safe storage and convenient transport.
  Extended Low-Frequency Response
  • The e 602 II features a fast transient response and an extended low-frequency response down to 20 Hz, making it well suited for kick drum, bass guitar, and other low-frequency instruments
  Cardioid Polar Pattern
  • With a cardioid polar pattern and frequency-independent directivity, the e 602 II provides isolation from nearby signals
  Humbucking Coil
  • The lightweight high-performance voice coil and an integrated hum-compensating coil contribute to the microphone's low-noise output
  Integrated Stand Mount
  • The integrated mount enables easy placement and positioning
  Rugged Construction
  • Constructed with a lightweight and durable aluminum body, the e 602 II is ideal for rigorous use in live sound reinforcement applications as well as studio sessions
  UPC: 615104120747
• Auray MS-5220T Short Tripod Microphone Stand with Telescoping Boom The Auray MS-5220T Short Tripod Microphone Stand with Telescoping Boom features durable, steel construction. The telescoping boom arm is adjustable from 19.3 to 33.9" in length, allowing you to angle and extend the mic placement however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and non-slip feet keep it firmly and sturdily in place. The Auray MS-5220T mic stand collapses for easy transport. UPC: 847628015562
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558304

• e 602 II Cardioid Dynamic Instrument Microphone utxfxqxuyx
• Pouch
• Limited 2-Year Warranty

• Auray - MS-5220T Short Tripod Microphone Stand with Telescoping Boom

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser e 602 II Cardioid Dynamic Instrument Microphone

  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Response	20 Hz to 16 kHz
  Sensitivity	0.25 mV/Pa (in free field, no load, 1 kHz) 0.9 mV/Pa (in free field, no load, 50 Hz)
  Nominal Impedance	350 Ohms
  Minimum Terminating Impedance	1000 Ohms
  Power Requirements	None
  Output Connector	XLR 3-pin male
  Pad	No
  Low Frequency Roll-Off	No
  Dimensions (Diam. x L)	2.4 x 6.0" / 6.0 x 15.3 cm
  Weight	11.2 oz / 318 g

  Box Dimensions (LxWxH)	10.2 x 4.7 x 3.2"

• Auray MS-5220T Short Tripod Microphone Stand with Telescoping Boom

  Height	22.1 to 31.5" / 56 to 80 cm
  Base Type	Tripod
  Base Dimensions	19.7 x 19.7" / 50 x 50 cm

  Length	19.3 to 33.9" / 49 to 86 cm

  Material	Steel
  Weight	3.5 lb / 1.6 kg

  Box Dimensions (LxWxH)	23.7 x 4.2 x 4.1"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.6 x 7.0 x 0.4"
