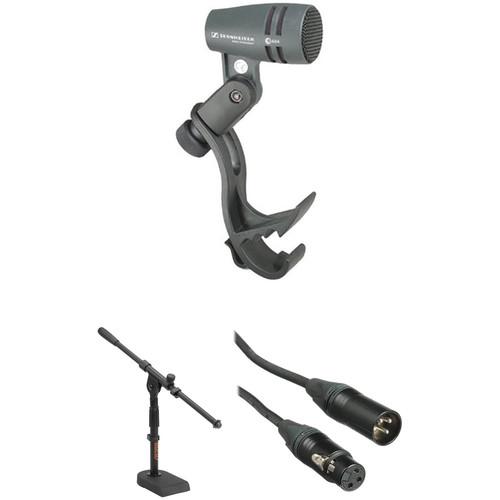

User Manual for Sennheiser e 604 Cardioid Instrument Microphone with Stand and Cable Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser e 604 Cardioid Instrument Microphone
- Product category: Instrument Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Instrument Microphones
|
User manual for the Sennheiser e 604 Cardioid Instrument Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Sennheiser e 604 Cardioid Instrument Microphone with Stand and Cable Kit from includes the Sennheiser e 604 instrument microphone, an Auray MS-5340 kick drum/guitar amp microphone stand with boom, a premium XLR M to XLR F microphone cable, drum clip, cable guide, and protective pouch. This kit is designed to handle high sound-pressure levels and capture audio for drums, percussion, woodwind, and brass instruments without distortion in live stage and recording studio applications. - Sennheiser e 604 Microphone Dynamic Instrument Microphone The Sennheiser e 604 Microphone is a rugged, cardioid instrument microphone that is specially designed to handle the high sound pressure levels of drums, percussion, woodwind, and brass instruments without distortion. It captures frequencies between 40 Hz and 18 kHz, doing so at sound pressure levels in excess of 160 dB without nasty distortion.Based on the design of the well-regarded MD 421 microphone, the e 604 features a dynamic transducer, which does not require phantom power, and its cardioid polar pattern is effective in minimizing pickup and feedback at the off-axis sections of the capsule. An integral stand mount screws directly onto mic stands, but the included clip of the microphone attaches the microphone to the rim of a drum or the bell of saxophones. A slight bump between 4 and 5 kHz allows instruments to cut through the mix.
- Key Features at a Glance
-
- Based on MD 421 microphone design.
- Compact dynamic microphone
- Handles sound pressure levels of 160 dB and above without distortion
- Impact-resistant fiberglass-reinforced housing
- Simple handling and flexible positioning
- Low sensitivity to handling noise
- Humbucking coil
- Integral stand mount
UPC: 615104045194 - Auray MS-5340 Podcasting Microphone Stand with Boom for Podcasting (Black) Designed for miking kick drums or guitar amplifier cabinets in both studio and live applications, the black MS-5340 Kick Drum/Guitar Amp Microphone Stand with Boom from Auray is also ideal for podcasting applications and provides sturdy operation thanks to its steel construction and weighted square base with 5 rubber non-slip feet. Its telescoping shaft provides height adjustment between 9.5 and 14.3", while its adjustable boom is 19.5" in length, both adding to the versatility of placement options the stand provides. The stand is compatible with standard 5/8"-27 threaded mic clips and mounts, and includes a cable guide to help reduce cable clutter.
- Telescoping Shaft and Adjustable Boom
- The telescoping shaft, along with the adjustable boom and boom clutch enable the stand to be angled or extended for exact microphone placement
- Weighted Base
- The weighted base helps ensure keep the stand firmly in place
- Non-Slip Feet
- 5 non-slip feet help reduce unwanted vibrations from reaching your microphone
- Square Shape
- The square shape of the weighted base allows for close placement to kick drums and guitar amp cabinets
- Durable Steel Construction
- This sturdy microphone stand will withstand the most demanding studio and concert environments
- 5/8"-27 Standard Microphone Thread
- The standard 5/8"-27 threaded stud will fit most microphone clips
UPC: 847628578227 - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 In the Box - e 604 Microphone Dynamic Instrument Microphone rwusdcqqbbtayrbxez
- Drum Clip
- Protective Pouch
- Limited 2-Year Warranty
- Auray - MS-5340 Podcasting Microphone Stand with Boom for Podcasting (Black) rwusdcqqbbtayrbxez
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser e 604 Cardioid Instrument Microphone with Stand and Cable Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser e 604 Microphone Dynamic Instrument Microphone
| Transducer | Dynamic | | Polar Pattern | Cardioid | | Frequency Response | 40 Hz to 18 kHz | | Sensitivity | 1.8 mV/PA (at 1 kHz) | | SPL | >160 dB | | Nominal Impedance | 350 Ohms | | Minimum Terminating Impedance | 1 kOhm | | Connector | XLR 3-pin | | Dimensions | 1.3 x 2.3" / 33 x 59 mm | | Weight | 2.1 oz / 60 g | | | | Box Dimensions (LxWxH) | 10.2 x 4.8 x 3.2" | - Auray MS-5340 Podcasting Microphone Stand with Boom for Podcasting (Black)
| | | Height | 9.5 to 14.3" / 24.1 to 36.3 cm | | Base Type | U-Base | | Base Dimensions | 6 x 3.5" / 15.3 x 3.5 cm | | | | Mounting Thread | 5/8"-27 | | Weight | 5.4 lb / 2.4 kg | | | | Box Dimensions (LxWxH) | 20.5 x 4.3 x 3.0" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" |
