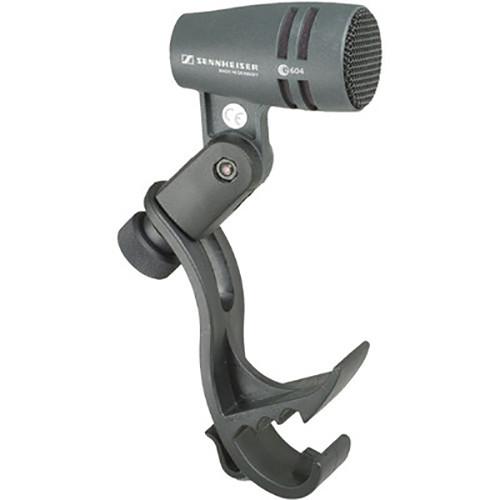

User Manual for Sennheiser e 604 Microphone Dynamic Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser e 604 Microphone Dynamic Instrument
- Product category: Instrument Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Instrument Microphones
|
User manual for the Sennheiser e 604 Microphone Dynamic Instrument contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Sennheiser e 604 Microphone is a rugged, cardioid instrument microphone that is specially designed to handle the high sound pressure levels of drums, percussion, woodwind, and brass instruments without distortion. It captures frequencies between 40 Hz and 18 kHz, doing so at sound pressure levels in excess of 160 dB without nasty distortion.Based on the design of the well-regarded MD 421 microphone, the e 604 features a dynamic transducer, which does not require phantom power, and its cardioid polar pattern is effective in minimizing pickup and feedback at the off-axis sections of the capsule. An integral stand mount screws directly onto mic stands, but the included clip of the microphone attaches the microphone to the rim of a drum or the bell of saxophones. A slight bump between 4 and 5 kHz allows instruments to cut through the mix. - Key Features at a Glance
-
- Based on MD 421 microphone design.
- Compact dynamic microphone
- Handles sound pressure levels of 160 dB and above without distortion
- Impact-resistant fiberglass-reinforced housing
- Simple handling and flexible positioning
- Low sensitivity to handling noise
- Humbucking coil
- Integral stand mount
UPC: 615104045194 In the Box Sennheiser e 604 Microphone Dynamic Instrument Microphone Drum Clip Protective Pouch Limited 2-Year Warranty User Manual PDF 197.3kbezfaybrqrysydsqsazxtxdwctbszcuccrr Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser e 604 Microphone Dynamic Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser E604 Specs | Transducer | Dynamic | | Polar Pattern | Cardioid | | Frequency Response | 40 Hz to 18 kHz | | Sensitivity | 1.8 mV/PA (at 1 kHz) | | SPL | >160 dB | | Nominal Impedance | 350 Ohms | | Minimum Terminating Impedance | 1 kOhm | | Connector | XLR 3-pin | | Dimensions | 1.3 x 2.3" / 33 x 59 mm | | Weight | 2.1 oz / 60 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 10.2 x 4.8 x 3.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
