User Manual for Sennheiser e 609 Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser e 609 Microphone
- Product category: Instrument Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Instrument Microphones
|
User manual for the Sennheiser e 609 Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

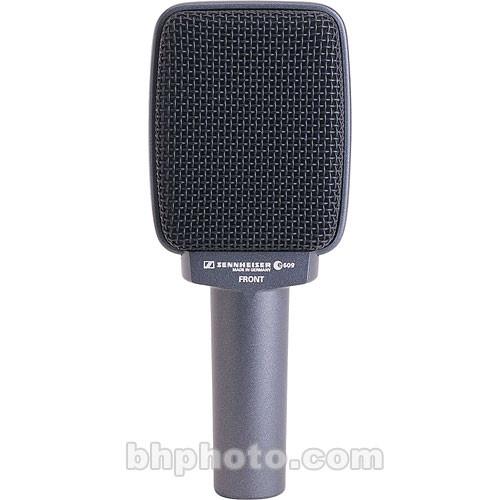

Product description The Sennheiser e 609 Microphone is a dynamic element, supercardiod polar pattern microphone that is primarily designed for capturing instruments. It excels when placed in front of guitar cabinets in sound reinforcement or recording. It has an attractive silver finish. The e 609's flat grill allows for easy placement and the supercardioid pattern is most effective in rejecting off-axis ambiance that can cause noise and feedback. The dynamic element is shock mounted and a hum compensation coil controls low frequency noise. The rugged construction is durable enough to withstand the rigors of the road. - Designed for Instrument Capture
- The dynamic supercardiod e 609 excels placed in front of guitar cabinets or when used in sound reinforcement or recording.
- Supercardioid Polar Pattern
- The supercardioid pattern is most effective in rejecting off-axis ambiance that can cause noise and feedback.
- Dynamic Transducer
- The dynamic element is capable of handling high sound pressure levels without noise and distortion.
- Hum Compensating Coil
- The hum compensation coil reduces low frequency hum and noise.
- Internal Shock Mounting
- The element is internally shock mounted for added protection against handling noise.
UPC: 615104100220 In the Box Sennheiser e 609 Microphone 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser e 609 Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser e 609 Specs | Transducer | Dynamic | | Polar Pattern | Supercardioid | | Frequency Response | 40Hz to 15kHz | | Dynamic Range (Typical) | Not Specified by Manufacturer | | Signal-to-Noise Ratio | Not Specified by Manufacturer | | Maximum Input Sound Level | Not Specified by Manufacturer | | Power Requirements | None, dynamic element | | Output Impedance | Nominal: 350 ohms
Min. terminating: 1k ohms | | Output Connectors | 3-pin XLR male | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 2.16 x 5.28 x 5.28" (55 x 134 x 134mm) | | Weight | 6.35 oz (180g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 10.236 x 4.882 x 3.228" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
