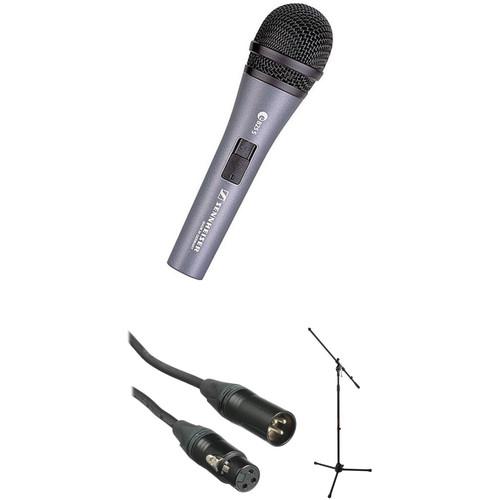

User Manual for Sennheiser e 825-S Dynamic Vocal Microphone with Stand and Cable Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser e 825-S Dynamic Vocal Microphone
- Product category: Dynamic Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Dynamic Microphones
|
User manual for the Sennheiser e 825-S Dynamic Vocal Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The e 825-S Dynamic Vocal Microphone with Stand and Cable Kit is a handheld vocal mic with a mic stand and mic cable designed to provide vocal-tailored tone and easy setup for singers, speakers, announcers, and DJs in clubs, restaurants, houses of worship, and live stage applications. It includes a Sennheiser e 825-S dynamic handheld microphone, tripod stand with adjustable boom, XLR 3-pin cable, stand adapter, and travel pouch. The cardioid polar pattern and hum-compensating coil enhance feedback rejection and attenuate undesired noise. A noiseless on/off switch allows quick muting of the mic between performances. Its rugged metal housing ensures tour-worthy durability. - Sennheiser e825S Handheld Cardioid Dynamic Microphone with On/Off Switch The Sennheiser e825S is a handheld cardioid dynamic microphone offering a warm, natural tone for reproduction of vocals, speech, and instruments in public address, houses of worship, and live stage applications. Its dynamic element requires no power source and delivers a frequency response of 80 Hz to 15 kHz with a gentle boost centered at 5 kHz. The cardioid polar pattern excels at rejecting sound at its off-axis points, yielding enhanced immunity to feedback.The internal damping yields low handling noise, while the durable, metal construction delivers tour-worthy toughness. A silent on/off switch is provided for convenient muting of the mic between speeches or performances. The XLR 3-pin output ensures compatibility with most microphone preamps and mixer inputs. The e825S ships with a mic clip and a protective pouch.
- Detailed, natural sound for vocals, speech, and midrange instruments
- Tight cardioid polar pattern provides excellent off-axis rejection for superior gain before feedback
- Internal damping isolates handling noise
- High resistance to feedback
- Rugged metal construction for tour-worthy durability
- XLR 3-pin connector for compatibility with most microphone preamps
- Silent on/off switch allows convenient muting between periods of use
UPC: 615104045118 - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 - Auray MS-5230F Tripod Microphone Stand with Fixed Boom The Auray MS-5230F Tripod Microphone Stand with Fixed Boom features durable, steel construction. The 31.5" boom arm allows you to angle the mic however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and nonslip feet keep it firmly and sturdily in place. The Auray MS-5230F mic stand collapses for easy transport. UPC: 847628015586
In the Box - e825S Handheld Cardioid Dynamic Microphone with On/Off Switch rvscybqx
- Protective Pouch
- MZQ 800 Microphone Clamp
- Limited 2-Year Warranty
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
- Auray - MS-5230F Tripod Microphone Stand with Fixed Boom
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser e 825-S Dynamic Vocal Microphone with Stand and Cable Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser e825S Handheld Cardioid Dynamic Microphone with On/Off Switch
| | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 80 Hz to 15 kHz | | Pad | None | | Impedance | 350 Ohms | | Load Impedance | 1 kOhms | | Sensitivity | 1.5 mV/Pa at 1 kHz | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Temperature | 32.00 to 104.00°F / 0 to 40°C | | Length | 7.09" / 180 mm | | Diameter | 1.89" / 48 mm | | Weight | 11.64 oz / 330 g | | | | Box Dimensions (LxWxH) | 10.1 x 4.7 x 3.2" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" | - Auray MS-5230F Tripod Microphone Stand with Fixed Boom
| | | Height | 36.2 to 63" / 91.9 to 160 cm | | Base Type | Tripod | | Base Dimensions | 25.6 x 25.6" / 65 x 65 cm | | | | Material | Steel | | Weight | 4.5 lb / 2 kg | | | | Box Dimensions (LxWxH) | 33.5 x 4.0 x 4.0" |
