User manual

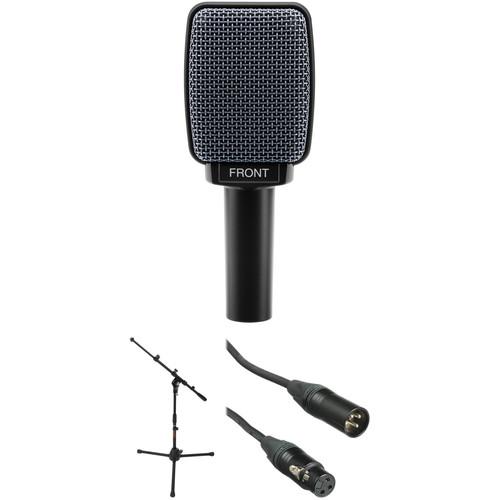

Sennheiser e 906 Dynamic Instrument Microphone

User Manual for Sennheiser e 906 Dynamic Instrument Microphone with Stand & Cable Performance Kit

• Product category: Instrument Microphones Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Instrument Microphones

Product description

• Sennheiser e 906 Supercardioid Guitar Microphone
  • Product Demo
  The Sennheiser e 906 is a supercardioid instrument microphone primarily designed for close capturing of guitar cabinets. The e 906 features a dynamic element with a supercardioid polar pattern that provides optimum rejection of off-axis signal and residual noise. The e 906 provides high headroom and low distortion when capturing signals at excessive sound pressure levels. The element responds to very fast attacks with extreme accuracy, without distortion. With its frequency response of 40 Hz to 18 kHz, the e 906 is an excellent choice for guitar cabinets, as well as percussion and brass instruments.
  Optimized for Guitar Cabinets
  • The e 906's frequency and sensitivity response is optimized for accurate reproduction of guitar cabinets, brass and percussion.
  Fast Transient Response
  • The e 906 is capable of withstanding high sound pressure levels and fast attacks are reproduced accurately without distortion.
  Supercardioid Polar Pattern
  • The supercardioid polar pattern is effective in minimizing off-axis audio and residual noise that may cause feedback.
  Hum Compensation
  • The built-in hum compensation coil suppresses hum and low-frequency noise.
  Rugged Construction
  • The rugged, durable construction is capable of handling life on the road or in studio.
  UPC: 615104101333
• Auray MS-5220T Short Tripod Microphone Stand with Telescoping Boom
  • Product Demo
  The Auray MS-5220T Short Tripod Microphone Stand with Telescoping Boom features durable, steel construction. The telescoping boom arm is adjustable from 19.3 to 33.9" in length, allowing you to angle and extend the mic placement however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and non-slip feet keep it firmly and sturdily in place. The Auray MS-5220T mic stand collapses for easy transport. UPC: 847628015562
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black
  • Product Demo
  The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (15') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558281

• e 906 Supercardioid Guitar Microphone ftsqdyrdvqycbebdvfxfztcxtaxwyx
• Carry Pouch
• MZQ100 Quick Release for K3U, MD409 and MKH-416
• Limited 2-Year Warranty

• Auray - MS-5220T Short Tripod Microphone Stand with Telescoping Boom

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black ftsqdyrdvqycbebdvfxfztcxtaxwyx

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser e 906 Supercardioid Guitar Microphone

  Transducer	Dynamic
  Polar Pattern	Supercardioid
  Frequency Response	40 Hz to 18 kHz
  Sensitivity	2.2 mV/Pa (free field, no load at 1 kHz)
  Dynamic Range (Typical)	not specified by manufacturer
  Signal-to-Noise Ratio	not specified by manufacturer
  Maximum Input Sound Level	not specified by manufacturer
  Power Requirements	None, dynamic element
  Output Impedance	Nominal (at 1 kHz): 350 Ohms Min. Terminating: 1 kOhms
  Output Connectors	3-pin XLR male
  Pad	No
  Low Frequency Roll-Off	No
  Dimensions	2.16 x 1.34 x 5.27" / 55 x 34 x 134 mm
  Weight	4.94 oz / 140 g

  Box Dimensions (LxWxH)	14.6 x 10.3 x 3.1"

• Auray MS-5220T Short Tripod Microphone Stand with Telescoping Boom

  Height	22.1 to 31.5" / 56 to 80 cm
  Base Type	Tripod
  Base Dimensions	19.7 x 19.7" / 50 x 50 cm

  Length	19.3 to 33.9" / 49 to 86 cm

  Material	Steel
  Weight	3.5 lb / 1.6 kg

  Box Dimensions (LxWxH)	23.7 x 4.2 x 4.1"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	15' / 4.6 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	5.8 x 2.9 x 1.3"
