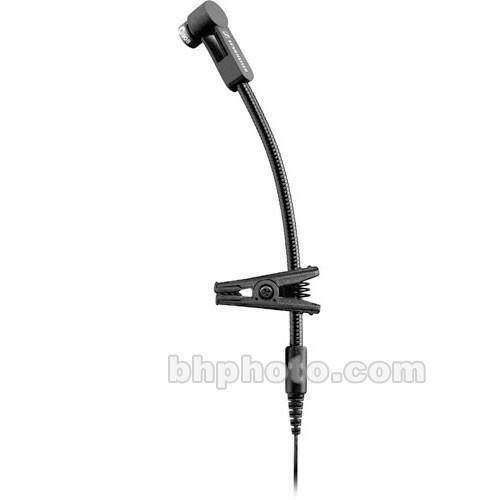

User Manual for Sennheiser e 908 B Condenser Microphone for Brass Instruments Click to enlarge the picture
Contents of the user manual for the Sennheiser e 908 B Condenser Microphone
- Product category: Small Diaphragm Condenser Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Small Diaphragm Condenser
|
User manual for the Sennheiser e 908 B Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The e 908 B from Sennheiser is a miniature condenser instrument microphone, specifically optimized for use with wind instruments, congas, and drums with free-floating suspension systems. The cardioid capsule captures audio in vivid detail and clarity while exhibiting excellent rejection of off-axis noise and feedback. The e 908 B handles high sound pressure levels without peak distortion, enabling close proximity placement without noise.The miniature capsule remains out of sight during performances and the flexible gooseneck allows for easy positioning. The mounting clamp features dampening materials to eliminate extraneous vibrations, impact and handling noise. The e 908 B features a locking miniature 1/8" connector for use with EW series belt-pack transmitters, however the MZA 900P cylindrical preamplifier is included and terminates to a standard 3-pin XLR connection, for direct connection to PA systems, consoles, etc. - Wired or Wireless Operation
- The e 908 B features an 1/8" locking mini connection for EW series belt-pack transmitters, the included MZA 900P preamplifier features a 3-pin XLR connector for direct integration with consoles.
- MZA 900P Preamplifier
- The cylindrical preamplifier also supplies phantom power via an external source. The MZA 900P also features a belt-clip for easy mounting during performances.
- Low Frequency Roll Off
- Switchable low frequency roll-off filter is available on the MZA 900P. The roll-off eliminates noise and hum below 125 Hz.
- 12 dB Pad Switch
- The 12 dB Pad switch is also located on the MZA 900P. The Pad provides added headroom and minimizes distortion when capturing audio at excessive levels.
- Cardioid Polar Pattern
- The cardioid polar pattern provides an even frequency response and excellent directivity.
- Gooseneck Mount
- The capsule rests on a flexible gooseneck for easy microphone positioning.
- Clamp Dampening
- The sturdy clamp features dampening materials for reducing vibration and handling noise.
UPC: 615104101364 In the Box Sennheiser e 908 B Condenser Microphone for Brass Instruments MZA 900 P Phantom Power Adapter MZH 908 B Clamp Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser e 908 B Condenser Microphone for Brass Instruments in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser e 908 B Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 20 kHz | | Equivalent Noise Level | 35 dB A-Weighted | | Maximum SPL | 147 dB SPL | | Impedance | 100 Ohms | | Load Impedance | 2000 Ohms | | Sensitivity | 4 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3 mA | | Operating Voltage | 11 to 52 V | | Length | 7.60" / 193 mm | | Diameter | 1.85" / 47 mm | | Weight | 10.97 oz / 311 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 10.2 x 4.6 x 3.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
