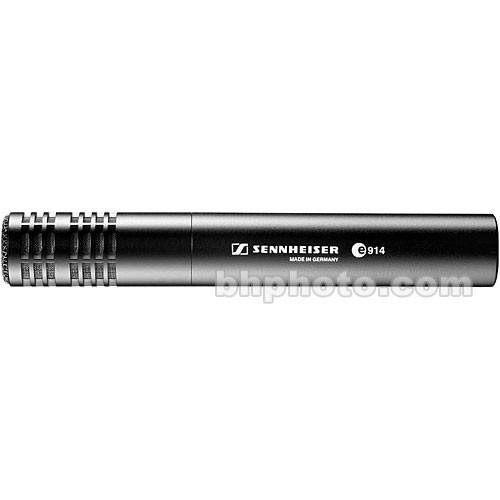

User Manual for Sennheiser e 914 High-Performance Condenser General Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser e 914 High-Performance Condenser General
- Product category: Small Diaphragm Condenser Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Small Diaphragm Condenser
|
User manual for the Sennheiser e 914 High-Performance Condenser General contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The e 914 from Sennheiser is a professional condenser instrument microphone developed for crucial capturing in recording and sound reinforcement applications. The wide, linear frequency response of 20 Hz to 20 kHz results in vivid, accurate reproduction of instruments throughout the full frequency range. The e 914 is an excellent choice for piano, drum cymbals, guitar, strings and stereo ambiance-capturing in live performances and sound design applications.The microphone's capsule features a cardioid polar pattern for excellent rejection of off-axis noise while maintaining an accurate frequency response at full range. The e 914 features switchable 10 and 20 dB Pad switches that provide added headroom for signals that are excessively loud. Switchable low-frequency roll-off positions are also provided and eliminate noise at 130 Hz and 85 Hz. The e 914 provides the audio fidelity and flexibility necessary to excel as a workhorse microphone in any studio recording and live sound application. - Ultra Wide Frequency Response
- The e 914 features a 20 Hz to 20 kHz frequency response that results in accurate, transparent signal at full frequency range.
- High SPL Handling
- The microphone capsule is capable of handling sound pressure levels of up to 157 dB without noise and distortion.
- 3-Position Pad Switch
- A 3-position attenuation switch provides 10 and 20 dB attenuation.
- 3-Position Low-Frequency Roll-off
- Low-frequency roll-off filter eliminates noise below 130 Hz and 85 Hz.
- Cardioid Polar Pattern
- The cardioid polar pattern provides excellent rejection of off-axis noise/audio while accurately reproducing the signal at the direct sections of the capsule.
UPC: 615104101418 In the Box Sennheiser e 914 High-Performance Condenser General Instrument Microphone MZQ 800 Microphone Clamp rfwyysfwwfxwrabewdqdtyuxwxtfyvatt MZW64 Foam Windscreen Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser e 914 High-Performance Condenser General Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser e 914 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 19 dB A-Weighted | | Maximum SPL | 137 dB SPL | | Pad | -10 dB
-20 dB | | Impedance | 100 Ohms | | Load Impedance | 1000 Ohms | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.2 mA | | Operating Voltage | 48 V | | Length | 6.18" / 157 mm | | Diameter | 0.94" / 24 mm | | Weight | 0.44 lb / 198 g | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 10.394 x 4.803 x 2.992" |
