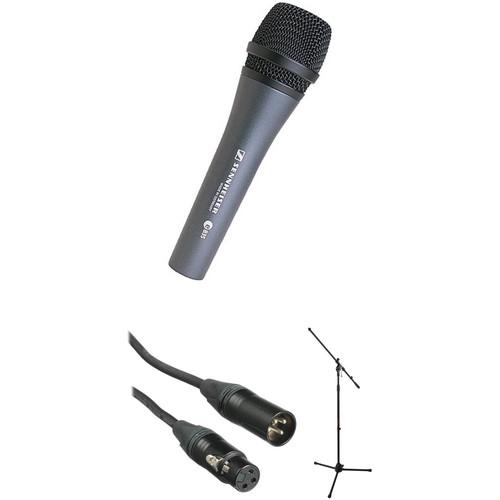

Product description The e835 Handheld Dynamic Microphone Stage Kit includes the Sennheiser e835 cardioid microphone, a tripod boom stand, and an XLR 3-pin microphone cable. With high resistance to feedback, enhanced rejection of ambient sound, and low handling noise, the mic is well suited for use in clubs, houses of worship, public address, and presentations. The stand and cable allow easy setup at home or onstage. - Sennheiser e 835 - Cardioid Handheld Dynamic Microphone The Sennheiser e 835 is a lead, vocal stage mic, designed to perform under pressure. Uniform frequency pick-up pattern maintains signal quality when moving on and off axis during performance. Gentle presence boost to even tonal response ensures clarity and projection. Minimal proximity effect provides consistently clear bass and performance when singing closer to or further from capsule.
- Metal construction - rugged and reliable
- Shock-mounted capsule - low sensitivity to impact and handling noise
- Cardioid pickup pattern - insulation from other on-stage signals
- Hum compinsating coil reduces electrical interference
- Neodynum ferrous magnet with boron - keeps mic stable regardless of climate
- Falcon ring - consistent sound over time
UPC: 615104045132 - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 - Auray MS-5230F Tripod Microphone Stand with Fixed Boom The Auray MS-5230F Tripod Microphone Stand with Fixed Boom features durable, steel construction. The 31.5" boom arm allows you to angle the mic however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and nonslip feet keep it firmly and sturdily in place. The Auray MS-5230F mic stand collapses for easy transport. UPC: 847628015586
In the Box - e 835 - Cardioid Handheld Dynamic Microphone ddrfdbcstbb
- MZQ 800 Microphone Clamp
- Protective Pouch
- Limited 10-Year Warranty
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black ddrfdbcstbb
- Auray - MS-5230F Tripod Microphone Stand with Fixed Boom
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser e835 Handheld Dynamic Microphone Stage Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser e 835 - Cardioid Handheld Dynamic Microphone
| Transducer | Pressure Gradient Dynamic | | Polar Pattern | Cardioid | | Frequency Response | 40 Hz - 16 kHz | | Maximum Input Sound Level | not specified by manufacturer | | Power Requirements | None Dynamic, Requires No Phantom or Battery Power | | Output Impedance | 350 Ohms | | Output Connectors | XLR-3M Type | | Dimensions | 7.08 x 1.89" LxDiameter | | Weight | 11.64 oz. (329.8 g) | | | | Box Dimensions (LxWxH) | 10.315 x 4.803 x 3.228" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" | - Auray MS-5230F Tripod Microphone Stand with Fixed Boom
| | | Height | 36.2 to 63" / 91.9 to 160 cm | | Base Type | Tripod | | Base Dimensions | 25.6 x 25.6" / 65 x 65 cm | | | | Material | Steel | | Weight | 4.5 lb / 2 kg | | | | Box Dimensions (LxWxH) | 33.5 x 4.0 x 4.0" |
