User Manual for Sennheiser e935 Handheld Cardioid Dynamic Microphone Click to enlarge the picture
Contents of the user manual for the Sennheiser e935 Handheld Cardioid Dynamic Microphone
- Product category: Dynamic Microphones Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Dynamic Microphones
 |
User manual for the Sennheiser e935 Handheld Cardioid Dynamic Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

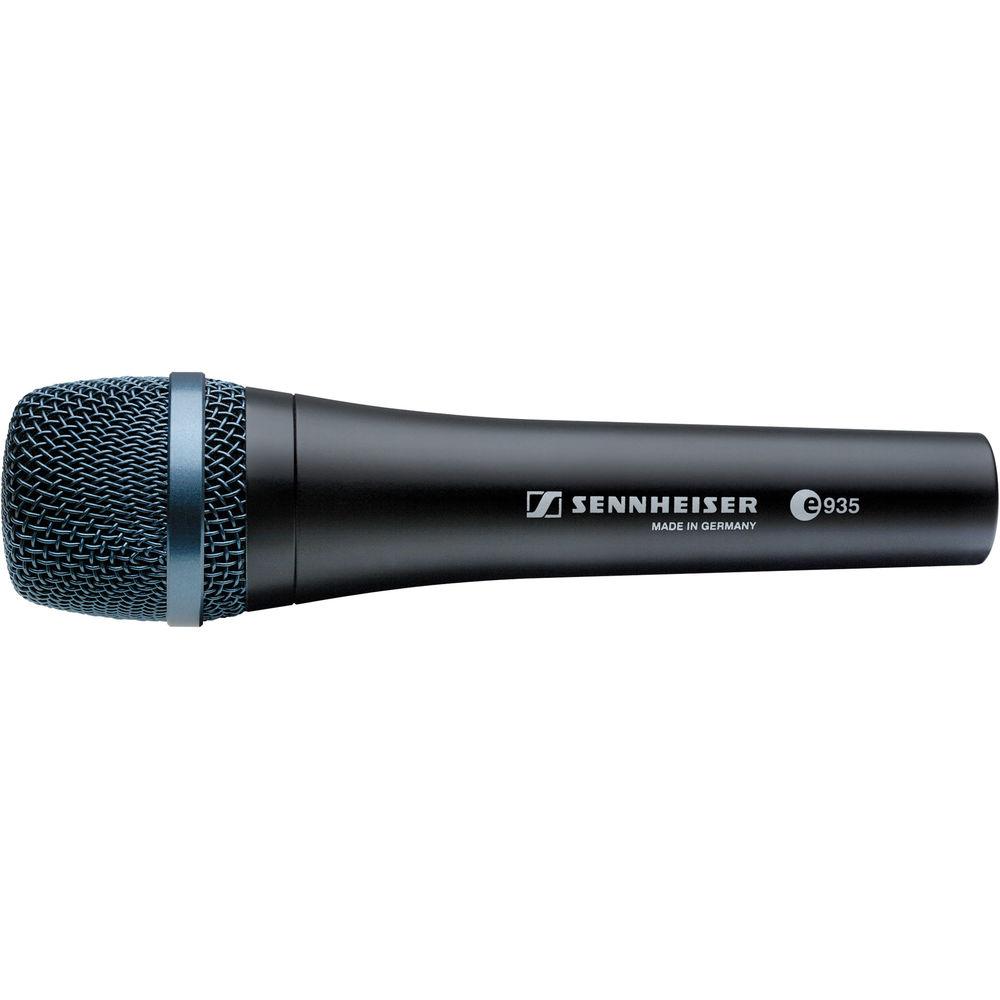

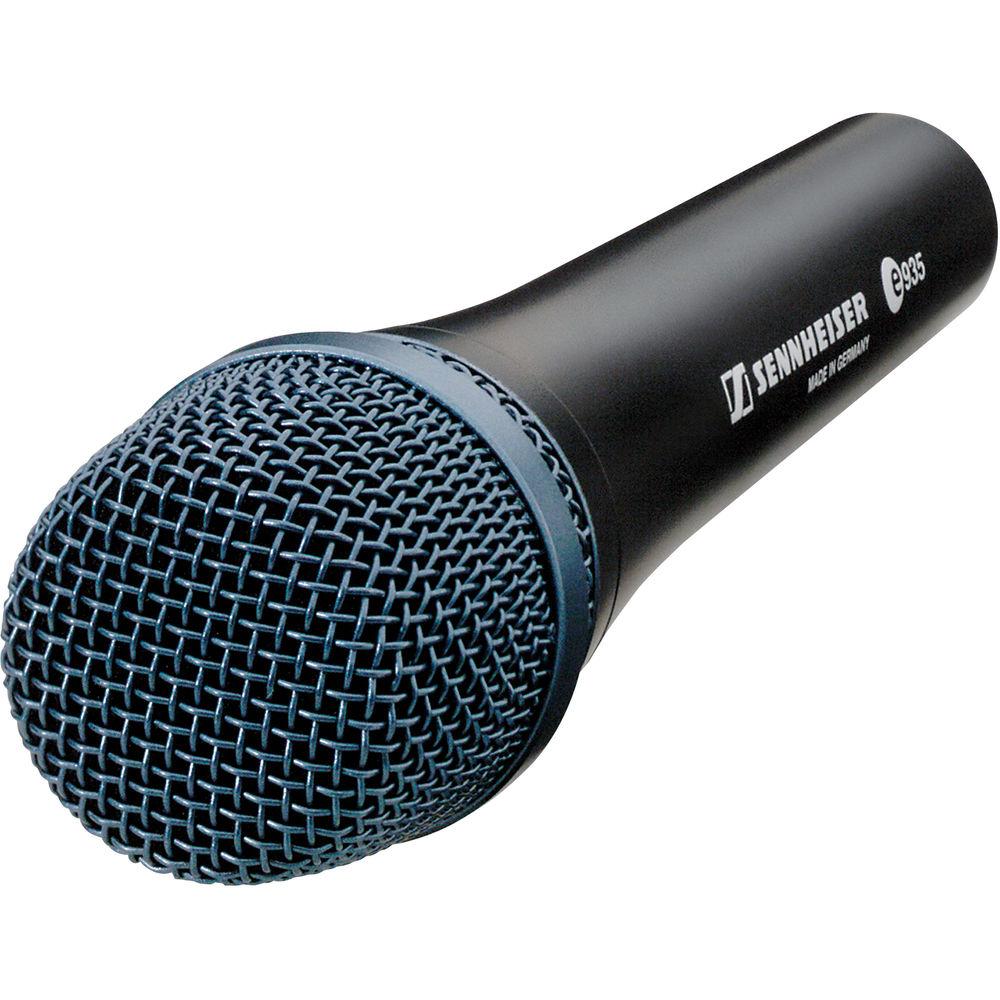

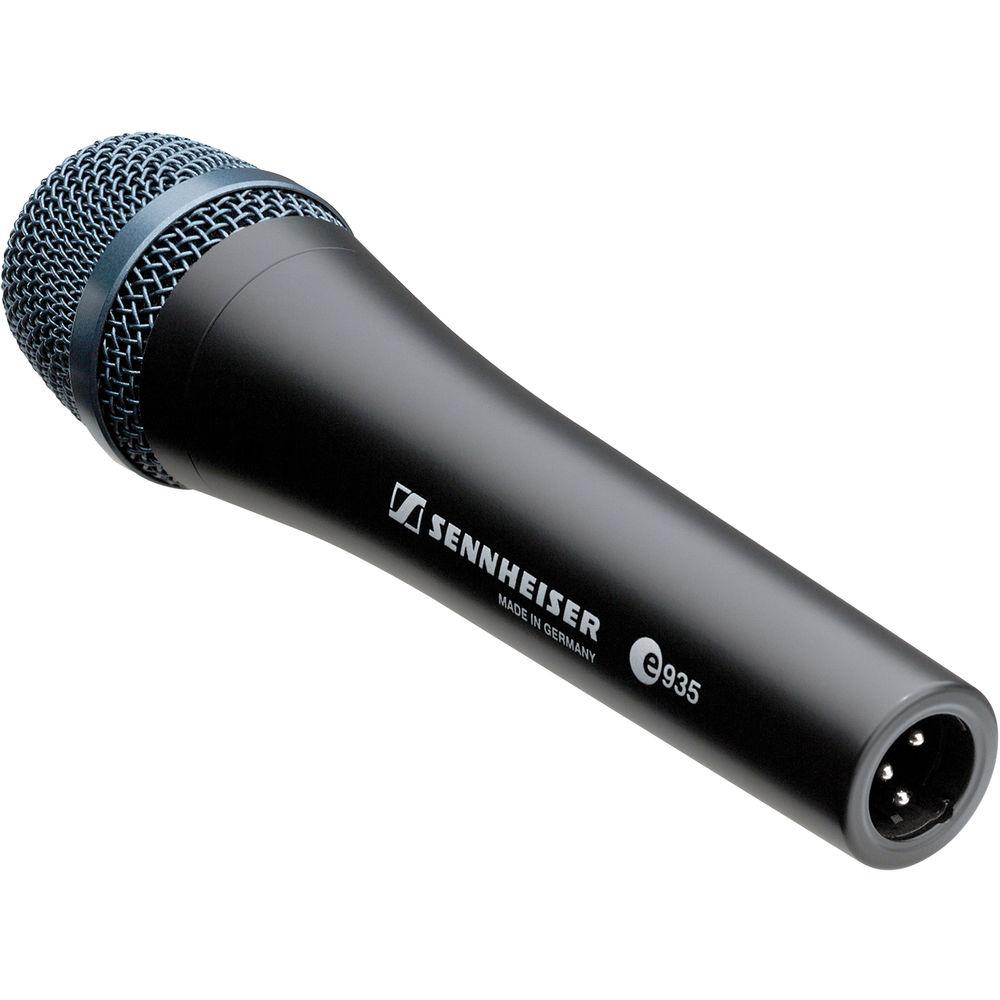

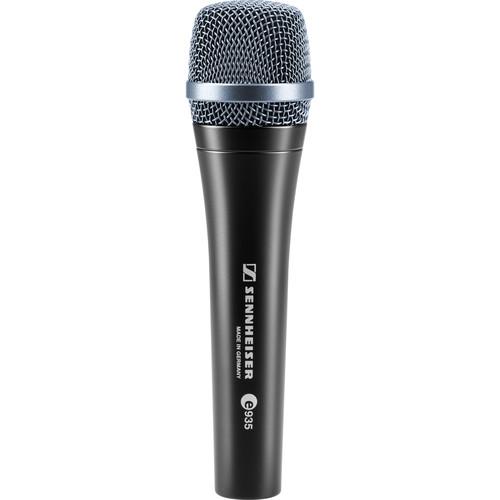

Product description The Sennheiser e935 is a handheld cardioid dynamic microphone offering a smooth tone and fast transient response for reproduction of vocals, speech, and instruments in public address, houses of worship, and live stage applications. Its dynamic capsule utilizes a neodymium magnet for stability and is shock-mounted to reduce handling noise. It requires no power source and delivers a frequency response of 40 Hz to 18 kHz with a gentle boost from 3 to 11 kHz. The cardioid polar pattern excels at rejecting sound at its off-axis points, yielding enhanced immunity to feedback.The internal hum-compensating coil impedes electrical interference while the durable, metal construction delivers road-ready toughness. The XLR 3-pin output ensures compatibility with most microphone preamps and mixer inputs. The e935 ships with a mic clip and a protective pouch. - Cardioid Polar Pattern
- The e935 features a cardioid polar pattern, effective in rejecting off-axis signal that can cause noise and feedback
- Hum Compensation Coil
- The integrated hum-compensating coil is effective in reducing line and electrical hum
- Neodymium Magnet
- The neodymium ferrous magnet with boron keeps the microphone stable regardless of climate
- Tailored Frequency Response
- The e935 features a tailored 40 Hz to 18 kHz frequency response for accurate reproduction of vocals and speech
- Shock-Mounted Capsule
- The shock-mounted capsule delivers low sensitivity to impact and handling noise
- Rugged Design
- The rugged metal construction yields durability in the studio and on the road
UPC: 615104094215 In the Box Sennheiser e935 Handheld Cardioid Dynamic Microphone Protective Pouch MZQ 800 Microphone Clamp yqdtxxyxvuxwrsvzcxzeywwwwfsad Limited 2-Year Warranty User Manual PDF 339.9kbyqdtxxyxvuxwrsvzcxzeywwwwfsad Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser e935 Handheld Cardioid Dynamic Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser E935 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 18 kHz | | Pad | None | | Impedance | 350 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 2.8 mV/Pa at 1 kHz | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 5.94" / 151 mm | | Diameter | 1.85" / 47 mm | | Weight | 12.52 oz / 355 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 10.394 x 4.882 x 3.15" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
