Sennheiser EK 100 G4 Wireless Camera-Mount

Search your instruction manual in PDF to download

User Manual for Sennheiser EK 100 G4 Wireless Camera-Mount Receiver G:

Click to enlarge the picture
Sennheiser EK 100 G4 Wireless Camera-Mount Receiver G: Contents of the user manual for the Sennheiser EK 100 G4 Wireless Camera-Mount
  • Product category: Wireless Receivers Sennheiser
  • Brand: Sennheiser
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Sennheiser Wireless Receivers

Sennheiser EK 100 G4 Wireless Camera-Mount Receiver G: Sennheiser EK 100 G4 Wireless Camera-Mount Receiver G: Sennheiser EK 100 G4 Wireless Camera-Mount Receiver G: Sennheiser EK 100 G4 Wireless Camera-Mount Receiver G: Sennheiser EK 100 G4 Wireless Camera-Mount Receiver G: Sennheiser EK 100 G4 Wireless Camera-Mount Receiver G: Sennheiser EK 100 G4 Wireless Camera-Mount Receiver G:
User manual for the Sennheiser EK 100 G4 Wireless Camera-Mount contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Sennheiser product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!



Product description

The EK 100 G4 Wireless Camera-Mount Receiver from Sennheiser is the latest addition to their evolution family of wireless microphones and is fully compatible with all previous series. Featuring an updated high-contrast LCD display, blue sync LED, and a dedicated escape button, it can be used when paired with a microphone and transmitter (sold separately) for capturing audio in live sound, broadcast, film, business, and educational applications.The EK 100 G4 wireless receiver is lightweight and built with an all-metal housing. It is equipped with 1680 tunable UHF frequencies and synchronizes with G4 transmitters at the touch of a button. A 3.5mm audio-output jack delivers a clean output signal using the included adapter output cables. The receiver operates on 2 standard AA batteries, and an optional 12 VDC adapter is also available. The included shoe-mount adapter allows you to mount the receiver on a camera for convenient portable use.
    Updated Features
  • The evolution wireless G4 retains all of G3's best features
    Quicker setup
    High-contrast LCD display
    Dedicated escape button
    Features
  • Sturdy metal housing
    42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
    Enhanced frequency bank system with up to 12 compatible frequencies
    Adaptive-diversity for high-quality reception
    Pilot tone squelch for eliminating RF interference when transmitter is turned off
    Automatic frequency scan feature searches for available frequencies
    Enhanced AF frequency range
    Wireless synchronization of transmitters via infrared interface
    User-friendly menu operation with more control options
    Auto-Lock function avoids accidental changing of settings
    HDX compander for crystal-clear sound
    Operates on 2 standard AA batteries
    Receiver features battery indication in 4 steps
    Contacts for recharging BA 2015 accupack directly in the receiver
    Wide range of accessories adapts the system to any requirement
UPC: 615104309746 In the Box Sennheiser EK 100 G4 Wireless Camera-Mount Receiver G: (566 to 608 MHz)

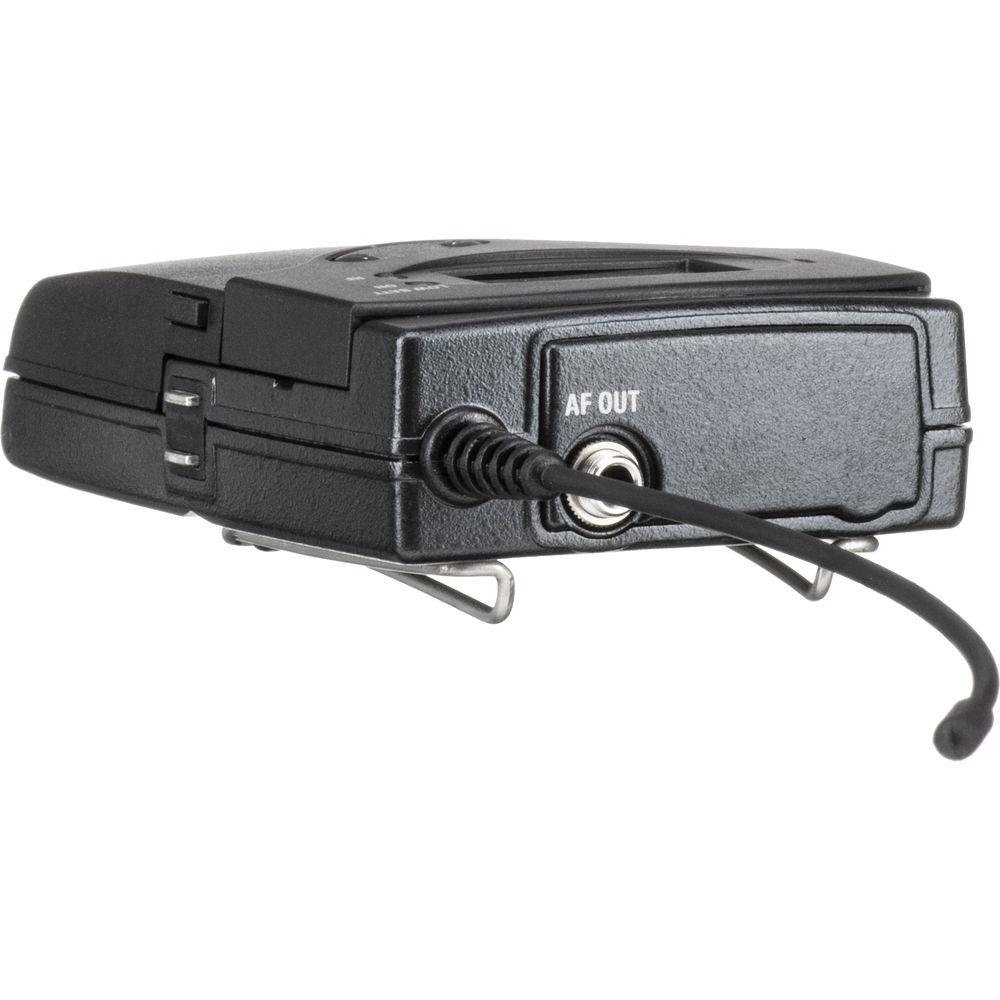

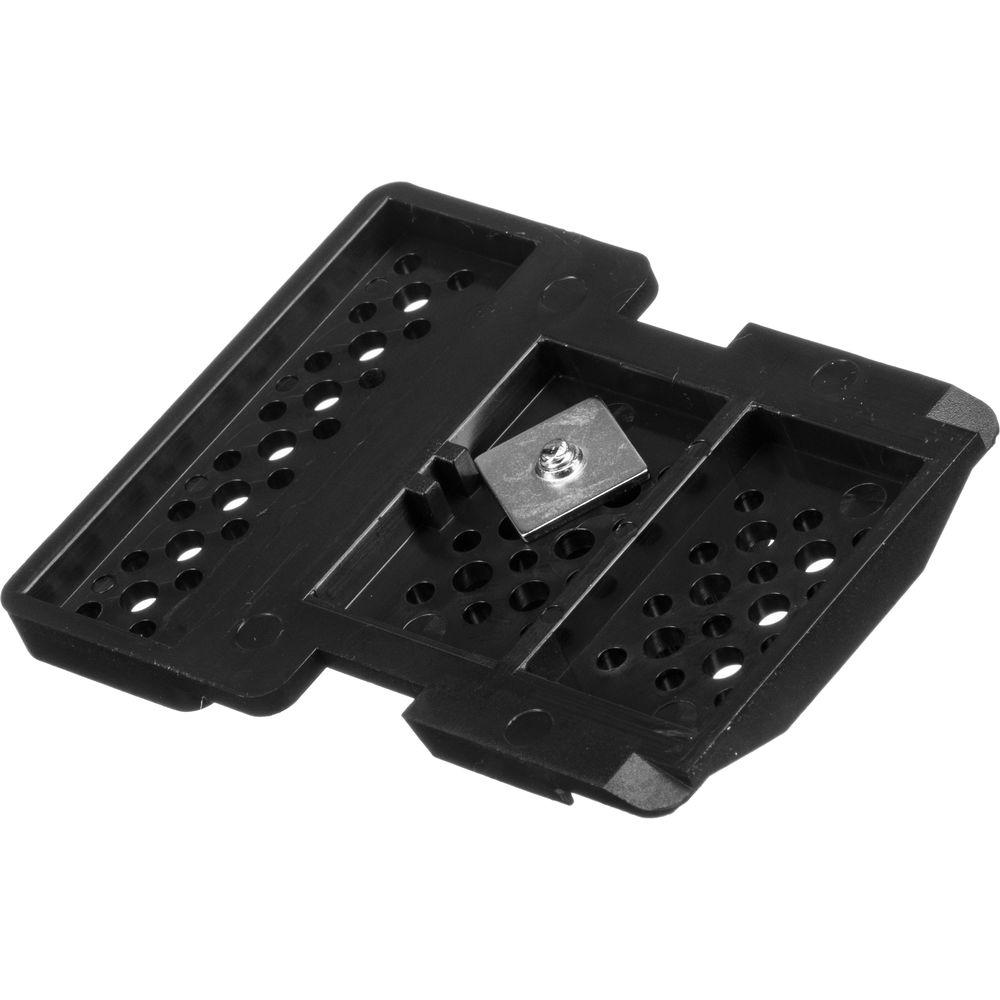

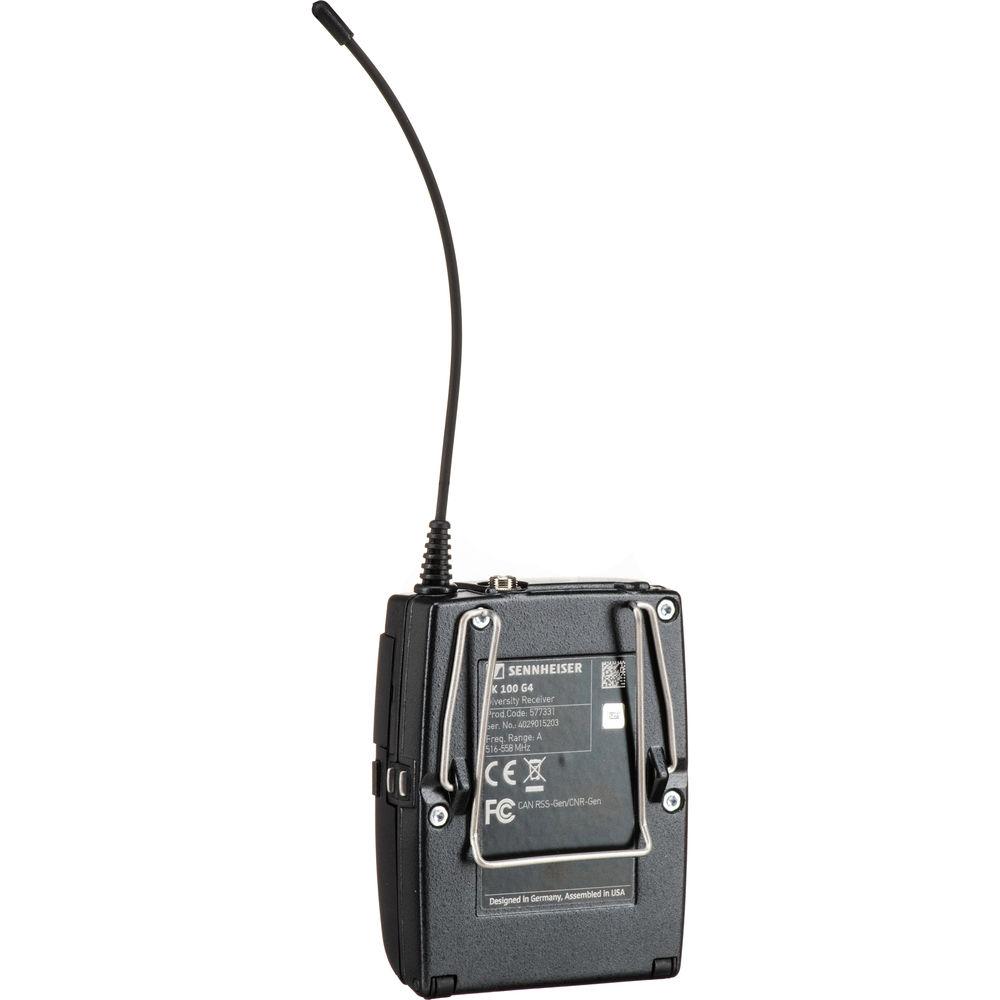

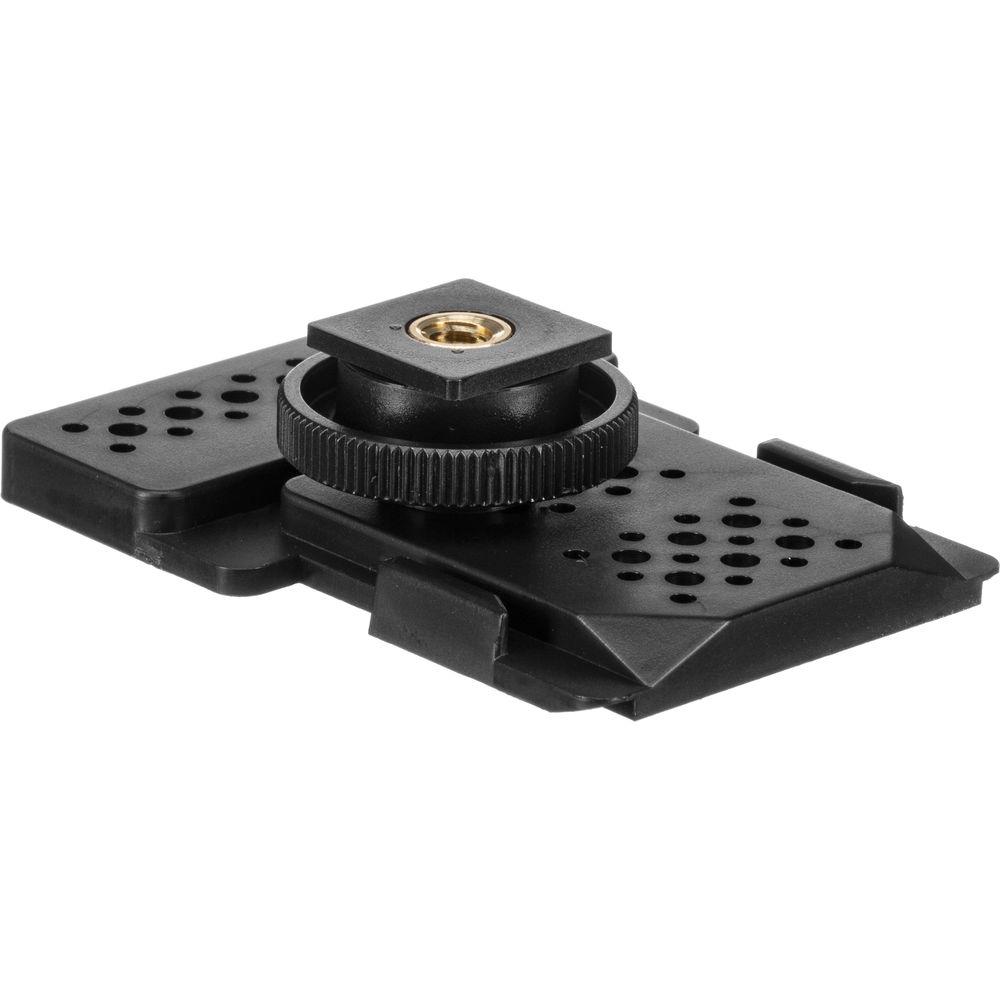

  • CA2 Shoemount Adapter

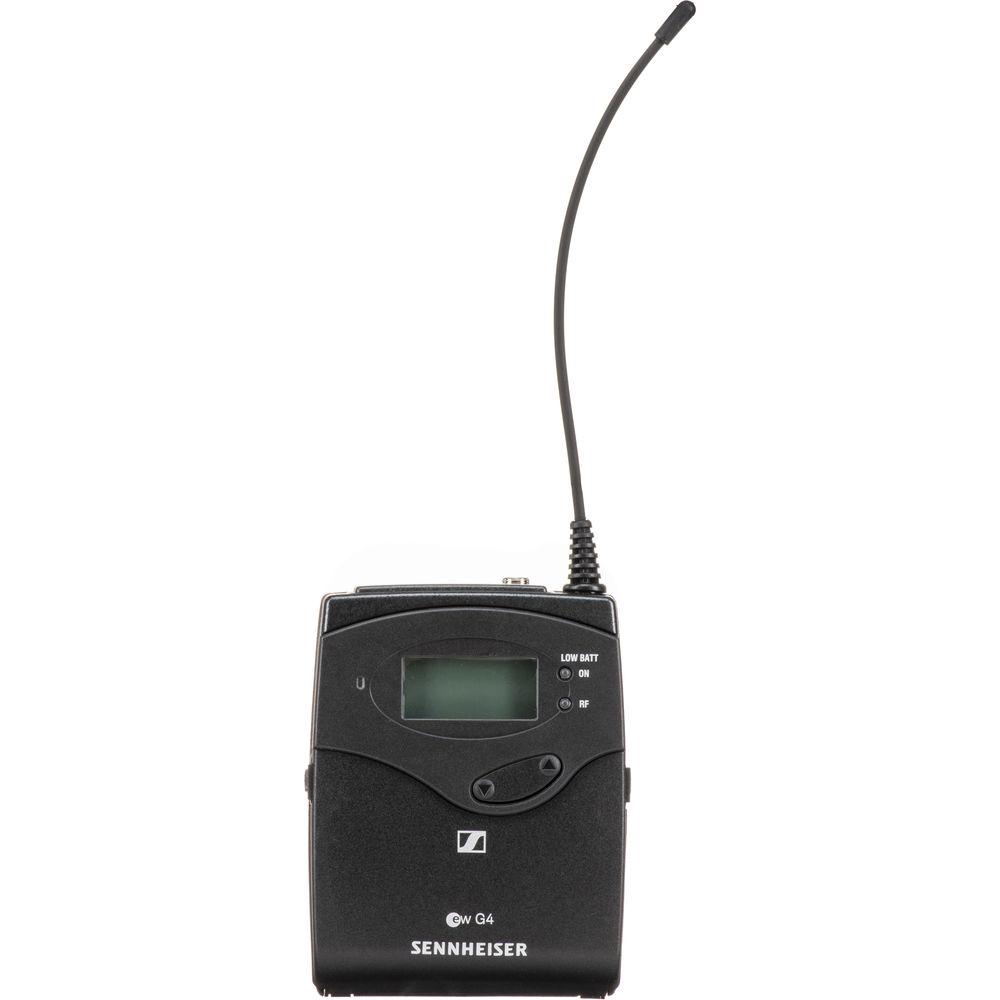

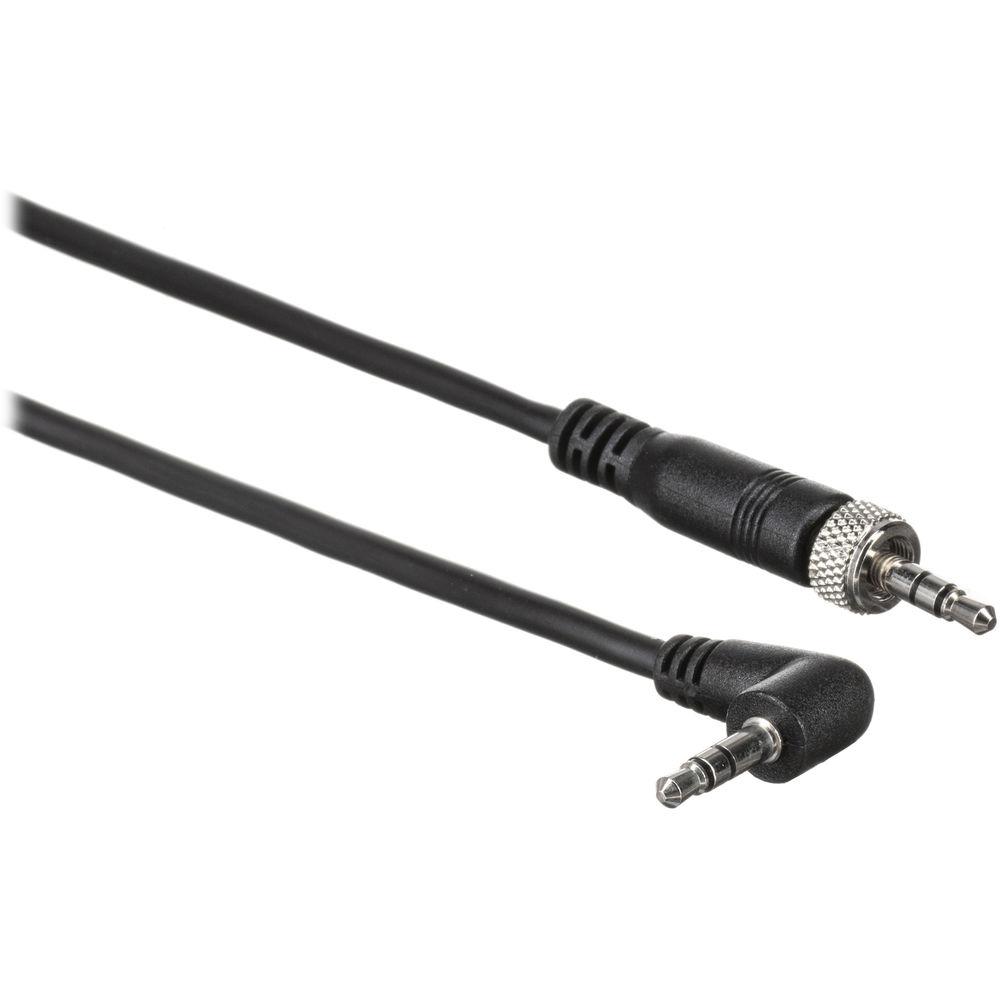

  • CL1 3.5mm to 3.5mm Output Cable for EW Series Camera-Mount Receiver
  • CL-100 1/8"-M Mini to XLR-M
  • 2 x AA Batteries
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Sennheiser EK 100 G4 Wireless Camera-Mount Receiver G: in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Sennheiser EK 100 G4 Specs

    Modulation Wideband FM
    Frequency Band G: (566 to 608 MHz)
    Receiving Frequency Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
    20 frequency banks, each with up to 16 factory-preset channels, no intermodulation
    1 frequency bank with up to 12 programmable channels
    Switching Bandwidth Up to 42 MHz
    Nominal/Peak Deviation ±24 kHz / ±48 kHz
    Principle of Operation Adaptive diversity
    Sensitivity < 1.6 μV for 52 dBA eff S/N (with HDX, peak deviation)
    Adjacent Channel Selectivity ≥ 65 dB
    Intermodulation Attenuation Typically ≥ 65 dB
    Blocking ≥ 70 dB
    Squelch Low: 5 dBµV
    Middle: 15 dBµV
    High: 25 dBμV
    Pilot Tone Squelch Can be switched off
    Antenna Inputs 2 x BNC sockets
    Compander Sennheiser HDX
    Signal to Noise Ratio ≥ 110 dBA (1 mV, peak deviation)
    Total Harmonic Distortion (THD) ≤ 0.9%
    Maximum AF Output Voltage 1/8" /3.5 mm Jack: +12 dBu (mono, unbalanced)
    Output Level Range 42 dB, adjustable in steps of 6 dB
    Temperature Range 14 to 131°F (-10 to 55°C)
    Power Supply 2 x AA 1.5 V batteries, or BA 2015 accupack
    Nominal Voltage 3 V battery / 2.4 V rechargeable battery
    Current Consumption Nominal Voltage: Typical 180 mA
    With Receiver Switched Off: ≤ 25 µA
    Operating Time Typically 8 hours
    Dimensions (L x W x H) 3.2 x 2.5 x 0.9" / 82 x 64 x 24 mm
    Weight 5.6 oz / 160 g
    Package Weight 1.0 lb
    Box Dimensions (LxWxH) 13.8 x 3.2 x 3.2"

    Rating

    100% users recommend this product to others. And what about you?
    Rating: 5 of 5

    This product has already been rated by 94 owners. Add your rating and experience with the product.
