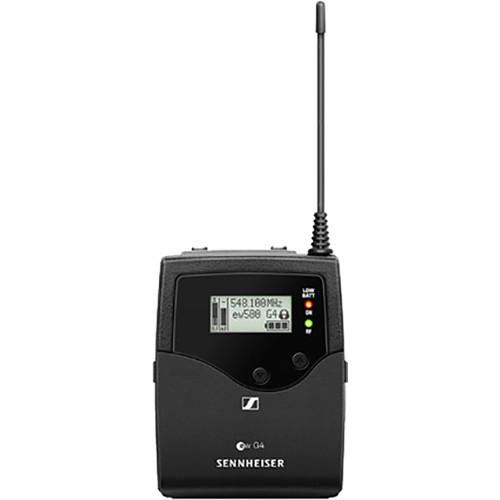

Product description The black EK 500 G4 Pro Wireless Camera-Mount Receiver from Sennheiser is the latest addition to their evolution series of wireless receivers. It operates in the UHF frequency range and can be used with a companion transmitter and microphone (sold separately), as part of a wireless RF transmission system for live stage, theater, film, video, and presentation applications. The camera-mount receiver—with adaptive diversity technology—features 2000 frequencies and is tunable in 25 MHz steps. There are 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32 user-programmable frequencies. This receiver is built with a menu-driven backlit LCD display showing current frequency, frequency bank and channel number, metering of RF level, volume level, line output level, lock status, battery status, muting function, and more. Also, the receiver is configured and synchronized with the transmitter via an integrated infrared interface, or it can be programmed in the receiver menu. Power is supplied to the receiver by two included 1.5V AA size batteries. Finally, the EK 500 G4 receiver is built with a rugged metal housing. A 1/8 to 1/8" cable, XLR to 1/8" cable, and a CA 2 camera adapter are also included. - Professional sound and durable construction
- Easy to use and fast setup time
- Flexible wireless synchronization between transmitter and receiver via infrared
- Up to 50 MHz bandwidth, up to 32 channels
- Increased RF output power (10/30/50 mW)
- Up to 8 hours of operation time
UPC: 615104316461 In the Box Sennheiser EK 500 G4 Pro Wireless Camera-Mount Receiver GW1: (558 to 608 MHz) 2 x AA Batteries CA2 Shoemount Adapter CL1 3.5mm to 3.5mm Output Cable for EW Series Camera-Mount Receiver CL-500 Balanced Cable 1/8"-M to XLR-M Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser EK 500 G4 Pro Wireless Camera-Mount Receiver GW1: in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser EK 500 G4 Pro Specs | Modulation | Wideband FM | | Frequency Band | GW1: (558 to 608 MHz) | | Receiving Frequency | Maximum 2000 receiving frequencies, adjustable in 25 MHz steps
20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
6 frequency bank with up to 32 programmable channels | | Switching Bandwidth | Up to 50 MHz | | Nominal/Peak Deviation | ±24 kHz / ±48 kHz | | Principle of Operation | Adaptive diversity | | Sensitivity | < 1.6 μV for 52 dBA eff s/n (with HDX, peak deviation) | | Adjacent Channel Selectivity | Typically ≥ 65 dB | | Intermodulation Attenuation | Typically ≥ 65 dB | | Blocking | ≥ 70 dB | | Squelch | Low: 5 dB µV
Middle: 15 dB µV
High: 25 dB μV | | Pilot Tone Squelch | Can be switched off | | Compander | Sennheiser HDX | | Signal to Noise Ratio | (1 mV, peak deviation)
Line: ≥ 110 dBA
Phones: Approximately 90 dB | | Total Harmonic Distortion (THD) | ≤ 0.9% | | Maximum AF Output Voltage | 1/8" (3.5 mm) Jack Socket: +17 dB (mono, unbalanced) (at peak deviation, 1 kHz AF) | | Output Level Range | 42 dB, adjustable in steps of 6 dB | | Temperature Range | 14 to 131°F (-10 to 55°C) | | Power Supply | 2 x AA batteries, 1.5 V or BA2015 accupack | | Nominal Voltage | 3 V battery / 2.4 V rechargeable battery | | Current Consumption | At Nominal Voltage: Typical 140 mA
With Receiver Switched Off: ≤ 25 μA | | Operating Time | Typically 8 hours | | Dimensions (L x W x H) | 3.2 x 2.5 x 0.9" (82 x 64 x 24 mm) | | Weight | 4.6 oz (130 g) including batteries | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 13.8 x 3.2 x 2.9" |
