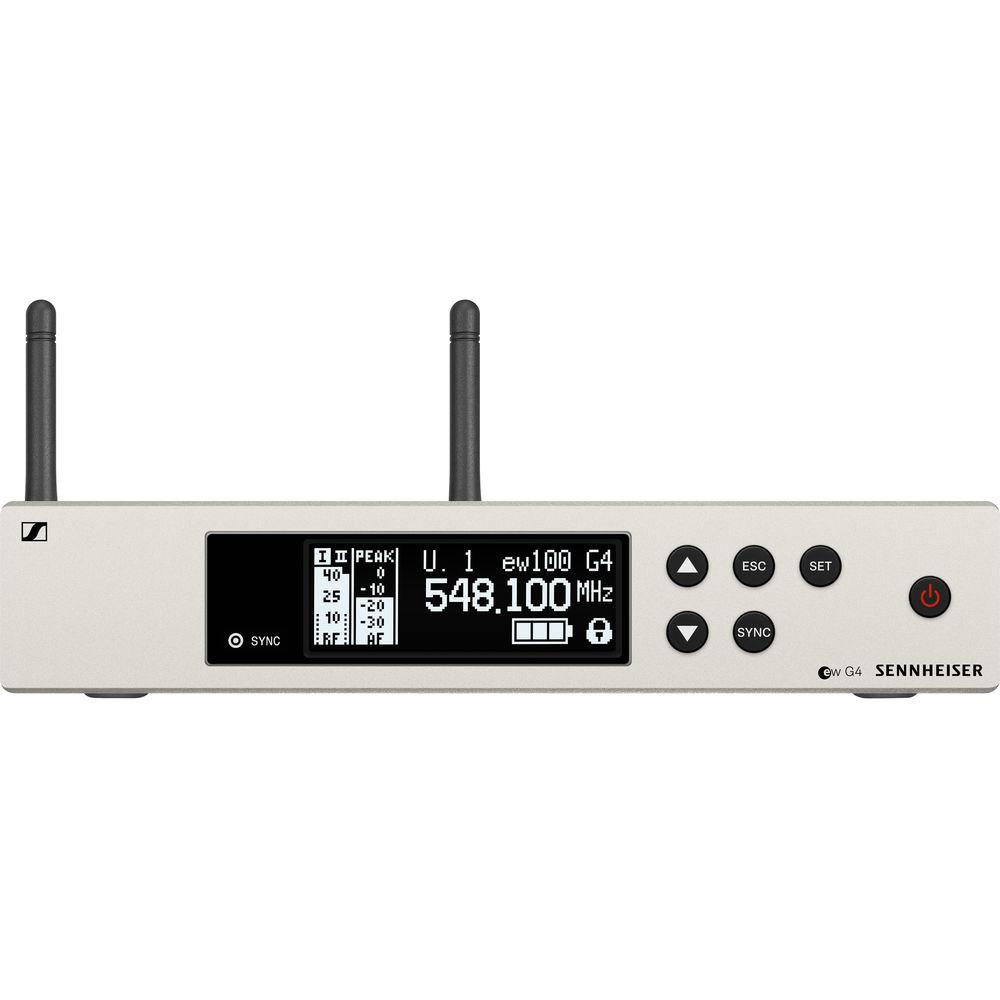

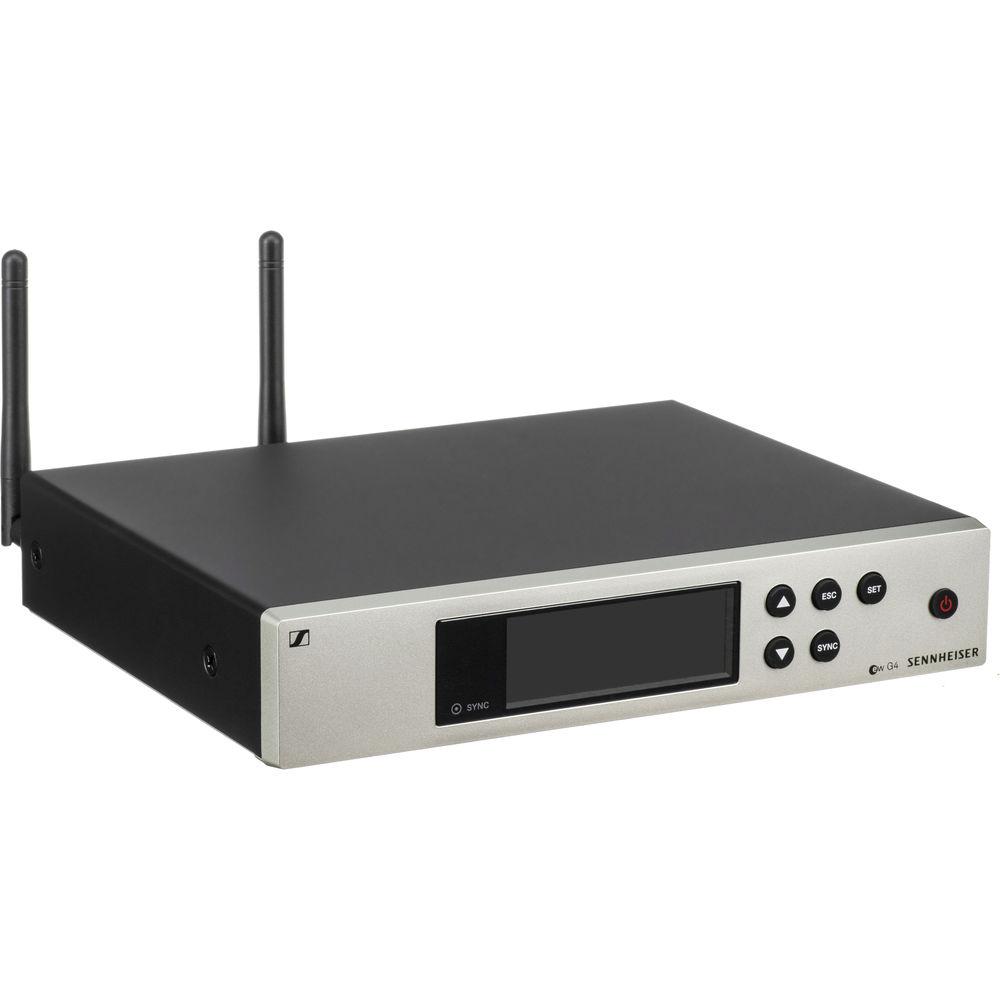

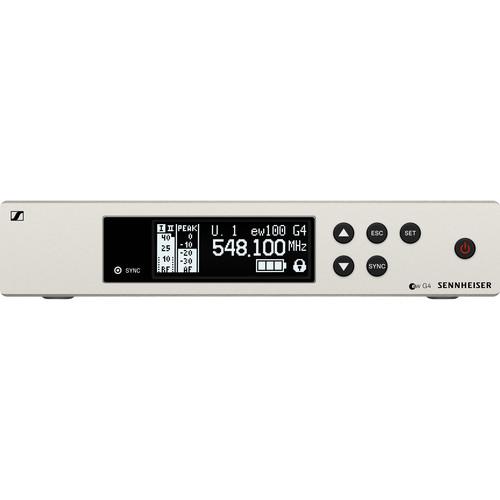

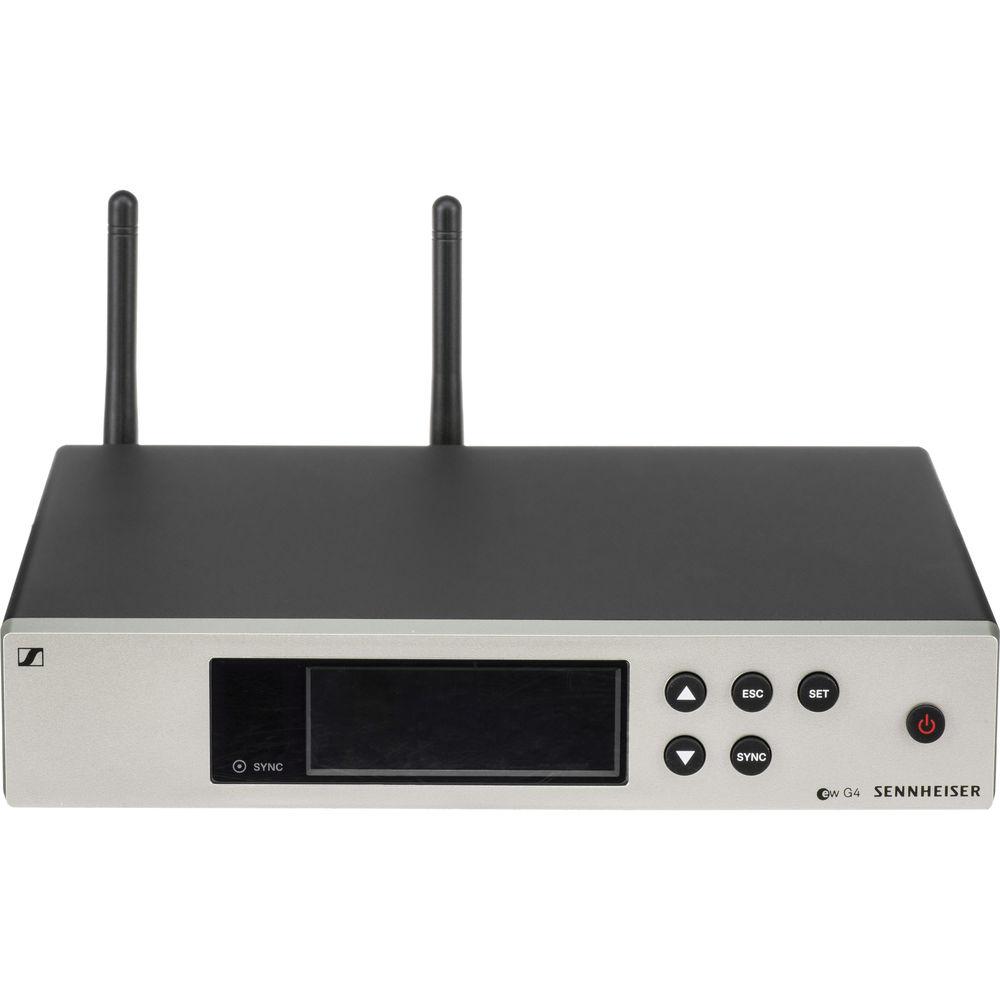

User Manual for Sennheiser EM 100 G4 Wireless UHF True Diversity Rackmount Receiver A: Click to enlarge the picture
Contents of the user manual for the Sennheiser EM 100 G4 Wireless UHF
- Product category: Wireless Receivers Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Receivers
 |
User manual for the Sennheiser EM 100 G4 Wireless UHF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

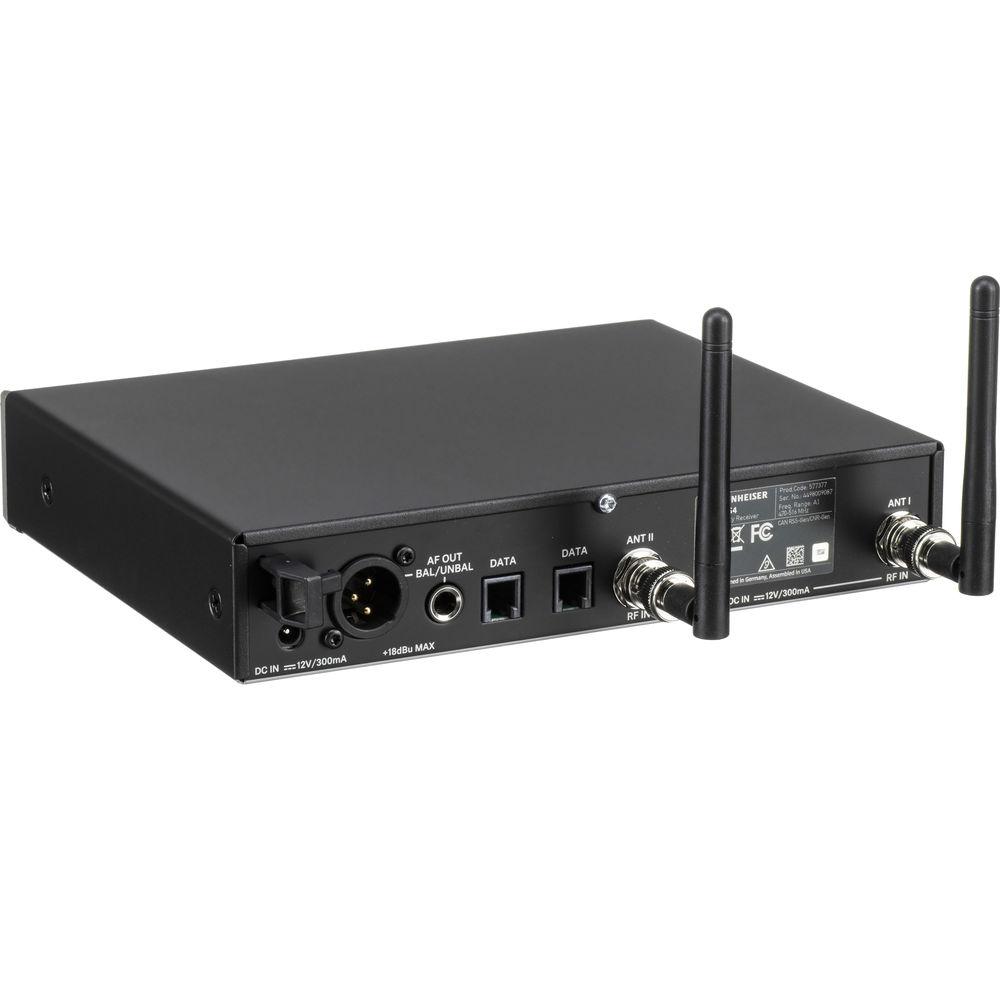

Product description The EM 100 G4 Wireless UHF True Diversity Rackmount Receiver from Sennheiser is the latest addition to their evolution family of wireless microphones and is fully compatible with all previous series. It can be used when paired with a G4 transmitter and microphone (sold separately) to capture audio in sound reinforcement applications. The receiver features, XLR and 1/4" outputs, multi-channel setup capabilities, true-diversity UHF reception, 42 MHz bandwidth, 1680 tunable frequencies, the allocation for up to 12 receivers, and a comprehensive high-contrast LCD display. With enhanced features that include automatic frequency scan, transmitter sync (via infrared), and sturdy metal construction, the EM 100 is well suited for professional applications in theaters, clubs, town halls, houses of worship, DJ applications, and more. - True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission range: Up to 100 meters / 300'
- High RF output power (up to 30 mW) depending on country regulations

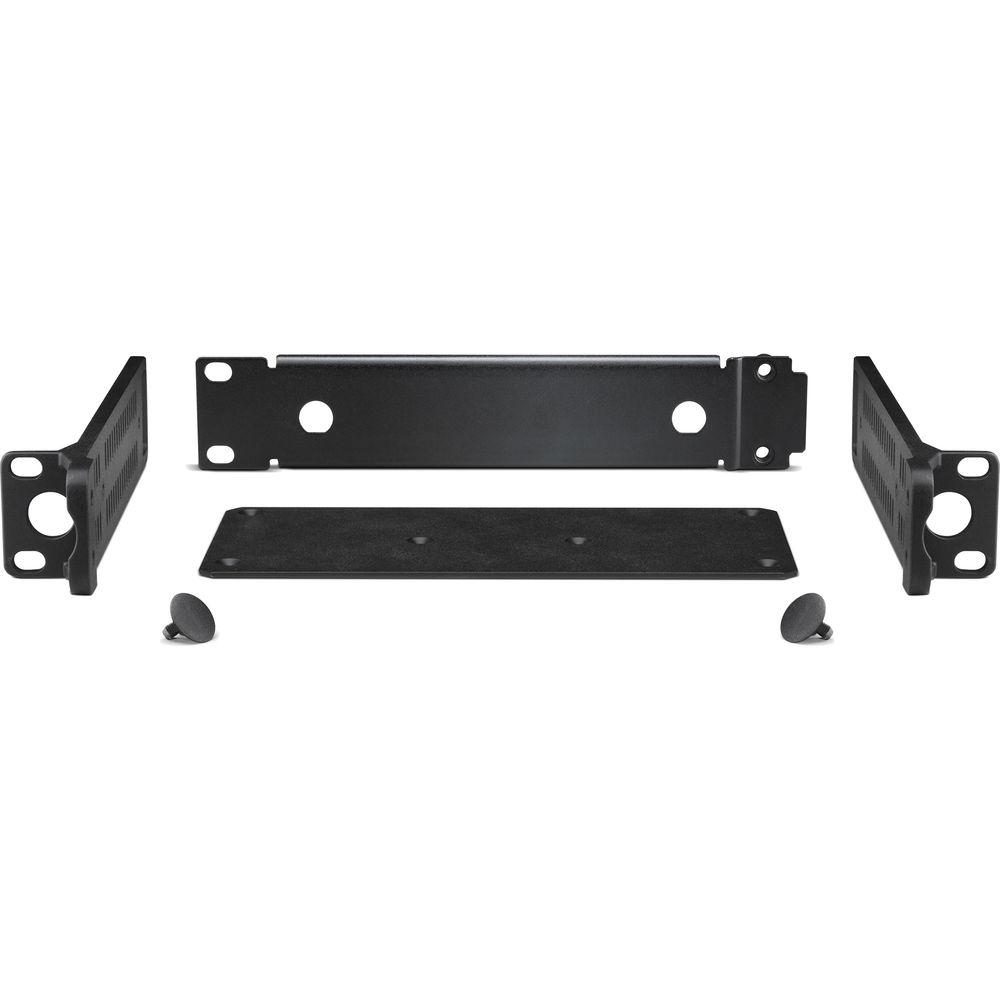

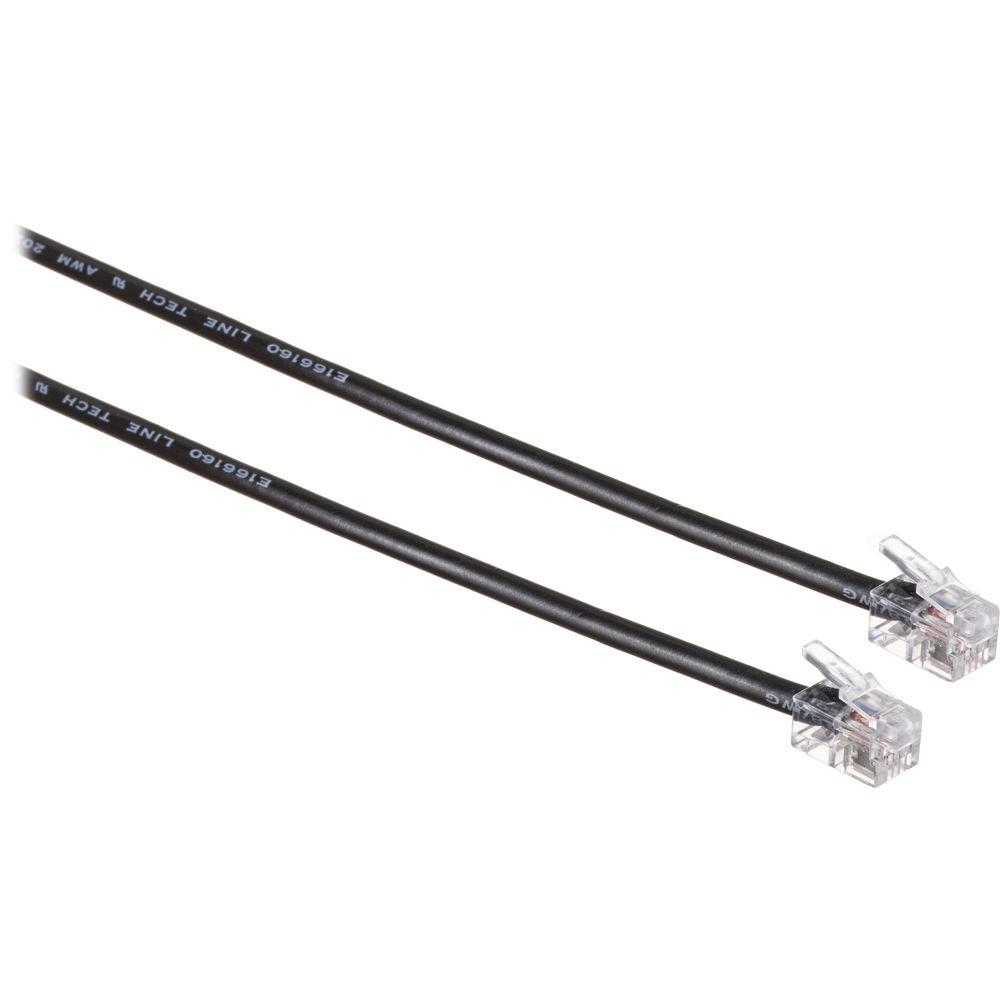

UPC: 615104309326 In the Box Sennheiser EM 100 G4 Wireless UHF True Diversity Rackmount Receiver A: (516 to 558 MHz) Power Supply 2 x Rod Antennas RJ 10 Cable GA 3 Rackmount Kit for G3 100/300/500 Series Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser EM 100 G4 Wireless UHF True Diversity Rackmount Receiver A: in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser EM 100 G4 Specs | | | Frequency Band | A: (516 to 558 MHz) | | Type of Receiver | EM 100 G4 half-rack mountable true diversity UHF | | Receiving Frequency | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels | | Switching Bandwidth | Up to 42 MHz | | Nominal/Peak Deviation | ±24 kHz / ±48 kHz | | Receiver Type | True diversity | | Sensitivity | < 2.5 μV for 52 dBA (with HDX, peak deviation) | | Adjacent Channel Selectivity | Typically ≥ 65 dB | | Intermodulation Attenuation | Typically ≥ 65 dB | | Blocking | ≥ 70 dB | | Squelch | Low: 5 dB
