User Manual for Sennheiser EM 300-500 G4 Wireless True Diversity Receiver AW : Click to enlarge the picture
Contents of the user manual for the Sennheiser EM 300-500 G4 Wireless True
- Product category: Wireless Receivers Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Receivers
 |
User manual for the Sennheiser EM 300-500 G4 Wireless True contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

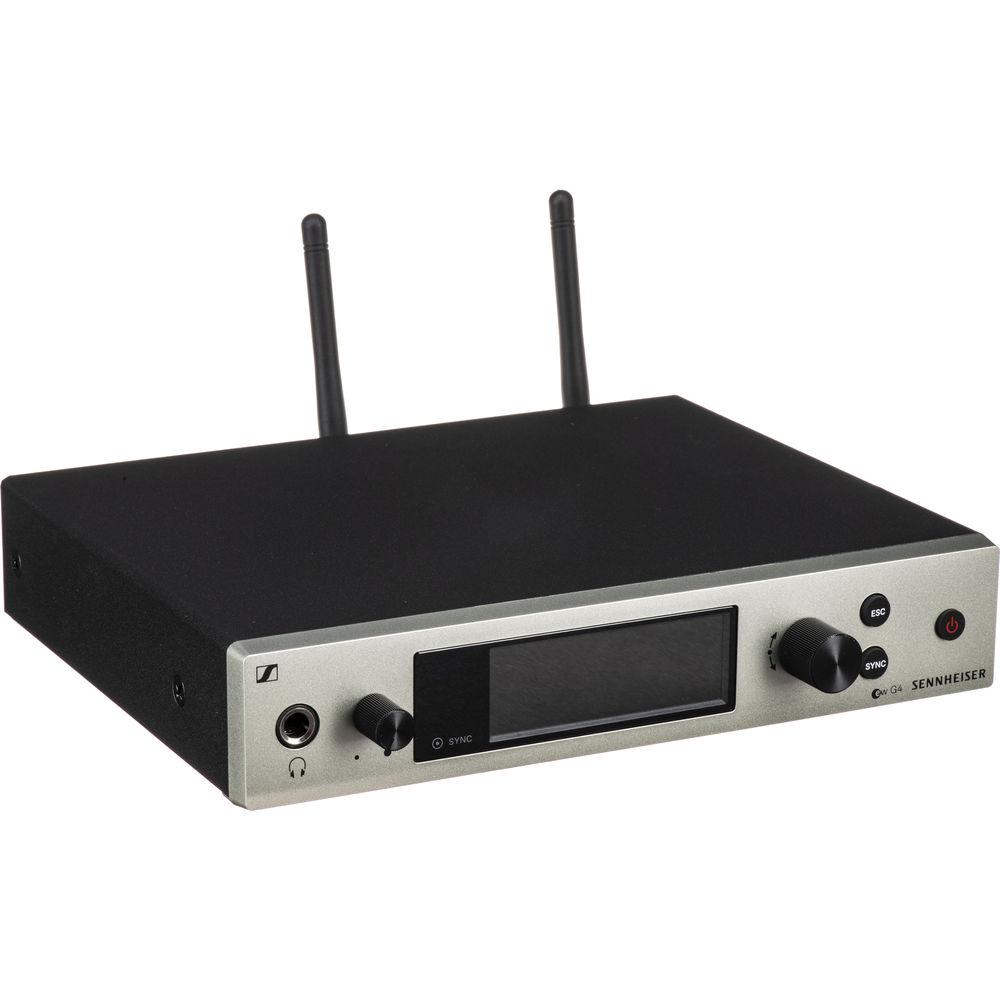

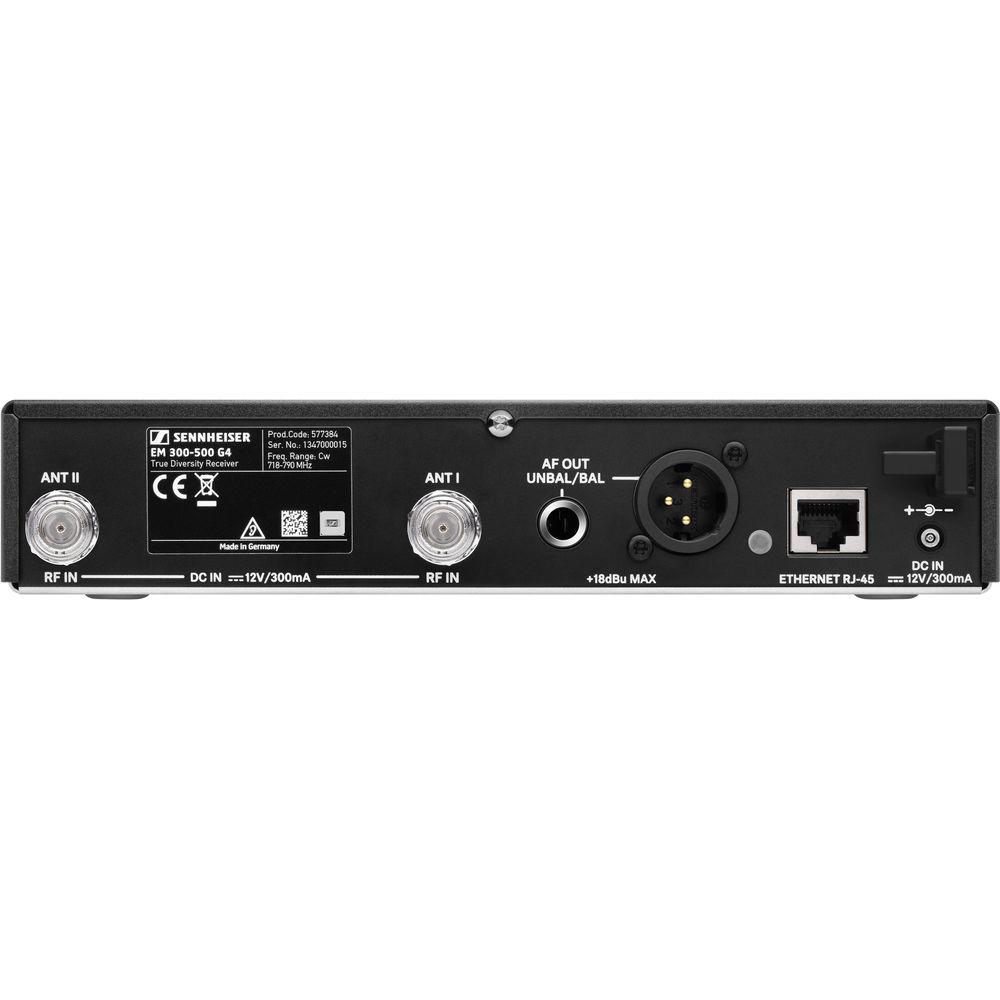

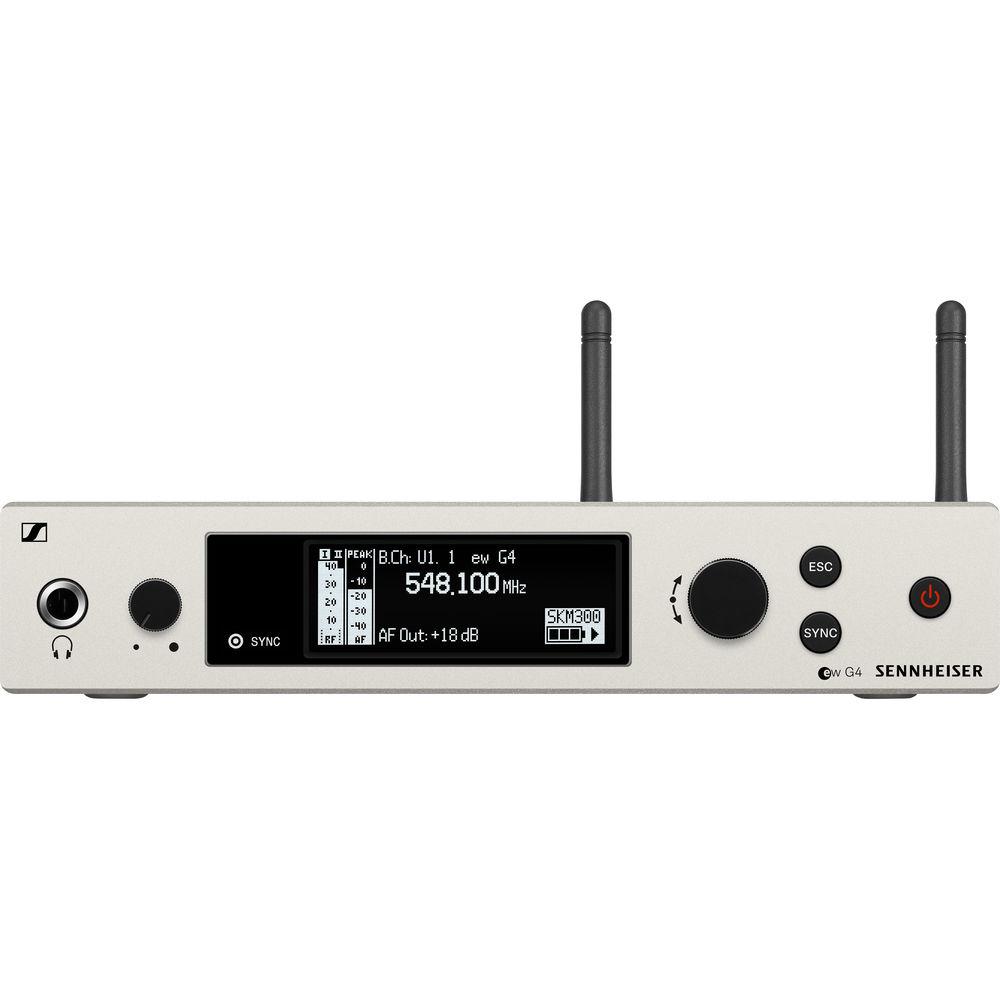

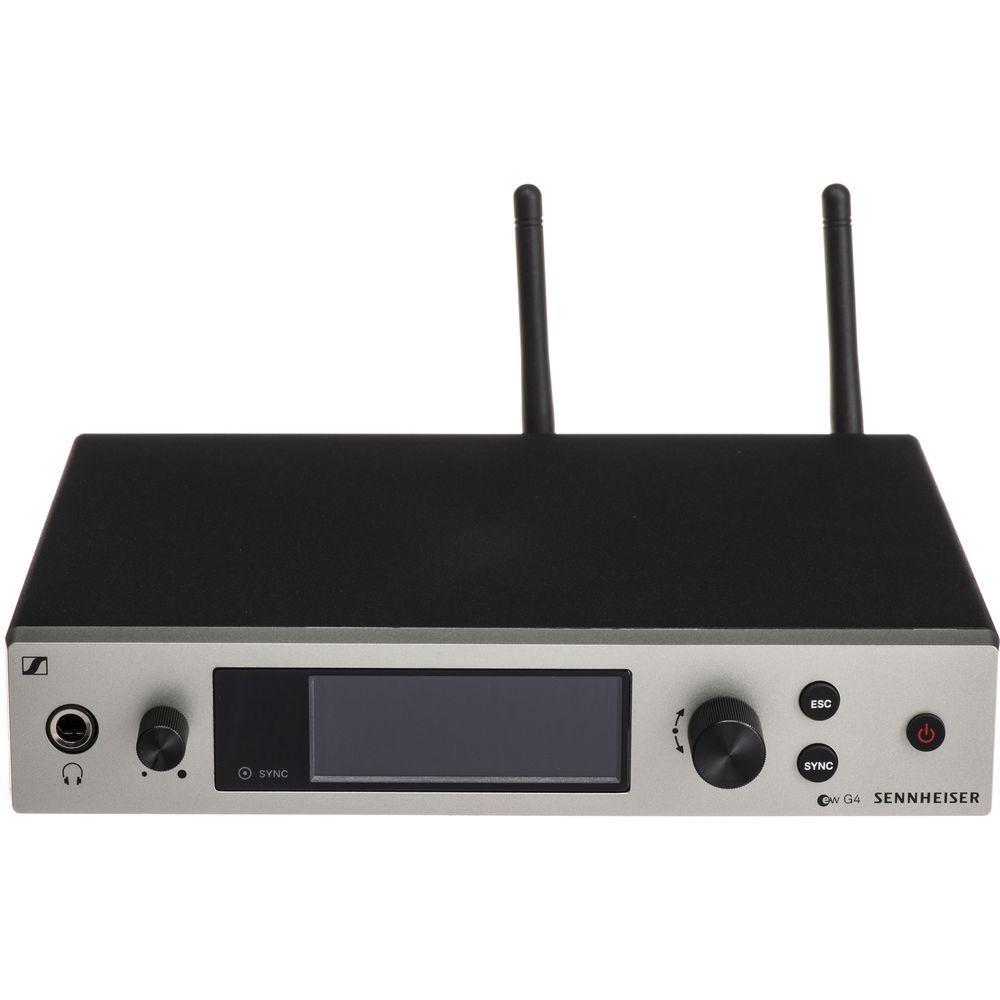

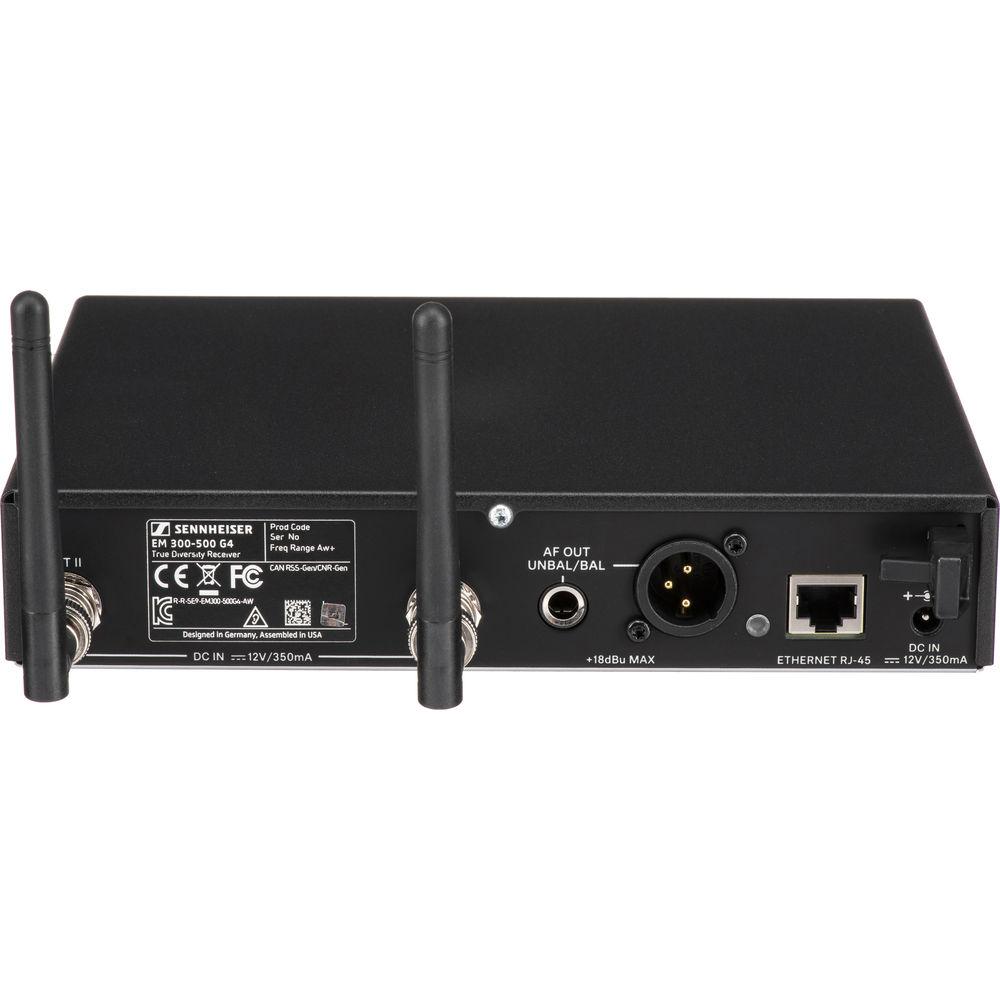

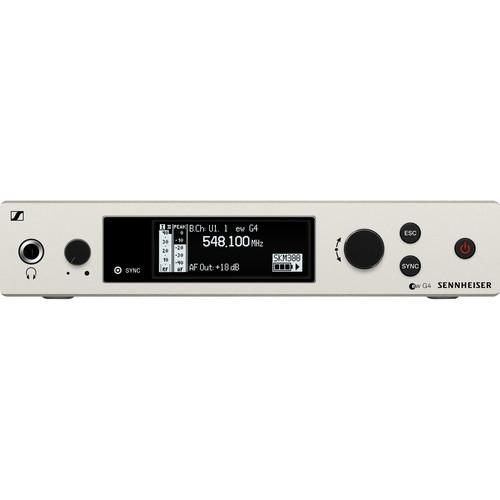

Product description The EM 300-500 G4 Wireless True Diversity Receiver from Sennheiser is the latest addition to their evolution series of wireless receivers. It operates in the UHF frequency range and can be used with a companion transmitter and microphone (sold separately), as part of a wireless RF transmission system for live stage, theater, and presentation applications. The half-rack receiver features 3250 frequencies and is tunable in 25 kHz steps. There are 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32 user programmable frequencies. This receiver is built with a menu-driven backlit OLED display showing current frequency, frequency bank and channel number, metering of RF level, volume level, line output level, lock status, battery status, muting function, and more. Enclosed in a rugged metal housing, the EM 300-500 G4 receiver is equipped with a balanced XLR-3M audio output along with an unbalanced 1/4" audio output. A 1/4" headphone output with headphone volume control is provided along with an Ethernet port (RF45) for remote network-based monitoring and control, using Sennheiser's Wireless System Manager software. Two BNC-type sockets are for connecting the antennas. Finally, the half-rack receiver operates on the included 12V power supply and includes a GA3 rackmount set. - True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3250 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50mW, adjustable in three steps 10/30/50) depending on country regulations

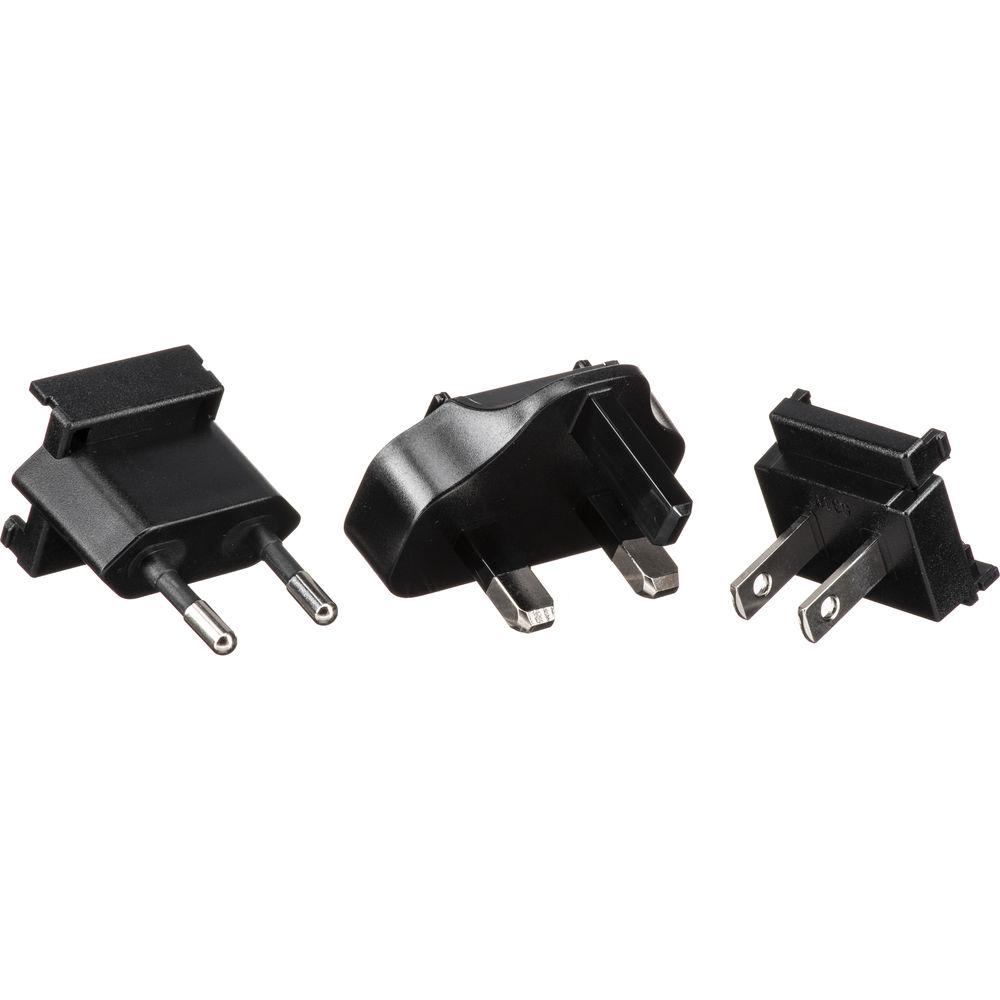

UPC: 615104316218 In the Box Sennheiser EM 300-500 G4 Wireless True Diversity Receiver AW+: (470 to 558 MHz) 2 x Rod Antennas Power Supply GA 3 Rackmount Kit for G3 100/300/500 Series Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser EM 300-500 G4 Wireless True Diversity Receiver AW : in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser EM 300-500 G4 Specs | Modulation | Wideband FM | | Frequency Band | AW+: (470 to 558 MHz) | | Receiving Frequency | Maximum 3250 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
6 frequency banks with up to 32 programmable channels | | Switching Bandwidth | Up to 88 MHz | | Nominal/Peak Deviation | ±24 kHz / ±48 kHz | | Principle of Operation | True diversity | | Sensitivity | < 2.5 μV for 52 dBA eff S/N (with HDX, peak deviation) | | Adjacent Channel Selectivity | Typically ≥ 75 dB | | Intermodulation Attenuation | Typically ≥ 70 dB | | Blocking | ≥ 75 dB | | Squelch | Off, 5 to 25 dB μV in steps of 2 dB | | Pilot Tone Squelch | Can be switched off | | Antenna Inputs | 2 x BNC sockets | | Compander | Sennheiser HDX | | EQ Presets | Switchable, Act on Line and Monitor Outputs)
Preset 1: Flat
Preset 2: Low cut (-3 dB at 180 Hz)
Preset 3: Low cut/high boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High boost (+6 dB at 10 kHz) | | Signal to Noise Ratio | (1 mV, peak deviation)
Line: ≥ 115 dBA | | Total Harmonic Distortion (THD) | ≤ 0.9% | | Maximum AF Output Voltage | 1/4" (6.3 mm) Jack Socket: +12 dBu (unbalanced) (at peak deviation, 1 kHz AF)
XLR Socket: +18 dBu (balanced) (at peak deviation, 1 kHz AF) | | Output Level Range | 48 dB (3 dB steps) | | Temperature Range | 14 to 131°F (-10 to 55°C) | | Power Supply | 12 VDC | | Current Consumption | 350 mA | | Dimensions (L x W x H) | 8.0 x 8.3 x 1.7" (202 x 212 x 43 mm) | | Weight | 2.2 lb (980 g) | | | | Package Weight | 5.74 lb | | Box Dimensions (LxWxH) | 16.05 x 14.15 x 3.05" |
