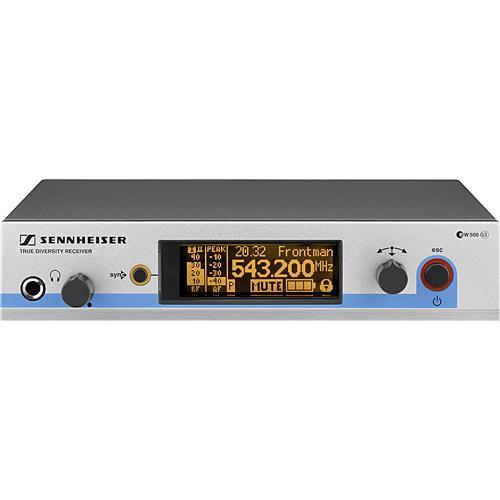

User Manual for Sennheiser EM 500 G3 Wireless UHF Diversity Receiver Click to enlarge the picture
Contents of the user manual for the Sennheiser EM 500 G3 Wireless UHF
- Product category: Wireless Receivers Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Receivers
|
User manual for the Sennheiser EM 500 G3 Wireless UHF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Sennheiser EM 500 G3 Wireless Receiver is intended to be used with the Sennheiser G3 wireless transmitters. The receiver features true-diversity UHF reception, 42 MHz bandwidth, 1680 tunable frequencies, 32 compatible frequencies, and a comprehensive backlit display. With enhanced features that include automatic frequency scan, transmitter sync (via infrared), Ethernet port, and sturdy metal construction, the EM 500 is well suited for professional applications in theaters, clubs, town halls, houses of worship, DJ applications, and more. - Ethernet port for remote operation with Wireless Systems Manager (WSM) software from a PC
- 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 32 compatible frequencies per bank
- Automatic frequency scan feature searches for available frequencies
- High-quality true-diversity reception
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Enhanced AF frequency range
- Wireless synchronization of transmitter parameter from receiver
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Receiver shows transmitter battery indication in 4 steps
- Integrated Equalizer and Soundcheck mode
UPC: 615104162327 In the Box Sennheiser EM 500 G3 Wireless UHF Diversity Receiver (Frequency A: 516 to 558 MHz) NT 2-3-US Power Supply dqvuayustqwwwatvwcsacabbvzvuwc 2 x Antennas GA 3 Rackmount Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser EM 500 G3 Wireless UHF Diversity Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser EM500 G3 Specs | Frequency Range | A: 516 to 558 MHz | | Frequency Response | 25 Hz to 18 kHz, microphone | | Compander | HDX | | Audio Connector | Balanced XLR
Unbalanced 1/4" (6.3 mm) phone | | Presets | Max. 32 | | THD | < 0.9 % | | Signal-to-Noise Ratio | > 115 dB(A) | | Transmission/Receiving Frequency | 1680 | | Switching Bandwidth | 42 MHz | | Peak Deviation | +/- 48 kHz | | Compliance | ETS 300422, ETS 300445, CE , FCC | | Antenna Connector | 2 x BNC, 50 ohms | | Audio Output Level | XLR: +18 dBu max (balanced)
1/4" Jack: +12 dBu max (unbalanced) | | Dimensions | 7.95 x 8.35 x 1.69" (202 x 212 x 43 mm) | | Weight | 2.16 lb (980 g) | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 14.8 x 11.1 x 2.9" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
