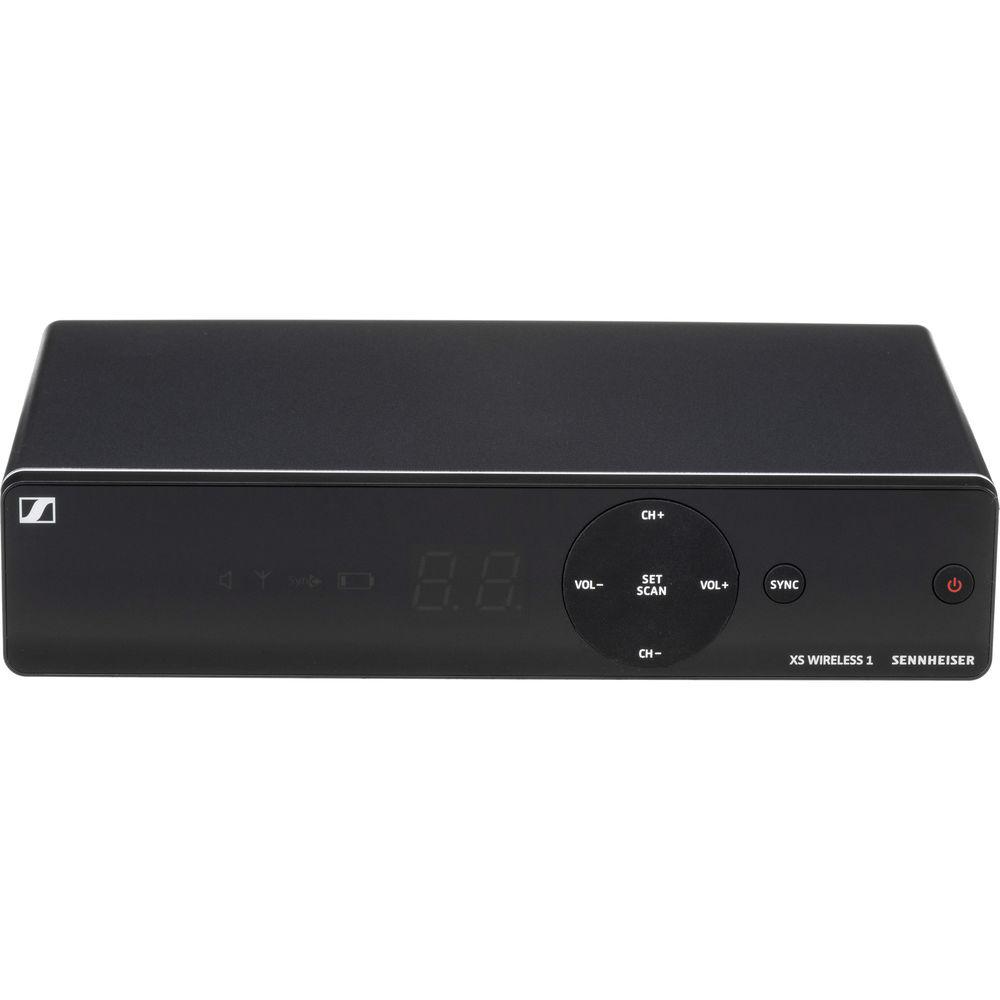

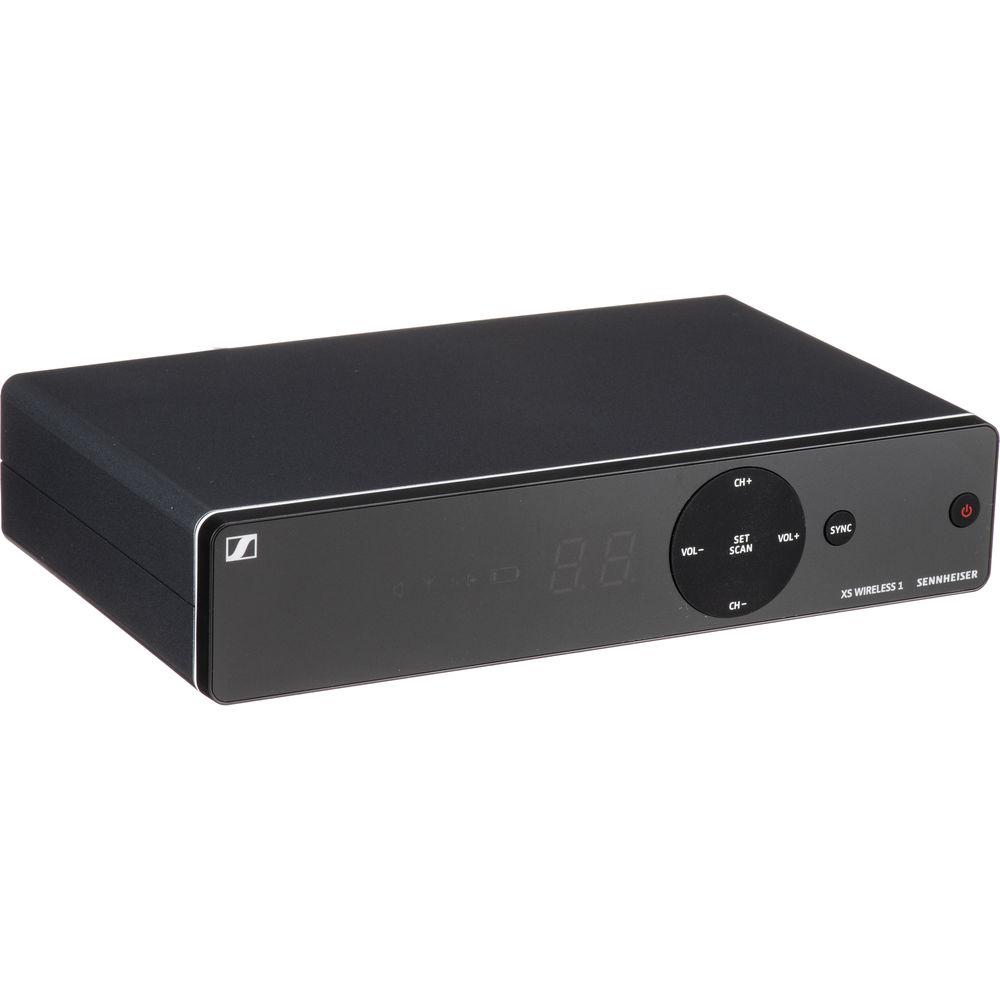

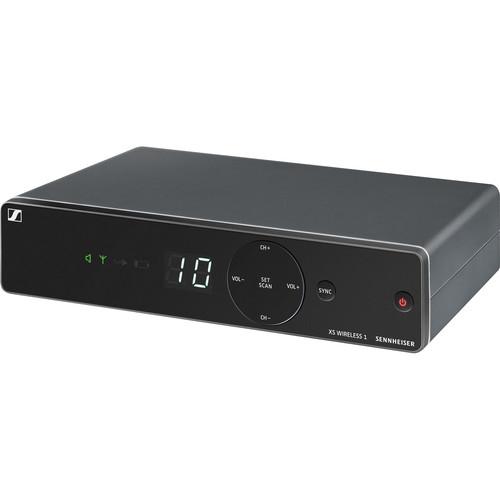

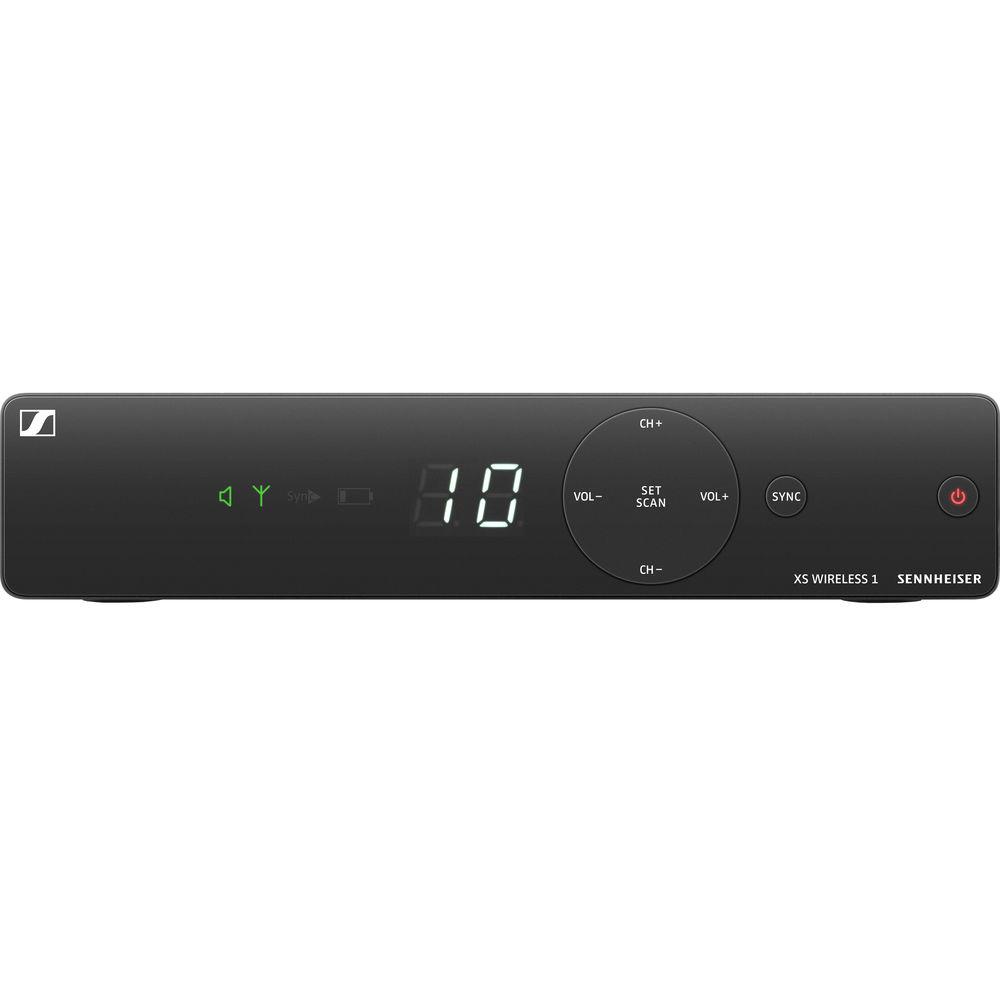

User Manual for Sennheiser EM-XSW 1-A Table Top Receiver Click to enlarge the picture
Contents of the user manual for the Sennheiser EM-XSW 1-A Table Top Receiver
- Product category: Wireless Receivers Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Receivers
 |
User manual for the Sennheiser EM-XSW 1-A Table Top Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The EM-XSW 1-A Table Top Receiver from Sennheiser is designed to be paired with the XSW 1-A handheld microphone or bodypack transmitter with a lavalier microphone (sold separately). It can be used to capture audio for live stage applications and features internal, integrated antennas, as well as automatic frequency management, which offers up to ten coordinated frequency presets for wireless applications. The receiver is built to withstand even the toughest stress in everyday on-stage use and offers reliable transmission with easy-to-use set up. No matter whether you're a band, a theater, or at a seminar, the XS Wireless 1 receiver lets you do your thing and not worry about equipment. - Great Performance and Price
- The XS Wireless 1 receiver lets you concentrate on your talent and not the equipment. Just switch it on and its automatic frequency management does the rest. You can operate up to 10 coordinated frequency preset wireless connections.
- Live Sound
- The receiver yields an open, natural sound. No lengthy set up—just go!
- Reliable Transmission
- On stage, you must put up with a lot of things—so does your equipment. XS Wireless 1 is built to last: Receivers are designed to withstand even the toughest stress in everyday on-stage use.
UPC: 615104281820 In the Box Sennheiser EM-XSW 1-A Table Top Receiver (A: 548 to 572 MHz) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser EM-XSW 1-A Table Top Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser EM-XSW 1 Specs | | | Modulation | Wideband FM | | Frequency Range | A: 548 to 572 MHz | | Switching Bandwidth | Up to 24 MHz | | Signal to Noise Ratio | ≥ 103 dBA | | Total Harmonic Distortion | ≤ 0.9% | | Temperature Range | Operation: 32 to 104°F (0 to +40°C) | | Storage | -4 to 158°F (-20 to 70°C) | | Transmitter Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) | | | | Principle | Double superheterodyne | | Diversity | Antenna switching diversity via internal antennas | | Sensitivity | < 3 μV at 52 dBA RMS S/N (at peak deviation) | | Frequency Response | 50 Hz to 16 kHz (-3 dB) | | Max Output Voltage | At Peak Deviation, 1 kHz AF

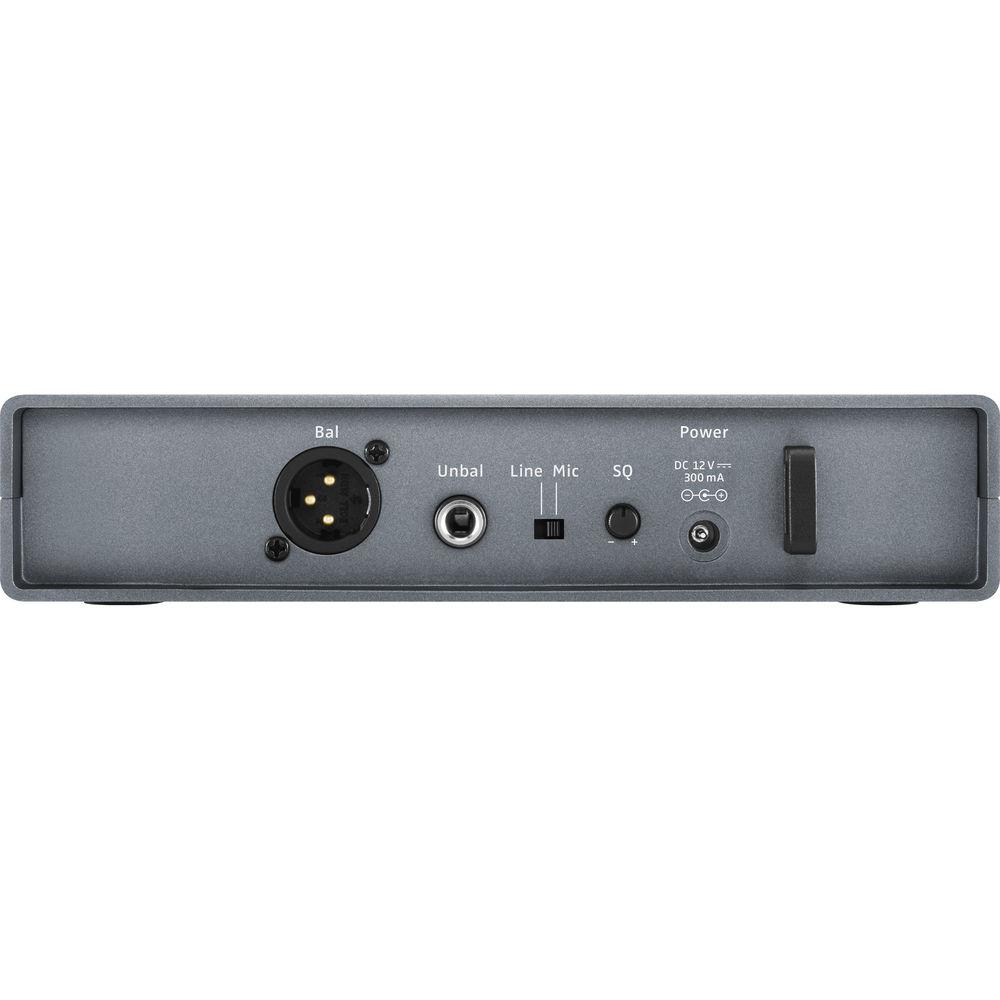

1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu
XLR Socket (balanced): +12 dBu | | Adjustment Range | Audio: 45 dB, adjustable in 5-dB steps | | Power Supply | 12 VDC nominal/300 mA | | Squelch | Adjustable from 3 to 28 dB μV (combined with pilot tone) | | Line/Mic Level | 20 dB, switchable | | Material of Construction | ABS housing | | Dimensions (W x H x D) | 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm) | | Weight | 12 oz (340 g) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.9 x 10.0 x 3.3" |
