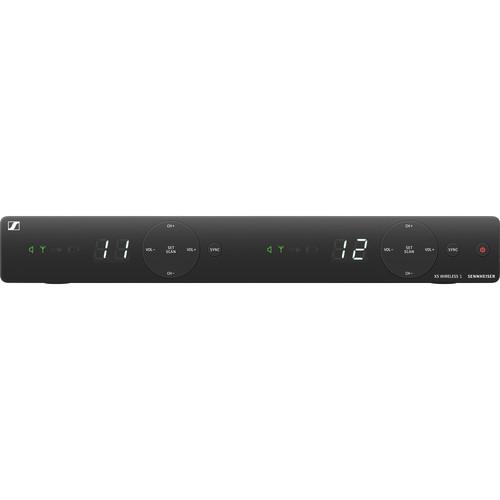

User Manual for Sennheiser EM-XSW 1 Dual-Channel Stationary Receiver with Internal Antennas Click to enlarge the picture
Contents of the user manual for the Sennheiser EM-XSW 1 Dual-Channel Stationary Receiver
- Product category: Wireless Receivers Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Receivers
|
User manual for the Sennheiser EM-XSW 1 Dual-Channel Stationary Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The EM-XSW 1 Dual-Channel Stationary Receiver with Internal Antennas from Sennheiser is a 2-channel analog UHF wireless receiver. It can be used for singers and presenters when paired with an XS wireless 1 series handheld transmitter and microphone capsule (sold separately). The dual-channel receiver is designed with ease of use in mind and is well suited for DJ, church, and school applications. Each receiver channel is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter is also included. - Antenna-switching 2-channel diversity reception
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
UPC: 615104315617 In the Box Sennheiser EM-XSW 1 Dual-Channel Stationary Receiver with Internal Antennas (A: 548 to 572 MHz) NT 12-5 CW Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser EM-XSW 1 Dual-Channel Stationary Receiver with Internal Antennas in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser EM-XSW 1 Specs | | | Modulation | Wideband FM | | Switching Bandwidth | Up to 24 MHz | | Frequencies | 80 factory presets (8 banks of 10 channels each) | | Signal to Noise Rate | ≥ 103 dBA | | THD | ≤ 0.9% | | Temperature Range | Operation: 32 to 104°F / 0 to 40°C
Storage: -4 to 158°F / -20 to 70°C | | Transmitter Synchronization | 2.4 GHz, low power OQPSK (only active during synchronization | | | | Receiver Type | Double superheterodyne | | Frequency Band | (A: 548 to 572 MHz) | | Diversity Method | Antenna switching diversity via internal antennas | | Sensitivity | < 3 μV at 52 dB(A) rms S/N (at peak deviation) | | AF Frequency Response | 50 Hz to 16 kHz (-3 dB) | | Maximum AF Output Voltage | 1/4" / 6.3 mm Socket (Unbalanced): +6 dBu
XLR Socket (Balanced): +12 dBu | | Audio Adjustment Range | 45 dB, adjustable in 5 dB steps | | Power Supply | 12 VDC nominal / 300 mA | | Squelch | Adjustable from 3 dB μV to 28 dB μV (combined with pilot tone) | | Line/Mic Level | 20 dB, switchable | | Housing Material | Rugged ABS housing | | Dimensions (W x H x D) | 12.6 x 5.0 x 1.7" / 32.0 x 12.7 x 4.2 cm | | Weight | 21.9 oz / 620.0 g | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 14.7 x 10.8 x 3.5" |
