Sennheiser ew 100-945 G4-S Wireless Handheld

User Manual for Sennheiser ew 100-945 G4-S Wireless Handheld Microphone System A1:

• Product category: Wireless Systems Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Wireless Systems

Product description

• EM 100 G4 Wireless UHF True Diversity Rackmount Receiver A1: (470 to 516 MHz)
  • evolution wireless G4 Tutorial An Introduction I Sennheiser

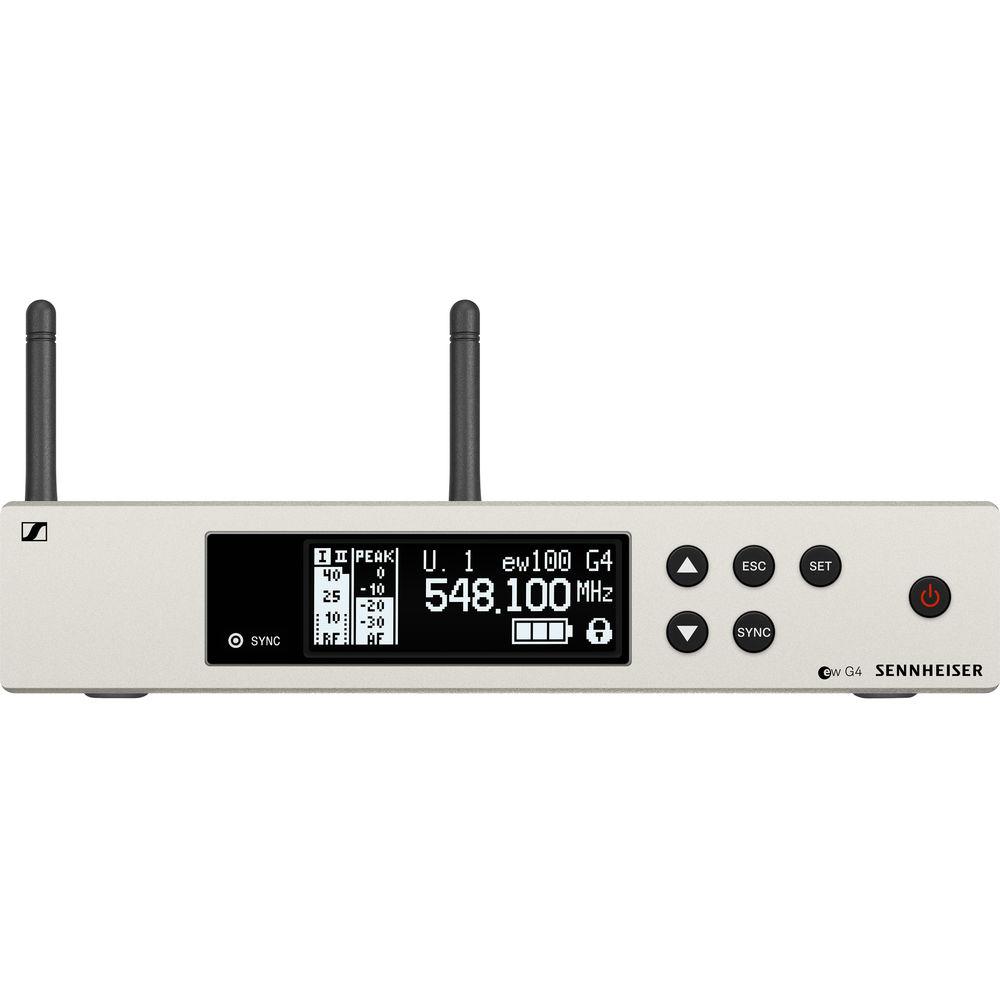

  The EM 100 G4 Wireless UHF True Diversity Rackmount Receiver from Sennheiser is the latest addition to their evolution family of wireless microphones and is fully compatible with all previous series. It can be used when paired with a G4 transmitter and microphone (sold separately) to capture audio in sound reinforcement applications. The receiver features, XLR and 1/4" outputs, multi-channel setup capabilities, true-diversity UHF reception, 42 MHz bandwidth, 1680 tunable frequencies, the allocation for up to 12 receivers, and a comprehensive high-contrast LCD display. With enhanced features that include automatic frequency scan, transmitter sync (via infrared), and sturdy metal construction, the EM 100 is well suited for professional applications in theaters, clubs, town halls, houses of worship, DJ applications, and more.
  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission range: Up to 100 meters / 300'
  • High RF output power (up to 30 mW) depending on country regulations
  UPC: 615104309319
• SKM 100 G4-S Handheld Transmitter with Mute Switch, No Capsule A1: (470 to 516 MHz) The SKM 100 G4-S Handheld Transmitter with Mute Switch, No Capsule from Sennheiser is intended for use with the G4 series of wireless receivers and a microphone capsule (available separately). The transmitter features infrared-sync, for quick and easy channel syncing between the transmitter and receiver. It is built with a lightweight and rugged aluminum housing and delivers pristine audio reproduction of both speech and performance vocals. Two AA batteries power the transmitter, and it is equipped with contacts for recharging the optional BA 2015 accupack battery, without having to remove it from the transmitter itself.
  Updated Features
  • Sleek design and fully compatible with all previous series
  • Improved User Interface: High-contrast LCD display and a dedicated escape button
  • Lightweight: Aluminum housing SKM handheld transmitter
  • Added functionality: Programmable mute switch added to SKM handheld transmitter
  Features
  • 1680 tunable frequencies within 1785-1800 MHz range for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible channels
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitter via infrared interface
  • User-friendly menu operation with more control options
  • High-contrast LCD display
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter features battery indication in 4 steps
  • Handheld transmitter compatible with easy-exchangeable microphone capsules from evolution series
  • Contacts for recharging BA 2015 accupack battery directly in the transmitter
  • Wide range of accessories adapts the system to any requirement
  UPC: 615104309234
• GA 3 Rackmount Kit for G3 100/300/500 Series The Sennheiser GA 3 Rackmount Kit is ideal for use with G3 100/300/500 Series Wireless Monitoring Systems.
  • Use only genuine Sennheiser replacement parts
  UPC: 615104149793

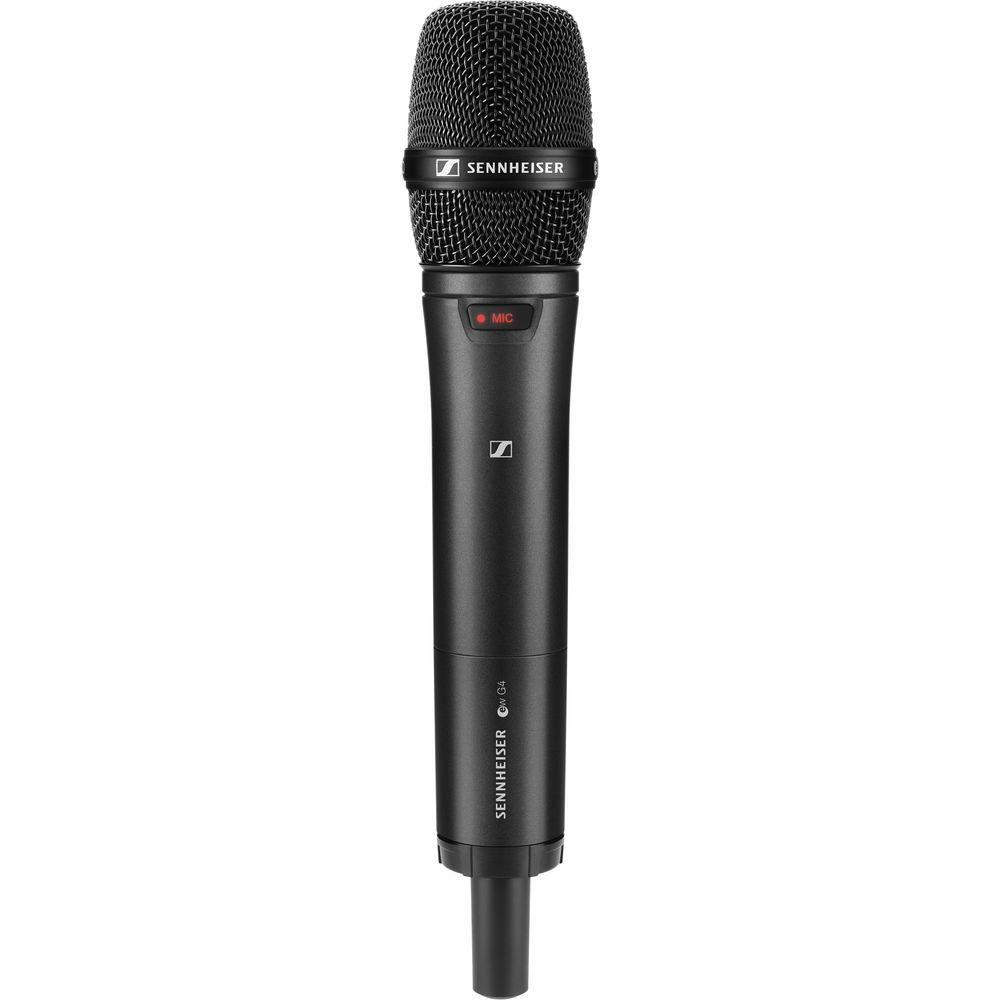

• MMD 945B Supercardioid Dynamic Capsule for Handheld Transmitters (Black) The Sennheiser MMD 945B is a supercardioid capsule. It can be used to capture audio when paired with a receiver and the SKM 100/300/500 G3/G4, SKM 2000/6000/9000, SKM D1/AVX, and SL handheld DW wireless handheld transmitters (sold separately). The capsule is easily installed, includes a metal grille and replaces faulty or damaged capsules. The interchangeable capsule system also allows users to select among capsules with differing sensitivity levels and polarity patterns.
  • Fits SL handheld DW, SKM 100/300/500 G3/G4, SKM 2000/6000/9000, and SKM D1/AVX wireless handheld transmitters.
  UPC: 615104102071

• Power Supply

• 2 x Rod Antennas

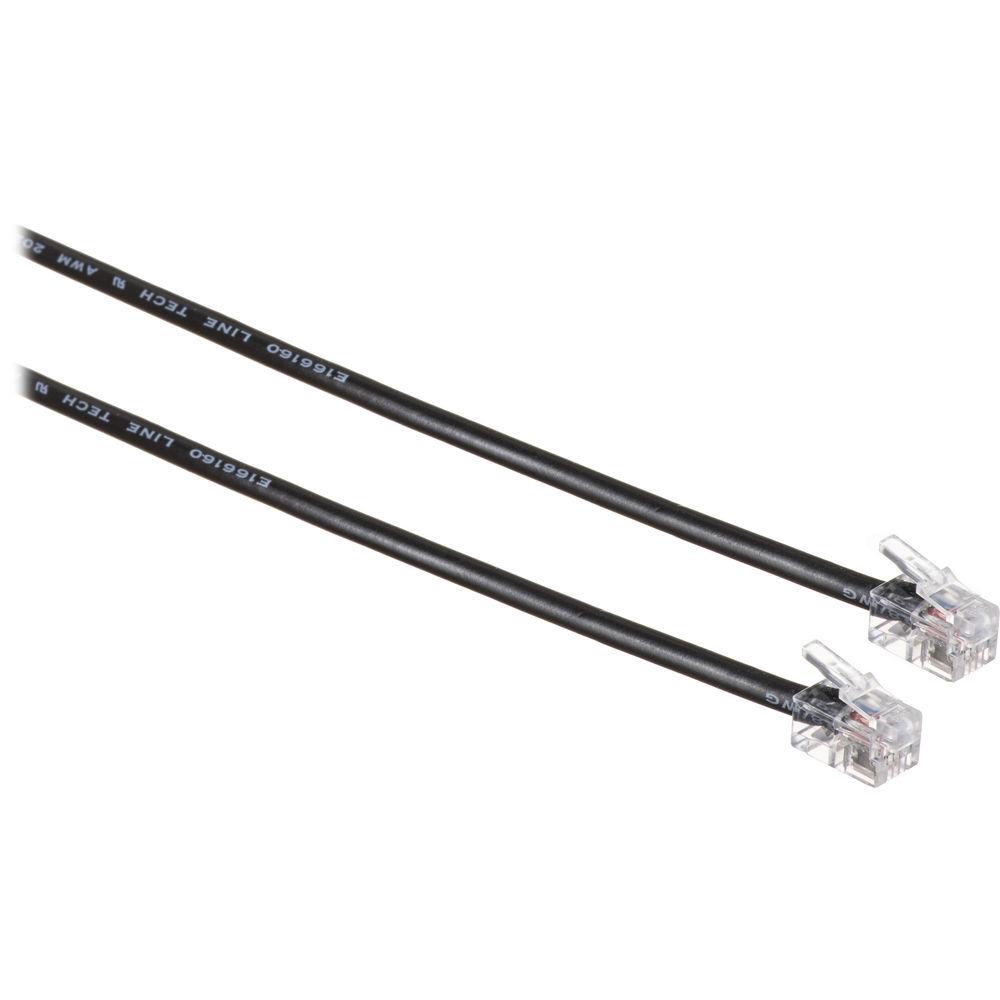

• RJ 10 Cable

• GA 3 Rackmount Kit for G3 100/300/500 Series

• Limited 2-Year Warranty

• MZQ 1 Microphone Clip

• 2 x AA Batteries

• Limited 2-Year Warranty

• 2-Year Warranty

• Metal Grille

• Limited 2-Year Warranty

Also Includes

• Link Cable
• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• EM 100 G4 Wireless UHF True Diversity Rackmount Receiver A1: (470 to 516 MHz)

  Frequency Band	A1: (470 to 516 MHz)
  Type of Receiver	EM 100 G4 half-rack mountable true diversity UHF
  Receiving Frequency	Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
  Switching Bandwidth	Up to 42 MHz
  Nominal/Peak Deviation	±24 kHz / ±48 kHz
  Receiver Type	True diversity
  Sensitivity	< 2.5 μV for 52 dBA (with HDX, peak deviation)
  Adjacent Channel Selectivity	Typically ≥ 65 dB
  Intermodulation Attenuation	Typically ≥ 65 dB
  Blocking	≥ 70 dB
  Squelch	Low: 5 dB Rating 100% users recommend this product to others. And what about you? This product has already been rated by 55 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
