User Manual for Sennheiser EW 100 ENG G4 Camera-Mount Wireless Combo Microphone System Click to enlarge the picture
Contents of the user manual for the Sennheiser EW 100 ENG G4 Camera-Mount
- Product category: Wireless Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Systems
 |
User manual for the Sennheiser EW 100 ENG G4 Camera-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description - First Look: Sennheiser G4 Wireless Combo Microphone Sets
- Sennheiser G4 100 vs Sennheiser G4 500 | Which is Best for Me?

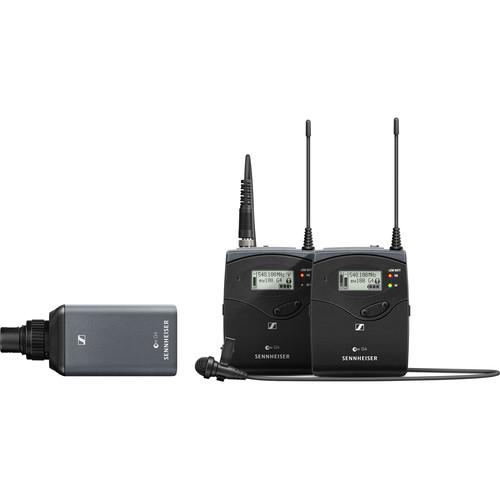

The Sennheiser EW 100 ENG G4 camera-mount wireless combo microphone system features the proven combination of reliability, flexible control, and broadcast-quality sound that has made the EW Series an industry standard for videographers, journalists, and content creators all over the world. Designed to accommodate a wide range of applications, the EW 100 ENG G4 gives you the tools to adapt and meet the wireless challenges that inevitably arise on set. The system includes a bodypack transmitter with an ME 2-II omnidirectional lavalier mic, great for hands-free interviews. Also included is a plug-on transmitter, which can be attached to a handheld dynamic microphone of your choice for man-on-the-street interviews or to a shotgun mic for wireless booming (both types of mics are available separately). The camera-mount receiver connects to a camcorder or a DSLR/mirrorless camera to capture crisp-sounding speech or dialog, for projects ranging from wedding and corporate videos to documentaries and vlogs. The EW 100 ENG G4 is backward-compatible with previous evolution systems, giving you the ability to mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters. It is also compatible with EW 500 systems.Note: While this system includes two transmitters, only one can be used at a time. - Built for Dependable Performance in the Field
-

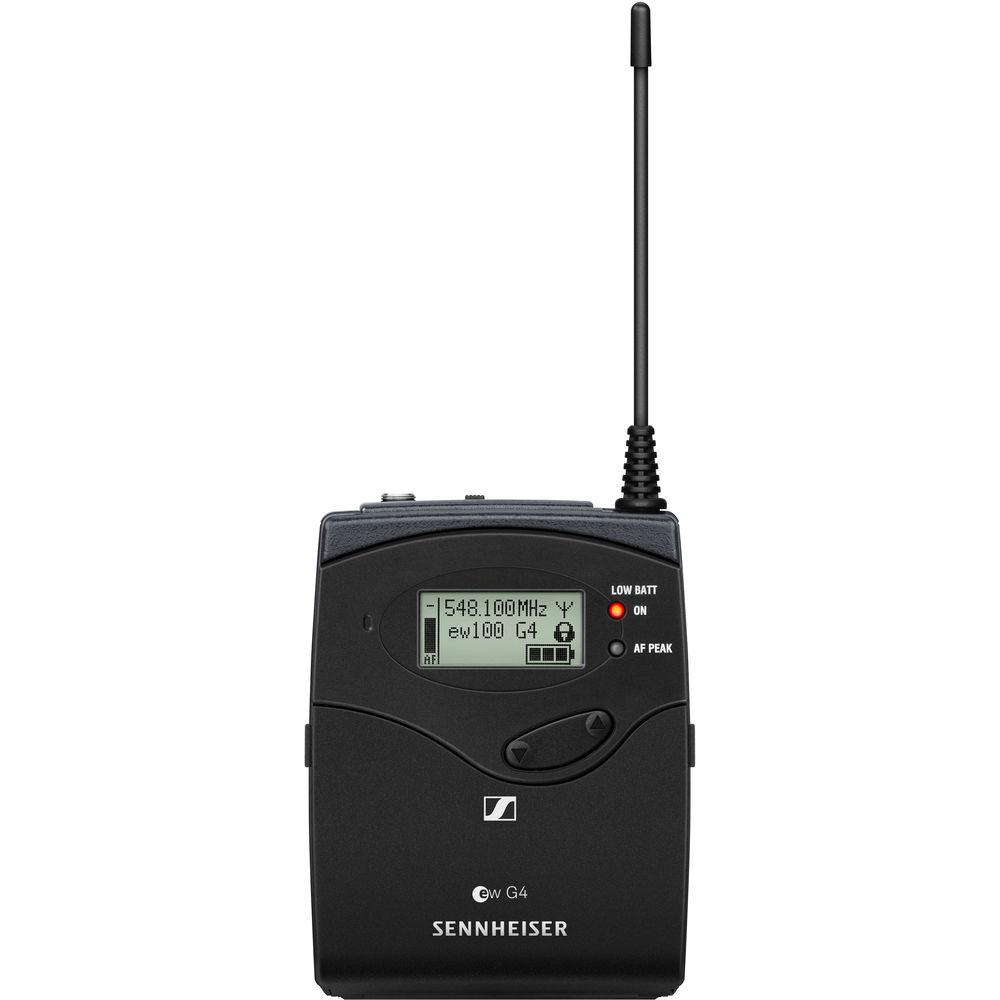

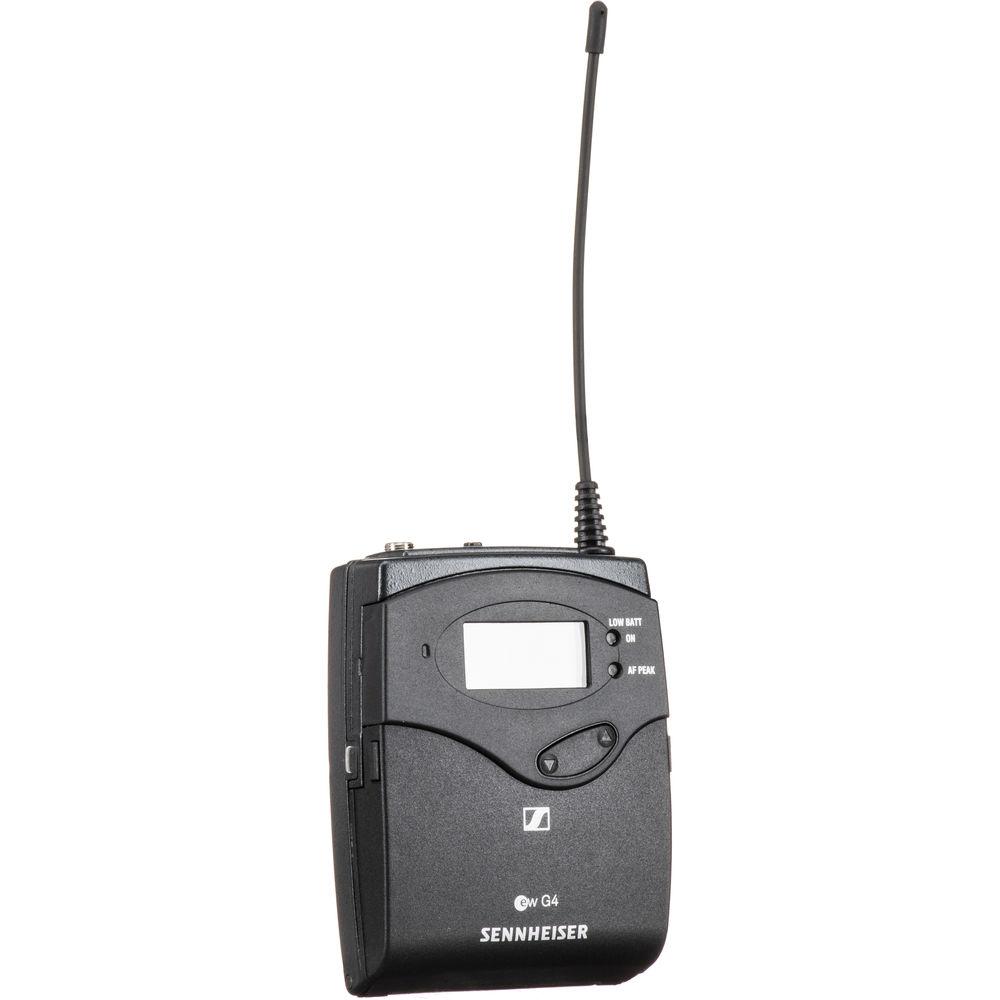

- The EW 100 ENG G4 features rugged, all-metal chassis well suited for extended use on location. The lightweight, compact bodypack transmitter is easy to conceal and offers rounded edges that are soft to the touch and comfortable for the talent to wear. A locking connector ensures that your lav doesn’t detach at a critical moment, while a convenient switch allows you to mute your mic.

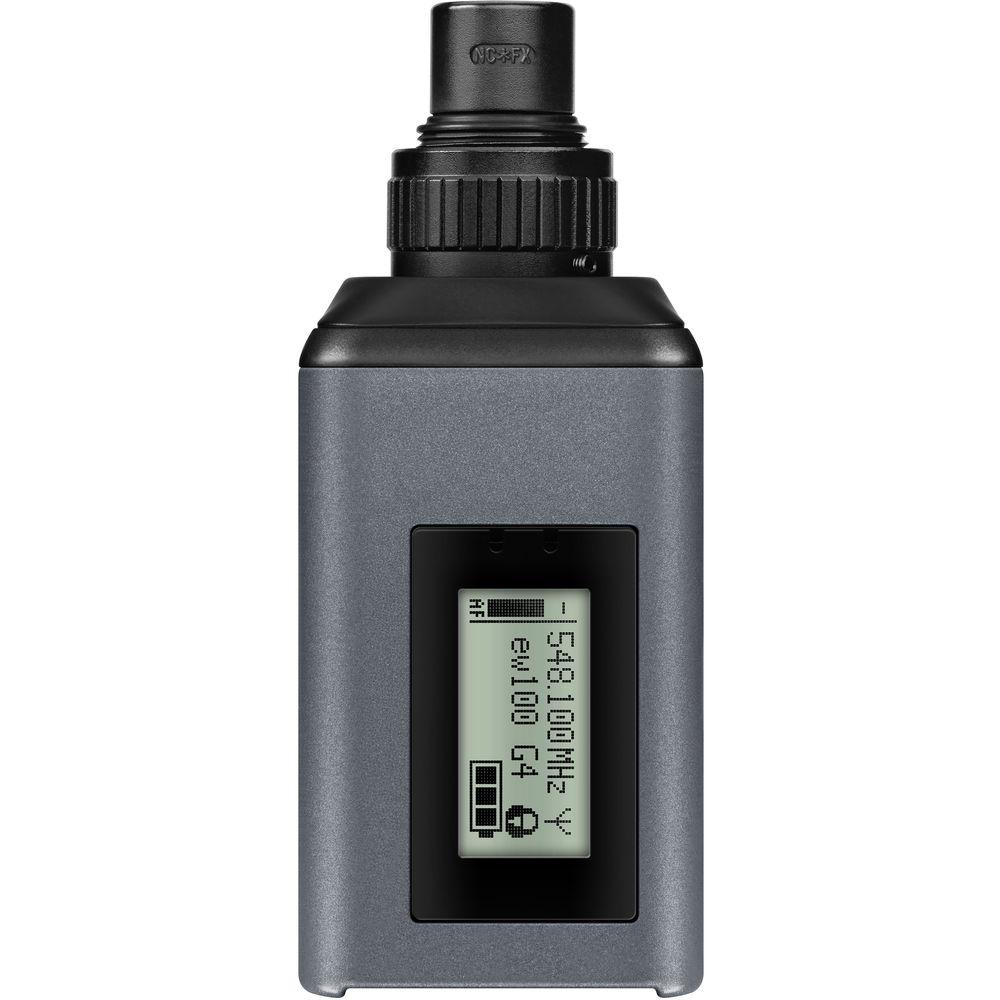

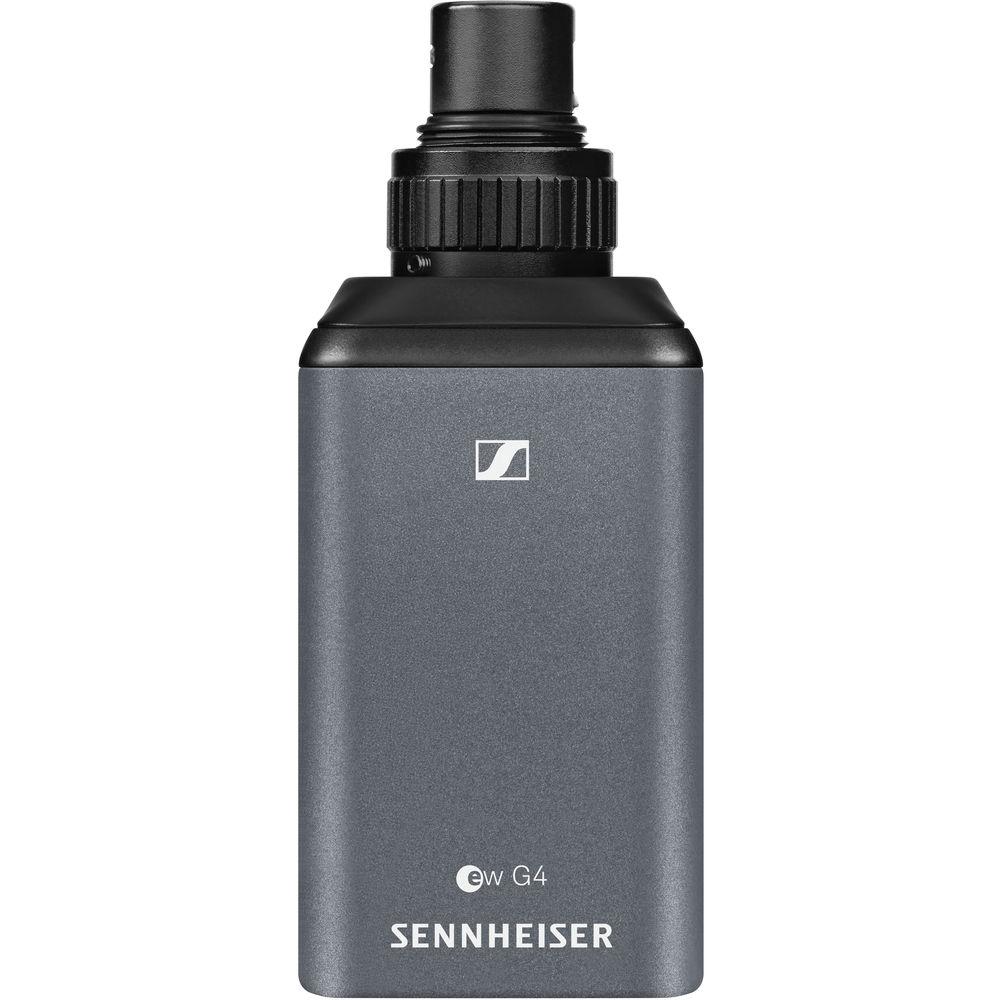

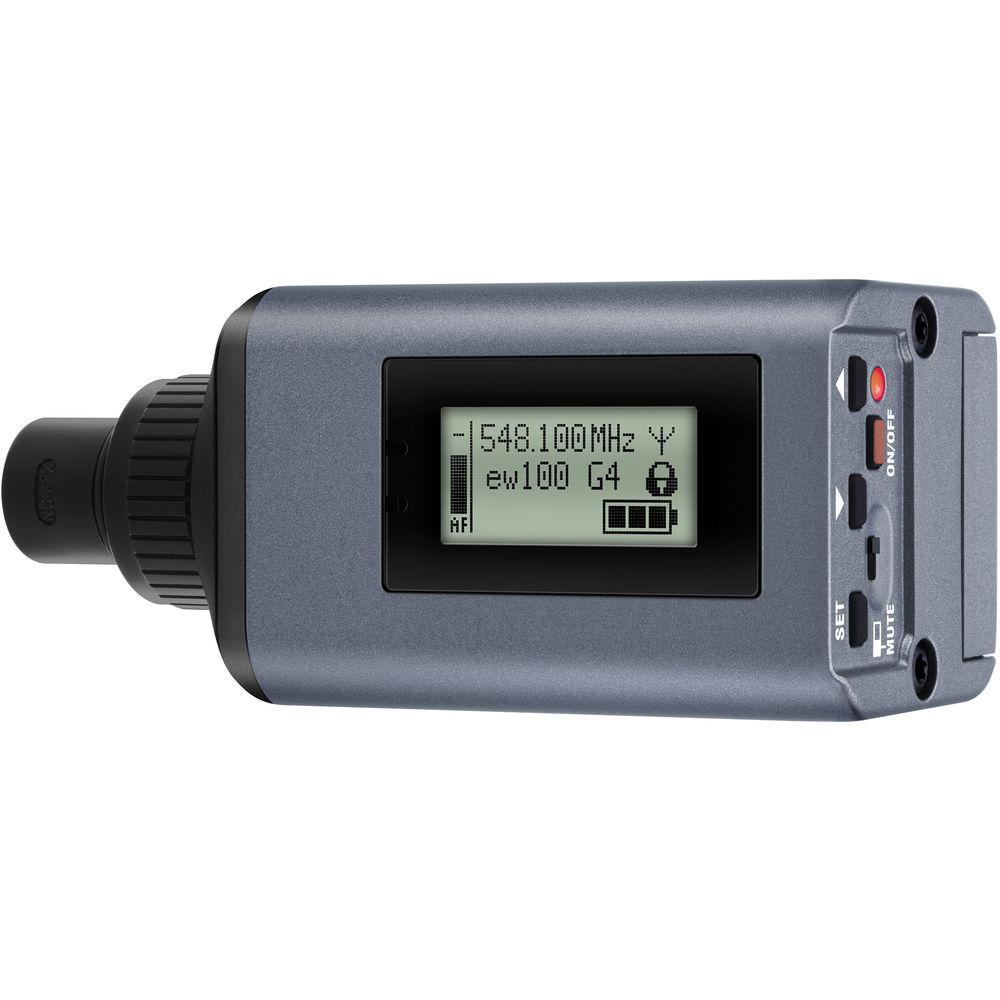

- The plug-on transmitter lets you connect any dynamic microphone or battery-powered shotgun mic equipped with an XLR connector (it does not provide phantom power). There is also a switch for muting your mic.

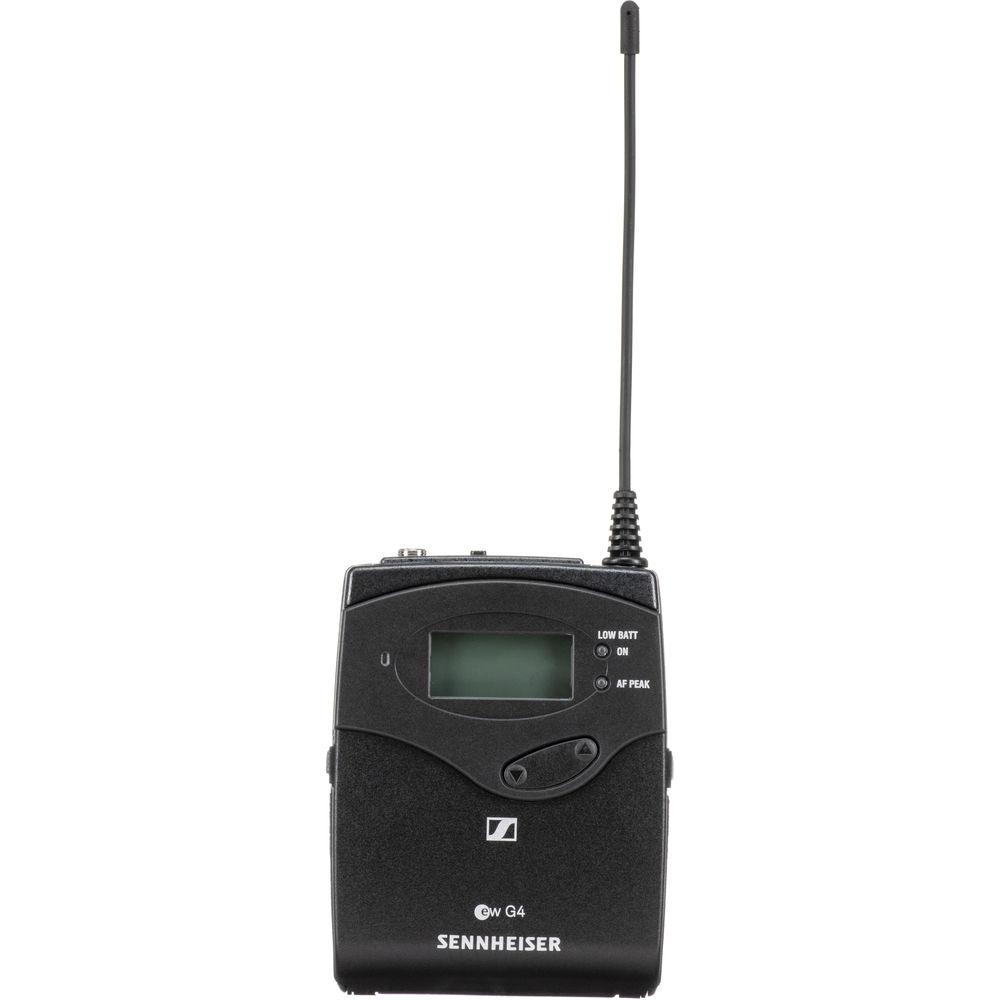

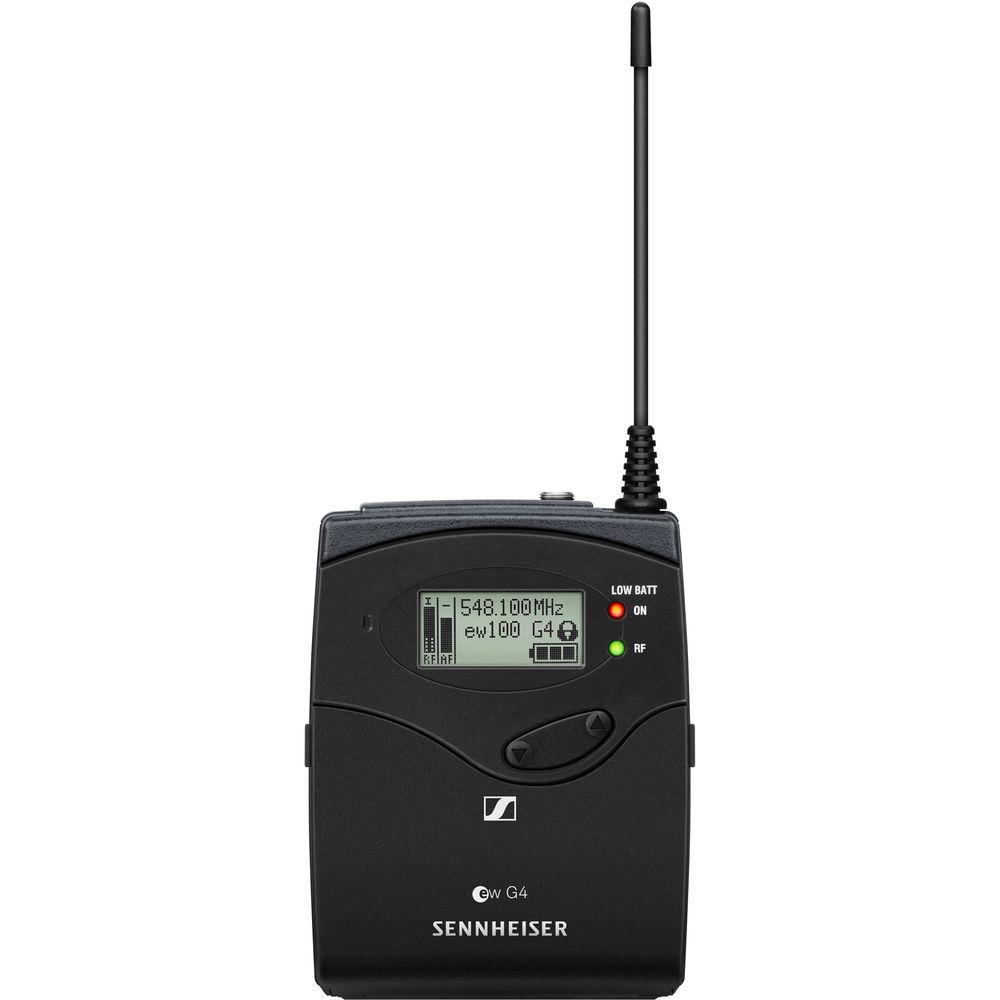

- Using the included shoemount adapter, the compact receiver easily mounts on your camera without adding much weight. The included cables allow you to connect the receiver to the 3.5mm or XLR audio input of any DSLR/mirrorless, camcorder, or recording device.
- Both transmitters and the receiver feature daylight-readable LED displays showing reception quality, battery status, and audio level. To get you going quickly, they synchronize via infrared interface with the simple push of a button.
- Proven Broadcast-Quality Sound
-

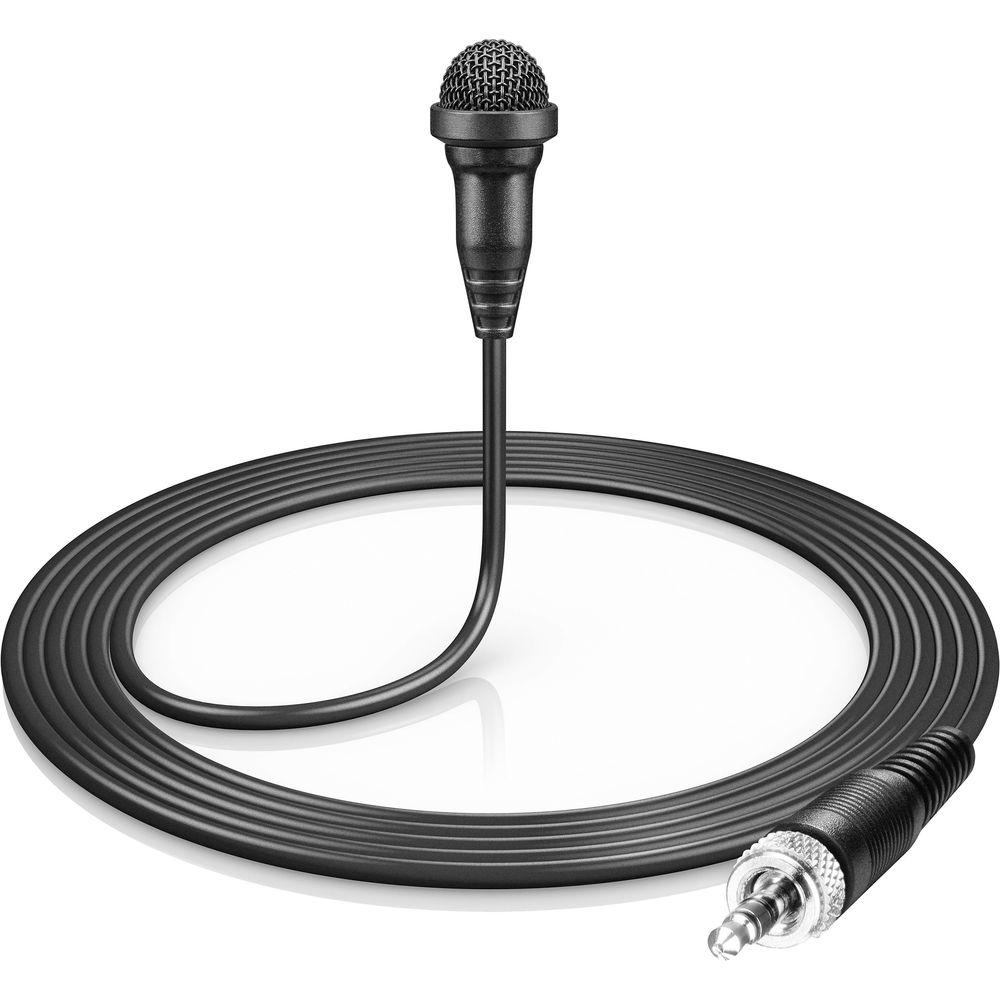

- The EW 100 ENG G4 ships with the popular ME 2-II omnidirectional lavalier microphone, which delivers a natural sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the speaker's head moves away from the mic.
- To take full advantage of the microphones' dynamic range, the system employs proprietary HDX compander technology, preserving your sound without adding unwanted noise during transmission, and delivering audio with remarkable accuracy and quality.
- Additional Features
-
- Adaptive-diversity reception for reliable transmission up to 330'
- 42 MHz bandwidth with 1680 tunable UHF frequencies for interference-free reception
- Frequency scan function automatically searches for the cleanest frequency at your location
- 20 frequency banks, each with up to 12 factory-preset channels to prevent intermodulation
- Adjustable input sensitivity on both transmitters accommodates mic levels ranging from booming voices to quiet speech, and even line-level audio
- Pilot tone squelch for eliminating RF noise when transmitter is turned off
- Receiver with adjustable output range of 42 dB to match the audio input of your camera or recording device
- User-friendly menu operation with flexible control options
- Transmitter and receiver feature 4-step battery-life indicator
- Auto-Lock function avoids accidental changing of settings
- RF Mute function
- 8 hours of battery life
- Powered via AA batteries or rechargeable BA 2015 Accupack batteries (available separately)
- Side contacts for recharging Accupacks without removing them from either the bodypack transmitter or receiver—requires the L 2015 quick-charging unit (available separately)
- Operate up to 12 wireless mics at once on set
- Unlike digital wireless systems, the EW series transmitters can transmit to an unlimited number of EW Series receivers
- Wide range of accessories adapts the system to a variety of applications
- EW 100 G4 vs EW 500 G4 Systems at a Glance
-
- Bandwidth: Up to 46 MHz vs up to 88 MHz
- UHF Frequencies: 1680 vs up to 3520
- RF Output Power: Fixed 30 mW vs adjustable 10/30/50 mW
- Mics at Once: Up to 12 mics vs up to 32 mics
- Included Lavalier Mic: ME 2-II omni or ME 4 cardioid vs professional MKE 2 omni
- Headphone Output: No vs yes
- Audio Output: Unbalanced vs balanced
- Plug-On Transmitter: No Phantom vs +48V phantom power

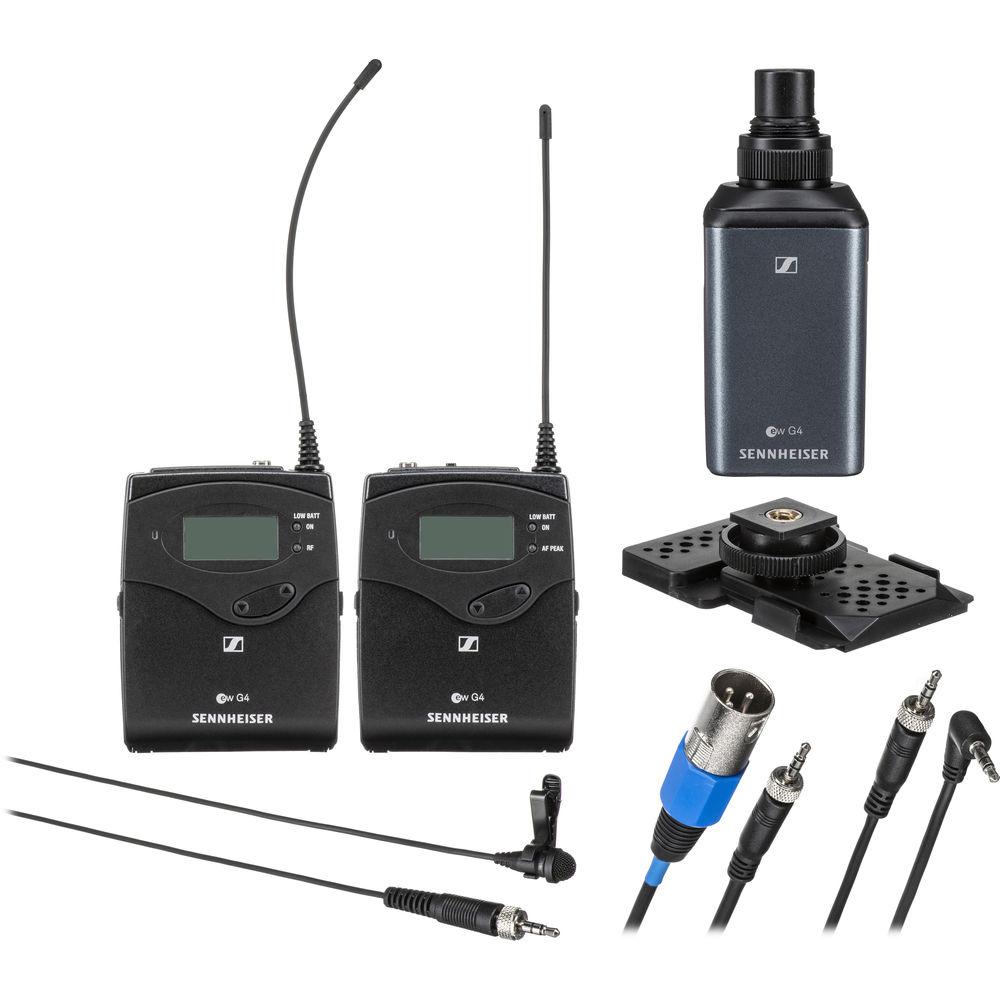

UPC: 615104309661 In the Box Sennheiser EW 100 ENG G4 Camera-Mount Wireless Combo Microphone System (G: 566 to 608 MHz) EK 100 G4 Wireless Camera-Mount Receiver G: (566 to 608 MHz) SK 100 G4 Wireless Bodypack Transmitter G: (566 to 608 MHz) SKP 100 G4 Plug-On Transmitter for Dynamic Microphones G: (566 to 608 MHz) ME 2-II Omnidirectional Lavalier Microphone (Black) CA2 Shoemount Adapter CL1 3.5mm to 3.5mm Output Cable for EW Series Camera-Mount Receiver CL-100 1/8"-M Mini to XLR-M 6 x AA Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser EW 100 ENG G4 Camera-Mount Wireless Combo Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser EW 100 ENG G4-G Specs | | | Wireless Transmission | Analog UHF | | Number of RF Channels | 1680 | | Included Transmitters | 1 x Bodypack with Microphone | | Diversity | Antenna Diversity | | RF Frequency Band | G: 556 to 608 MHz | | RF Bandwidth | 42 MHz | | Frequency Step Size | 25 kHz | | Max Operating Range | 330' / 100.6 m (Line of Sight) | | Max Systems per Setup | 12 | | Deviation | 48 kHz (Peak) | | Modulation | Wideband FM | | | | Form Factor | Camera-Mount | | Mounting Options | Shoe-Mount (with Included Hardware) | | Antenna | 1 x Flexible Whip, Fixed | | Number of Audio Channels | 1 | | Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable) | | Gain Range | 42 dB (6 dB Steps) | | Audio Output Level | +12 dBu | | Approximate RF Sensitivity | 1.6 µV | | Squelch | 5 to 25 dBμV | | Adjacent Channel Isolation | >65 dB | | Power Requirements | Battery | | Battery Type | 2 x AA (Included)
1 x Sennheiser Accupack (Not Included) | | Approx. Battery Life | 8 Hours (Alkaline) | | Display & Indicators | 1 x Back-Lit LCD (Battery Status, Output Level, RF Level) | | Housing | Metal | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Dimensions | 2.5 x 3.2 x 0.9" / 64.0 x 82.0 x 24.0 mm | | Weight | 5.6 oz / 160.0 g (with Batteries) | | | | Form Factor | Bodypack | | RF Output Power | 30 mW | | Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) | | Muting | Mute Switch | | Audio Input Level | 3 V RMS (Max) | | Gain Range | 60 dB (3 dB Steps) | | Frequency Response | 80 Hz to 18 kHz (Mic)
25 Hz to 18 kHz (Line) | | Sync Method | IR | | Antenna | 1 x Flexible Whip, Fixed (Beltpack) | | Power Requirements | Battery | | Battery Type | 2 x AA (Included)
1 x Sennheiser Accupack (Not Included) | | Approx. Battery Life | 8 Hours (Alkaline) | | Display & Indicators | 1 x Back-Lit LCD (Audio Level, Battery Status, Signal Strength) | | Housing | Metal | | Dimensions | 2.5 x 3.2 x 0.9" / 64.0 x 82.0 x 24.0 mm | | Weight | 5.6 oz / 160.0 g (with Batteries) | | | | Form Factor | Lavalier | | Sound Field | Mono | | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 50 Hz to 18 kHz | | Equivalent Noise Level | 36 dB | | Maximum SPL | 130 dB SPL Peak | | Sensitivity | 20 mV/Pa | | Output Connectors | 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) | | Cable Length | 5.25' / 1.6 m | | Operating Voltage | 7.5 V | | | | Form Factor | Plug-On | | RF Output Power | 30 mW | | Audio I/O | 1 x XLR 3-Pin Female Unbalanced Input (Lockable) | | Muting | Mute Switch | | Audio Input Level | 3 V RMS | | Gain Range | 48 dB (6 dB Steps) | | Frequency Response | 80 Hz to 18 kHz | | Sync Method | IR | | Antenna | 1 x Internal | | Power Requirements | Battery | | Battery Type | 2 x AA (Included)
1 x Sennheiser Accupack (Not Included) | | Approx. Battery Life | 8 Hours (Alkaline) | | Display & Indicators | 1 x Back-Lit LCD (Audio Level, Battery Status, Signal Strength) | | Housing | Metal | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Dimensions | 1.7 x 4.1 x 1.7" / 43.0 x 105.0 x 43.0 mm | | Weight | 6.9 oz / 195.0 g (with Batteries) | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 16.0 x 6.9 x 3.2" |
