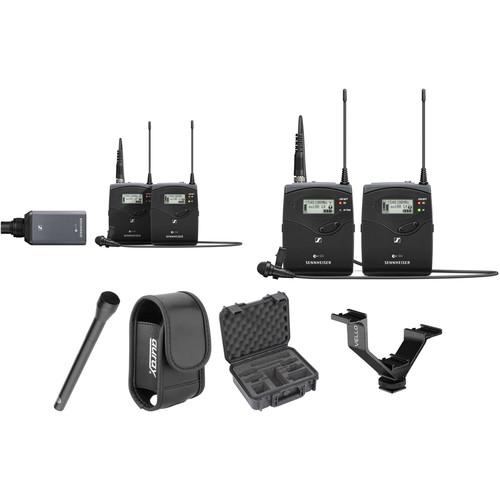

Sennheiser EW 100 G4 2-Person Camera-Mount

User Manual for Sennheiser EW 100 G4 2-Person Camera-Mount Wireless Combo Microphone System Kit

• Product category: Wireless Systems Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Wireless Systems

Product description

• Sennheiser EW 100 ENG G4 Camera-Mount Wireless Combo Microphone System (A1: 470 to 516 MHz)
  • Sennheiser G4 100 vs Sennheiser G4 500 - Which is Best for me?
  The Sennheiser EW 100 ENG G4 camera-mount wireless combo microphone system features the proven combination of reliability, flexible control, and broadcast-quality sound that has made the EW Series an industry standard for videographers, journalists, and content creators all over the world. Designed to accommodate a wide range of applications, the EW 100 ENG G4 gives you the tools to adapt and meet the wireless challenges that inevitably arise on set. The system includes a bodypack transmitter with an ME 2-II omnidirectional lavalier mic, great for hands-free interviews. Also included is a plug-on transmitter, which can be attached to a handheld dynamic microphone of your choice for man-on-the-street interviews or to a shotgun mic for wireless booming (both types of mics are available separately). The camera-mount receiver connects to a camcorder or a DSLR/mirrorless camera to capture crisp-sounding speech or dialog, for projects ranging from wedding and corporate videos to documentaries and vlogs. The EW 100 ENG G4 is backward-compatible with previous evolution systems, giving you the ability to mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters. It is also compatible with EW 500 systems.Note: While this system includes two transmitters, only one can be used at a time.
  Built for Dependable Performance in the Field
  • • The EW 100 ENG G4 features rugged, all-metal chassis well suited for extended use on location. The lightweight, compact bodypack transmitter is easy to conceal and offers rounded edges that are soft to the touch and comfortable for the talent to wear. A locking connector ensures that your lav doesn’t detach at a critical moment, while a convenient switch allows you to mute your mic.
    • The plug-on transmitter lets you connect any dynamic microphone or battery-powered shotgun mic equipped with an XLR connector (it does not provide phantom power). There is also a switch for muting your mic.
    • Using the included shoemount adapter, the compact receiver easily mounts on your camera without adding much weight. The included cables allow you to connect the receiver to the 3.5mm or XLR audio input of any DSLR/mirrorless, camcorder, or recording device.
    • Both transmitters and the receiver feature daylight-readable LED displays showing reception quality, battery status, and audio level. To get you going quickly, they synchronize via infrared interface with the simple push of a button.
  Proven Broadcast-Quality Sound
  • • The EW 100 ENG G4 ships with the popular ME 2-II omnidirectional lavalier microphone, which delivers a natural sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the speaker's head moves away from the mic.
    • To take full advantage of the microphones' dynamic range, the system employs proprietary HDX compander technology, preserving your sound without adding unwanted noise during transmission, and delivering audio with remarkable accuracy and quality.
  Additional Features
  • • Adaptive-diversity reception for reliable transmission up to 330'
    • 46 MHz bandwidth with 1680 tunable UHF frequencies for interference-free reception
    • Frequency scan function automatically searches for the cleanest frequency at your location
    • 20 frequency banks, each with up to 12 factory-preset channels to prevent intermodulation
    • Adjustable input sensitivity on both transmitters accommodates mic levels ranging from booming voices to quiet speech, and even line-level audio
    • Pilot tone squelch for eliminating RF noise when transmitter is turned off
    • Receiver with adjustable output range of 42 dB to match the audio input of your camera or recording device
    • User-friendly menu operation with flexible control options
    • Transmitter and receiver feature 4-step battery-life indicator
    • Auto-Lock function avoids accidental changing of settings
    • RF Mute function
    • 8 hours of battery life
    • Powered via AA batteries or rechargeable BA 2015 Accupack batteries (available separately)
    • Side contacts for recharging Accupacks without removing them from either the bodypack transmitter or receiver—requires the L 2015 quick-charging unit (available separately)
    • Operate up to 12 wireless mics at once on set
    • Unlike digital wireless systems, the EW series transmitters can transmit to an unlimited number of EW Series receivers
    • Wide range of accessories adapts the system to a variety of applications
  EW 100 G4 vs EW 500 G4 Systems at a Glance
  • • Bandwidth: Up to 46 MHz vs up to 88 MHz
    • UHF Frequencies: 1680 vs up to 3520
    • RF Output Power: Fixed 30 mW vs adjustable 10/30/50 mW
    • Mics at Once: Up to 12 mics vs up to 32 mics
    • Included Lavalier Mic: ME 2-II omni or ME 4 cardioid vs professional MKE 2 omni
    • Headphone Output: No vs yes
    • Audio Output: Unbalanced vs balanced
    • Plug-On Transmitter: No Phantom vs +48V phantom power
  UPC: 615104309630
• Sennheiser EW 112P G4 Camera-Mount Wireless Omni Lavalier Microphone System (A1: 470 to 516 MHz)
  • Sennheiser G4 100 vs Sennheiser G4 500 - Which is Best for me?
  The Sennheiser EW 112P G4 camera-mount wireless lavalier microphone system features the proven combination of reliability, flexible control, and broadcast-quality sound that has made the EW Series an industry standard for videographers, journalists, and content creators all over the world. The EW 112P G4 gives you the tools to adapt and meet the wireless challenges that inevitably arise on set. The frequency scan function automatically searches for the cleanest frequency at your location, while the adjustable input sensitivity on the transmitter accommodates mic levels ranging from booming voices to quiet speech, and even line-level audio. The system includes the improved ME 2-II omnidirectional lavalier mic, a bodypack transmitter, and a camera-mount receiver. It connects to a camcorder or a DSLR/mirrorless camera to capture crisp-sounding speech or dialog for projects ranging from documentaries to wedding videos, corporate spots, and hands-free interviews. The EW 112P G4 is backward-compatible with previous evolution systems, giving you the ability to mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters. It is also compatible with EW 500 systems.
  Built for Dependable Performance in the Field
  • • The EW 112P G4 features rugged, all-metal chassis well suited for extended use on location. The lightweight, compact bodypack transmitter is easy to conceal and offers rounded edges that are soft to the touch and comfortable for the talent to wear. A locking connector ensures that your lav doesn’t detach at a critical moment, while a convenient switch allows you to mute your mic.
    • Using the included shoemount adapter, the equally compact receiver easily mounts on your camera without adding much weight. The included cables allow you to connect the receiver to the 3.5mm or XLR audio input of any DSLR/mirrorless, camcorder, or recording device.
    • Both transmitter and receiver feature daylight-readable LED displays showing reception quality, battery status, and audio level. To get you going quickly, they synchronize via infrared interface with the simple push of a button.
  Proven Broadcast-Quality Sound
  • • The EW 112P G4 ships with the popular ME 2-II omnidirectional lavalier microphone, which delivers a natural sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the speaker's head moves away from the mic.
    • To take full advantage of the ME 2-II’s dynamic range, the system employs proprietary HDX compander technology, preserving your sound without adding unwanted noise during transmission, and delivering audio with remarkable accuracy and quality.
  Additional Features
  • • Adaptive-diversity reception for reliable transmission up to 330'
    • 46 MHz bandwidth with 1680 tunable UHF frequencies for clean reception
    • 20 frequency banks, each with up to 12 factory-preset channels to prevent intermodulation
    • Pilot tone squelch for eliminating RF noise when transmitter is turned off
    • Receiver with adjustable output range of 42 dB to match the audio input of your camera or recording device
    • User-friendly menu operation with flexible control options
    • Transmitter and receiver feature 4-step battery-life indicator
    • Auto-Lock function avoids accidental changing of settings
    • RF Mute function
    • 8 hours of battery life
    • Powered via AA batteries or rechargeable BA 2015 Accupack batteries (available separately)
    • Side contacts for recharging the Accupacks without removing them from either transmitter or receiver—requires the L 2015 quick-charging unit (available separately)
    • Operate up to 12 wireless mics at once on set
    • Unlike digital wireless systems, the SK 100 G4 transmitter can transmit to an unlimited number of EW Series receivers
    • Wide range of accessories adapts the system to a variety of applications
  EW 100 G4 vs EW 500 G4 Systems at a Glance
  • • Bandwidth: Up to 46 MHz vs up to 88 MHz
    • UHF Frequencies: 1680 vs up to 3520
    • RF Output Power: Fixed 30 mW vs adjustable 10/30/50 mW
    • Mics at Once: Up to 12 mics vs up to 32 mics
    • Included Lavalier Mic: ME 2-II omni or ME 4 cardioid vs professional MKE 2 omni
    • Headphone Output: No vs yes
    • Audio Output: Unbalanced vs balanced
    • Plug-On Transmitter: No phantom vs +48V phantom power
  UPC: 615104309395
• Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)
  • Sennheiser G4 100 vs Sennheiser G4 500 - Which is Best for me?
  The Senal ENG-18RL is a broadcast-quality omnidirectional dynamic microphone. The dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications. The microphone's exceptionally low handling noise and resistance to wind noise and vocal plosives make it perfect for professional ENG applications like live reporting, interviews, and press conferences.

  At multiple areas inside the microphone, natural rubber with special shock-absorbing properties is bonded to carbon steel rings to isolate the sealed inner shell from the outer shell. This system protects the microphone capsule from impacts and inclement weather, and dissipates kinetic energy, dramatically reducing handling noise and resonance due to rustling and knocking.

  The microphone also incorporates multistage wind protection to minimize wind noise and vocal plosives. A mesh grille, acoustic foam, acoustic fabric, and another layer of acoustic foam work to diffuse excess sound pressure from wind and breath. A fixed rigid carbon-steel ring with a unique bullet-shaped design disperses breath to minimize vocal plosives.

  The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion. Whether broadcasting on television, AM/FM radio, or over the internet, the ENG-18RL is designed to ensure that dialogue cuts through the mix, and can be broadcast live without EQ adjustment.

  The ENG-18RL features a durable aluminum-alloy shaft designed for EMI rejection and reduced internal resonance, with a matte black finish for a professional appearance and minimum light reflection. The mic is also long enough to accommodate a mic flag.
  Ideal Choice for Critical Field Applications
  • The broadcast-quality omnidirectional dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications
  Isolated Inner Shell
  • The kinetic isolation system helps protect the microphone capsule and dissipate kinetic energy to dramatically reduce handling noise and resonance. Natural rubber shockmouts are bonded to carbon steel rings to isolate the sealed inner shell from the outer shell
  Diffuses Excess Sound Pressure From Wind and Vocal Plosives
  • Multistage wind protection comprises a mesh grille, acoustic foam, a bullet-shaped ring, acoustic fabric, and another layer of acoustic foam to diffuse excess sound pressure from wind and vocal plosives
  Broadcast Live Without EQ Adjustment
  • The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion
  Can Accommodate Mic Flag
  • The ENG-18RL is long enough to fit a mic flag for show or station identification
  UPC: 847628572461
• Auray UPOH-B Universal Plug-On Transmitter Holster
  • Sennheiser G4 100 vs Sennheiser G4 500 - Which is Best for me?
  The Auray UPOH-B Universal Plug-On Transmitter Holster is a durable leather case that will fit most wireless plug-on transmitters. It builds upon its predecessor, the UPOH-A, by increasing the area of the side window. This change accommodates more brands and models.

  The side window will make it easy for you to view and access your transmitter's controls. Also, you'll notice that the connector cutout has been made wider to facilitate cable interaction and connectivity with a greater range of transmitters.

  The Auray UPOH-B is built with a heavy-duty belt clip. The transmitter is secured in the holster by a touch-fastener closure that keeps your device protected while conveniently at your side.
  Leather Holster
  • The Auray holster is an excellent option for your transmitter. It keeps it secured within this stylish leather case, and protects it from dust, dirt, and the bumps in your environment.
  Heavy-Duty Belt Clip
  • The belt clip is made of a heavy-duty metal and clamps securely to your belt or pocket.
  Large Side Window
  • The side window is larger than the window of this model's predecessor, the UPOH-B; it allows easy viewing and access to your transmitter, permitting you to quickly make adjustments such as changing channels or volume on the fly.
  Touch-Fastener Closure
  • The touch-fastener closure provides a snug fit for your transmitter and securely keeps the transmitter protected, while on the belt and even when in use.
  Compatible Plug-On Transmitters:
  • • Azden 35XT
    • Lectrosonics HMa
    • Senal AWS-2000P
    • Sennheiser SKP100
    • Sony UTX-P03
    • Similar-sized wireless transmitters
  UPC: 847628007604
• SKB iSeries Waterproof Case for 2 Sennheiser ENG Systems, or 2 Senal Systems
  • Sennheiser G4 100 vs Sennheiser G4 500 - Which is Best for me?
  The iSeries Waterproof Case for 2 Sennheiser ENG Systems or 2 Senal Systems from SKB is an injection molded waterproof case that includes a form-cut foam interior. It can be used to protect your gear from dust and moisture and transport the wireless microphone system and accessories safely. The foam-cut interior of the case can accommodate up to two Sennheiser EW100 or, one ENG handheld mic (Senal 18RL or Electro-Voice RE50/B), one Vello triple shoe V-Bracket CB-410, one pocket for lavalier mics or other small accessories, one plug-on transmitter and one 2.5" x 2.5" mic flag. Furthermore, the military-standard iSeries case is constructed from a high-strength polypropylene copolymer resin and is equipped with a gasket for a water and dust proof seal. It is resistant to corrosion and damage due to impact. Additionally, this case also features stainless steel molded-in hinges, a trigger release latch system, a comfortable snap-down rubber over molded cushion-grip handle, and an automatic ambient pressure equalization valve (MIL-STD-648C). Note: *Sony model needs to remove the shoe before storage for fit in this case.
  • Case is injection molded of polypropylene copolymer resin
  • The interior of the case features a custom form-cut PE (polyethylene) foam interior
  • Case can hold:
    2x Sennheiser EW100, (2) Senal Wireless systems
    1x ENG Handheld Mic (Senal 18RL or Electro-Voice RE50/B)
    1x Vello triple shoe V-Bracket CB-410
    1x Pocket for lavalier mics or other small accessories
    1x Plug-on transmitter
    1x 2.5 x 2.5" mic flag
  UPC: 789270999848
• Vello V-Rig 4.1" Triple Shoe Bracket
  • Sennheiser G4 100 vs Sennheiser G4 500 - Which is Best for me?
  The Vello V-Rig 4.1" Triple Shoe Bracket mounts onto a camera's accessory shoe in order to provide three additional accessory shoes for mounting lights, monitors, microphones, or other accessories. In addition to the shoe mount, a 1/4"-20 thread is also available for attaching the bracket to a tripod, rig, or other bracket featuring a 1/4"-20-threaded mount.

  The bracket is constructed from rigid, yet lightweight single-piece aluminum alloy, and the mounting shoes are machined out of the same piece as the bracket, for additional strength. The accessory shoes also feature backstops for greater security when attaching accessories. The bottom shoe that attaches to the camera features a locking pin, which keeps the shoe in place and prevents the shoe from rotating during use.
  4.1"-Wide Bracket
  • This V-Bracket's width spans 4.1" and has a tiered design for mounting up to three additional accessories.
  Machined Aluminum Alloy
  • The bracket is machined out of a single piece of aluminum alloy, which provides greater strength to the three shoes.
  Accessory Shoe and 1/4"-20 Socket Mounts
  • The bracket can attach directly to a camera via the accessory shoe or, additionally, it features a 1/4"-20 socket for attaching to threaded mounts such as a tripod.
  Locking Pin
  • The bottom shoe that mounts on to the camera features a locking pin, which prevents the bracket from rotating.
  UPC: 847628580169

• EW 100 ENG G4 Camera-Mount Wireless Combo Microphone System (A1: 470 to 516 MHz) zsyausyaxsrwutyytyczqbzdta
• EK 100 G4 Wireless Camera-Mount Receiver A1: (470 to 516 MHz)
• SK 100 G4 Wireless Bodypack Transmitter A1: (470 to 516 MHz)
• SKP 100 G4 Plug-On Transmitter for Dynamic Microphones A1: (470 to 516 MHz)
• ME 2-II Omnidirectional Lavalier Microphone (Black)
• CA2 Shoemount Adapter
• CL1 3.5mm to 3.5mm Output Cable for EW Series Camera-Mount Receiver
• CL-100 1/8"-M Mini to XLR-M
• 6 x AA Batteries
• Limited 2-Year Warranty

• EW 112P G4 Camera-Mount Wireless Omni Lavalier Microphone System (A1: 470 to 516 MHz)

• Senal - ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)

• Auray - UPOH-B Universal Plug-On Transmitter Holster

• SKB - iSeries Waterproof Case for 2 Sennheiser ENG Systems, or 2 Senal Systems zsyausyaxsrwutyytyczqbzdta

• Vello - V-Rig 4.1" Triple Shoe Bracket

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser EW 100 ENG G4 Camera-Mount Wireless Combo Microphone System (A1: 470 to 516 MHz)

  Wireless Transmission	Analog UHF
  Number of RF Channels	1680
  Included Transmitters	1 x Bodypack with Microphone
  Diversity	Antenna Diversity
  RF Frequency Band	A1: 470 to 516 MHz
  RF Bandwidth	46 MHz
  Frequency Step Size	25 kHz
  Max Operating Range	330' / 100.6 m (Line of Sight)
  Max Systems per Setup	12
  Deviation	48 kHz (Peak)
  Modulation	Wideband FM

  Form Factor	Camera-Mount
  Mounting Options	Shoe-Mount (with Included Hardware)
  Antenna	1 x Flexible Whip, Fixed
  Number of Audio Channels	1
  Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
  Gain Range	42 dB (6 dB Steps)
  Audio Output Level	+12 dBu
  Approximate RF Sensitivity	1.6 µV
  Squelch	5 to 25 dBμV
  Adjacent Channel Isolation	>65 dB
  Power Requirements	Battery
  Battery Type	2 x AA (Included) 1 x Sennheiser Accupack (Not Included)
  Approx. Battery Life	8 Hours (Alkaline)
  Display & Indicators	1 x Back-Lit LCD (Battery Status, Output Level, RF Level)
  Housing	Metal
  Operating Temperature	14 to 131°F / -10 to 55°C
  Dimensions	2.5 x 3.2 x 0.9" / 64.0 x 82.0 x 24.0 mm
  Weight	5.6 oz / 160.0 g (with Batteries)

  Form Factor	Bodypack
  RF Output Power	30 mW
  Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
  Muting	Mute Switch
  Audio Input Level	3 V RMS (Max)
  Gain Range	60 dB (3 dB Steps)
  Frequency Response	80 Hz to 18 kHz (Mic) 25 Hz to 18 kHz (Line)
  Sync Method	IR
  Antenna	1 x Flexible Whip, Fixed (Beltpack)
  Power Requirements	Battery
  Battery Type	2 x AA (Included) 1 x Sennheiser Accupack (Not Included)
  Approx. Battery Life	8 Hours (Alkaline)
  Display & Indicators	1 x Back-Lit LCD (Audio Level, Battery Status, Signal Strength)
  Housing	Metal
  Dimensions	2.5 x 3.2 x 0.9" / 64.0 x 82.0 x 24.0 mm
  Weight	5.6 oz / 160.0 g (with Batteries)

  Form Factor	Lavalier
  Sound Field	Mono
  Transducer	Electret Condenser
  Polar Pattern	Omnidirectional
  Frequency Range	50 Hz to 18 kHz
  Equivalent Noise Level	36 dB
  Maximum SPL	130 dB SPL Peak
  Sensitivity	20 mV/Pa
  Output Connectors	1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
  Cable Length	5.25' / 1.6 m
  Operating Voltage	7.5 V

  Form Factor	Plug-On
  RF Output Power	30 mW
  Audio I/O	1 x XLR 3-Pin Female Unbalanced Input (Lockable)
  Muting	Mute Switch
  Audio Input Level	3 V RMS
  Gain Range	48 dB (6 dB Steps)
  Frequency Response	80 Hz to 18 kHz
  Sync Method	IR
  Antenna	1 x Internal
  Power Requirements	Battery
  Battery Type	2 x AA (Included) 1 x Sennheiser Accupack (Not Included)
  Approx. Battery Life	8 Hours (Alkaline)
  Display & Indicators	1 x Back-Lit LCD (Audio Level, Battery Status, Signal Strength)
  Housing	Metal
  Operating Temperature	14 to 131°F / -10 to 55°C
  Dimensions	1.7 x 4.1 x 1.7" / 43.0 x 105.0 x 43.0 mm
  Weight	6.9 oz / 195.0 g (with Batteries)

  Box Dimensions (LxWxH)	16.0 x 6.8 x 3.2"

• Sennheiser EW 112P G4 Camera-Mount Wireless Omni Lavalier Microphone System (A1: 470 to 516 MHz)

  Wireless Transmission	Analog UHF
  Number of RF Channels	1680
  Included Transmitters	1 x Bodypack with Microphone
  Diversity	Antenna Diversity
  RF Frequency Band	A1: 470 to 516 MHz
  RF Bandwidth	46 MHz
  Frequency Step Size	25 kHz
  Max Operating Range	330' / 100.6 m (Line of Sight)
  Max Systems per Setup	12
  Deviation	48 kHz (Peak)
  Modulation	Wideband FM

  Form Factor	Camera-Mount
  Mounting Options	Shoe-Mount (with Included Hardware)
  Antenna	1 x Flexible Whip, Fixed
  Number of Audio Channels	1
  Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
  Gain Range	42 dB (6 dB Steps)
  Audio Output Level	+12 dBu
  Approximate RF Sensitivity	1.6 µV
  Squelch	5 to 25 dBμV
  Adjacent Channel Isolation	>65 dB
  Power Requirements	Battery
  Battery Type	2 x AA (Included) 1 x Sennheiser Accupack (Not Included)
  Approx. Battery Life	8 Hours (Alkaline)
  Display & Indicators	1 x Back-Lit LCD (Battery Status, Output Level, RF Level)
  Housing	Metal
  Operating Temperature	14 to 131°F / -10 to 55°C
  Dimensions	2.5 x 3.2 x 0.9" / 64.0 x 82.0 x 24.0 mm
  Weight	5.6 oz / 160.0 g (with Batteries)

  Form Factor	Bodypack
  RF Output Power	30 mW
  Audio I/O	1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
  Muting	Mute Switch
  Audio Input Level	3 V RMS (Max)
  Gain Range	60 dB (3 dB Steps)
  Frequency Response	80 Hz to 18 kHz (Mic) 25 Hz to 18 kHz (Line)
  Sync Method	IR
  Antenna	1 x Flexible Whip, Fixed (Beltpack)
  Power Requirements	Battery
  Battery Type	2 x AA (Included) 1 x Sennheiser Accupack (Not Included)
  Approx. Battery Life	8 Hours (Alkaline)
  Display & Indicators	1 x Back-Lit LCD (Audio Level, Battery Status, Signal Strength)
  Housing	Metal
  Dimensions	2.5 x 3.2 x 0.9" / 64.0 x 82.0 x 24.0 mm
  Weight	5.6 oz / 160.0 g (with Batteries)

  Form Factor	Lavalier
  Sound Field	Mono
  Transducer	Electret Condenser
  Polar Pattern	Omnidirectional
  Frequency Range	50 Hz to 18 kHz
  Equivalent Noise Level	36 dB
  Maximum SPL	130 dB SPL Peak
  Sensitivity	20 mV/Pa
  Output Connectors	1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
  Cable Length	5.25' / 1.6 m
  Operating Voltage	7.5 V

  Box Dimensions (LxWxH)	19.0 x 7.7 x 3.2"

• Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)

  Polar Pattern	Omnidirectional
  Element Type	Dynamic
  Output Connector	3-Pin XLR Male
  Frequency Response	50 Hz - 18 kHz
  Output Impedance	500 Ohms
  Sensitivity	2.2 mV/Pa
  Case Material	Aluminum
  Dimensions (L x D)	1.3 x 9.1" / 33.0 x 231.0 mm
  Weight	4.8 oz / 136 g

  Box Dimensions (LxWxH)	11.1 x 5.1 x 2.6"

• Auray UPOH-B Universal Plug-On Transmitter Holster

  Material of Construction	Leather
  Closure Method	Touch fastener
  Carrying / Transport Options	Belt clip
  Dimensions (H x W x D)	4.0 x 2.0 x 2.0" / 10.2 x 5.1 x 5.1 cm
  Weight	1.2 oz / 34 g

  Box Dimensions (LxWxH)	5.0 x 2.7 x 2.0"

• SKB iSeries Waterproof Case for 2 Sennheiser ENG Systems, or 2 Senal Systems

  Material of Construction	Injection molded polypropylene copolymer resin Foam-cut PE (polyethylene) interior
  Type of Closure	Trigger-release latches
  Carrying/Transport Options	Custom-grip handle
  Exterior Dimensions (L x W x D)	13.2 x 11.1 x 5.2" (33.5 x 28.2 x 13.2 cm)
  Interior Dimensions (L x W x D)	12.0 x 9.0 x 4.5" (30.5 x 22.9 x 11.4 cm)
  Weight	3.6 lb (1.6 kg)

  Box Dimensions (LxWxH)	13.6 x 11.7 x 6.0"

• Vello V-Rig 4.1" Triple Shoe Bracket

  Bottom Mount	1 x Accessory Foot
  Top Mount	3 x Accessory Shoe
  Material	Aluminum
  Dimensions	4.1 x 3.4 x 0.9" / 10.5 x 8.5 x 2.2 cm
  Weight	2 oz / 56.7 g

  Box Dimensions (LxWxH)	7.7 x 6.1 x 0.9"

Rating

Discussion
