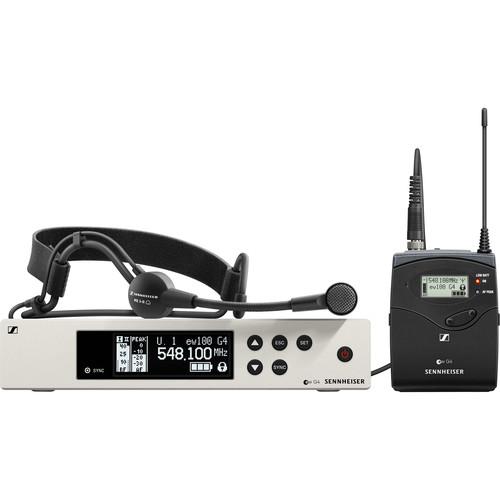

User Manual for Sennheiser ew 100 G4-ME 3-II Wireless Bodypack System with ME 3-II Cardioid Headset Microphone

• Product category: Wireless Systems Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Wireless Systems

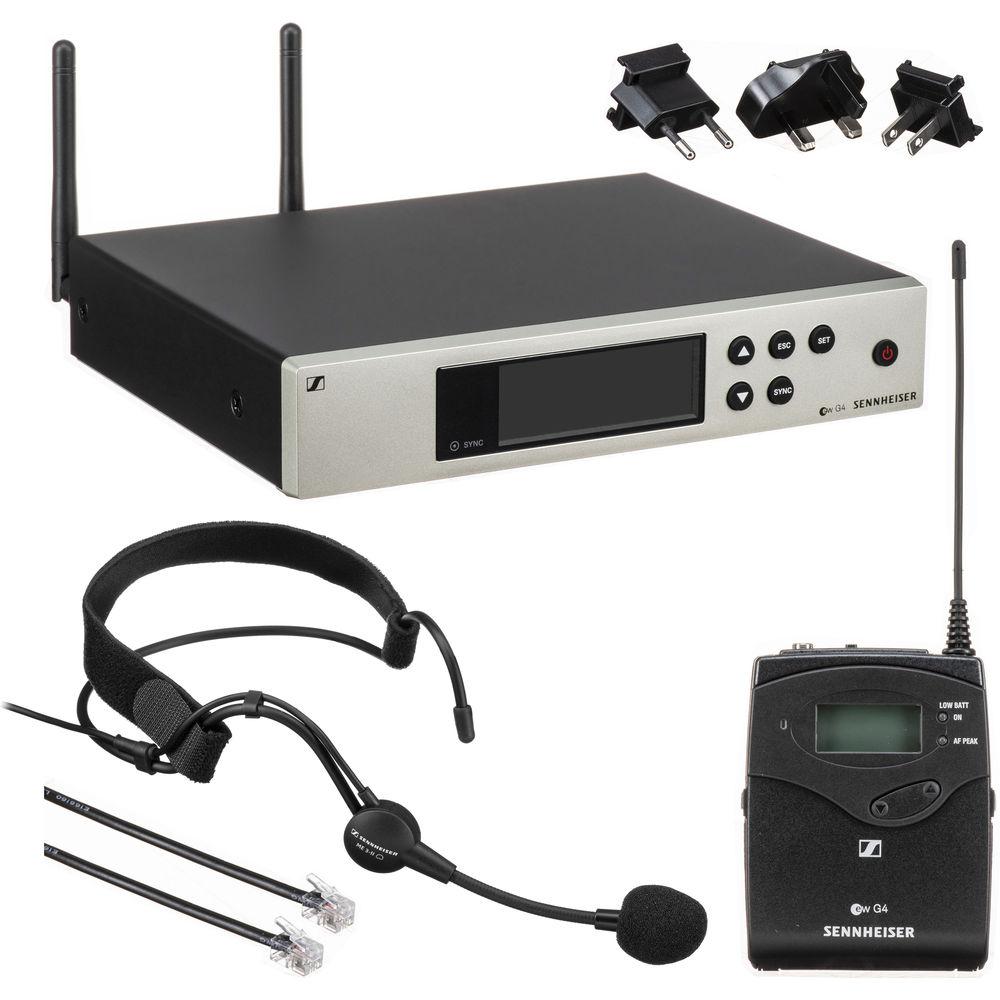

Product description

• SK 100 G4 Wireless Bodypack Transmitter A: (516 to 558 MHz)
  • evolution wireless G4 Tutorial An Introduction I Sennheiser

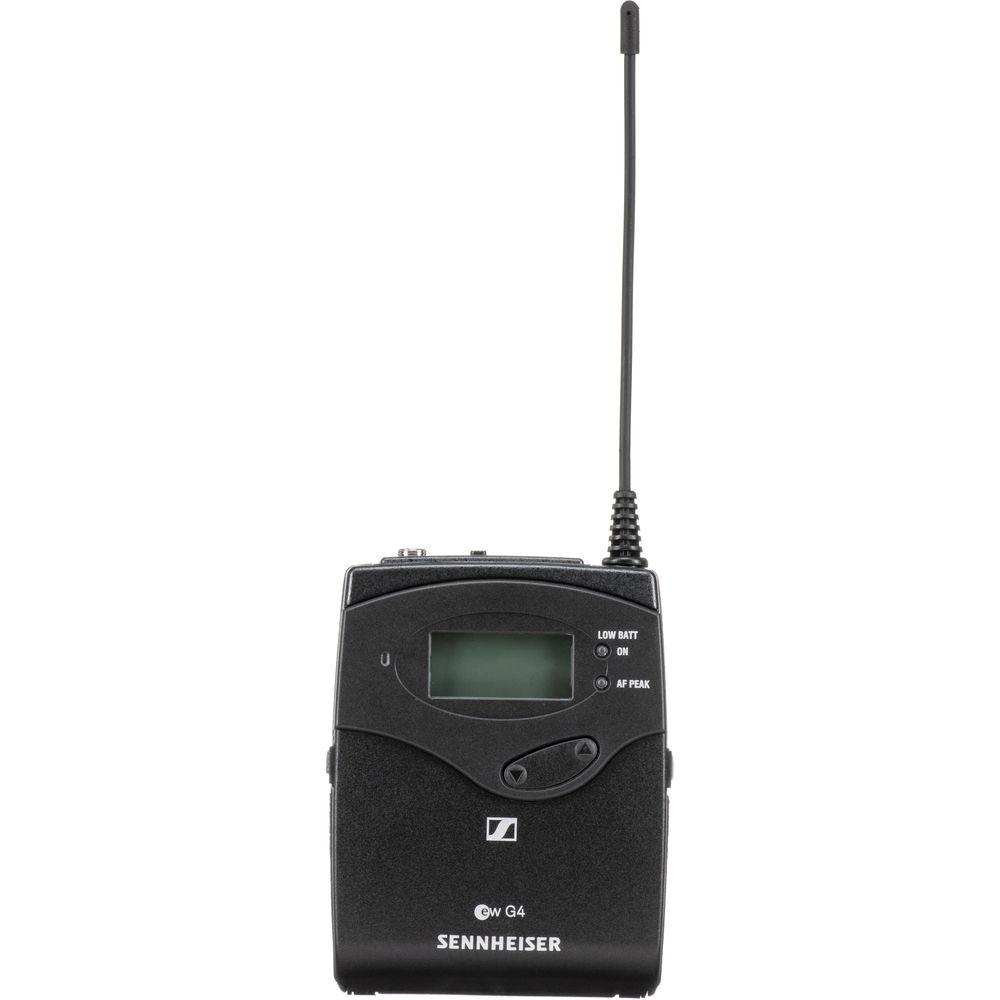

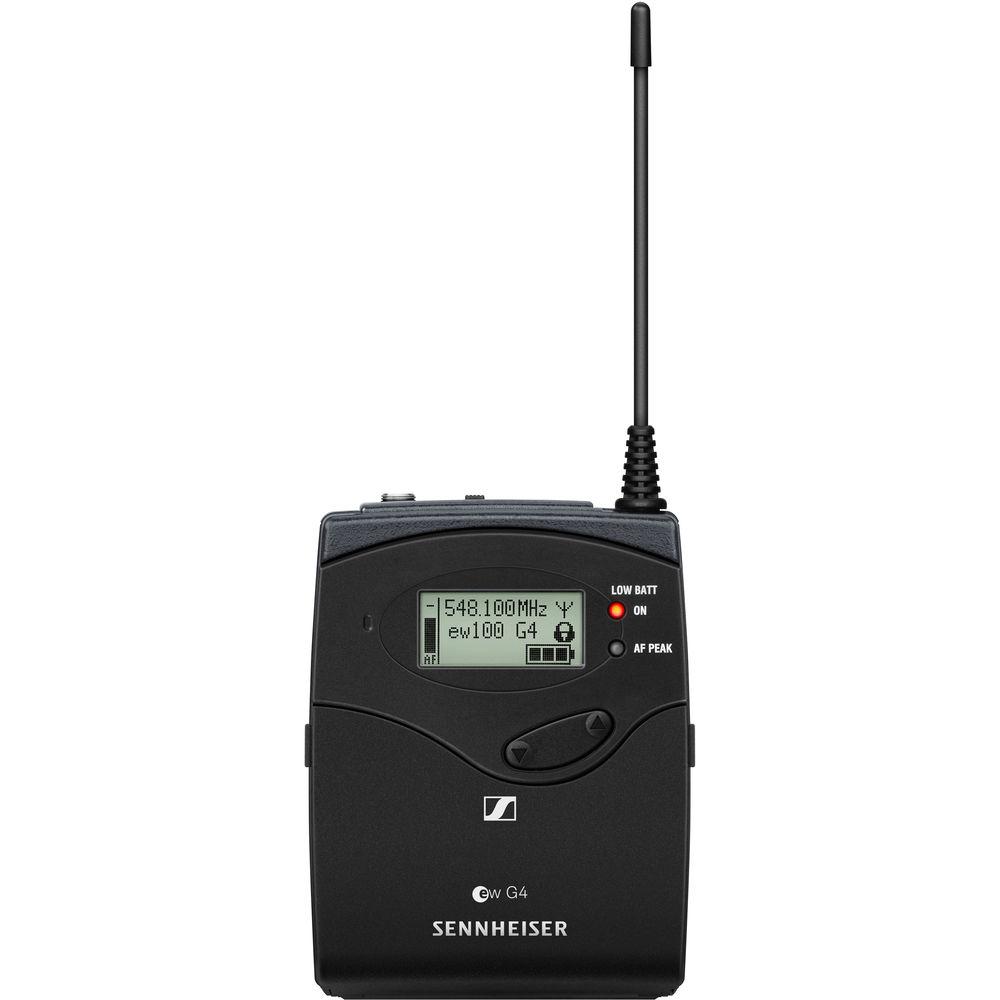

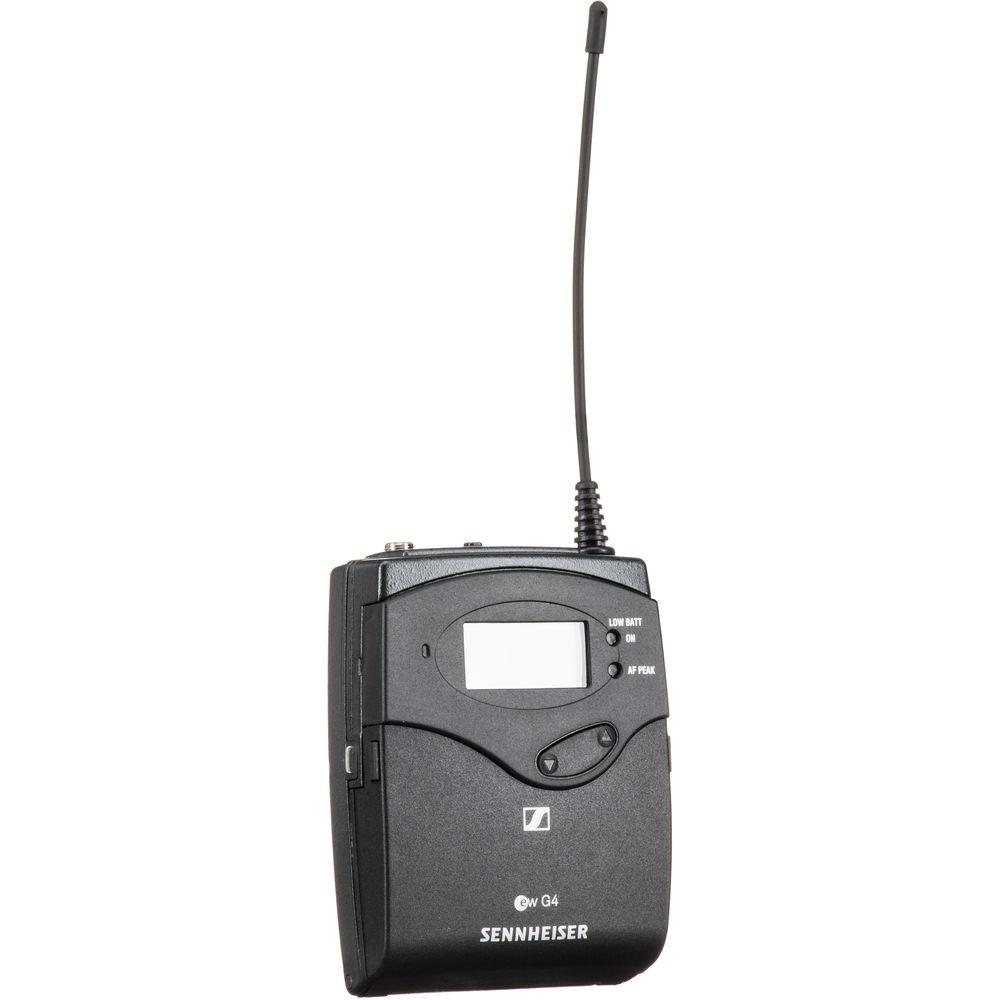

  The SK 100 G4 Wireless Bodypack Transmitter from Sennheiser is the latest addition to their evolution family of wireless microphones. It features true diversity technology and can be used when paired with a companion receiver and microphone, as part of a wireless RF transmission system for live stage, theater, presentation, and rehearsal applications. The transmitter features 1680 frequencies tunable in 25 kHz steps with 20 fixed frequency banks and up to 12 compatible frequency presets. There is 1 user bank with up to 12 user programmable frequencies. The transmitter's menu-driven backlit display shows current frequency, frequency band and channel number, metering of AF level, transmission status, battery status, and more. Furthermore, the transmitter is equipped with a mute switch and is powered by two 1.5V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. It is built with a rugged metal housing. The SK 100 G4 transmitter will operate about 8 hours and is equipped with a 1/8" line/mic input jack. With 25 Hz to 18 kHz AF frequency response, the SK 100 G4 is designed to deliver a natural audio quality.
  • Robust bodypack transmitter for daily use on stage.
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared.
  • Fast frequency allocation for up to 12 receivers via updated linking functionality.
  • Up to 20 compatible channels.
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range.
  • Transmission Range: up to 100 meters / 300'
  • High RF output power (up to 30 mW) depending on country regulations.
  UPC: 615104309166

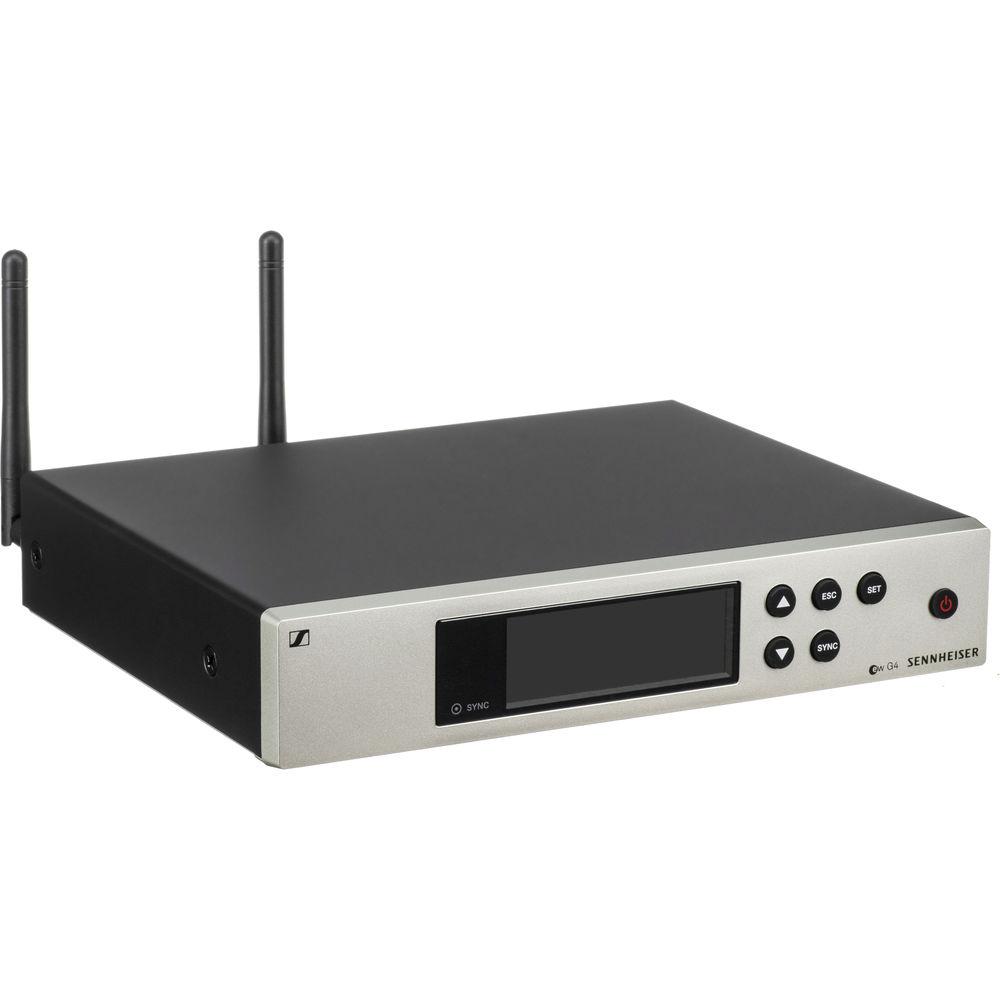

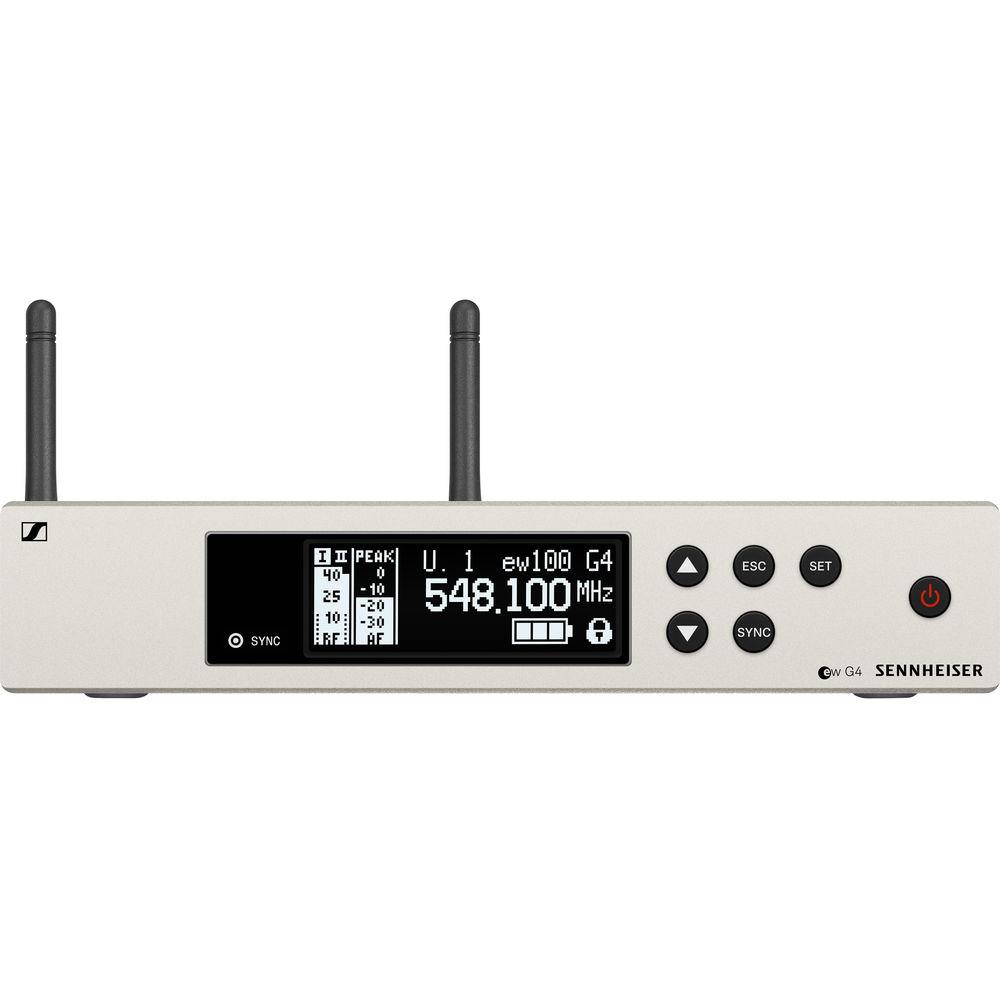

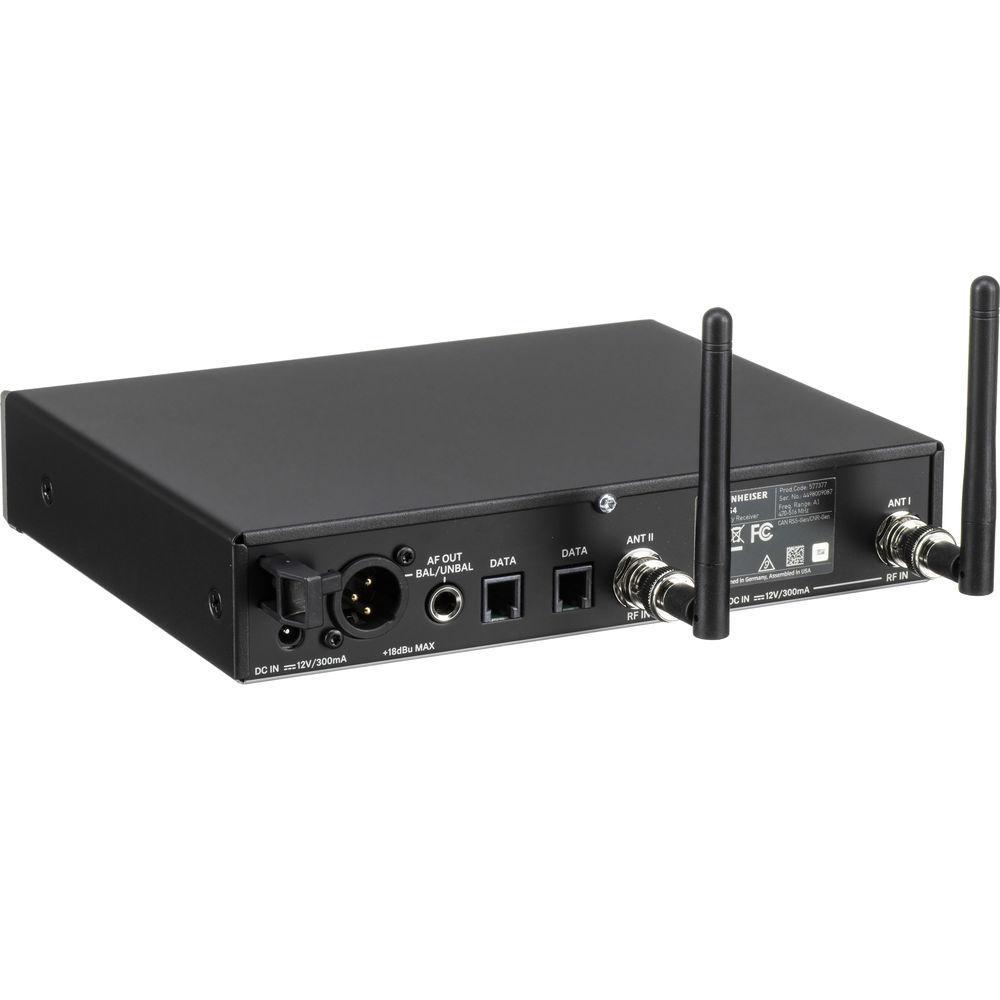

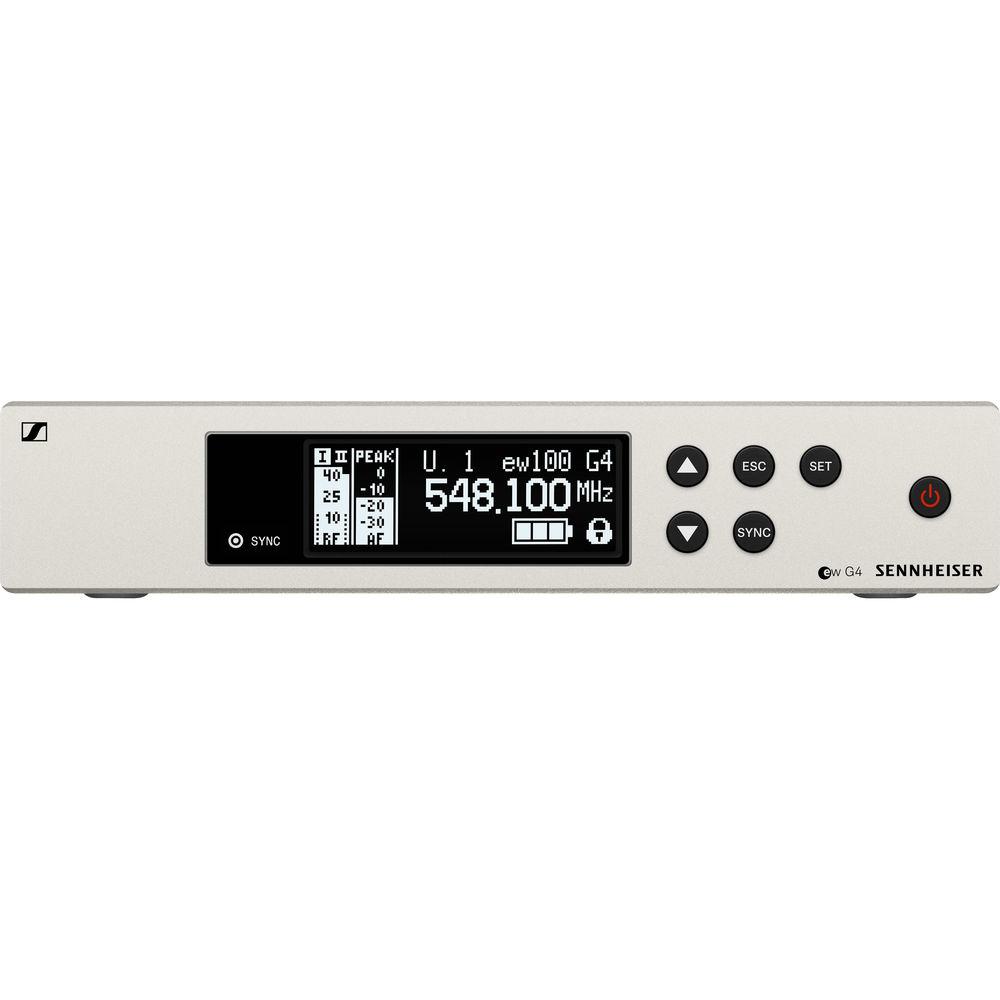

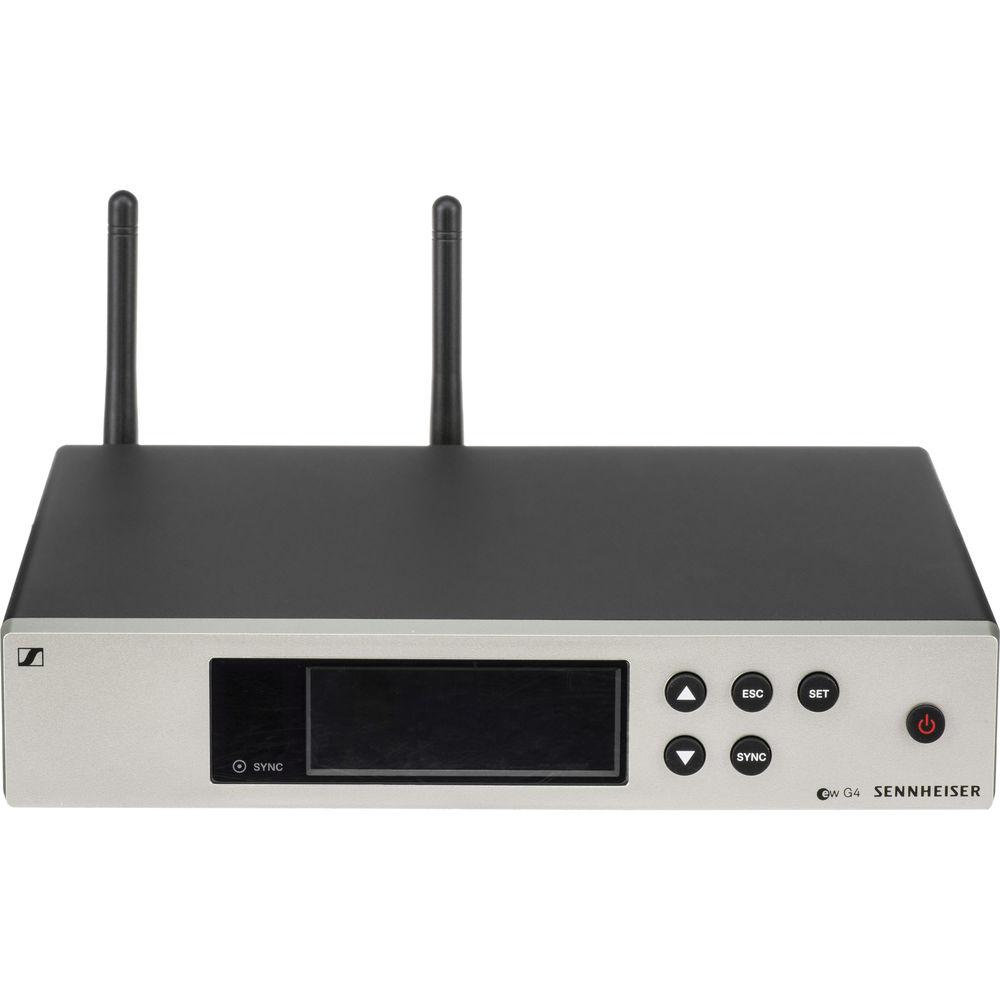

• EM 100 G4 Wireless UHF True Diversity Rackmount Receiver A: (516 to 558 MHz) The EM 100 G4 Wireless UHF True Diversity Rackmount Receiver from Sennheiser is the latest addition to their evolution family of wireless microphones and is fully compatible with all previous series. It can be used when paired with a G4 transmitter and microphone (sold separately) to capture audio in sound reinforcement applications. The receiver features, XLR and 1/4" outputs, multi-channel setup capabilities, true-diversity UHF reception, 42 MHz bandwidth, 1680 tunable frequencies, the allocation for up to 12 receivers, and a comprehensive high-contrast LCD display. With enhanced features that include automatic frequency scan, transmitter sync (via infrared), and sturdy metal construction, the EM 100 is well suited for professional applications in theaters, clubs, town halls, houses of worship, DJ applications, and more.
  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission range: Up to 100 meters / 300'
  • High RF output power (up to 30 mW) depending on country regulations
  UPC: 615104309326
• ME 3-II Headmic with Cardioid Capsule for Wireless Systems The ME 3-II Headmic from Sennheiser is a cardioid capsule and pre-polarized condenser microphone that can be used when paired with the Sennheiser D1 Digital Wireless microphone system to capture audio for applications such as live stage, television, boardrooms, presentations, vocals, houses of worship, and more. The ME 3-II headmic cable features a 3.5mm locking mini-jack connector. A foam windscreen is included. UPC: 615104263529

• 2 x AA Batteries

• Limited 2-Year Warranty

• Power Supply

• 2 x Rod Antennas

• RJ 10 Cable

• GA 3 Rackmount Kit for G3 100/300/500 Series

• Limited 2-Year Warranty

• Foam Windscreen

• Limited 2-Year Warranty

Also Includes

• RJ10 Linking Cable
• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SK 100 G4 Wireless Bodypack Transmitter A: (516 to 558 MHz)

  Modulation	Wideband FM
  Frequency Range	A: (516 to 558 MHz)
  Transmission Frequencies	Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
  Switching Bandwidth	Up to 42 MHz
  Nominal/Peak Deviation	±24 kHz / ±48 kHz
  Frequency Stability	≤ Rating 50% users recommend this product to others. And what about you? This product has already been rated by 50 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
