Sennheiser ew 100 G4 Wireless Instrument

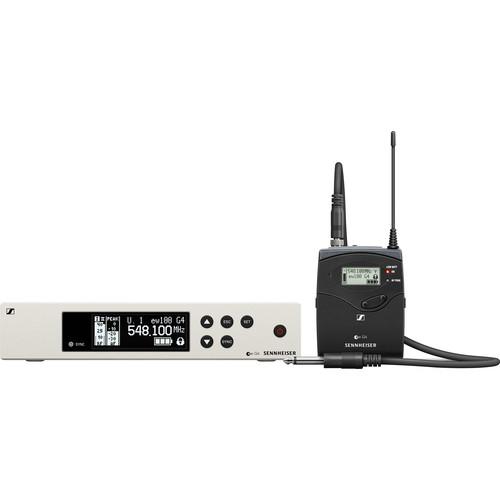

User Manual for Sennheiser ew 100 G4 Wireless Instrument System with Ci 1 Guitar Cable A1:

• Product category: Wireless Systems Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Wireless Systems

Product description

• GA 3 Rackmount Kit for G3 100/300/500 Series
  • evolution wireless G4 Tutorial An Introduction I Sennheiser
  The Sennheiser GA 3 Rackmount Kit is ideal for use with G3 100/300/500 Series Wireless Monitoring Systems.
  • Use only genuine Sennheiser replacement parts
  UPC: 615104149793

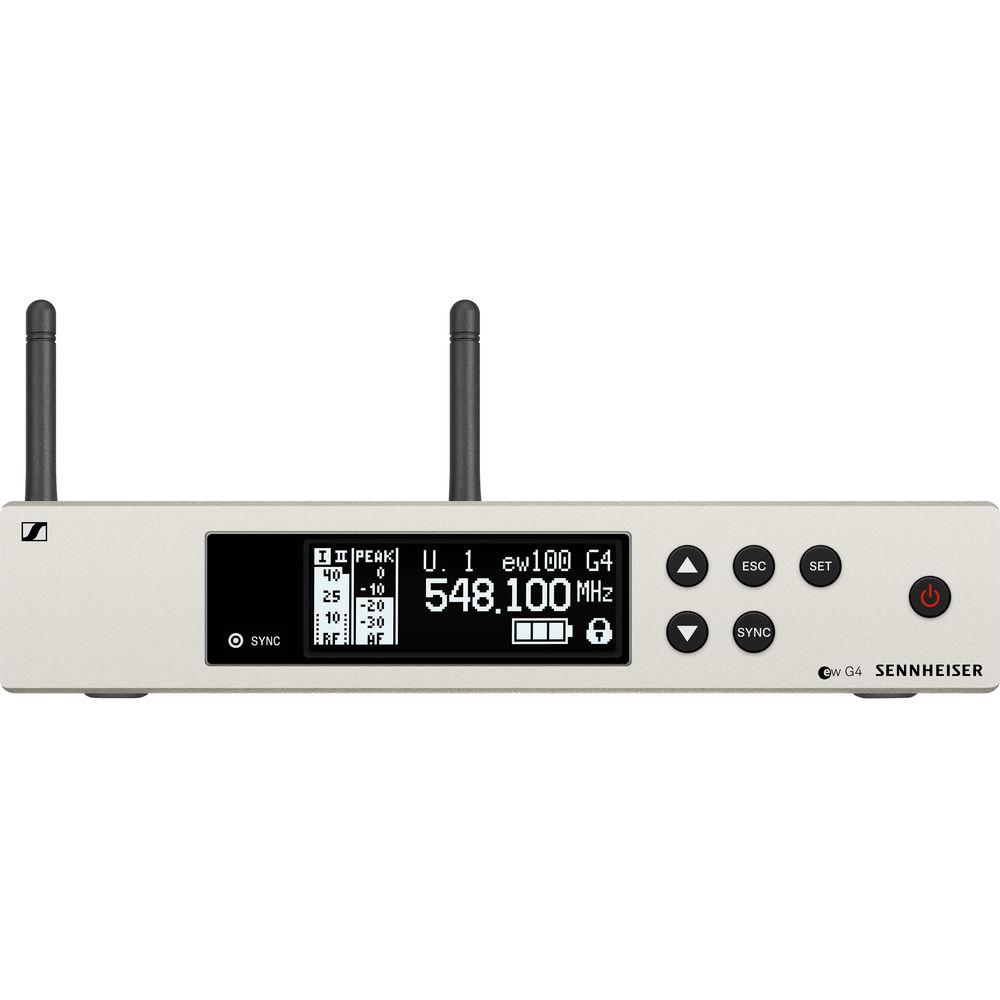

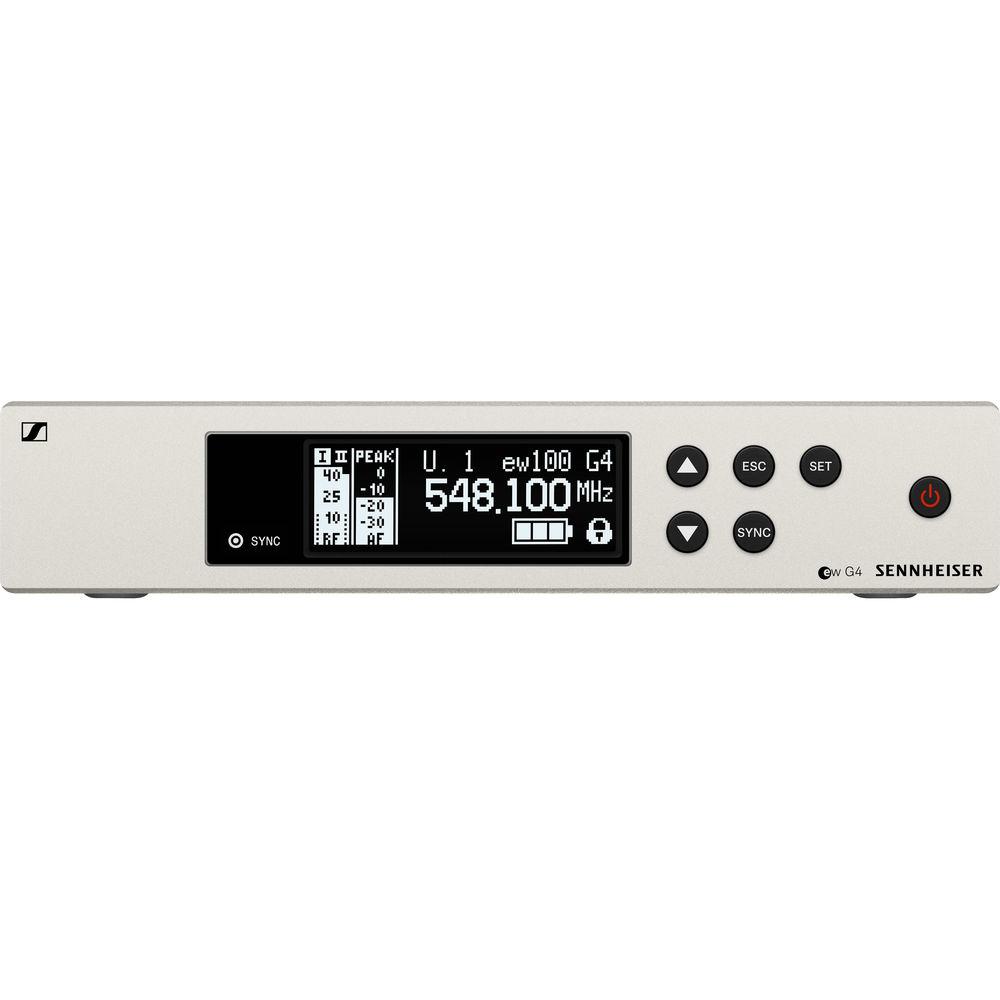

• EM 100 G4 Wireless UHF True Diversity Rackmount Receiver A1: (470 to 516 MHz) The EM 100 G4 Wireless UHF True Diversity Rackmount Receiver from Sennheiser is the latest addition to their evolution family of wireless microphones and is fully compatible with all previous series. It can be used when paired with a G4 transmitter and microphone (sold separately) to capture audio in sound reinforcement applications. The receiver features, XLR and 1/4" outputs, multi-channel setup capabilities, true-diversity UHF reception, 42 MHz bandwidth, 1680 tunable frequencies, the allocation for up to 12 receivers, and a comprehensive high-contrast LCD display. With enhanced features that include automatic frequency scan, transmitter sync (via infrared), and sturdy metal construction, the EM 100 is well suited for professional applications in theaters, clubs, town halls, houses of worship, DJ applications, and more.
  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission range: Up to 100 meters / 300'
  • High RF output power (up to 30 mW) depending on country regulations
  UPC: 615104309319

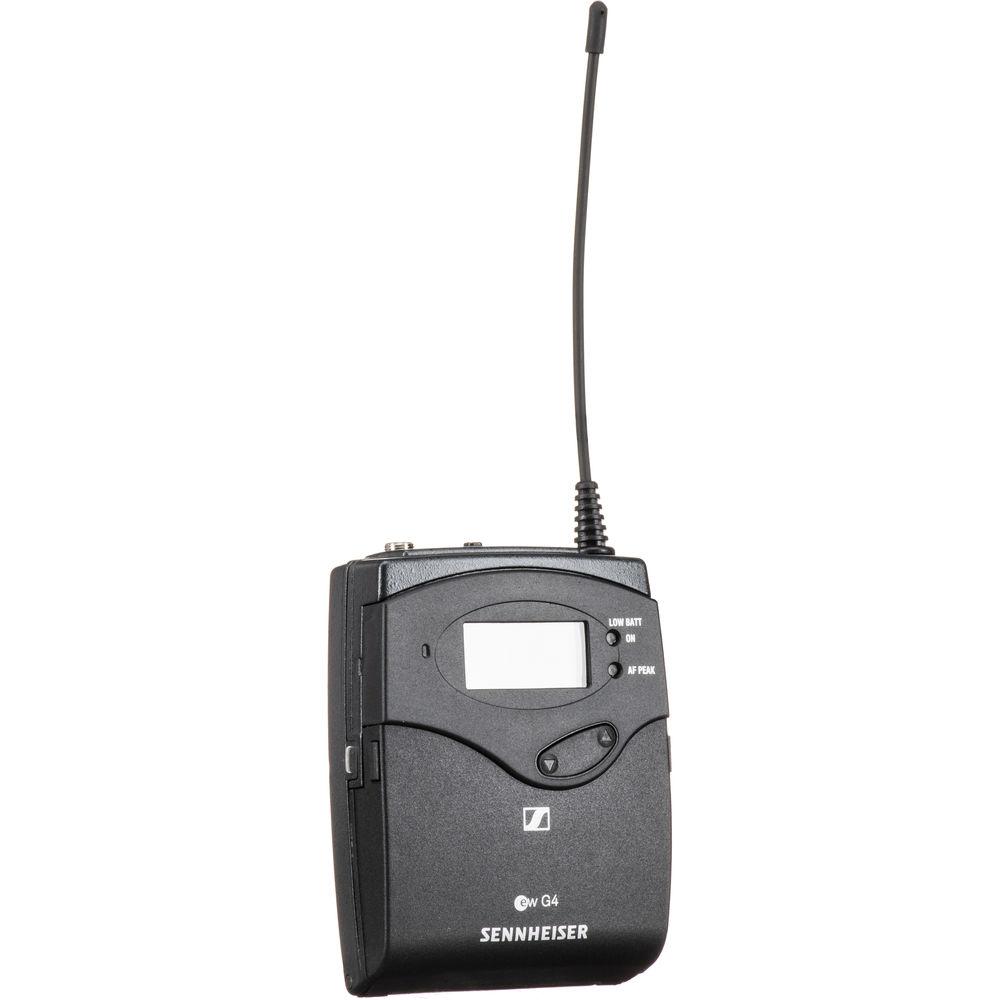

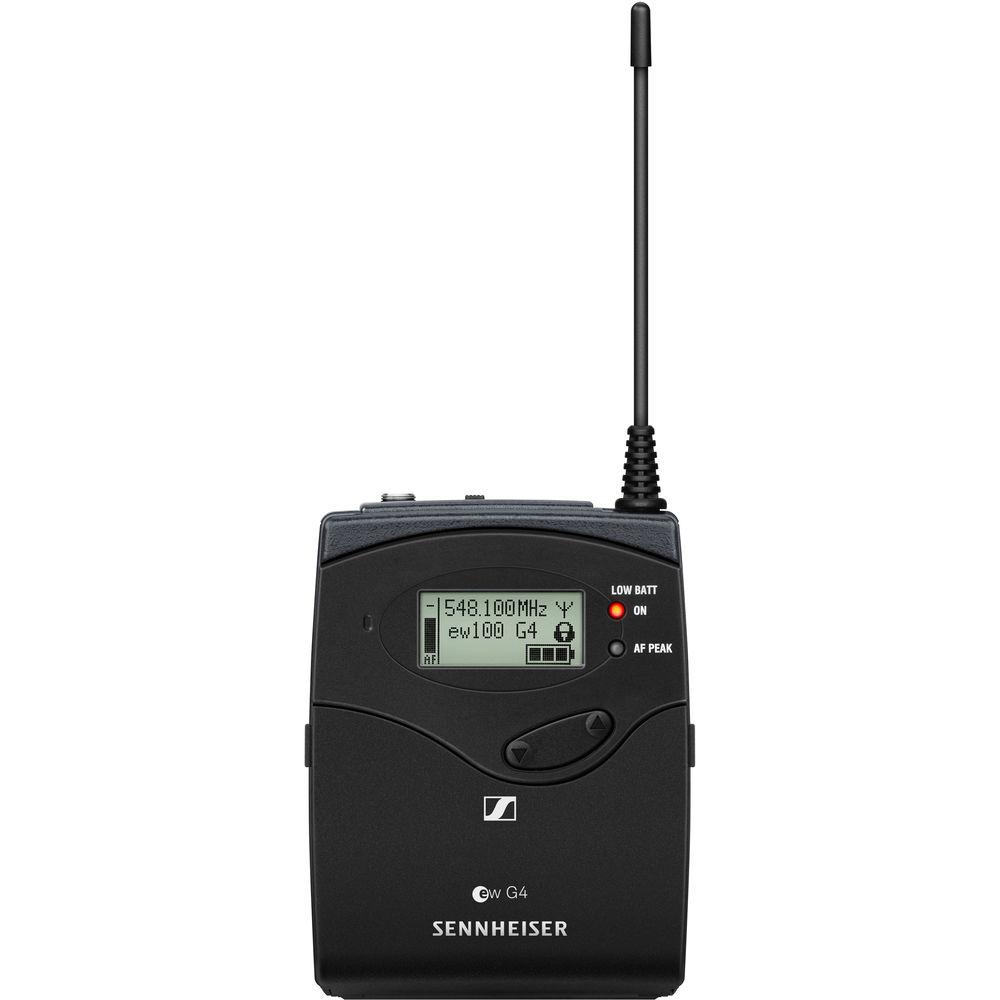

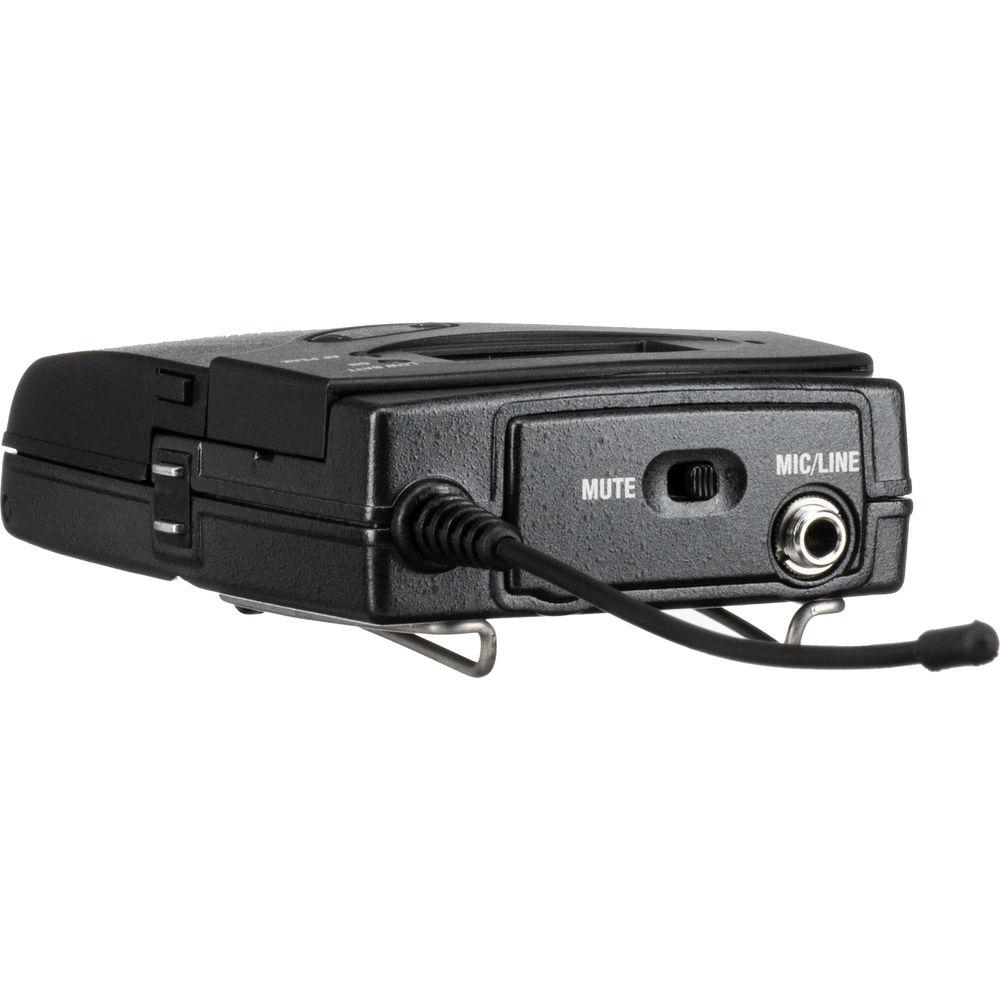

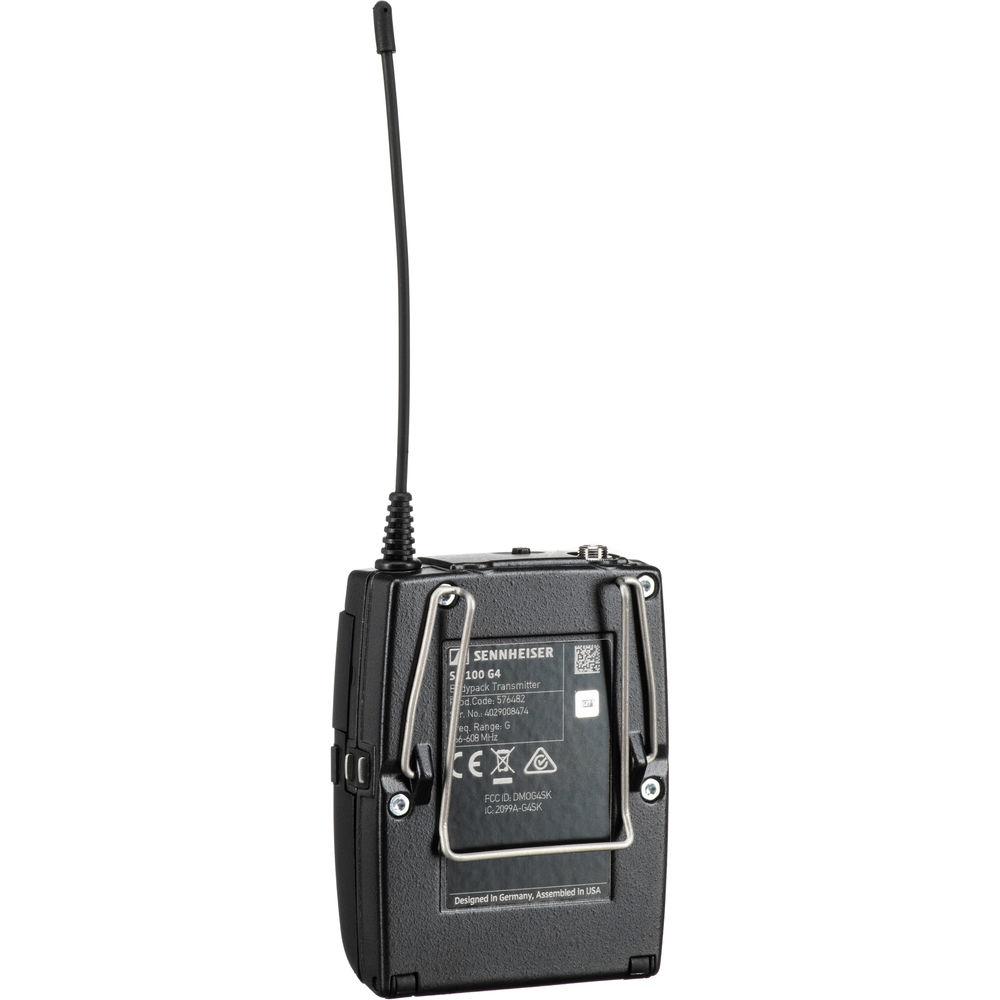

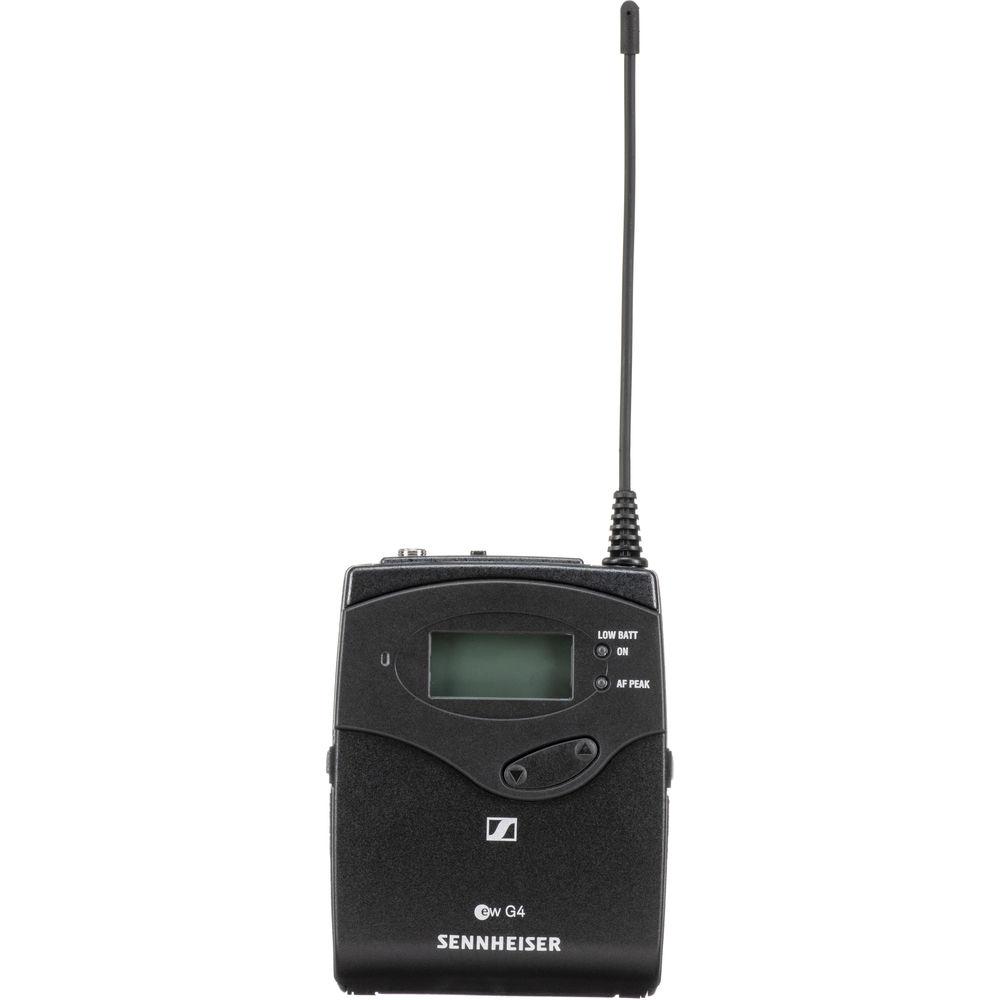

• SK 100 G4 Wireless Bodypack Transmitter A1: (470 to 516 MHz) The SK 100 G4 Wireless Bodypack Transmitter from Sennheiser is the latest addition to their evolution family of wireless microphones. It features true diversity technology and can be used when paired with a companion receiver and microphone, as part of a wireless RF transmission system for live stage, theater, presentation, and rehearsal applications. The transmitter features 1680 frequencies tunable in 25 kHz steps with 20 fixed frequency banks and up to 12 compatible frequency presets. There is 1 user bank with up to 12 user programmable frequencies. The transmitter's menu-driven backlit display shows current frequency, frequency band and channel number, metering of AF level, transmission status, battery status, and more. Furthermore, the transmitter is equipped with a mute switch and is powered by two 1.5V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. It is built with a rugged metal housing. The SK 100 G4 transmitter will operate about 8 hours and is equipped with a 1/8" line/mic input jack. With 25 Hz to 18 kHz AF frequency response, the SK 100 G4 is designed to deliver a natural audio quality.
  • Robust bodypack transmitter for daily use on stage.
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared.
  • Fast frequency allocation for up to 12 receivers via updated linking functionality.
  • Up to 20 compatible channels.
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range.
  • Transmission Range: up to 100 meters / 300'
  • High RF output power (up to 30 mW) depending on country regulations.
  UPC: 615104309159

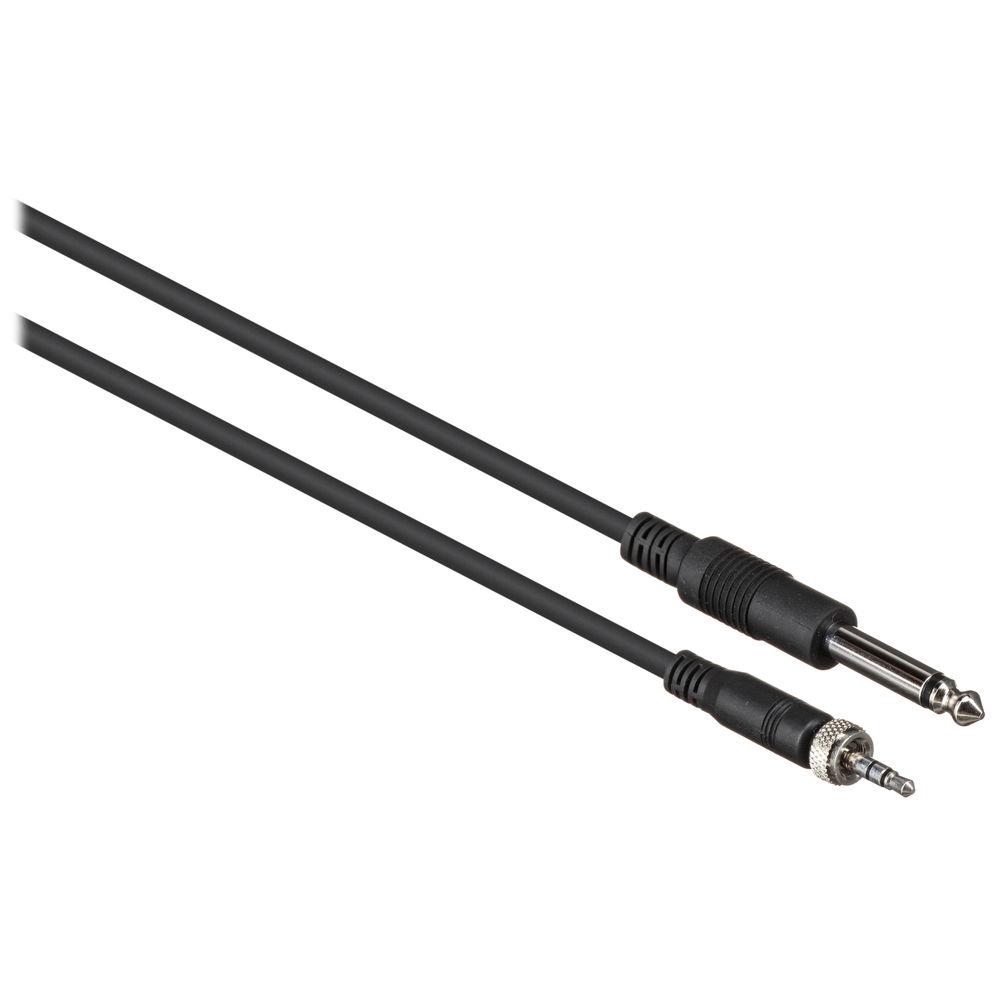

• CI1 1/8" Mini to 1/4" Male Jack Guitar Connecting Cable The Sennheiser CI1 is a connecting cable with a 1/4" phone and locking 1/8" (3.5mm) mini connections. The cable is specifically designed for connecting guitars to Evolution series wireless transmitters. UPC: 615104050211

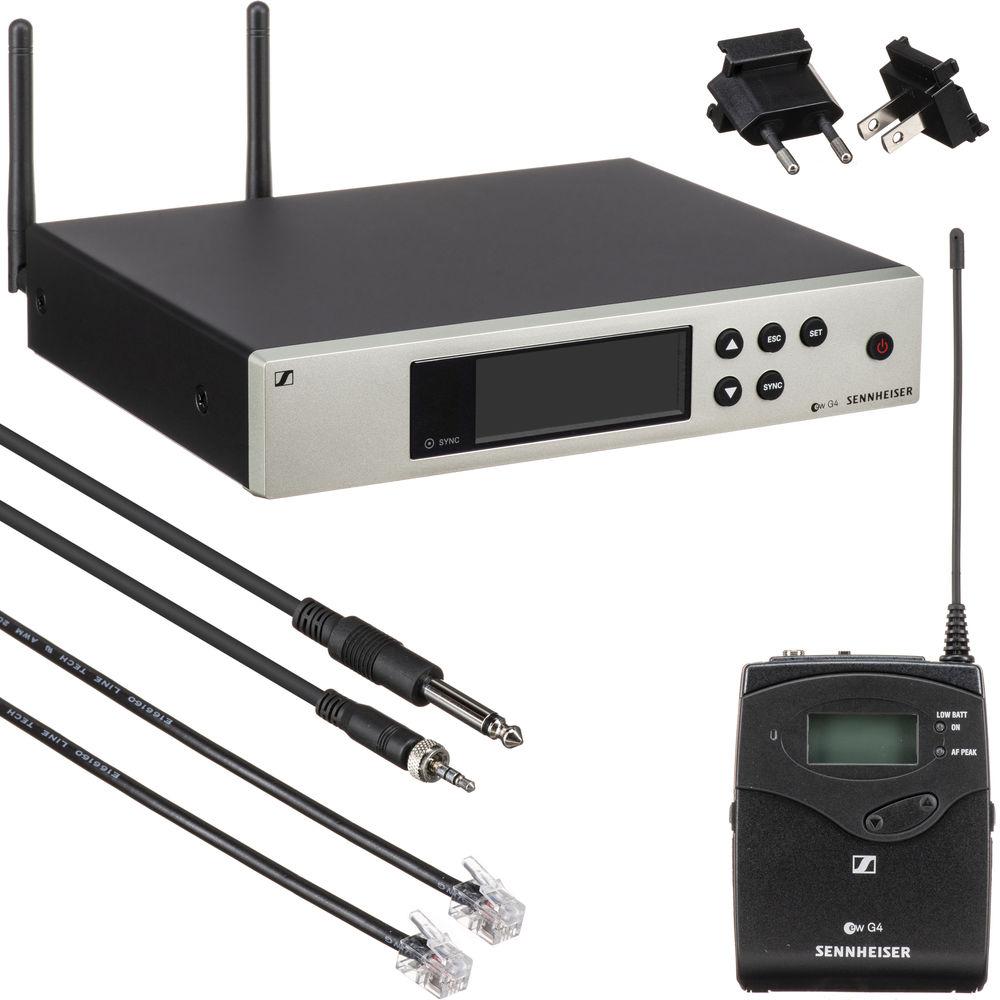

• 2-Year Warranty

• Power Supply

• 2 x Rod Antennas

• RJ 10 Cable

• GA 3 Rackmount Kit for G3 100/300/500 Series

• Limited 2-Year Warranty

• 2 x AA Batteries

• Limited 2-Year Warranty

• 90-Day Warranty

Also Includes

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• GA 3 Rackmount Kit for G3 100/300/500 Series

  Compatibility

  G3 100/300/500 Series Wireless Monitoring Systems

  Box Dimensions (LxWxH)	10.2 x 4.3 x 2.4"

• EM 100 G4 Wireless UHF True Diversity Rackmount Receiver A1: (470 to 516 MHz)

  Frequency Band	A1: (470 to 516 MHz)
  Type of Receiver	EM 100 G4 half-rack mountable true diversity UHF
  Receiving Frequency	Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
  Switching Bandwidth	Up to 42 MHz
  Nominal/Peak Deviation	±24 kHz / ±48 kHz
  Receiver Type	True diversity
  Sensitivity	< 2.5 μV for 52 dBA (with HDX, peak deviation)
  Adjacent Channel Selectivity	Typically ≥ 65 dB
  Intermodulation Attenuation	Typically ≥ 65 dB
  Blocking	≥ 70 dB
  Squelch	Low: 5 dB Rating 90% users recommend this product to others. And what about you? This product has already been rated by 66 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
