Sennheiser ew 300 G4-Base Combo Wireless

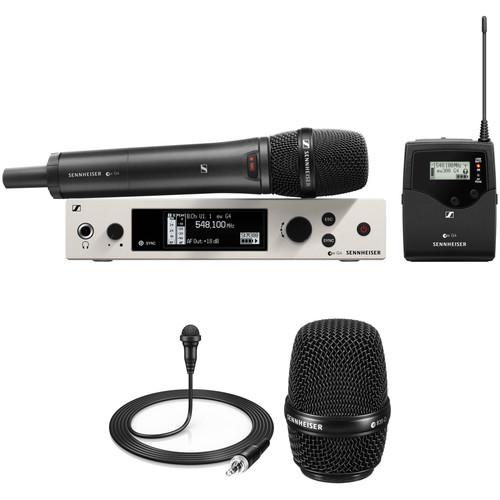

User Manual for Sennheiser ew 300 G4-Base Combo Wireless Microphone System with ME 2-II Lavalier and MMD 835 Dynamic Capsule Kit

• Product category: Wireless Systems Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Wireless Systems

Product description

• Sennheiser ew 300 G4-Base Combo Wireless Handheld Bodypack Combo Set, No Mics GW1: (558 to 608 MHz)
  • evolution wireless G4 Tutorial An Introduction I Sennheiser
  The ew 300 G4-Base Combo Wireless Handheld Bodypack Combo Set, No Mics from Sennheiser is an addition to their evolution series of wireless microphone systems. It includes an SKM 300 G4 handheld transmitter (no mic), an EM 300-500 G4 wireless receiver with two rod antennas, an SK 300 G4-RC bodypack transmitter (no mic), a GA3 rackmount kit, a power supply, four batteries, and a microphone clip and pouch. The combination of both handheld and bodypack transmitters provides the user with options for hands-free speech, handheld performances, interviews, and more. Additionally, a handheld microphone capsule, a lavalier, or headset microphone is required (sold separately).
  Compatible with Control Cockpit Software
  • Sennheiser's Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy.
  UPC: 615104316324
• Sennheiser ME 2-II Omnidirectional Lavalier Microphone (Black)
  • evolution wireless G4 Tutorial An Introduction I Sennheiser
  Available in black, the ME 2-II from Sennheiser is an omnidirectional lavalier microphone designed to capture speech and vocals. It takes concepts found in the original ME-2 and expands them, focusing the frequency response and offering full compatibility with digital RF-transmission systems. Whereas the ME-2 could introduce noise if the capsule and transmit antenna were over 7.9” away from each other, the ME 2-II is 100% compliant with digital RF systems, such as the SpeechLine Digital Wireless system.Also, where the ME-2 gave you a frequency response of 30 Hz to 20 kHz, this iteration narrows the range from 50 Hz to 18 kHz. The focusing allows the capsule to hone in more on appropriate tonalities, minimizing the capture of frequencies piercingly high and unnecessarily low in the context of vocal recording.Additionally, this model features a lighter-weight housing compared to the original, as well as an improved clip and an integrated windscreen. A cable length of 5.2' provides enough slack for nearly any situation, at the end of which sits a 3.5mm threaded EW connector for compatible systems, such as the AVX, XS Wireless 1, XS Wireless 2, and more. UPC: 615104300583
• Sennheiser MMD 835 Cardioid Dynamic Capsule for Handheld Transmitters (Black)
  • evolution wireless G4 Tutorial An Introduction I Sennheiser
  The Sennheiser MMD 835 is a cardioid capsule. It can be used to capture audio when paired with a receiver and the SKM 100/300/500 G3/G4, SKM 2000/6000/9000, SKM D1/AVX, and SL handheld DW wireless handheld transmitters (sold separately). The capsule is easily installed, includes a metal grille and replaces faulty or damaged capsules. The interchangeable capsule system also allows users to select among capsules with differing sensitivity levels and polarity patterns.
  • Fits SL handheld DW, SKM 100/300/500 G3/G4, SKM 2000/6000/9000, and SKM D1/AVX wireless handheld transmitters.
  UPC: 615104147959

• ew 300 G4-Base Combo Wireless Handheld Bodypack Combo Set, No Mics GW1: (558 to 608 MHz)
• EM 300-500 G4 Wireless True Diversity Receiver GW1: (558 to 608 MHz)
• SKM 300 G4-S Handheld Transmitter, No Capsule GW1: (558 to 608 MHz)
• SK 300 G4-RC Bodypack Transmitter GW1: (558 to 608 MHz)

• ME 2-II Omnidirectional Lavalier Microphone (Black)

• MMD 835 Cardioid Dynamic Capsule for Handheld Transmitters (Black) fzudrbffusxvfsucfdqyayfru

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser EM 300-500 G4 Wireless True Diversity Receiver GW1: (558 to 608 MHz)

  Modulation	Wideband FM
  Frequency Band	GW1: (558 to 608 MHz)
  Receiving Frequency	Maximum 2000 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
  Switching Bandwidth	Up to 50 MHz
  Nominal/Peak Deviation	±24 kHz / ±48 kHz
  Principle of Operation	True diversity
  Sensitivity	< 2.5 μV for 52 dBA eff S/N (with HDX, peak deviation)
  Adjacent Channel Selectivity	Typically ≥ 75 dB
  Intermodulation Attenuation	Typically ≥ 70 dB
  Blocking	≥ 75 dB
  Squelch	Off, 5 to 25 dB μV in steps of 2 dB
  Pilot Tone Squelch	Can be switched off
  Antenna Inputs	2 x BNC sockets
  Compander	Sennheiser HDX
  EQ Presets	Switchable, Act on Line and Monitor Outputs) Preset 1: Flat Preset 2: Low cut (-3 dB at 180 Hz) Preset 3: Low cut/high boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High boost (+6 dB at 10 kHz)
  Signal to Noise Ratio	(1 mV, peak deviation) Line: ≥ 115 dBA
  Total Harmonic Distortion (THD)	≤ 0.9%
  Maximum AF Output Voltage	1/4" (6.3 mm) Jack Socket: +12 dBu (unbalanced) (at peak deviation, 1 kHz AF) XLR Socket: +18 dBu (balanced) (at peak deviation, 1 kHz AF)
  Output Level Range	48 dB (3 dB steps)
  Temperature Range	14 to 131°F (-10 to 55°C)
  Power Supply	12 VDC
  Current Consumption	350 mA
  Dimensions (L x W x H)	8.0 x 8.3 x 1.7" (202 x 212 x 43 mm)
  Weight	2.2 lb (980 g)

  Box Dimensions (LxWxH)	16.3 x 14.0 x 3.1"

• Sennheiser SKM 300 G4-S Handheld Transmitter, No Capsule GW1: (558 to 608 MHz)

  Modulation	Wideband FM
  Frequency Band	GW1: (558 to 608 MHz)
  Transmission Frequencies	Maximum 2000 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
  Switching Bandwidth	Up to 50 MHz
  Nominal/Peak Deviation	±24 kHz / ±48 kHz
  Frequency Stability	≤ Rating 90% users recommend this product to others. And what about you? This product has already been rated by 06 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
