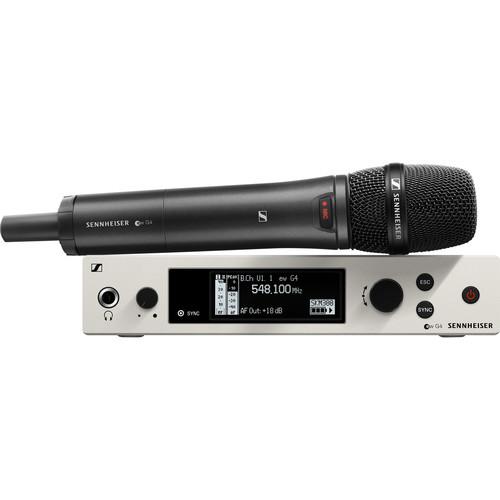

Sennheiser ew 300 G4-Base SKM-S Wireless

User Manual for Sennheiser ew 300 G4-Base SKM-S Wireless Handheld Base Set, No Capsule AW :

• Product category: Wireless Systems Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Wireless Systems

Product description

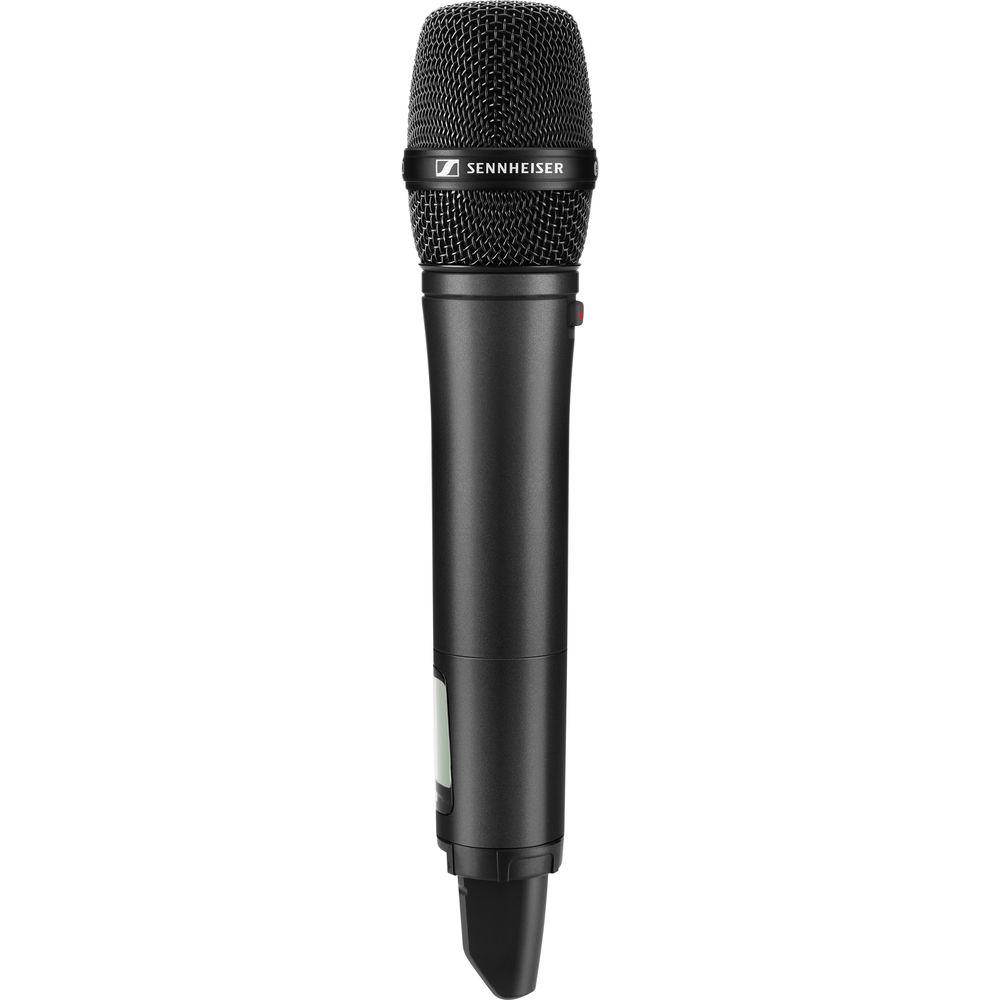

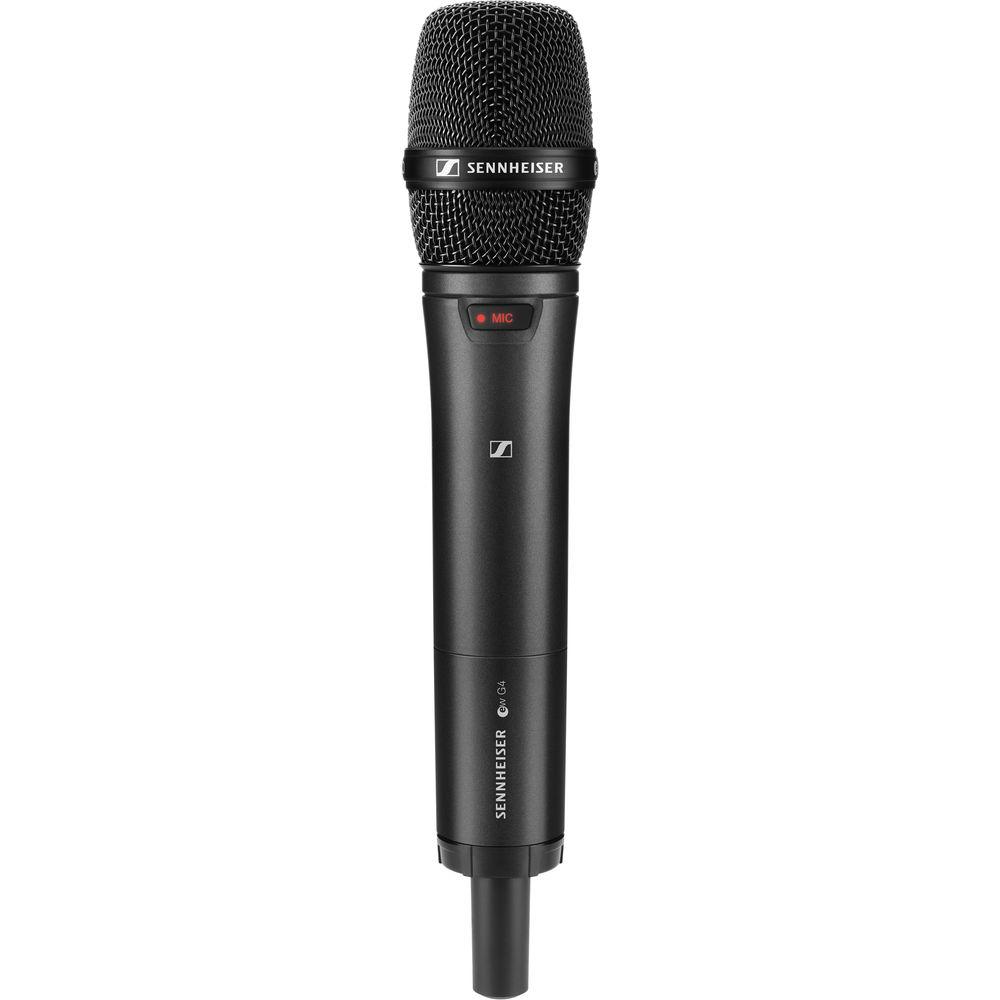

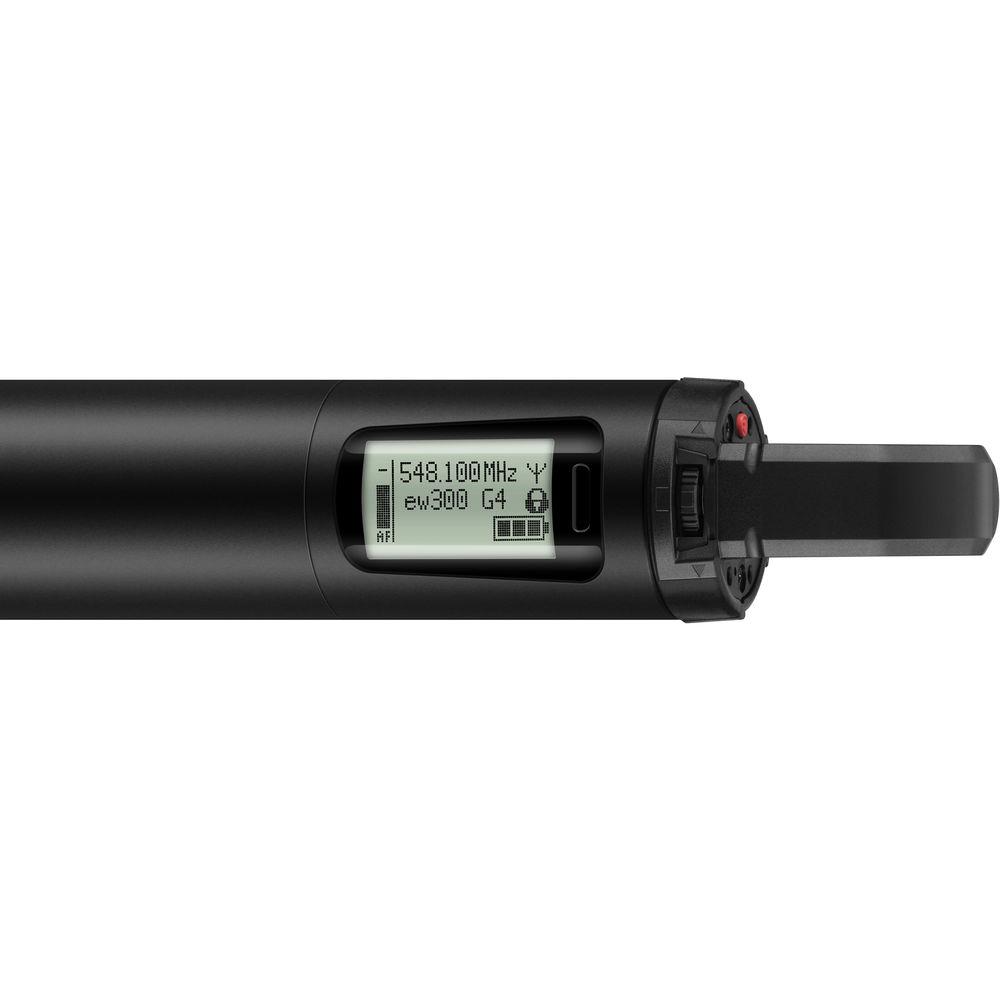

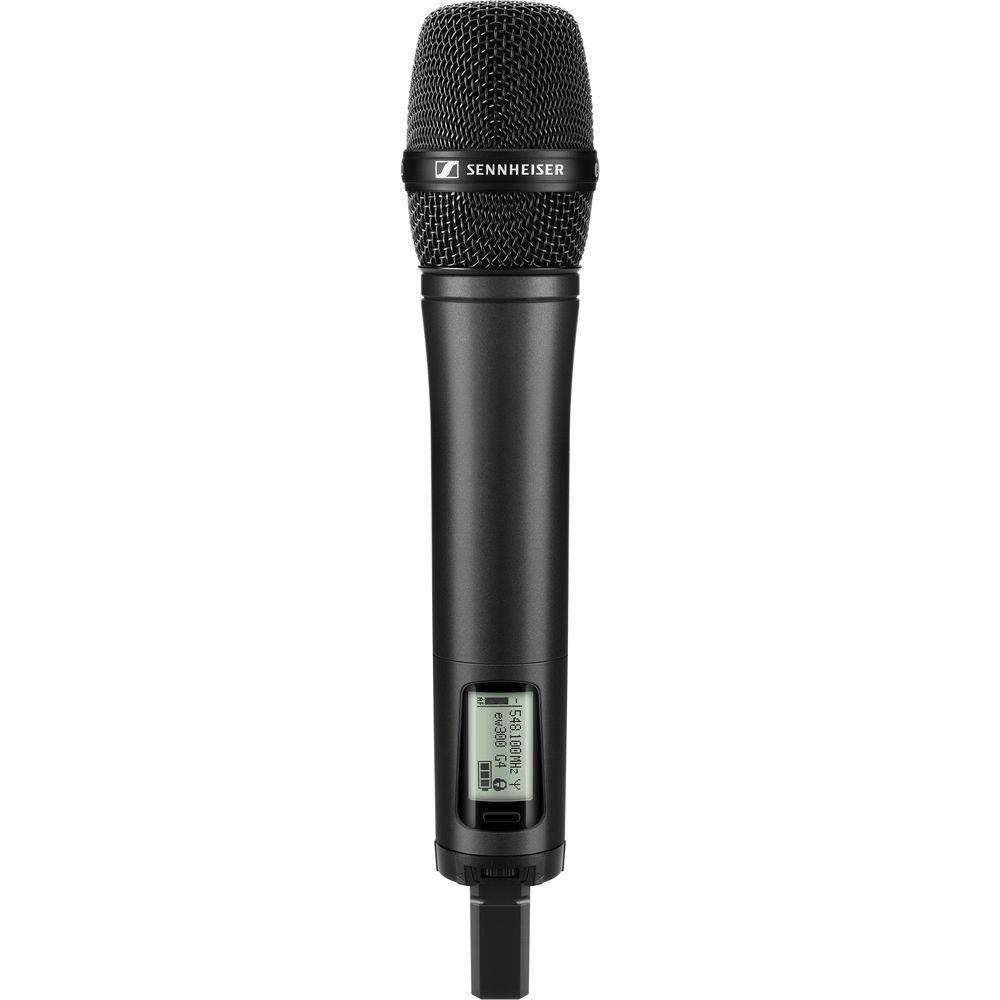

• SKM 300 G4-S Handheld Transmitter, No Capsule AW+: (470 to 558 MHz) The SKM 300 G4 Wireless Handheld Transmitter, No Capsule from Sennheiser is the latest addition to their evolution series of wireless transmitters. It operates in the UHF frequency range and can be used with a companion receiver and a microphone capsule (sold separately) as part of a wireless RF transmission system for live stage, theater, and presentation applications. It features 3250 frequencies that are tunable in 25 kHz steps and equipped with 20 fixed-frequency banks with up to 32 compatible frequency presets, and 6 user banks with up to 32 user-programmable frequencies. The transmitter's menu-driven backlit LCD display shows the current frequency, frequency bank and channel number, metering of AF level, transmission status, muting function, battery status, and more. Furthermore, the SKM 300 G4 handheld transmitter's frequency response ranges from 80 Hz to 18 kHz and power is supplied by two 1.5V AA size batteries, or by one Sennheiser BA 2015 rechargeable accupack. Also, an e 935, e 945, or e 965 microphone capsule is required (sold separately). Finally, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy.
  • Handheld transmitter features a lightweight aluminum housing for use with a microphone capsule (sold separately)
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Easy to use, fast setup time
  • Integrated network port allows control, monitoring, and setup via Sennheiser Control Cockpit and WSM software.
  • Up to 88 MHz bandwidth with 3250 selectable frequencies, fully tunable in a stable UHF range
  • Increased RF output power (10/30/50 mW)
  • Transmission range up to 330'
  • Requires an e 935, e 945, or e 965 microphone capsule (sold separately)
  UPC: 615104316133

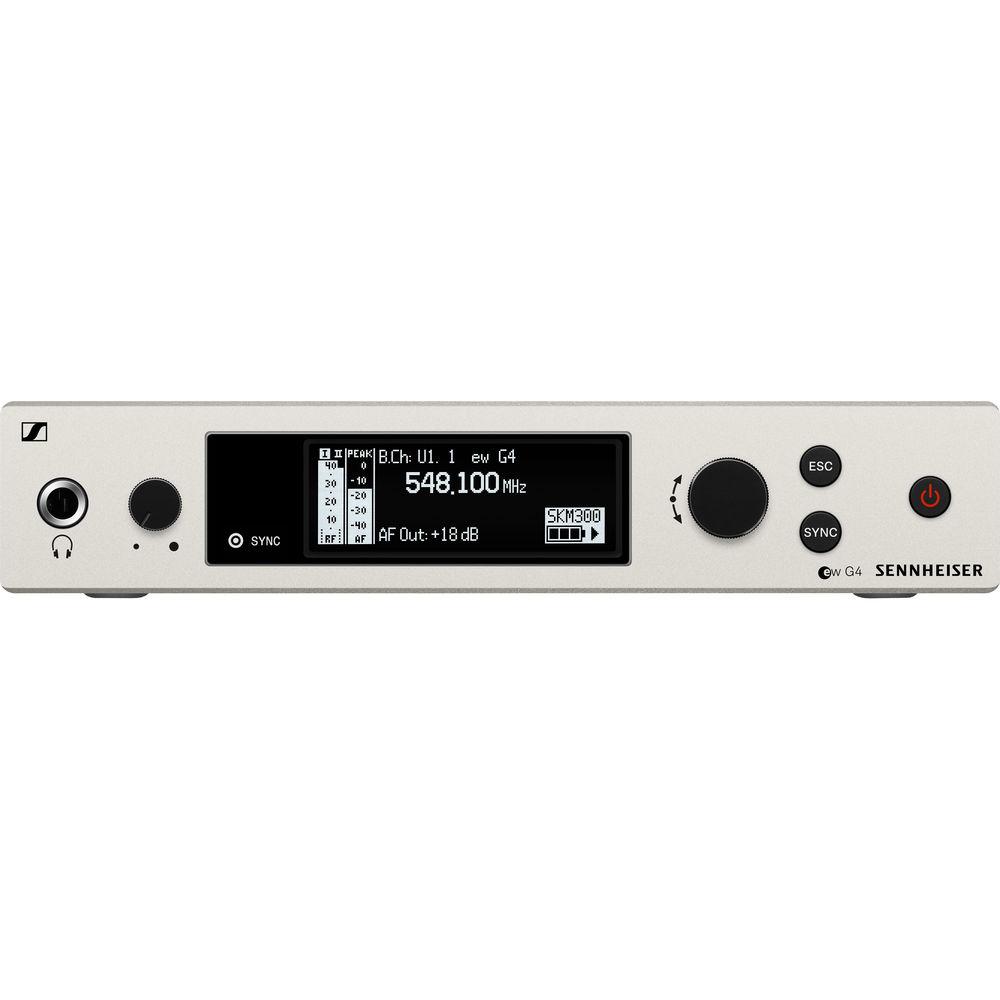

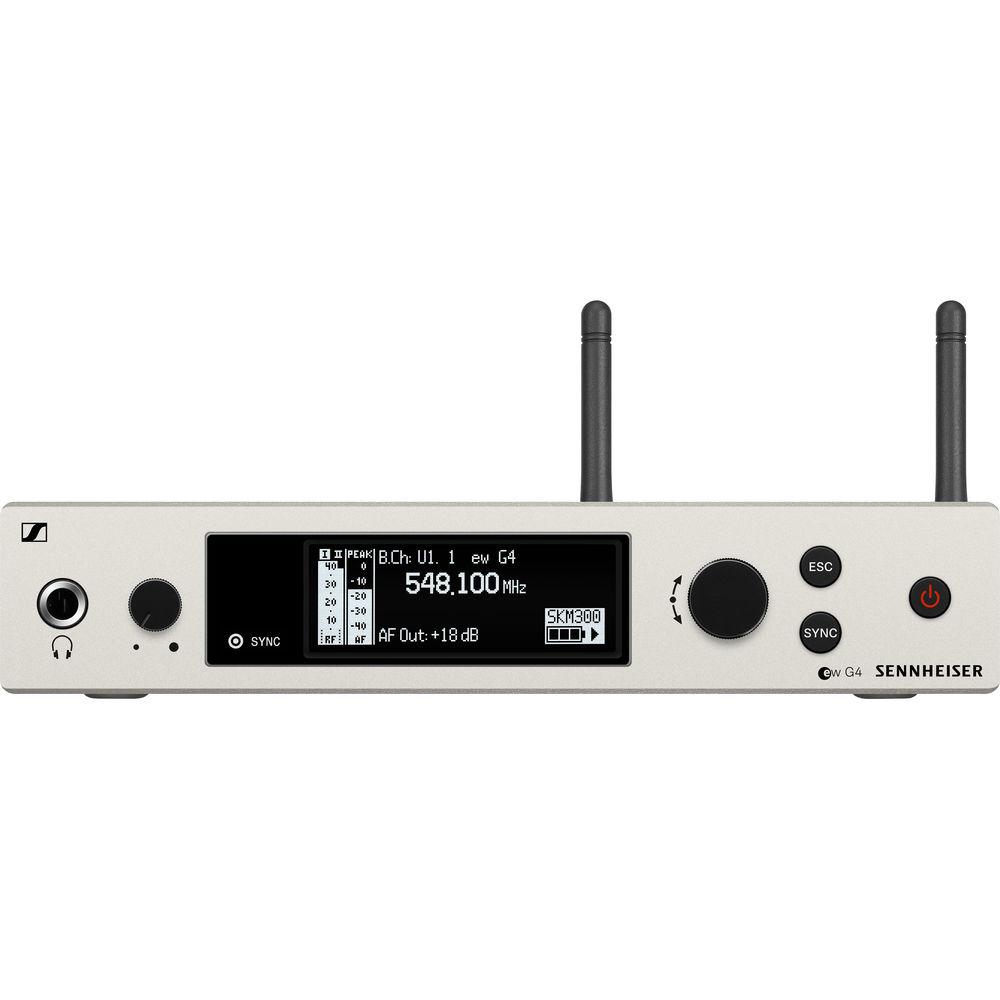

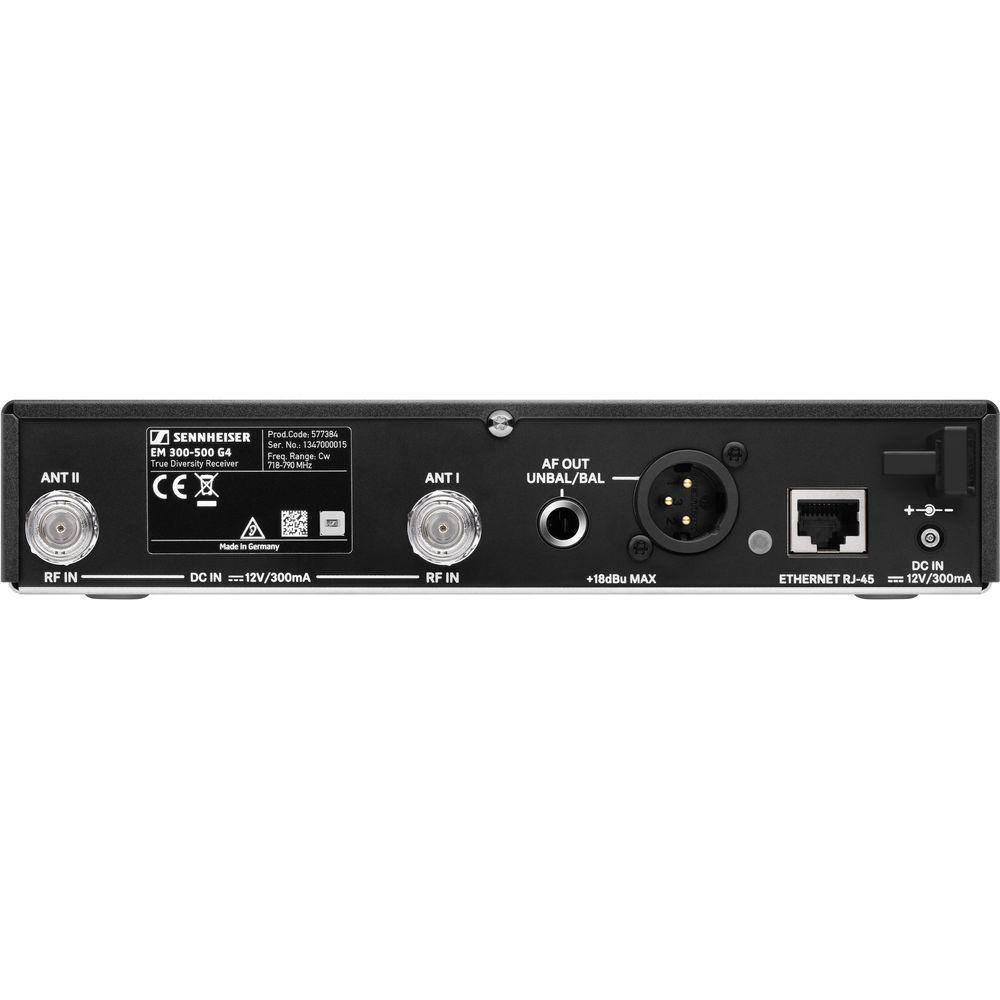

• EM 300-500 G4 Wireless True Diversity Receiver AW+: (470 to 558 MHz) The EM 300-500 G4 Wireless True Diversity Receiver from Sennheiser is the latest addition to their evolution series of wireless receivers. It operates in the UHF frequency range and can be used with a companion transmitter and microphone (sold separately), as part of a wireless RF transmission system for live stage, theater, and presentation applications. The half-rack receiver features 3250 frequencies and is tunable in 25 kHz steps. There are 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32 user programmable frequencies. This receiver is built with a menu-driven backlit OLED display showing current frequency, frequency bank and channel number, metering of RF level, volume level, line output level, lock status, battery status, muting function, and more. Enclosed in a rugged metal housing, the EM 300-500 G4 receiver is equipped with a balanced XLR-3M audio output along with an unbalanced 1/4" audio output. A 1/4" headphone output with headphone volume control is provided along with an Ethernet port (RF45) for remote network-based monitoring and control, using Sennheiser's Wireless System Manager software. Two BNC-type sockets are for connecting the antennas. Finally, the half-rack receiver operates on the included 12V power supply and includes a GA3 rackmount set.
  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3250 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50mW, adjustable in three steps 10/30/50) depending on country regulations
  UPC: 615104316218

• MZQ1 Microphone Clamp

• 2 x AA Batteries

• Pouch

• Limited 2-Year Warranty

• 2 x Rod Antennas

• Power Supply

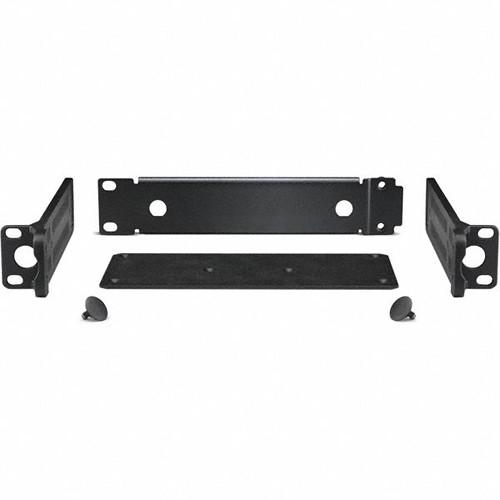

• GA 3 Rackmount Kit for G3 100/300/500 Series

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SKM 300 G4-S Handheld Transmitter, No Capsule AW+: (470 to 558 MHz)

  Modulation	Wideband FM
  Frequency Band	AW+: (470 to 558 MHz)
  Transmission Frequencies	Maximum 3250 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
  Switching Bandwidth	Up to 88 MHz
  Nominal/Peak Deviation	±24 kHz / ±48 kHz
  Frequency Stability	≤ Rating 90% users recommend this product to others. And what about you? This product has already been rated by 73 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
