Product description

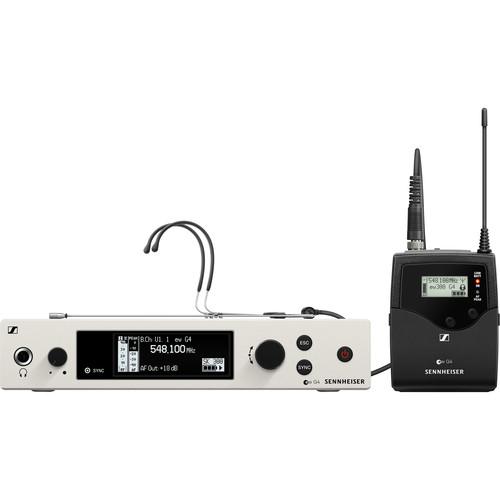

• SpeechLine Digital Wireless SL Headmic 1 Headworn Microphone (Black)
  • evolution wireless G4 Tutorial An Introduction I Sennheiser

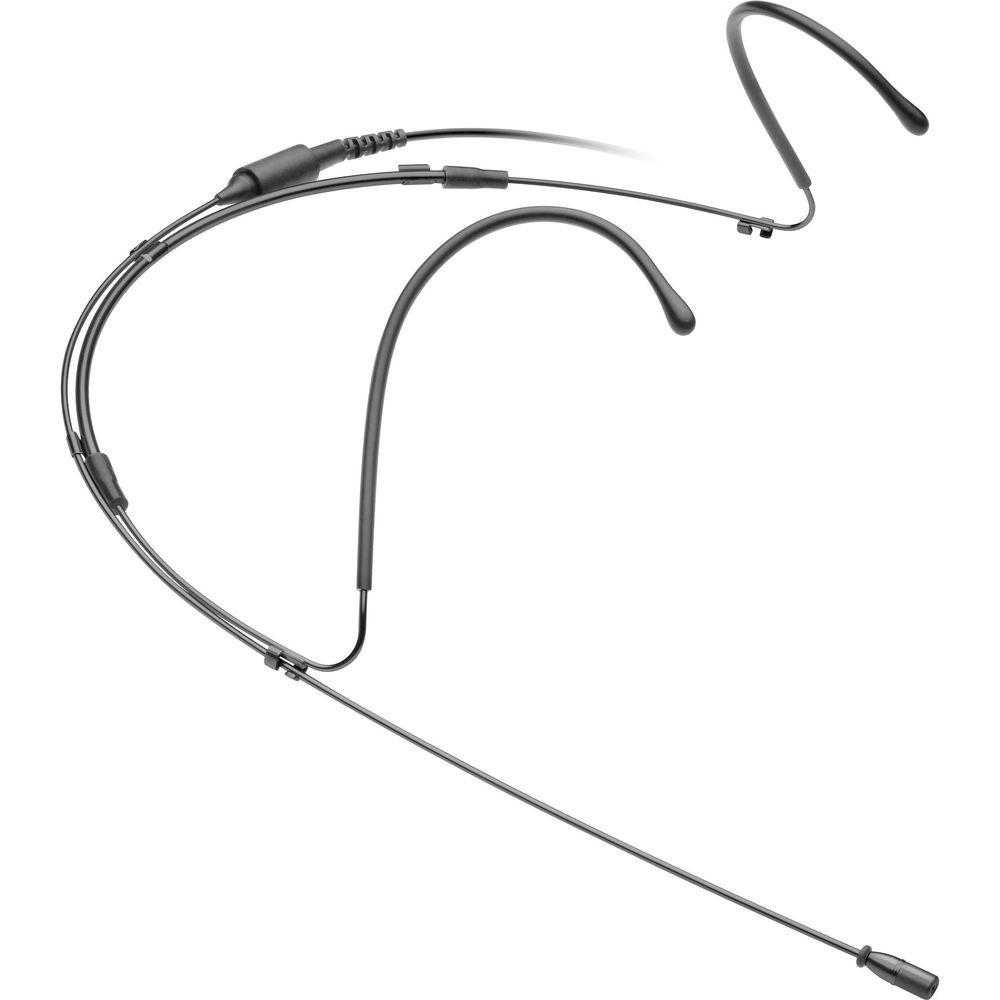

  The black SpeechLine Digital Wireless SL Headmic 1 BK from Sennheiser is an unobtrusive and comfortable-to-use headworn microphone, with an omnidirectional MKE 1 microphone capsule that terminates with a 5.2' cable and a 1/8" locking mini-jack connector. It can be used when paired with a wireless transmitter to capture audio in speech and presentation applications such as meetings, conferences, lectures, and more. Extremely lightweight, the adjustable neckband makes it convenient to fit all head sizes. The metal frame is sturdy and durable for long-term use. Furthermore, the SL Headmic 1 comes with a sleek soft case, which can also hold an optional bodypack transmitter. UPC: 615104260559

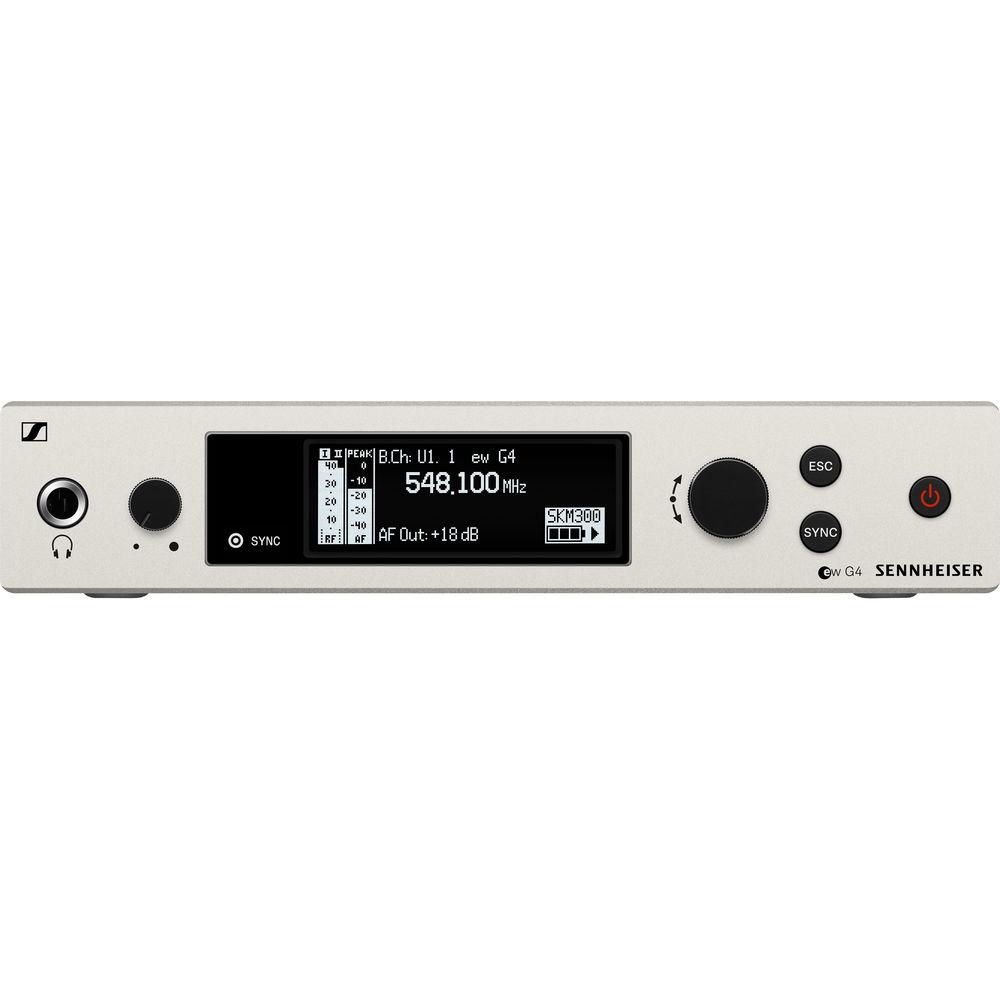

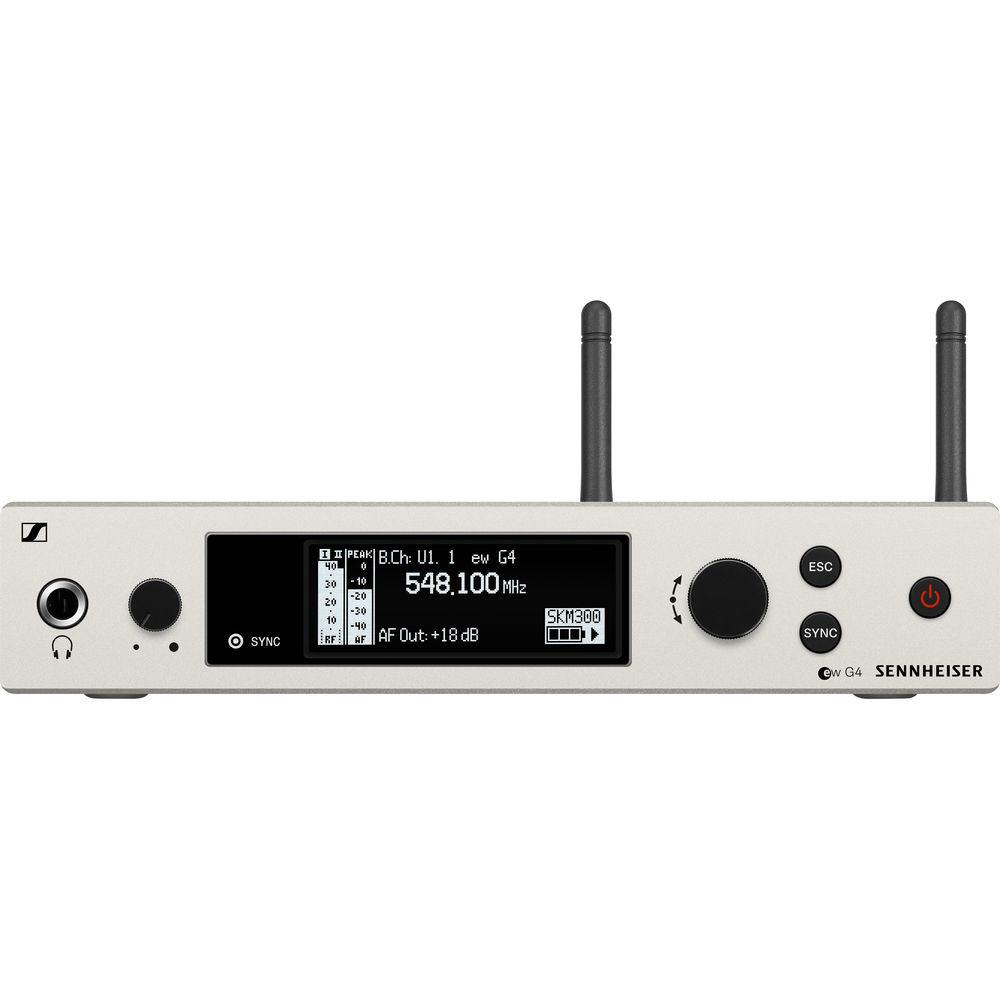

• EM 300-500 G4 Wireless True Diversity Receiver GW1: (558 to 608 MHz) The EM 300-500 G4 Wireless True Diversity Receiver from Sennheiser is the latest addition to their evolution series of wireless receivers. It operates in the UHF frequency range and can be used with a companion transmitter and microphone (sold separately), as part of a wireless RF transmission system for live stage, theater, and presentation applications. The half-rack receiver features 2000 frequencies and is tunable in 25 kHz steps. There are 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32 user programmable frequencies. This receiver is built with a menu-driven backlit OLED display showing current frequency, frequency bank and channel number, metering of RF level, volume level, line output level, lock status, battery status, muting function, and more. Enclosed in a rugged metal housing, the EM 300-500 G4 receiver is equipped with a balanced XLR-3M audio output along with an unbalanced 1/4" audio output. A 1/4" headphone output with headphone volume control is provided along with an Ethernet port (RF45) for remote network-based monitoring and control, using Sennheiser's Wireless System Manager software. Two BNC-type sockets are for connecting the antennas. Finally, the half-rack receiver operates on the included 12V power supply and includes a GA3 rackmount set.
  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 50 MHz bandwidth with 2000 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50mW, adjustable in three steps 10/30/50) depending on country regulations
  UPC: 615104316423

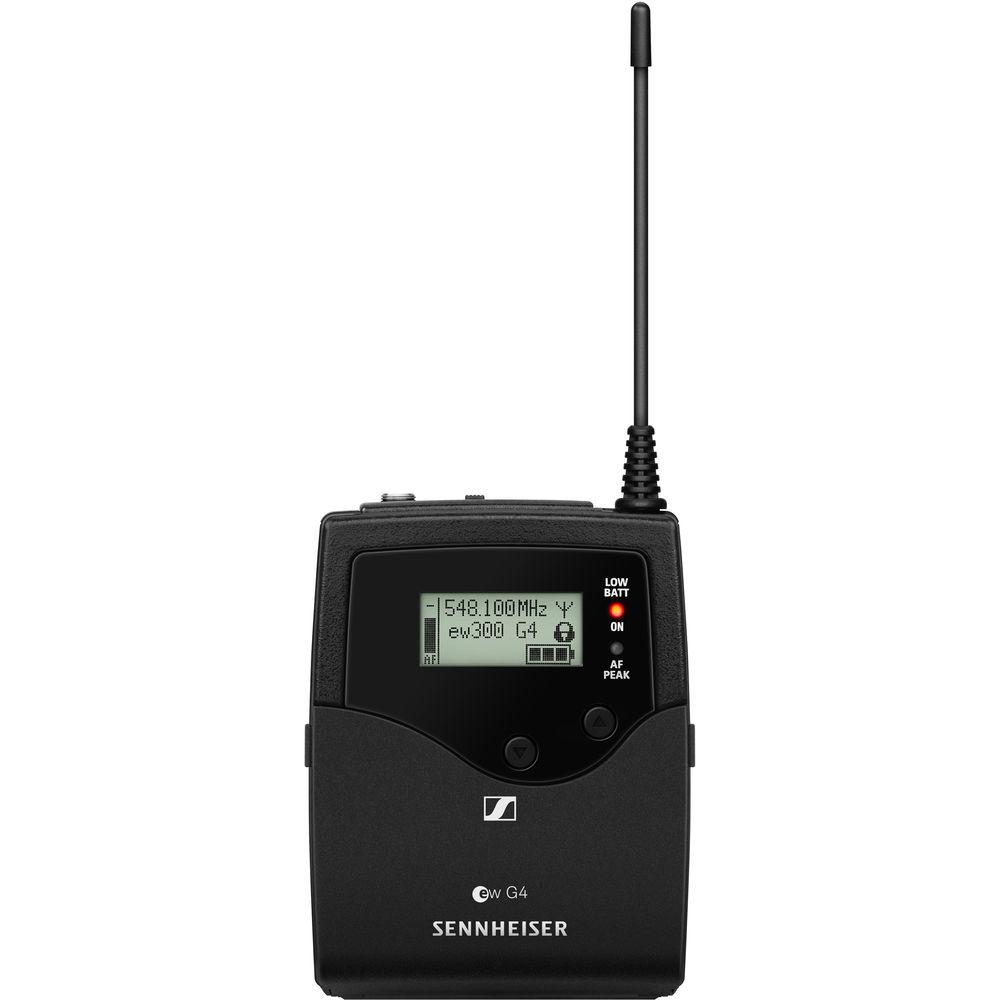

• SK 300 G4-RC Bodypack Transmitter GW1: (558 to 608 MHz) The SK 300 G4-RC Bodypack Transmitter from Sennheiser features 2000 UHF frequencies in 25 MHz steps and is built with 20 fixed frequency banks, 32 frequency presets, and 6 user banks with up to 32 user programmable frequencies. It can be used to capture audio when paired with a companion receiver and microphone in various environments for broadcast TV, ENG, and field applications. The transmitter is menu-driven with a backlit LCD display showing the current frequency, frequency bank, channel number, metering of output level, transmission status, battery status, and more. An auto-lock feature prevents settings from being accidentally altered. The transmitter can be synchronized via an integrated infrared interface and is programmable in the bodypack transmitter menu. Power is supplied by two 1.5V AA batteries or by a Sennheiser BA 2015 rechargeable accupack. The unit is enclosed in a rugged metal housing and is equipped with a 2.5mm jack to connect a remote mute switch. A 3.5mm jack socket is featured for the mic/line inputs. In addition, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy.
  • Robust bodypack transmitter for use with any Sennheiser headmic or lavalier microphone
  • Easy to use, fast setup time
  • Integrated network port allows control, monitoring, and setup via Sennheiser Control Cockpit and WSM software
  • Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
  • Up to 50 MHz bandwidth, up to 32 channels
  • Increased RF output power: 10/30/50mW
  • Transmission Range: up to 330 feet
  • RC (remote control) switch available for the bodypack transmitter
  • Compatible with Control Cockpit Software
  UPC: 615104316331

• 3.5 mm Connection Cable

• MZC 2 Frequency Response Cap

• SL MZW 1 Windshield

• Soft Case

• Limited 2-Year Warranty

• 2 x Rod Antennas

• Power Supply

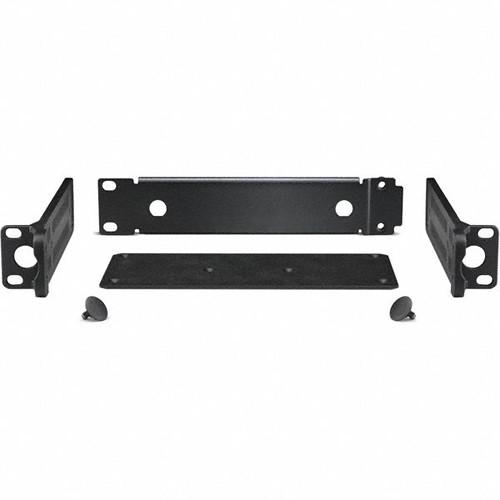

• GA 3 Rackmount Kit for G3 100/300/500 Series

• Limited 2-Year Warranty

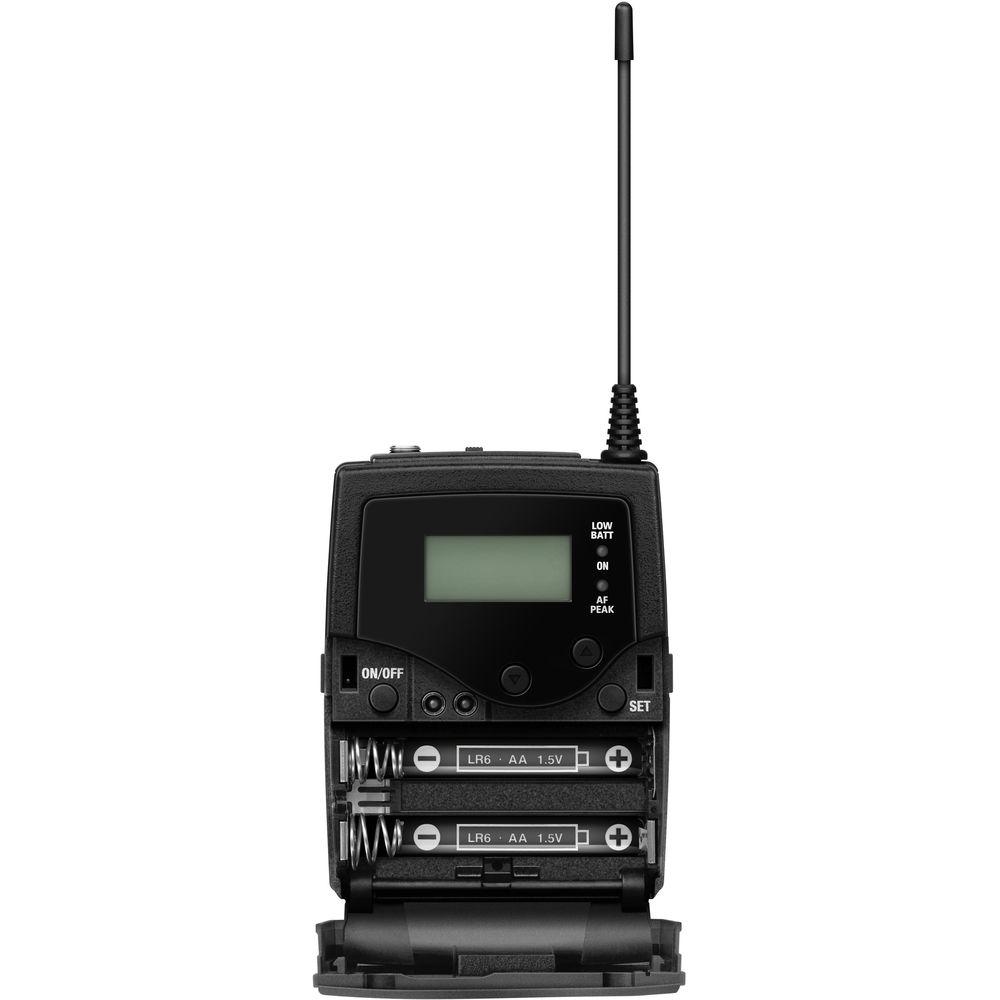

• 2 x AA Batteries

• Carry Pouch

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SpeechLine Digital Wireless SL Headmic 1 Headworn Microphone (Black)

  Frequency Response	20 Hz to 20 kHz ± 3 dB
  Polar Pattern	Omnidirectional
  Nominal Impedance	1 kOhms
  Minimal Terminating Impedance	4.7 kOhms
  Sensitivity	5 mV/Pa ± 3 dB
  Maximum SPL	143 dB
  Equivalent Noise Level	27 dBA
  Supply Current	Approximately 240 μA
  Power Supply	4.5 to 15 V
  Temperature Range	14 to 122°F (-10 to 50°C)
  Storage	-4 to 158°F (20 to 70°C
  Humidity (Relative)	Maximum 95%
  Cable Length	5.2' (1.6 m)
  Connector	1/8" (3.5 mm) locking mini-jack
  Boom Arm Diameter	0.04" (1.1 mm)
  Diameter of Mic Capsule	0.13" (3.3 mm)
  Weight	0.25 oz (7 g)

  Box Dimensions (LxWxH)	9.4 x 8.2 x 2.5"

• EM 300-500 G4 Wireless True Diversity Receiver GW1: (558 to 608 MHz)

  Modulation	Wideband FM
  Frequency Band	GW1: (558 to 608 MHz)
  Receiving Frequency	Maximum 2000 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
  Switching Bandwidth	Up to 50 MHz
  Nominal/Peak Deviation	±24 kHz / ±48 kHz
  Principle of Operation	True diversity
  Sensitivity	< 2.5 μV for 52 dBA eff S/N (with HDX, peak deviation)
  Adjacent Channel Selectivity	Typically ≥ 75 dB
  Intermodulation Attenuation	Typically ≥ 70 dB
  Blocking	≥ 75 dB
  Squelch	Off, 5 to 25 dB μV in steps of 2 dB
  Pilot Tone Squelch	Can be switched off

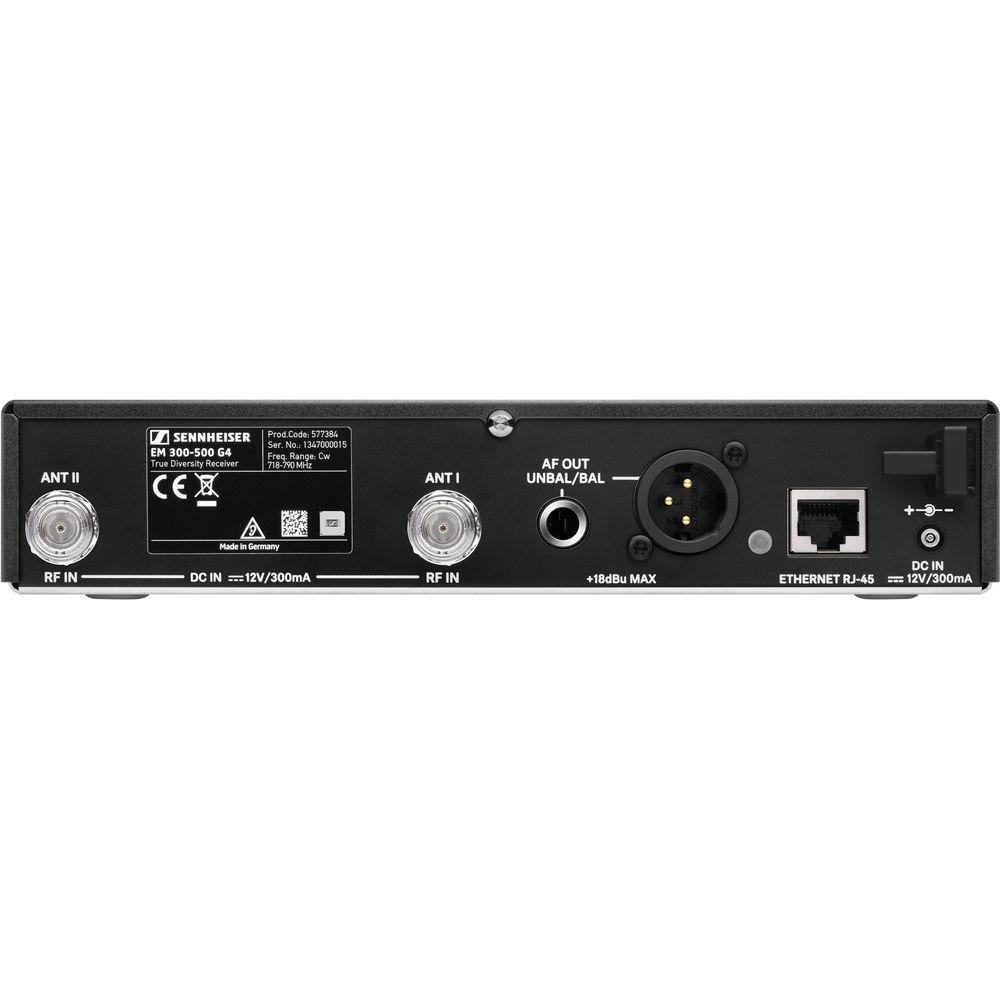

  Antenna Inputs	2 x BNC sockets
  Compander	Sennheiser HDX
  EQ Presets	Switchable, Act on Line and Monitor Outputs) Preset 1: Flat Preset 2: Low cut (-3 dB at 180 Hz) Preset 3: Low cut/high boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High boost (+6 dB at 10 kHz)
  Signal to Noise Ratio	(1 mV, peak deviation) Line: ≥ 115 dBA
  Total Harmonic Distortion (THD)	≤ 0.9%
  Maximum AF Output Voltage	1/4" (6.3 mm) Jack Socket: +12 dBu (unbalanced) (at peak deviation, 1 kHz AF) XLR Socket: +18 dBu (balanced) (at peak deviation, 1 kHz AF)
  Output Level Range	48 dB (3 dB steps)
  Temperature Range	14 to 131°F (-10 to 55°C)
  Power Supply	12 VDC
  Current Consumption	350 mA
  Dimensions (L x W x H)	8.0 x 8.3 x 1.7" (202 x 212 x 43 mm)
  Weight	2.2 lb (980 g)

  Box Dimensions (LxWxH)	16.3 x 14.0 x 3.1"

• SK 300 G4-RC Bodypack Transmitter GW1: (558 to 608 MHz)

  Modulation	Wideband FM
  Frequency Range	GW1: (558 to 608 MHz)
  Transmission Frequencies	2000 frequencies adjustable in 25 MHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
  Switching Bandwidth	Up to 88 MHz
  Peak Deviation	Nominal: ±24 kHz / ±48 kHz
  Frequency Stability	≤ Rating 50% users recommend this product to others. And what about you? This product has already been rated by 40 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
