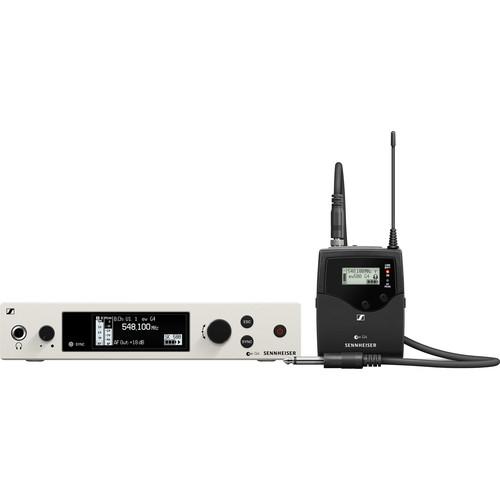

Product description The ew 500 G4-CI 1 Wireless Instrument Set from Sennheiser is the latest addition to their evolution series wireless systems. It includes an EM 300-500 G4 true diversity receiver, a SK 500 G4 bodypack transmitter and a CI 1 1/8 to 1/4" instrument cable. Accessories include, two AA batteries, a GA3 rackmount kit, a power supply, and two rod antennas. This wireless instrument set can be used to transmit audio from keyboard, guitar or bass instruments in live stage, theater, rehearsal, and studio applications.Featuring 3520 selectable frequencies and 88 MHz bandwidth, the ew 500-G40 CI 1 system delivers up to 32 channels. It is equipped with an Ethernet connection for the Wireless Systems Manager (WSM) control software included for frequency coordination in multi-channel setups. The bodypack transmitter easily attaches to your belt and synchronizes channel and frequency with one button via an infrared interface. The ew 500 G4-CI 1 Wireless Instrument Set delivers a natural balance with upfront guitar and bass for unforgettable performances. In addition, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy. - SK 500 G4 Wireless Bodypack Transmitter AW+: (470 to 558 MHz)
- evolution wireless G4 Tutorial An Introduction I Sennheiser

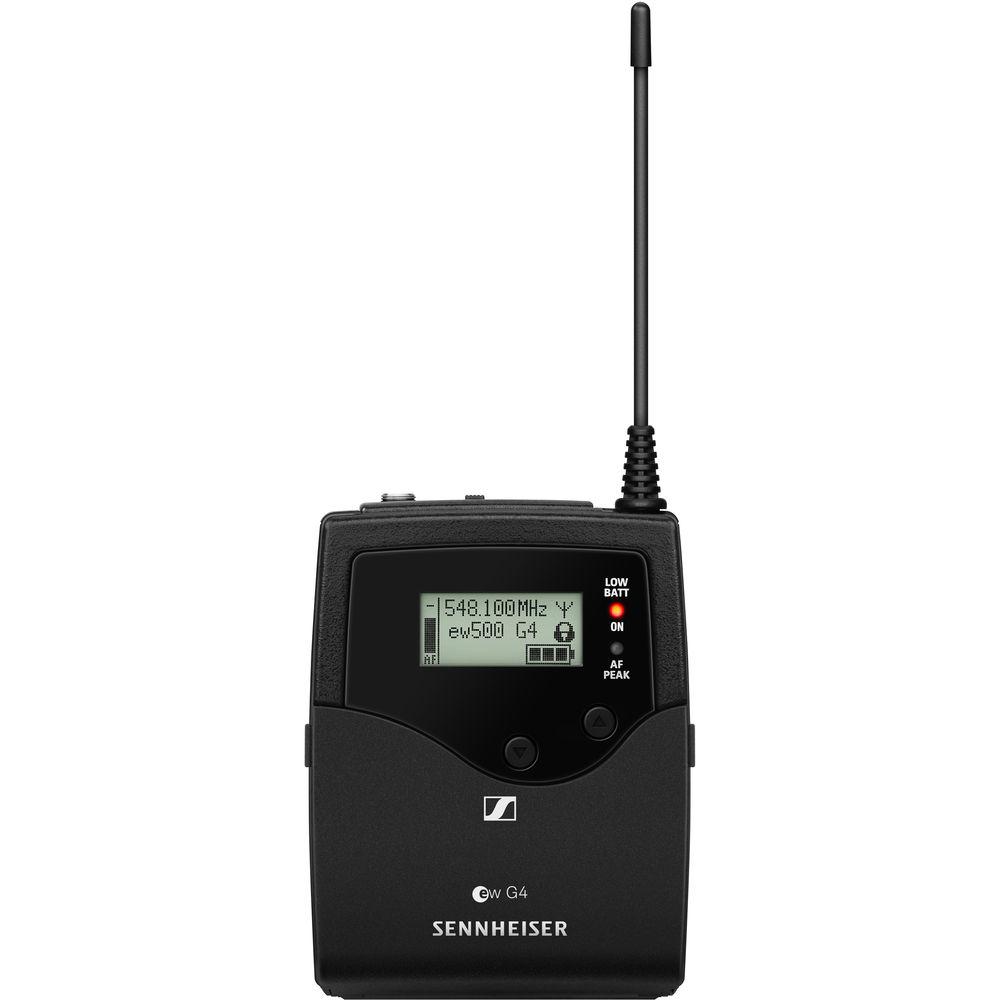

The SK 500 G4 Wireless Bodypack Transmitter from Sennheiser is the latest addition to their evolution series of wireless transmitters. It operates in the UHF frequency range and can be used with a companion receiver (sold separately), as part of a wireless RF transmission system for live stage, theater, film, and presentation applications. The bodypack transmitter features 3250 frequencies that are tunable in 25 kHz steps, 20 fixed frequency banks, 32 compatible frequency presets, and 6 user banks with up to 32 user programmable frequencies. The transmitter's menu-driven backlit LCD display shows the current frequency, frequency bank and channel number, metering of AF level, lock status, transmission status, muting function, battery status, and more. In addition, the operating range is about 330'. This transmitter incorporates a Sennheiser HDX compander system, a defeatable pilot tone squelch, and is equipped with a frequency range from 80 Hz to 18 kHz. Power is supplied by the two included 1.5V AA sized batteries, or by one optional Sennheiser BA 2015 rechargeable accupack. A travel pouch is also included. Finally, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy. - Updated bodypack transmitter with increased bandwidth and transmission power.
- Easy and flexible wireless synchronization between transmitter and receiver via infrared.
- Up to 32 compatible channels.
- Up to 88 MHz bandwidth with 3250 selectable frequencies, fully tunable in a stable UHF range.
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups.
- High RF output power (up to 50mW, adjustable in three steps 10/30/50) depending on country regulations.

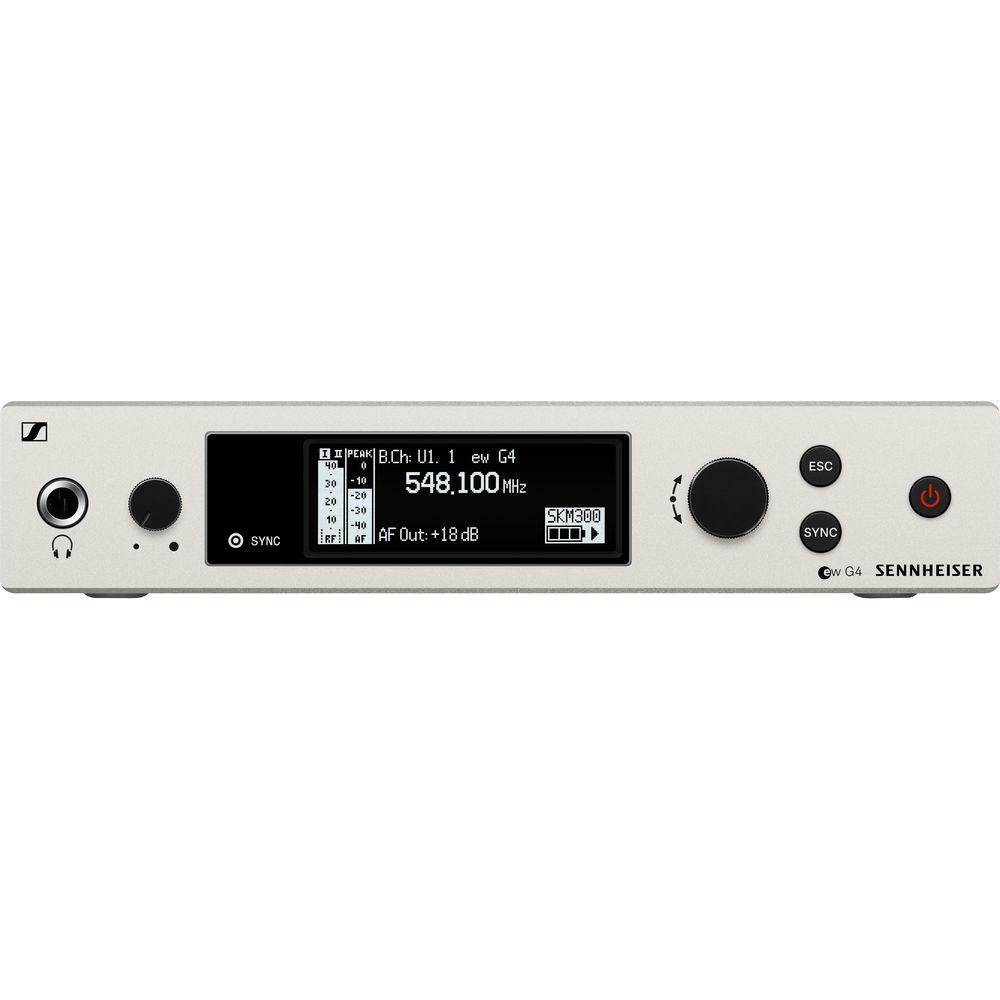

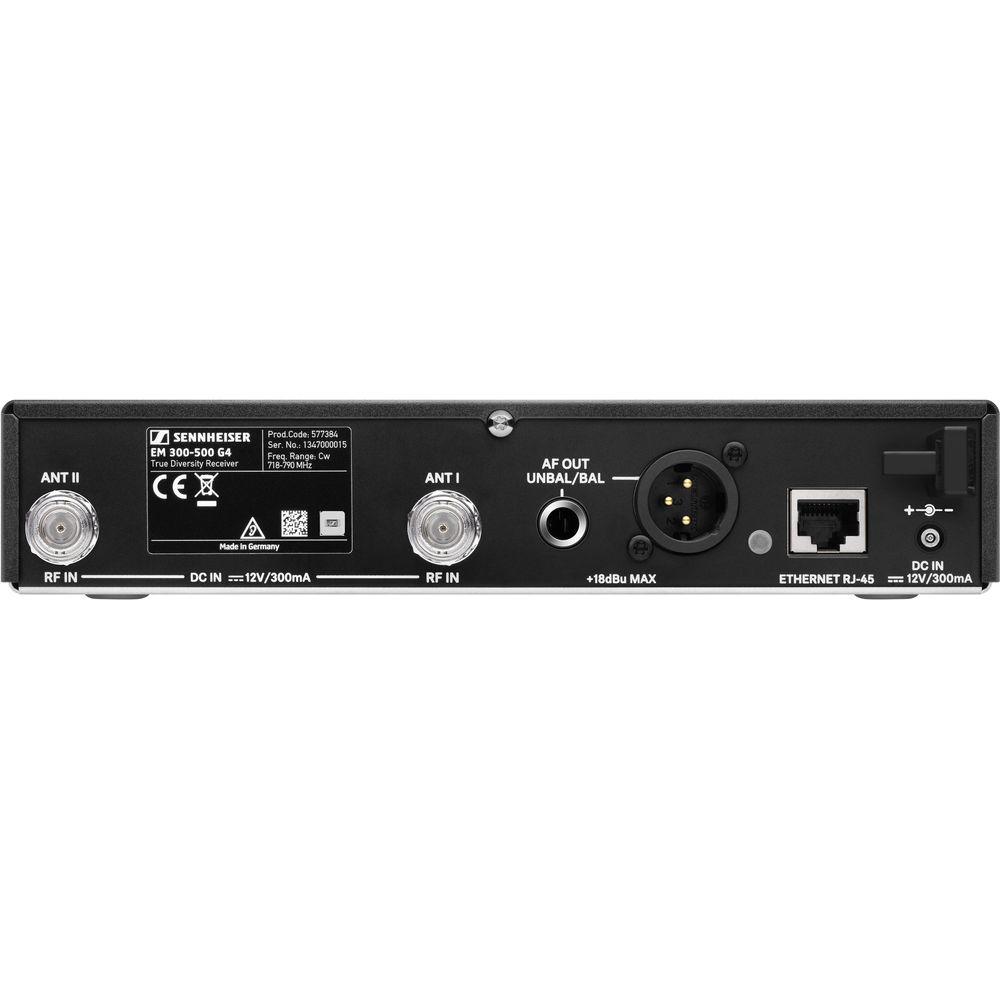

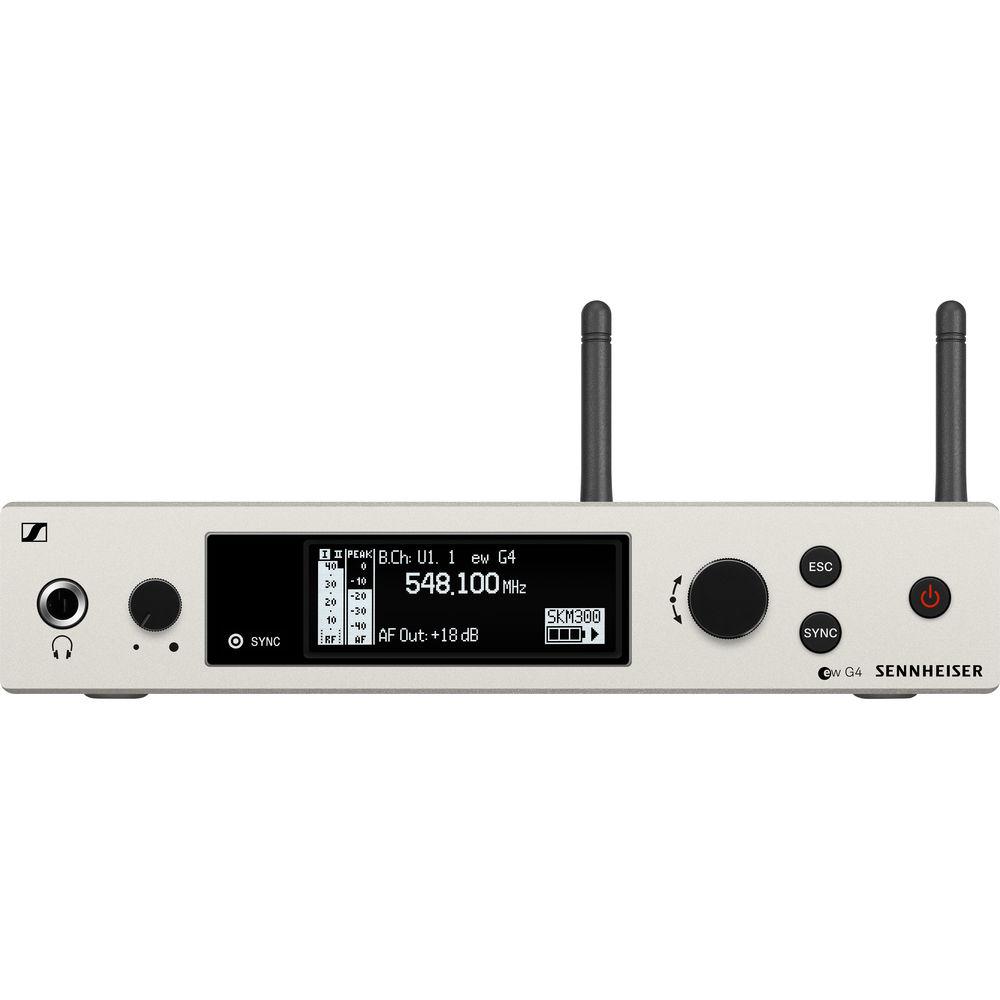

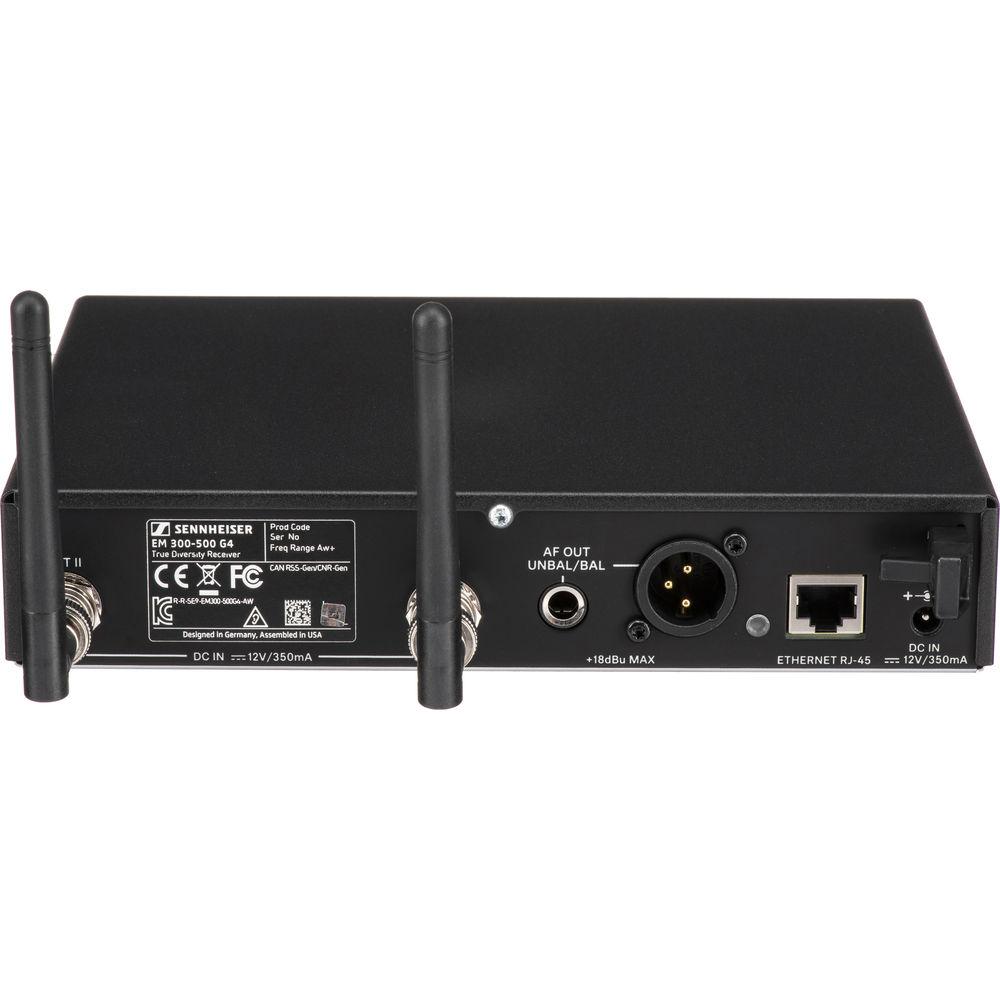

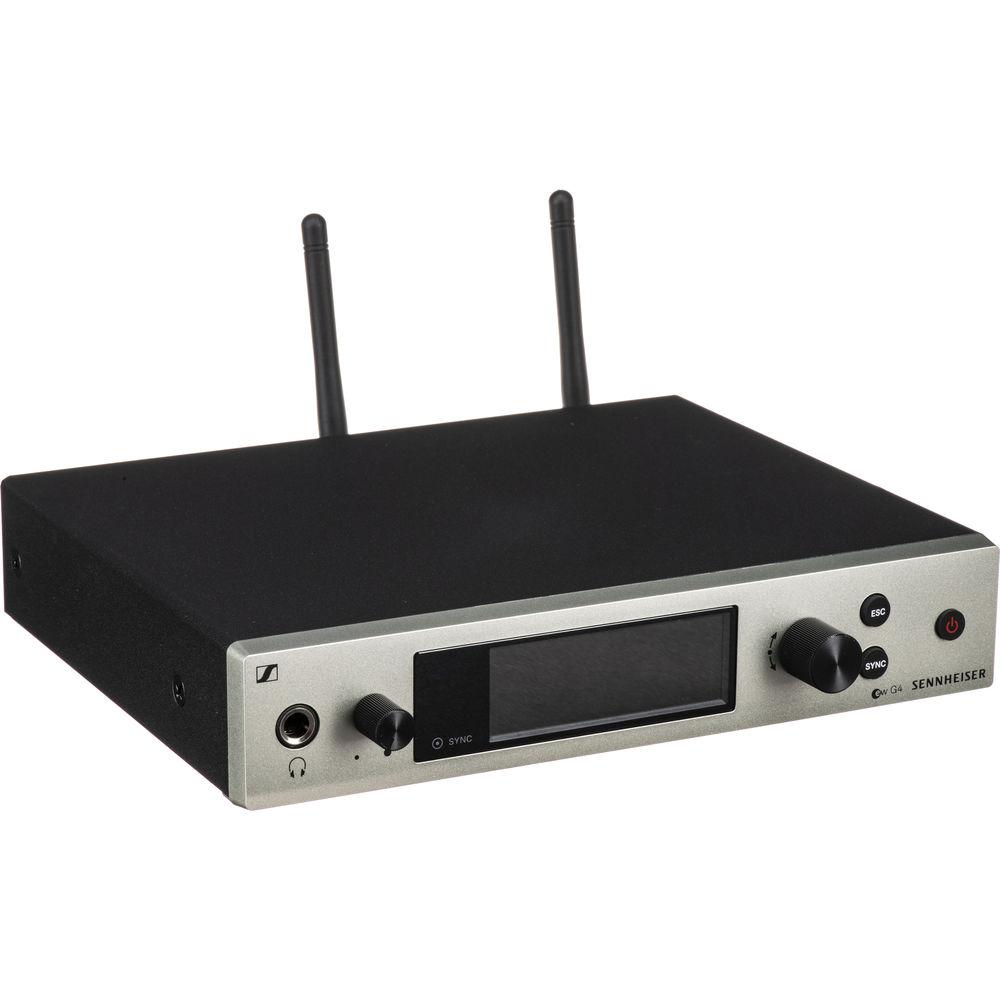

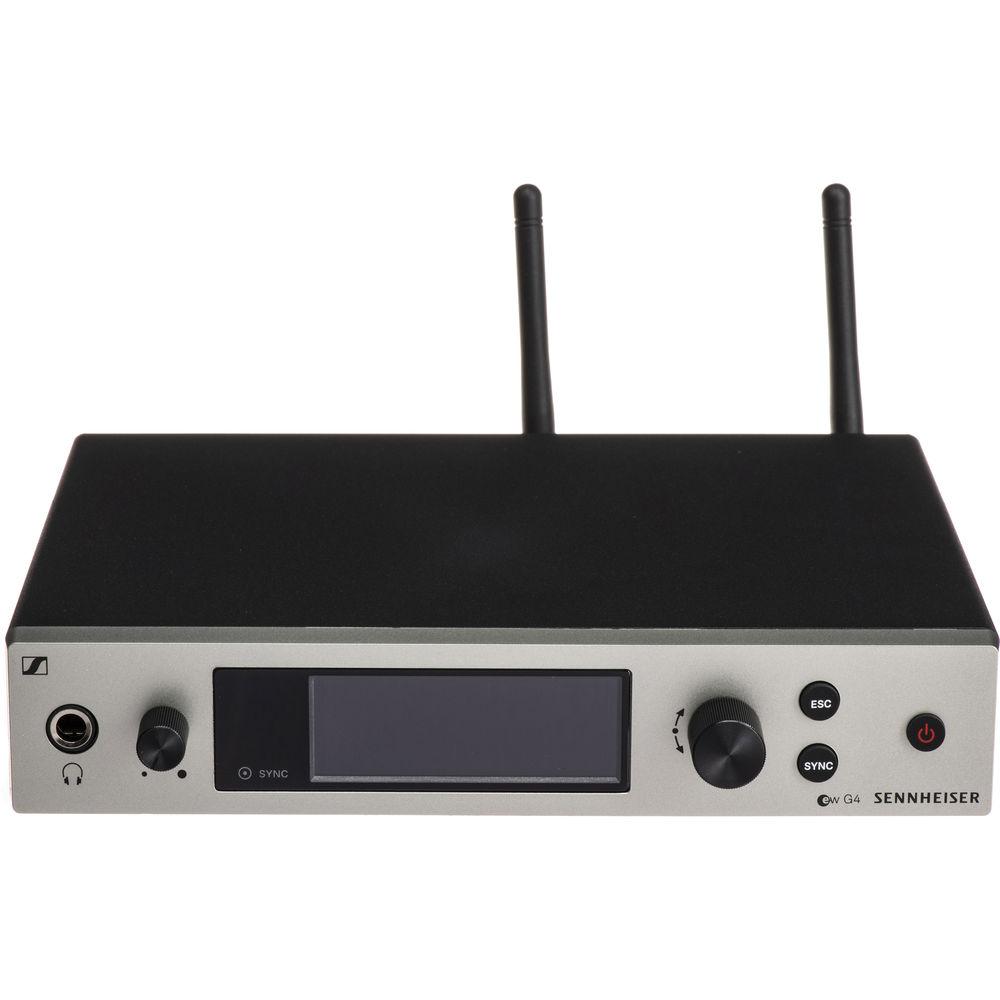

UPC: 615104316195 - EM 300-500 G4 Wireless True Diversity Receiver AW+: (470 to 558 MHz) The EM 300-500 G4 Wireless True Diversity Receiver from Sennheiser is the latest addition to their evolution series of wireless receivers. It operates in the UHF frequency range and can be used with a companion transmitter and microphone (sold separately), as part of a wireless RF transmission system for live stage, theater, and presentation applications. The half-rack receiver features 3250 frequencies and is tunable in 25 kHz steps. There are 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32 user programmable frequencies. This receiver is built with a menu-driven backlit OLED display showing current frequency, frequency bank and channel number, metering of RF level, volume level, line output level, lock status, battery status, muting function, and more. Enclosed in a rugged metal housing, the EM 300-500 G4 receiver is equipped with a balanced XLR-3M audio output along with an unbalanced 1/4" audio output. A 1/4" headphone output with headphone volume control is provided along with an Ethernet port (RF45) for remote network-based monitoring and control, using Sennheiser's Wireless System Manager software. Two BNC-type sockets are for connecting the antennas. Finally, the half-rack receiver operates on the included 12V power supply and includes a GA3 rackmount set.
- True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3250 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50mW, adjustable in three steps 10/30/50) depending on country regulations

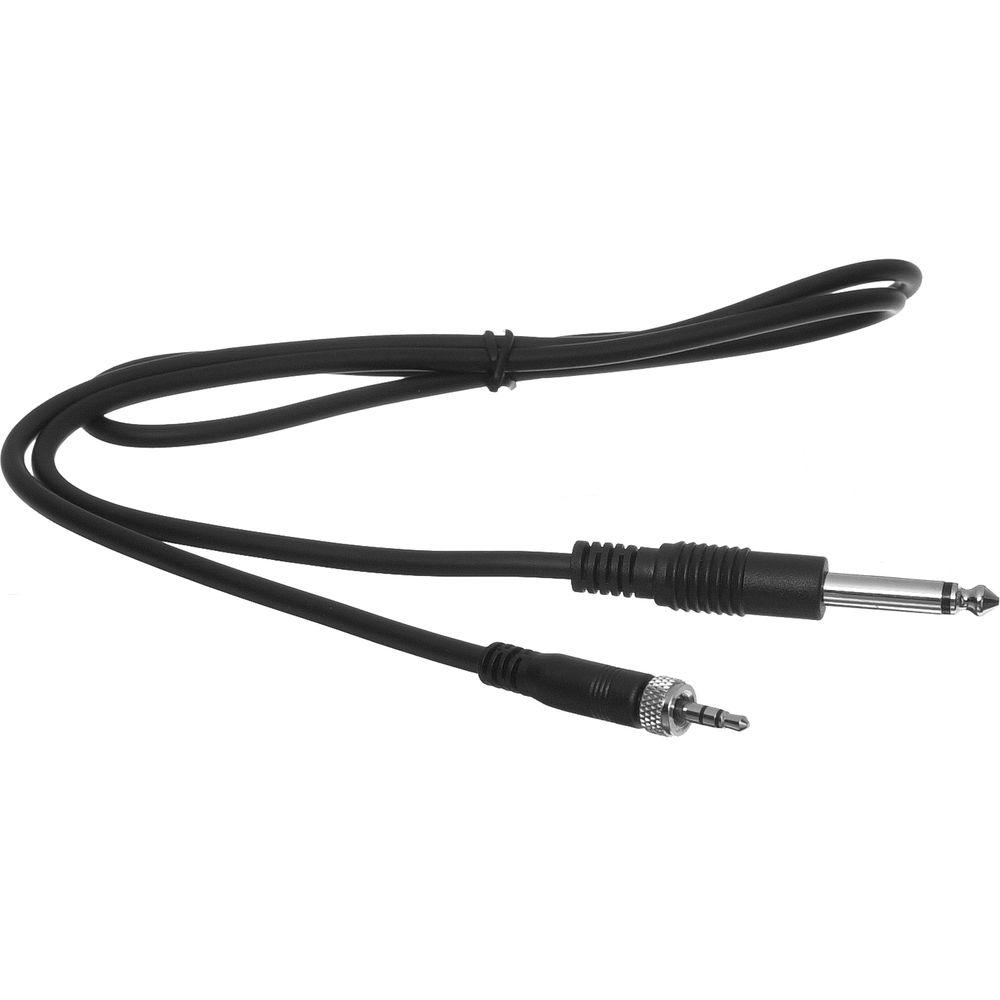

UPC: 615104316218 - CI1 1/8" Mini to 1/4" Male Jack Guitar Connecting Cable The Sennheiser CI1 is a connecting cable with a 1/4" phone and locking 1/8" (3.5mm) mini connections. The cable is specifically designed for connecting guitars to Evolution series wireless transmitters. UPC: 615104050211

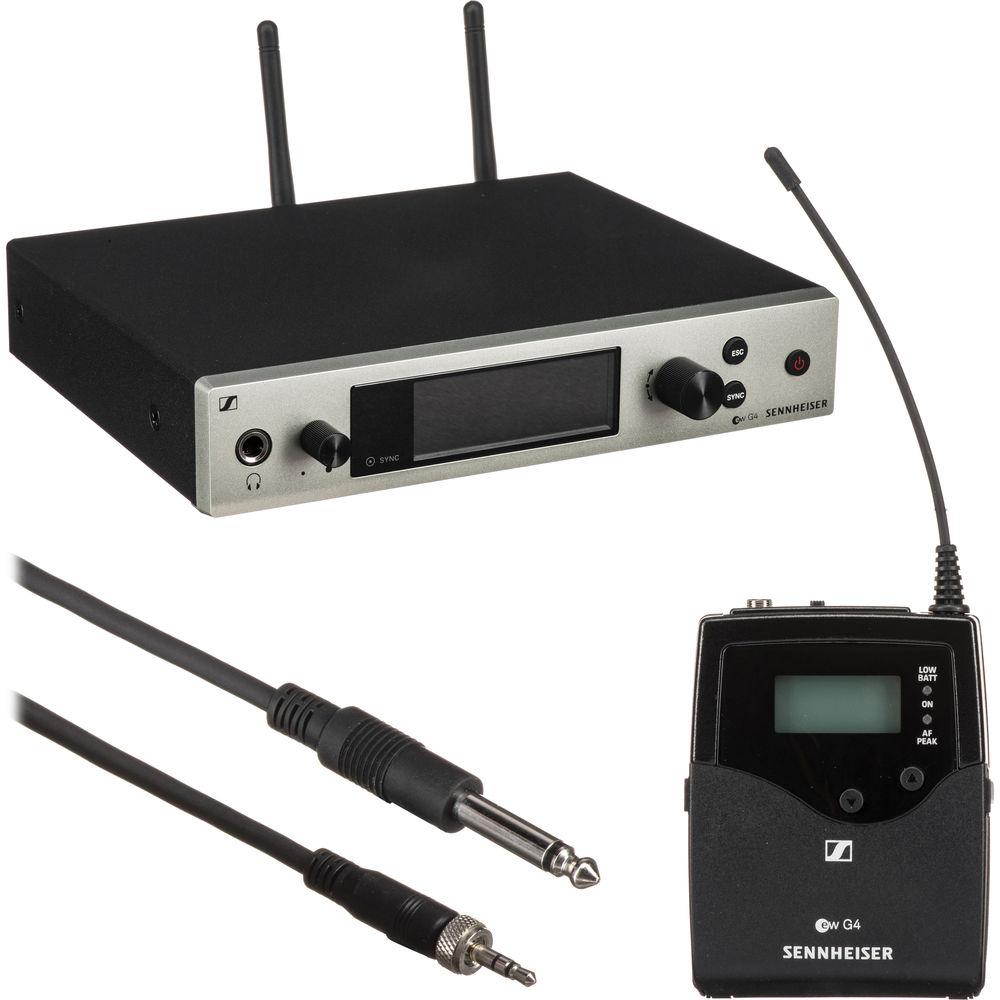

In the Box Bundle Items SK 500 G4 Wireless Bodypack Transmitter AW+: (470 to 558 MHz) fvyvzcdsfwxcedac EM 300-500 G4 Wireless True Diversity Receiver AW+: (470 to 558 MHz) - GA 3 Rackmount Kit for G3 100/300/500 Series
CI1 1/8" Mini to 1/4" Male Jack Guitar Connecting Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser ew 500 G4-CI 1 Wireless Instrument Set AW in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SK 500 G4 Wireless Bodypack Transmitter AW+: (470 to 558 MHz)
| Modulation | Wideband FM stereo | | Frequency Band | AW+: (470 to 558 MHz) | | Transmission Frequency | Maximum 3250 frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
6 frequency banks with up to 32 programmable channels | | Switching Bandwidth | Up to 88 MHz | | Nominal/Peak Deviation | ±24 kHz / ±48 kHz | | Frequency Stability | ≤ ±15 ppm | | RF Output Power | At 50 Ohms Switchable:
Low: Typical 10 mW
Standard: Typical 30 mW
High: Typical 50 mW | | Pilot Tone Squelch | Can be switched off | | Compander | Sennheiser HDX | | AF Frequency Response | Mic: 80 Hz to 18 kHz
Line: 25 Hz to 18 kHz | | Signal to Noise Ratio | Approximately ≥ 115 dBA (1 mV, peak deviation) | | Total Harmonic Distortion (THD) | ≤ 0.9% | | Maximum Input Voltage | Mic and Line: 3 V eff | | Input Impedance | Microphone: 68 kOhms, unbalanced
Line: 1 MOhms | | Input Capacitance | Switchable | | Input Sensitivity Range | 60 dB, adjustable in 3 dB steps | | Temperature Range | 14 to 131°F (-10 to 55°C) | | Power Supply | 2 x AA batteries, 1.5 V or BA 2015 accupack | | Nominal Voltage | 3 V battery / 2.4 V rechargeable battery | | Current Consumption | At Nominal Voltage: Typical 180 mA
With Transmitter Switched Off: ≤ 25 μA | | Operating Time | Typically 8 hours | | Dimensions (L x W x H) | 3.2 x 2.5 x 0.9" (82 x 64 x 24 mm) | | Weight | 5.6 oz (160 g) including batteries | | | | Box Dimensions (LxWxH) | 13.9 x 3.3 x 2.9" | - EM 300-500 G4 Wireless True Diversity Receiver AW+: (470 to 558 MHz)
| Modulation | Wideband FM | | Frequency Band | AW+: (470 to 558 MHz) | | Receiving Frequency | Maximum 3250 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
6 frequency banks with up to 32 programmable channels | | Switching Bandwidth | Up to 88 MHz | | Nominal/Peak Deviation | ±24 kHz / ±48 kHz | | Principle of Operation | True diversity | | Sensitivity | < 2.5 μV for 52 dBA eff S/N (with HDX, peak deviation) | | Adjacent Channel Selectivity | Typically ≥ 75 dB | | Intermodulation Attenuation | Typically ≥ 70 dB | | Blocking | ≥ 75 dB | | Squelch | Off, 5 to 25 dB μV in steps of 2 dB | | Pilot Tone Squelch | Can be switched off | | Antenna Inputs | 2 x BNC sockets | | Compander | Sennheiser HDX | | EQ Presets | Switchable, Act on Line and Monitor Outputs)
Preset 1: Flat
Preset 2: Low cut (-3 dB at 180 Hz)
Preset 3: Low cut/high boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High boost (+6 dB at 10 kHz) | | Signal to Noise Ratio | (1 mV, peak deviation)
Line: ≥ 115 dBA | | Total Harmonic Distortion (THD) | ≤ 0.9% | | Maximum AF Output Voltage | 1/4" (6.3 mm) Jack Socket: +12 dBu (unbalanced) (at peak deviation, 1 kHz AF)
XLR Socket: +18 dBu (balanced) (at peak deviation, 1 kHz AF) | | Output Level Range | 48 dB (3 dB steps) | | Temperature Range | 14 to 131°F (-10 to 55°C) | | Power Supply | 12 VDC | | Current Consumption | 350 mA | | Dimensions (L x W x H) | 8.0 x 8.3 x 1.7" (202 x 212 x 43 mm) | | Weight | 2.2 lb (980 g) | | | | Box Dimensions (LxWxH) | 16.05 x 14.15 x 3.05" | - CI1 1/8" Mini to 1/4" Male Jack Guitar Connecting Cable
| | | Box Dimensions (LxWxH) | 5.5 x 1.5 x 0.9" |
