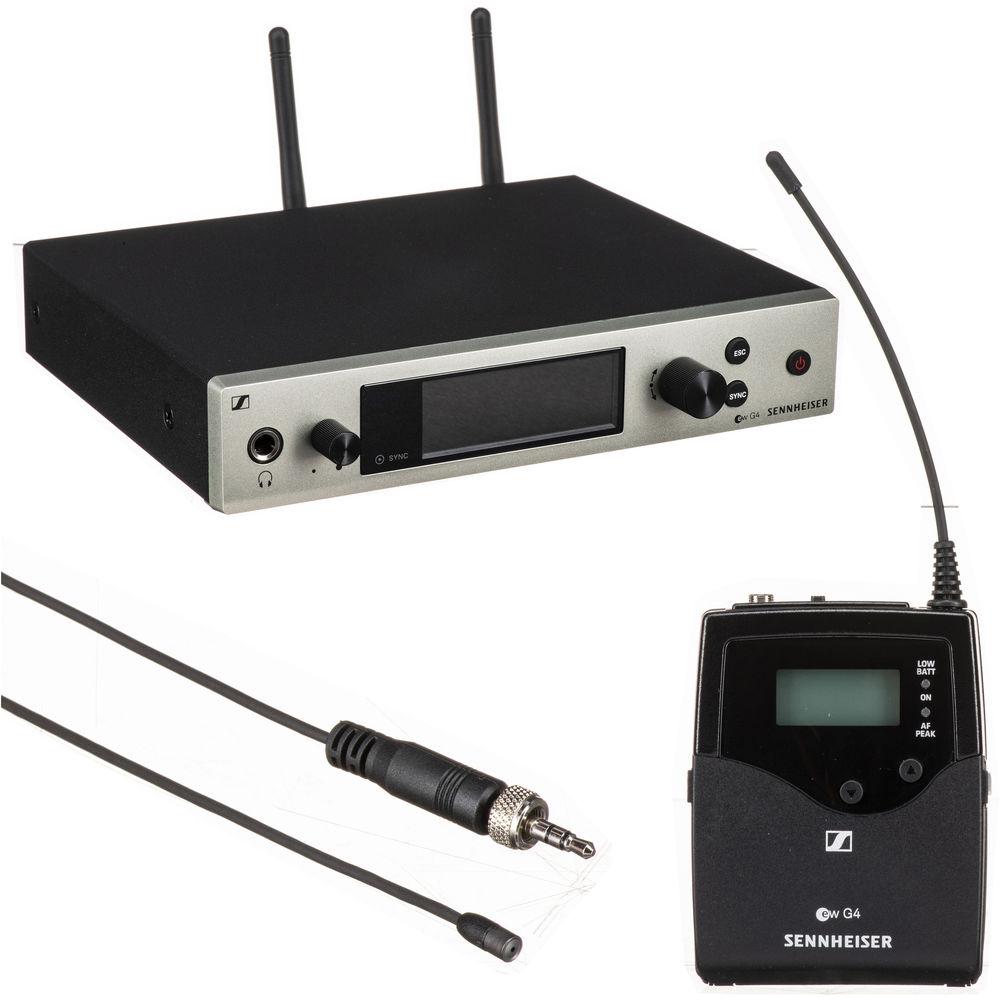

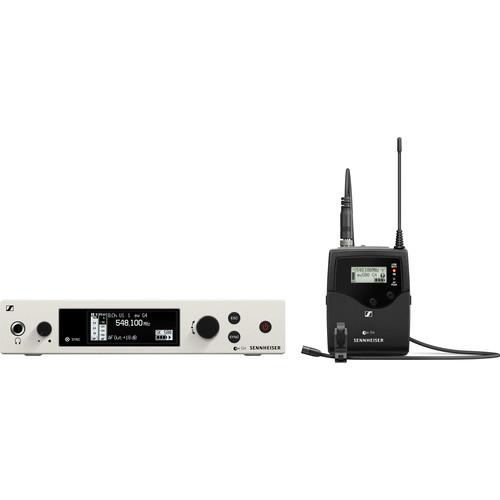

Sennheiser ew 500 G4-MKE 2 Wireless

User Manual for Sennheiser ew 500 G4-MKE 2 Wireless Lavalier Microphone System AW

• Product category: Wireless Systems Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Wireless Systems

Product description

• SK 500 G4 Wireless Bodypack Transmitter AW+: (470 to 558 MHz)
  • evolution wireless G4 Tutorial An Introduction I Sennheiser

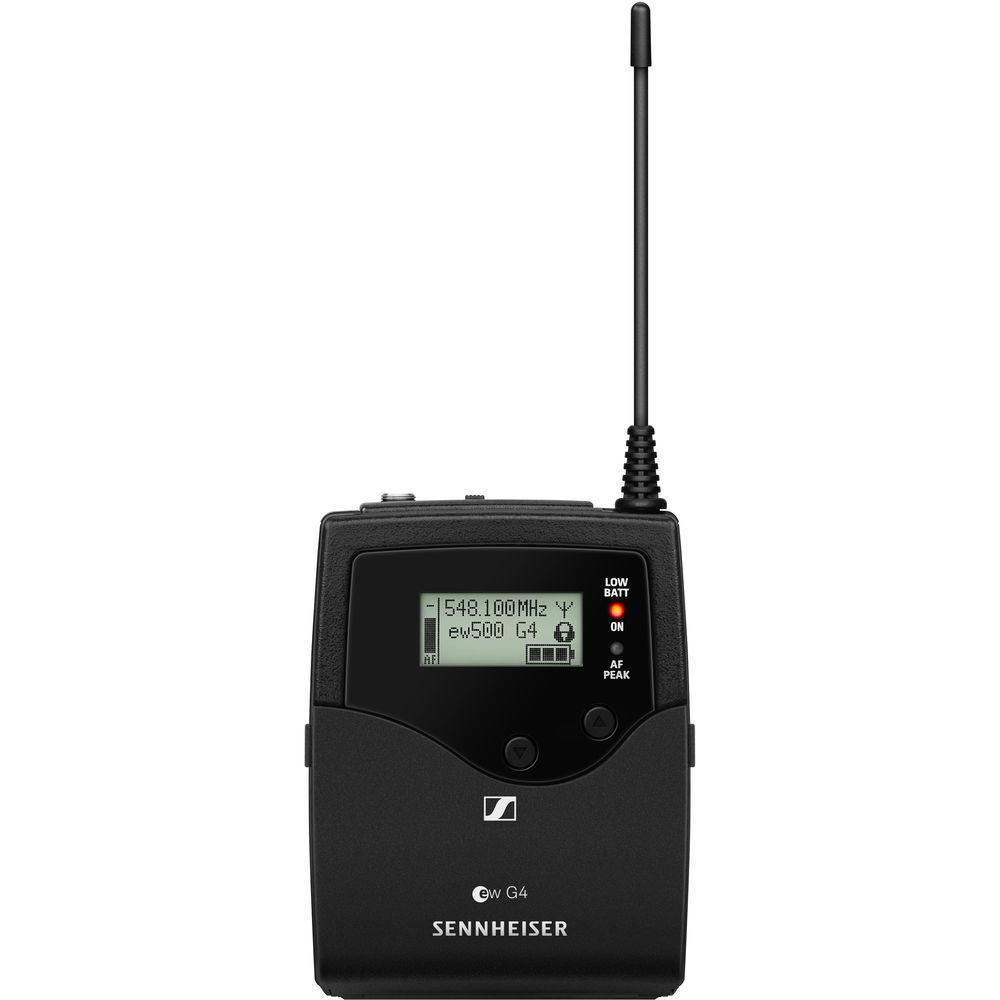

  The SK 500 G4 Wireless Bodypack Transmitter from Sennheiser is the latest addition to their evolution series of wireless transmitters. It operates in the UHF frequency range and can be used with a companion receiver (sold separately), as part of a wireless RF transmission system for live stage, theater, film, and presentation applications. The bodypack transmitter features 3250 frequencies that are tunable in 25 kHz steps, 20 fixed frequency banks, 32 compatible frequency presets, and 6 user banks with up to 32 user programmable frequencies. The transmitter's menu-driven backlit LCD display shows the current frequency, frequency bank and channel number, metering of AF level, lock status, transmission status, muting function, battery status, and more. In addition, the operating range is about 330'. This transmitter incorporates a Sennheiser HDX compander system, a defeatable pilot tone squelch, and is equipped with a frequency range from 80 Hz to 18 kHz. Power is supplied by the two included 1.5V AA sized batteries, or by one optional Sennheiser BA 2015 rechargeable accupack. A travel pouch is also included. Finally, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy.
  • Updated bodypack transmitter with increased bandwidth and transmission power.
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared.
  • Up to 32 compatible channels.
  • Up to 88 MHz bandwidth with 3250 selectable frequencies, fully tunable in a stable UHF range.
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups.
  • High RF output power (up to 50mW, adjustable in three steps 10/30/50) depending on country regulations.
  UPC: 615104316195

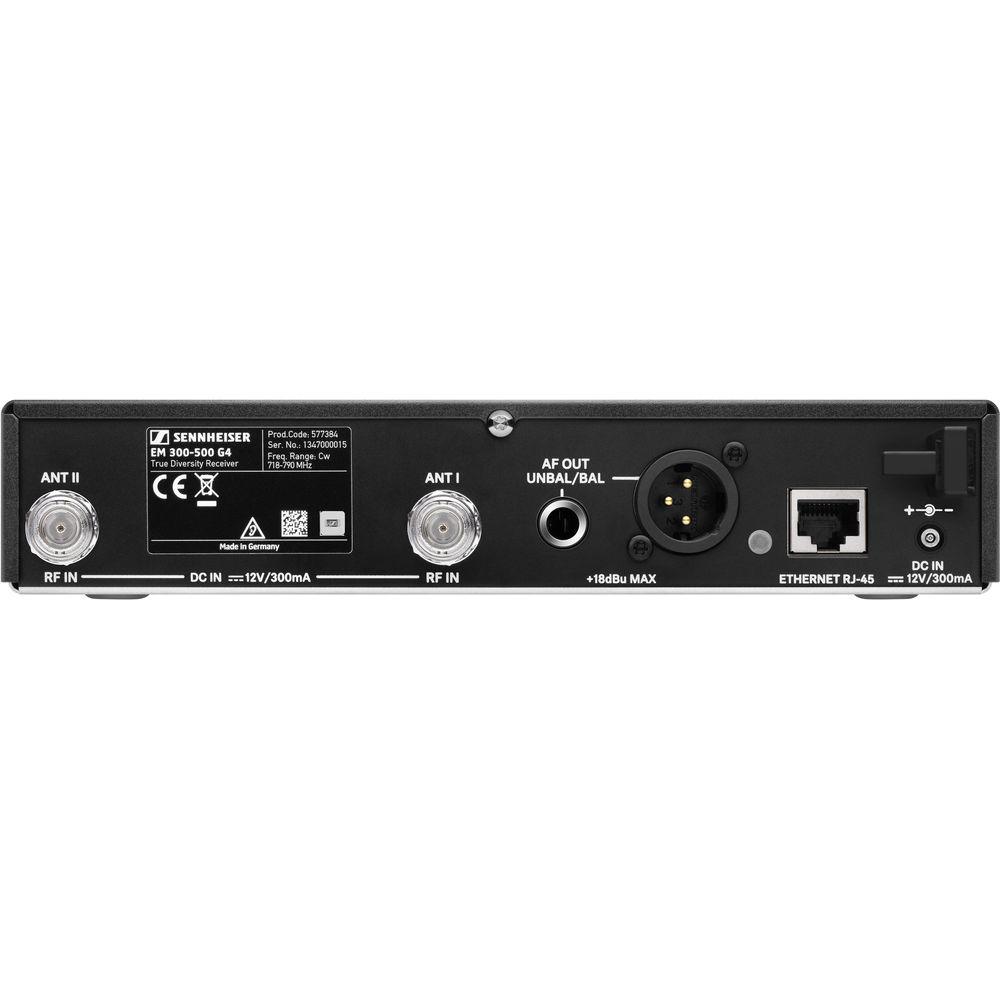

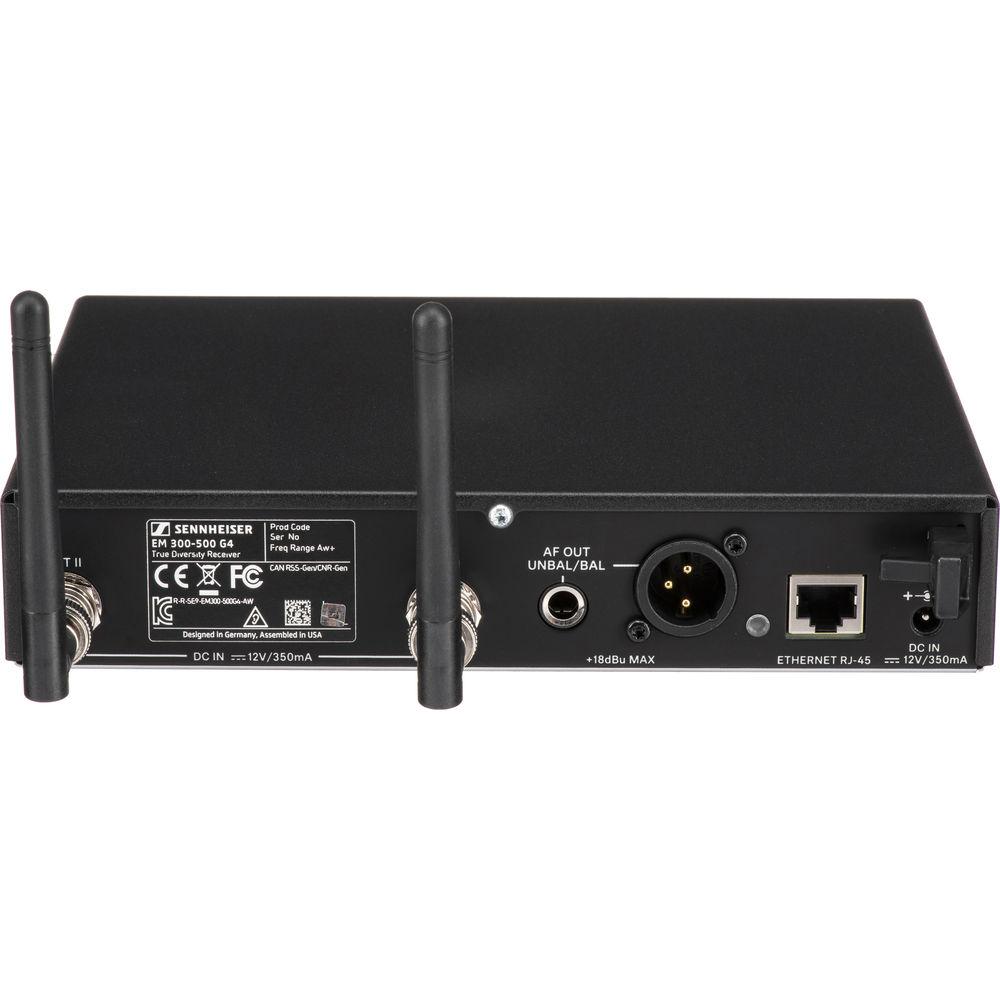

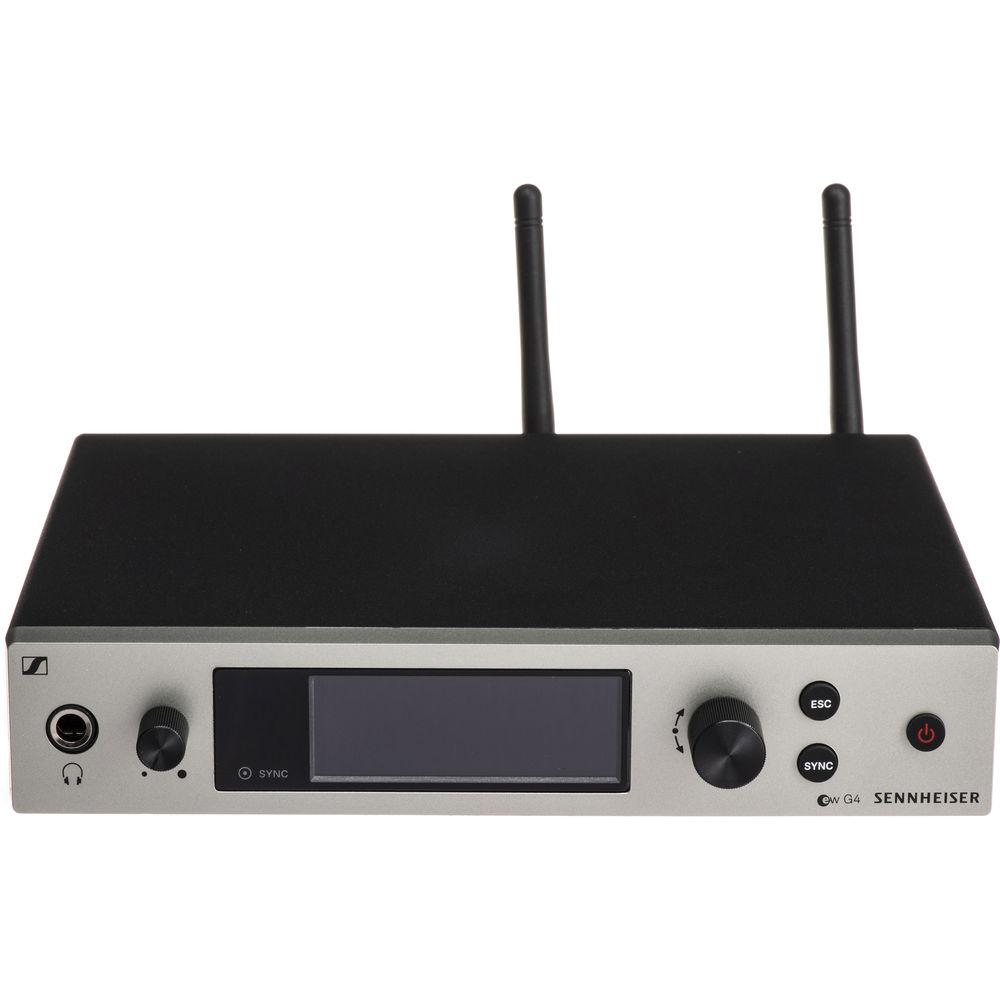

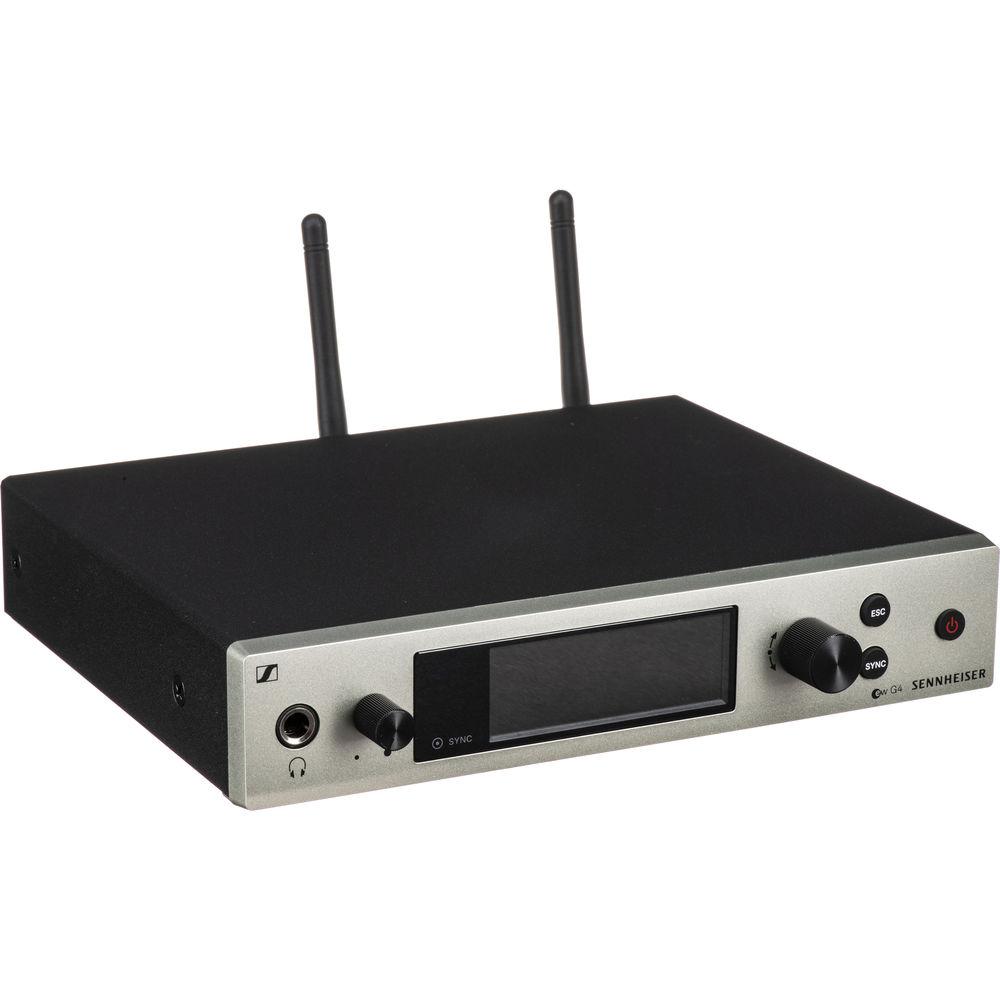

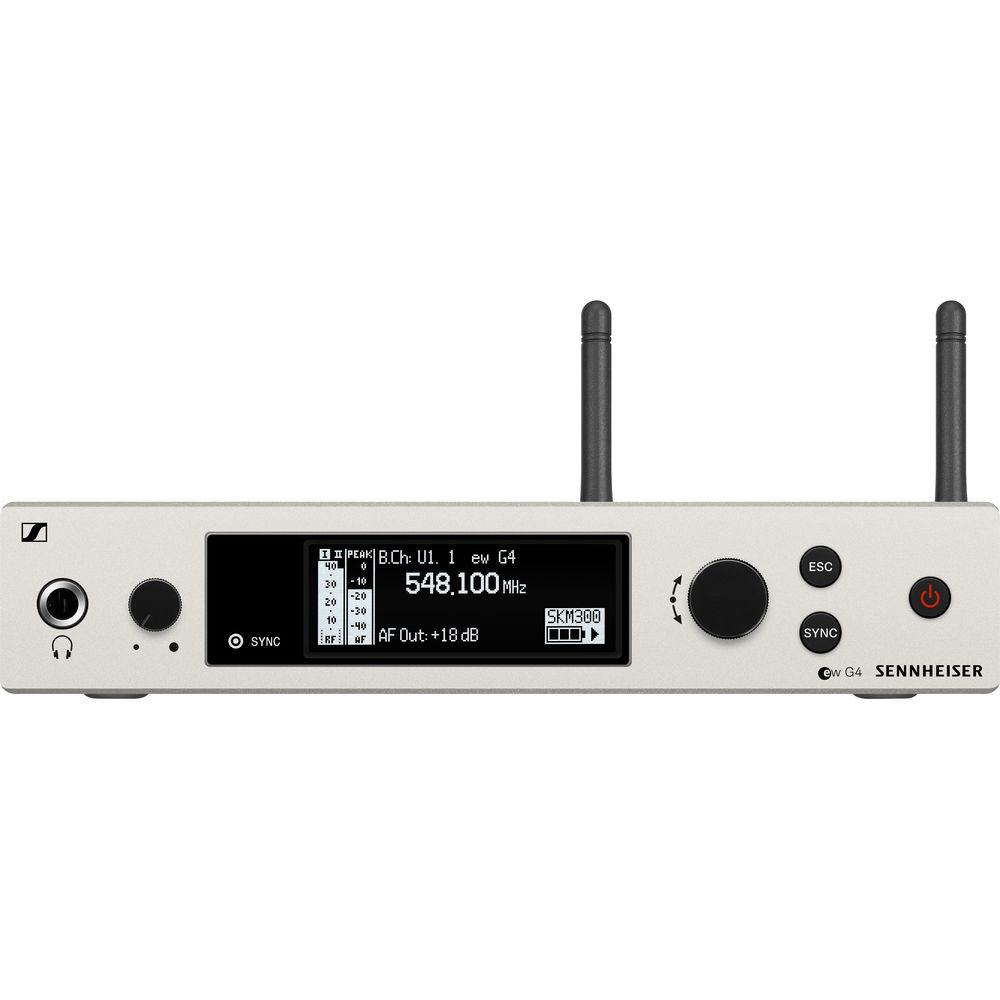

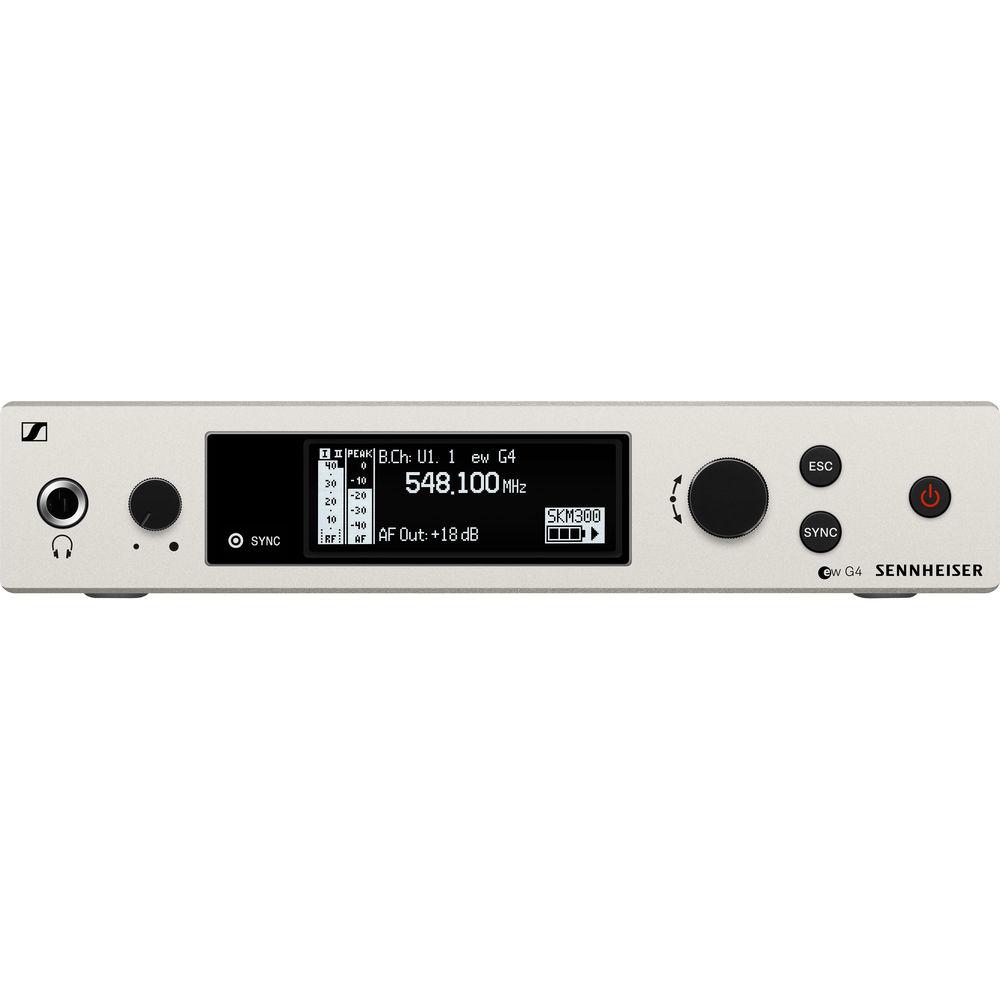

• EM 300-500 G4 Wireless True Diversity Receiver AW+: (470 to 558 MHz) The EM 300-500 G4 Wireless True Diversity Receiver from Sennheiser is the latest addition to their evolution series of wireless receivers. It operates in the UHF frequency range and can be used with a companion transmitter and microphone (sold separately), as part of a wireless RF transmission system for live stage, theater, and presentation applications. The half-rack receiver features 3250 frequencies and is tunable in 25 kHz steps. There are 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32 user programmable frequencies. This receiver is built with a menu-driven backlit OLED display showing current frequency, frequency bank and channel number, metering of RF level, volume level, line output level, lock status, battery status, muting function, and more. Enclosed in a rugged metal housing, the EM 300-500 G4 receiver is equipped with a balanced XLR-3M audio output along with an unbalanced 1/4" audio output. A 1/4" headphone output with headphone volume control is provided along with an Ethernet port (RF45) for remote network-based monitoring and control, using Sennheiser's Wireless System Manager software. Two BNC-type sockets are for connecting the antennas. Finally, the half-rack receiver operates on the included 12V power supply and includes a GA3 rackmount set.
  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3250 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50mW, adjustable in three steps 10/30/50) depending on country regulations
  UPC: 615104316218

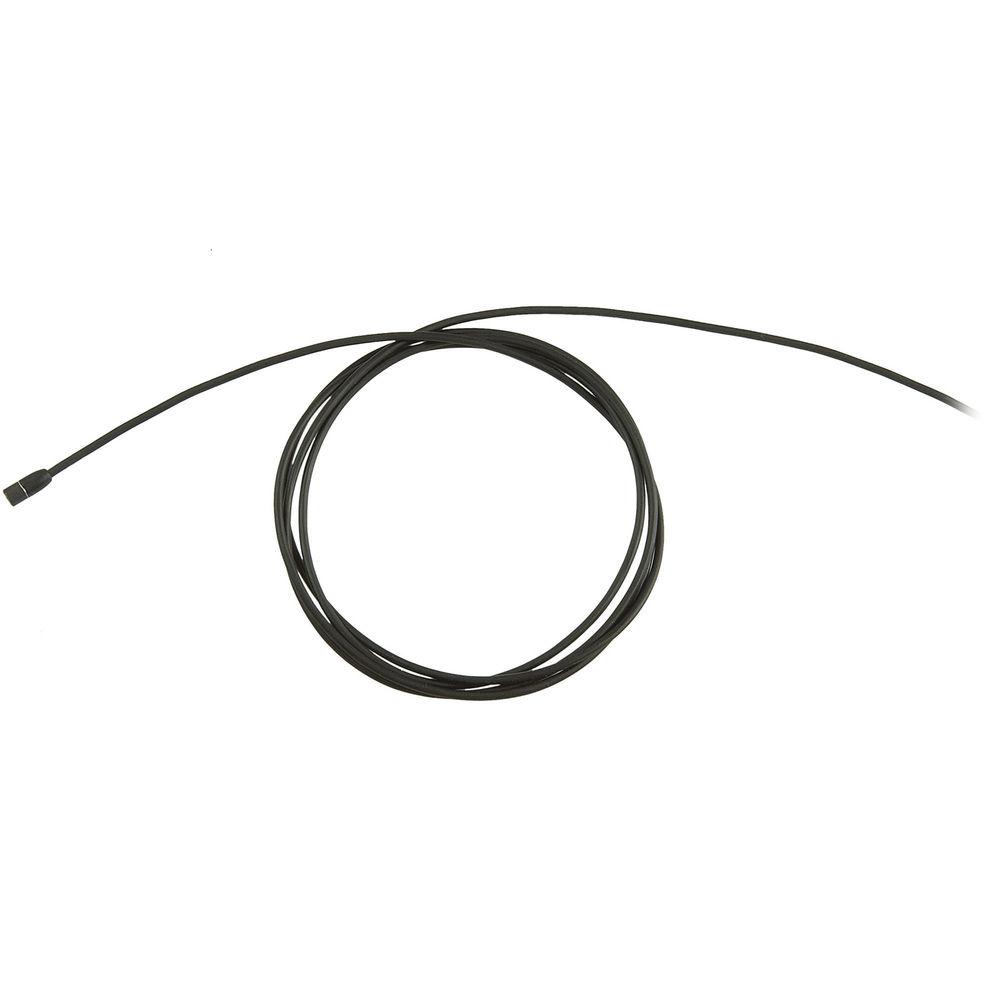

• MKE2 Gold Series Omnidirectional Lavalier Condenser Microphone (with Accessories, Black) The Sennheiser MKE 2 is a professional miniature lavalier microphone and an industry favorite among field audio engineers, broadcast engineers and film crews. With a wide frequency and high sensitivity response, the MKE 2 lavalier is developed for crucial audio reproduction of vocals and instruments. Its omnidirectional polar pattern provides an even frequency response throughout the perimeter of the microphone.The result minimizes handling noise caused by clothing, while providing accurate, transparent audio fidelity without noise. The MKE 2 is widely favored for its superior audio quality and miniature profile. The sub-miniature yet durable design enables the microphone to be used in stage performances, video shoots, film shoots, or anywhere an unobtrusive microphone is necessary. The microphone features various terminations to accommodate wireless transmitters and connectors.
  Gold Series
  • Gold series models are designed for broadcast and theater applications. A reduced sensitivity (6.3mV / PA) enables high SPL and lower distortion. Dual-diaphragm design provides protection from perspiration and moisture.
  Omnidirectional Polar Pattern
  • The omnidirectional polar pattern provides a consistent frequency response at the direct and off-axis sections of the capsule.
  Wide Frequency Response
  • The MKE 2 features a wide, linear frequency response for accurate, transparent reproduction of vocals and instruments.
  Subminiature Profile
  • The MKE 2's sub-miniature profile enables the microphone to be used on stage or on camera while remaining inconspicuous.
  UPC: 615104098312

• 2 x AA Batteries

• Pouch

• Limited 2-Year Warranty

• 2 x Rod Antennas

• Power Supply

• GA 3 Rackmount Kit for G3 100/300/500 Series

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SK 500 G4 Wireless Bodypack Transmitter AW+: (470 to 558 MHz)

  Modulation	Wideband FM stereo
  Frequency Band	AW+: (470 to 558 MHz)
  Transmission Frequency	Maximum 3250 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
  Switching Bandwidth	Up to 88 MHz
  Nominal/Peak Deviation	±24 kHz / ±48 kHz
  Frequency Stability	≤ ±15 ppm
  RF Output Power	At 50 Ohms Switchable: Low: Typical 10 mW Standard: Typical 30 mW High: Typical 50 mW
  Pilot Tone Squelch	Can be switched off
  Compander	Sennheiser HDX
  AF Frequency Response	Mic: 80 Hz to 18 kHz Line: 25 Hz to 18 kHz
  Signal to Noise Ratio	Approximately ≥ 115 dBA (1 mV, peak deviation)
  Total Harmonic Distortion (THD)	≤ 0.9%
  Maximum Input Voltage	Mic and Line: 3 V eff
  Input Impedance	Microphone: 68 kOhms, unbalanced Line: 1 MOhms
  Input Capacitance	Switchable
  Input Sensitivity Range	60 dB, adjustable in 3 dB steps
  Temperature Range	14 to 131°F (-10 to 55°C)
  Power Supply	2 x AA batteries, 1.5 V or BA 2015 accupack
  Nominal Voltage	3 V battery / 2.4 V rechargeable battery
  Current Consumption	At Nominal Voltage: Typical 180 mA With Transmitter Switched Off: ≤ 25 μA
  Operating Time	Typically 8 hours
  Dimensions (L x W x H)	3.2 x 2.5 x 0.9" (82 x 64 x 24 mm)
  Weight	5.6 oz (160 g) including batteries

  Box Dimensions (LxWxH)	13.9 x 3.3 x 2.9"

• EM 300-500 G4 Wireless True Diversity Receiver AW+: (470 to 558 MHz)

  Modulation	Wideband FM
  Frequency Band	AW+: (470 to 558 MHz)
  Receiving Frequency	Maximum 3250 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
  Switching Bandwidth	Up to 88 MHz
  Nominal/Peak Deviation	±24 kHz / ±48 kHz
  Principle of Operation	True diversity
  Sensitivity	< 2.5 μV for 52 dBA eff S/N (with HDX, peak deviation)
  Adjacent Channel Selectivity	Typically ≥ 75 dB
  Intermodulation Attenuation	Typically ≥ 70 dB
  Blocking	≥ 75 dB
  Squelch	Off, 5 to 25 dB μV in steps of 2 dB
  Pilot Tone Squelch	Can be switched off
  Antenna Inputs	2 x BNC sockets
  Compander	Sennheiser HDX
  EQ Presets	Switchable, Act on Line and Monitor Outputs) Preset 1: Flat Preset 2: Low cut (-3 dB at 180 Hz) Preset 3: Low cut/high boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High boost (+6 dB at 10 kHz)
  Signal to Noise Ratio	(1 mV, peak deviation) Line: ≥ 115 dBA
  Total Harmonic Distortion (THD)	≤ 0.9%
  Maximum AF Output Voltage	1/4" (6.3 mm) Jack Socket: +12 dBu (unbalanced) (at peak deviation, 1 kHz AF) XLR Socket: +18 dBu (balanced) (at peak deviation, 1 kHz AF)
  Output Level Range	48 dB (3 dB steps)
  Temperature Range	14 to 131°F (-10 to 55°C)
  Power Supply	12 VDC
  Current Consumption	350 mA
  Dimensions (L x W x H)	8.0 x 8.3 x 1.7" (202 x 212 x 43 mm)
  Weight	2.2 lb (980 g)

  Box Dimensions (LxWxH)	16.05 x 14.15 x 3.05"

• MKE2 Gold Series Omnidirectional Lavalier Condenser Microphone (with Accessories, Black)

  Transducer	Condenser
  Polar Pattern	Omnidirectional
  Frequency Response	20 Hz to 20 kHz
  Sensitivity	5 mV/Pa Rating 70% users recommend this product to others. And what about you? This product has already been rated by 81 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
