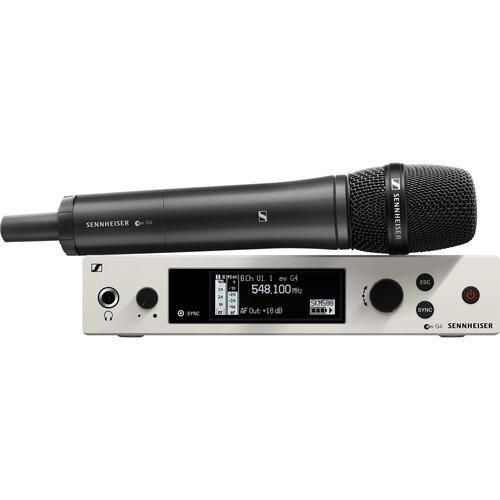

Product description

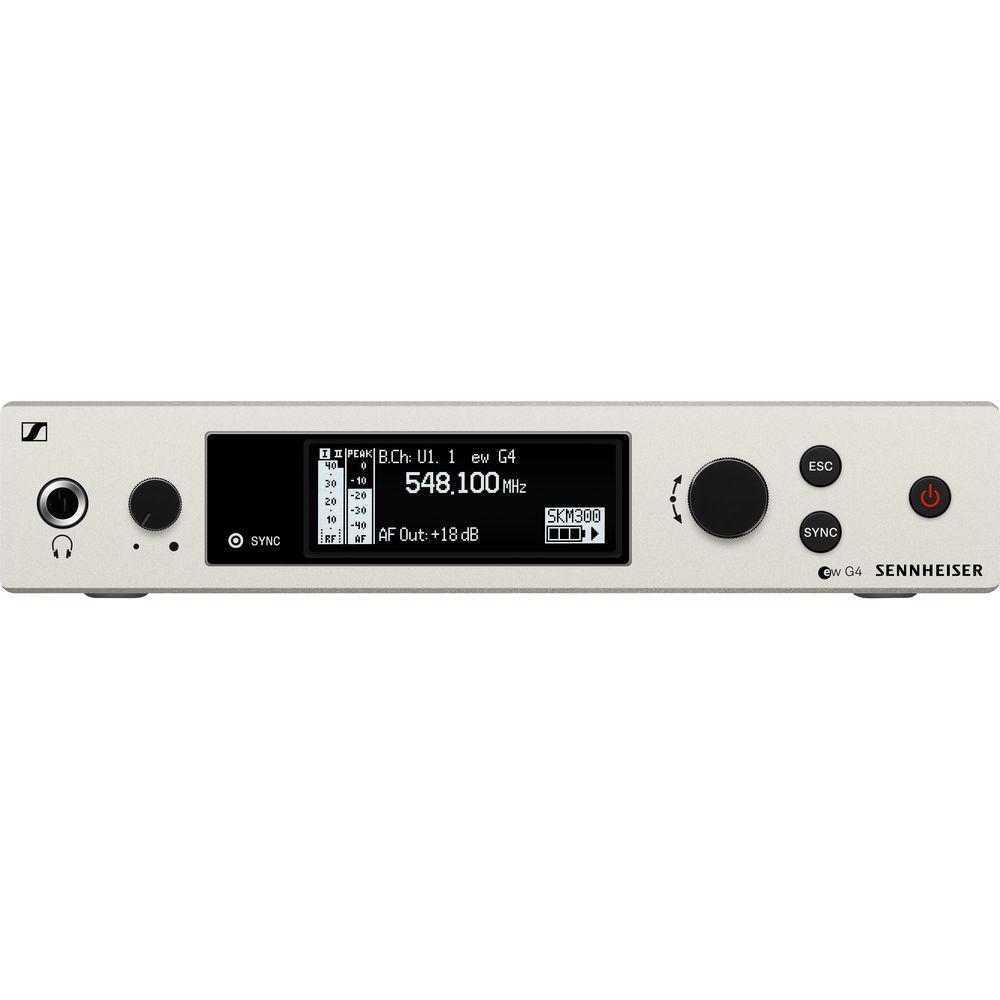

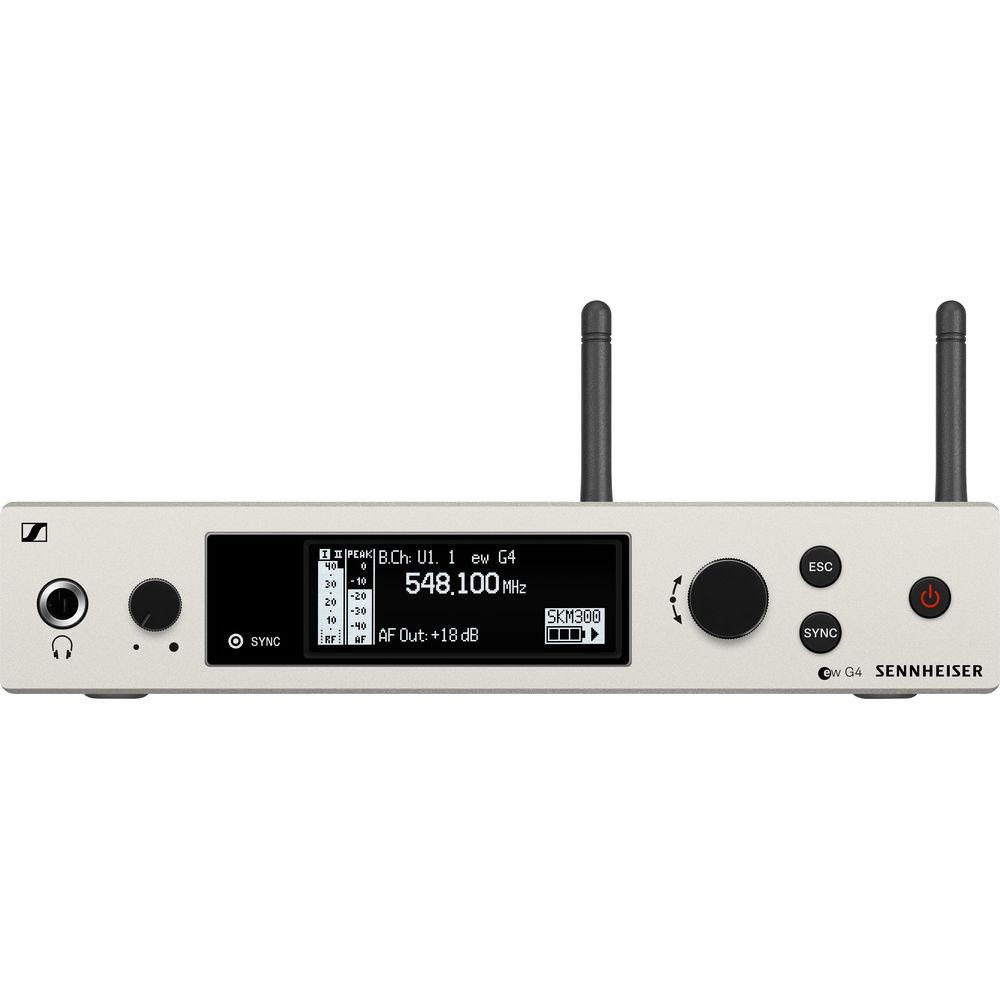

• EM 300-500 G4 Wireless True Diversity Receiver AW+: (470 to 558 MHz)
  • evolution wireless G4 Tutorial An Introduction I Sennheiser

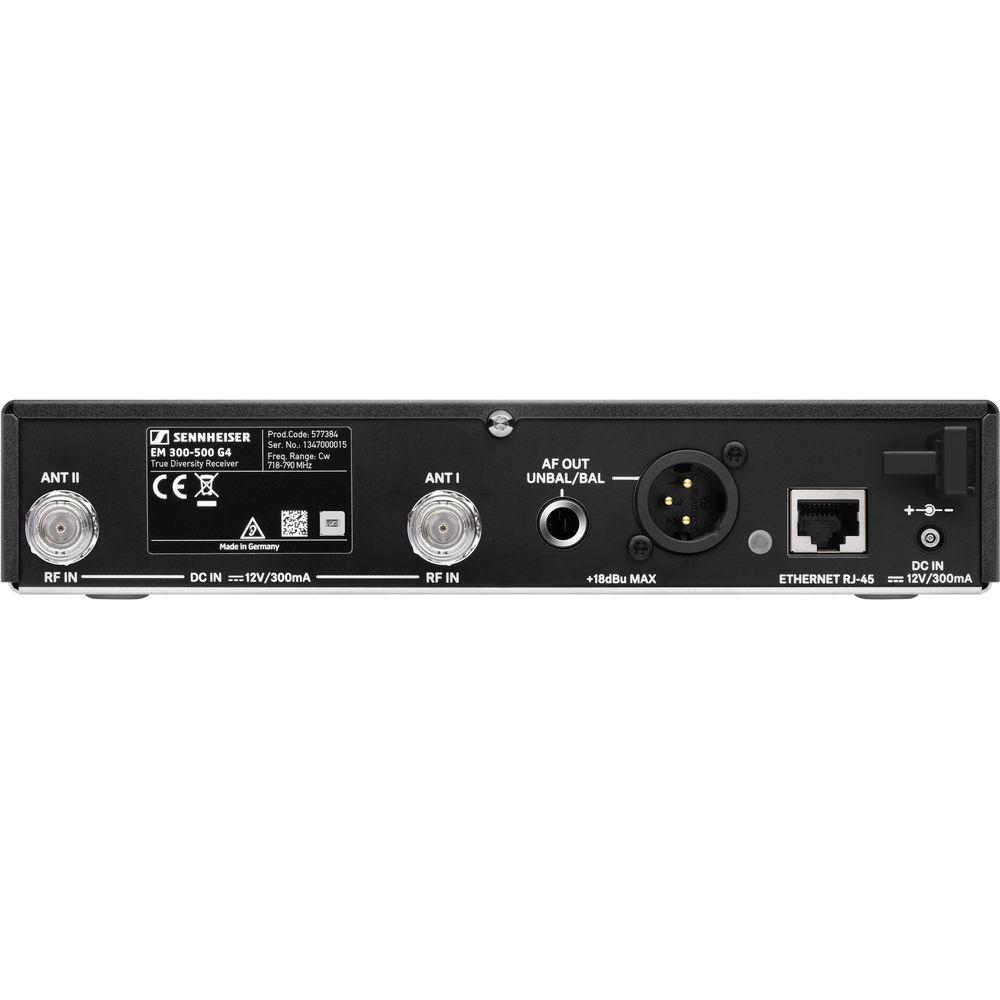

  The EM 300-500 G4 Wireless True Diversity Receiver from Sennheiser is the latest addition to their evolution series of wireless receivers. It operates in the UHF frequency range and can be used with a companion transmitter and microphone (sold separately), as part of a wireless RF transmission system for live stage, theater, and presentation applications. The half-rack receiver features 3250 frequencies and is tunable in 25 kHz steps. There are 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32 user programmable frequencies. This receiver is built with a menu-driven backlit OLED display showing current frequency, frequency bank and channel number, metering of RF level, volume level, line output level, lock status, battery status, muting function, and more. Enclosed in a rugged metal housing, the EM 300-500 G4 receiver is equipped with a balanced XLR-3M audio output along with an unbalanced 1/4" audio output. A 1/4" headphone output with headphone volume control is provided along with an Ethernet port (RF45) for remote network-based monitoring and control, using Sennheiser's Wireless System Manager software. Two BNC-type sockets are for connecting the antennas. Finally, the half-rack receiver operates on the included 12V power supply and includes a GA3 rackmount set.
  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3250 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50mW, adjustable in three steps 10/30/50) depending on country regulations
  UPC: 615104316218

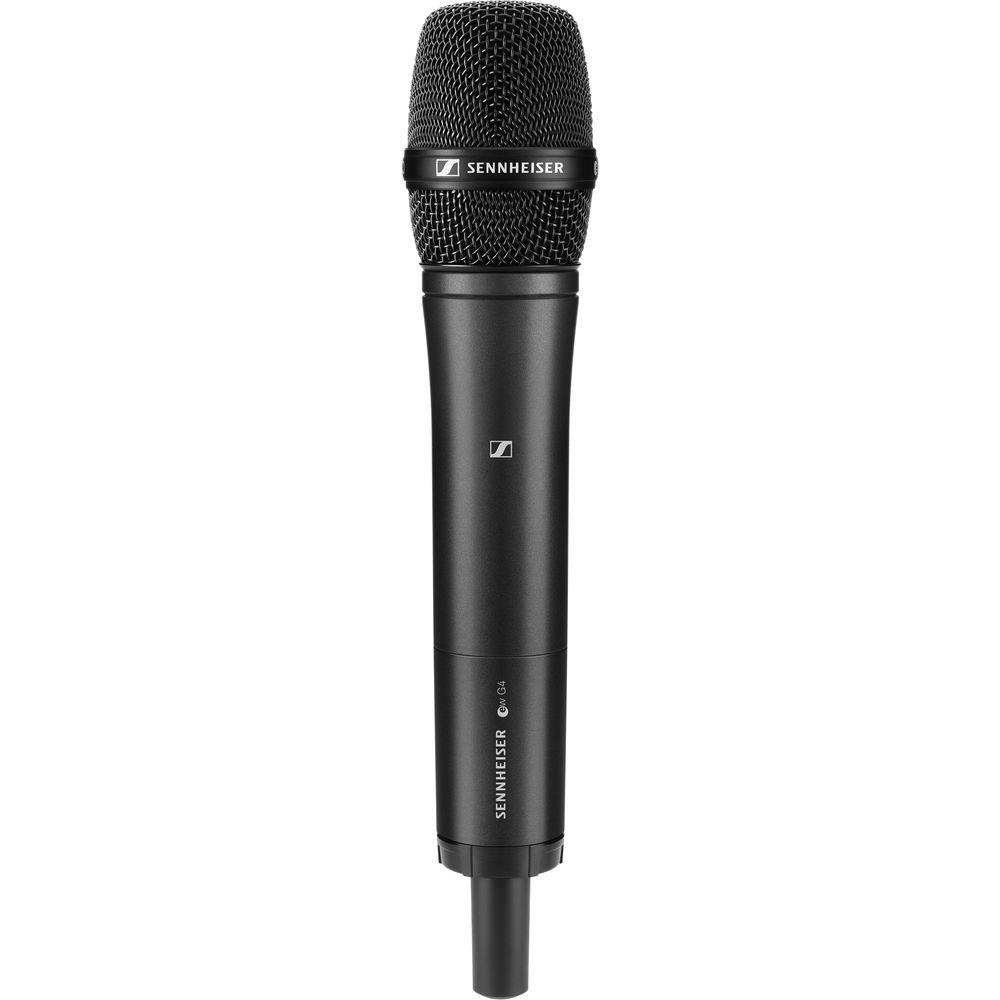

• SKM 500 G4 Wireless Handheld Transmitter, No Capsule AW+ (470 to 558 MHz) The SKM 500 G4 Wireless Handheld Transmitter, No Capsule from Sennheiser is the latest addition to their evolution series of wireless transmitters. It operates in the UHF frequency range and can be used with a companion receiver and microphone capsule (sold separately) as part of a wireless RF transmission system for live stage, theater, and presentation applications. It features 3520 frequencies that are tunable in 25 MHz steps and equipped with 20 fixed frequency banks with up to 32 compatible frequency presets, and 6 user banks with up to 32 user-programmable frequencies. The transmitter's menu-driven backlit LCD display shows the current frequency, frequency bank and channel number, metering of AF level, transmission status, muting function, battery status, and more. Furthermore, the SKM 500 G4 handheld transmitter's frequency response ranges from 80 Hz to 18 kHz and power is supplied by two 1.5V AA size batteries, or by one Sennheiser's BA 2015 rechargeable accupack. Also, an e 935, e 945, or e 965 microphone capsule is required (sold separately). Finally, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy.
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50mW, adjustable in three steps 10/30/50) depending on country regulations
  • Compatible with Control Cockpit Software
  • Requires an e 935, e 945, or e 965 microphone capsule (sold separately)
  UPC: 615104316201
• MMK 965-1 Condenser Microphone Module (Black) The black MMK 965-1 from Sennheiser is a versatile dual-membrane, large-diaphragm condenser microphone. The mic can withstand sound pressure levels up to 150 dB and the pick-up pattern can be switched between cardioid and super-cardioid. The MMK 965-1 installs in seconds without tools and is compatible with all handheld transmitters from the ew G3, 2000, and Digital 9000 series. UPC: 615104148185

• 2 x Rod Antennas

• Power Supply

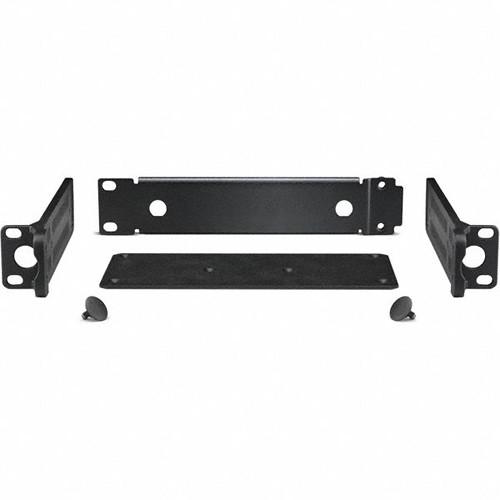

• GA 3 Rackmount Kit for G3 100/300/500 Series

• Limited 2-Year Warranty

• MZQ1 Microphone Clamp

• 2 x AA Batteries

• Pouch

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• EM 300-500 G4 Wireless True Diversity Receiver AW+: (470 to 558 MHz)

  Modulation	Wideband FM
  Frequency Band	AW+: (470 to 558 MHz)
  Receiving Frequency	Maximum 3250 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
  Switching Bandwidth	Up to 88 MHz
  Nominal/Peak Deviation	±24 kHz / ±48 kHz
  Principle of Operation	True diversity
  Sensitivity	< 2.5 μV for 52 dBA eff S/N (with HDX, peak deviation)
  Adjacent Channel Selectivity	Typically ≥ 75 dB
  Intermodulation Attenuation	Typically ≥ 70 dB
  Blocking	≥ 75 dB
  Squelch	Off, 5 to 25 dB μV in steps of 2 dB
  Pilot Tone Squelch	Can be switched off
  Antenna Inputs	2 x BNC sockets
  Compander	Sennheiser HDX
  EQ Presets	Switchable, Act on Line and Monitor Outputs) Preset 1: Flat Preset 2: Low cut (-3 dB at 180 Hz) Preset 3: Low cut/high boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High boost (+6 dB at 10 kHz)
  Signal to Noise Ratio	(1 mV, peak deviation) Line: ≥ 115 dBA
  Total Harmonic Distortion (THD)	≤ 0.9%
  Maximum AF Output Voltage	1/4" (6.3 mm) Jack Socket: +12 dBu (unbalanced) (at peak deviation, 1 kHz AF) XLR Socket: +18 dBu (balanced) (at peak deviation, 1 kHz AF)
  Output Level Range	48 dB (3 dB steps)
  Temperature Range	14 to 131°F (-10 to 55°C)
  Power Supply	12 VDC
  Current Consumption	350 mA
  Dimensions (L x W x H)	8.0 x 8.3 x 1.7" (202 x 212 x 43 mm)
  Weight	2.2 lb (980 g)

  Box Dimensions (LxWxH)	16.05 x 14.15 x 3.05"

• SKM 500 G4 Wireless Handheld Transmitter, No Capsule AW+ (470 to 558 MHz)

  Modulation	Wideband FM
  Frequency Band	AW+ (470 to 558 MHz)
  Receiving Frequency	Maximum 3520 frequencies, adjustable in 25 MHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
  Switching Bandwidth	Up to 88 MHz
  Nominal/Peak Deviation	±24 kHz / ±48 kHz
  Frequency Stability	≤ Rating 90% users recommend this product to others. And what about you? This product has already been rated by 13 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
