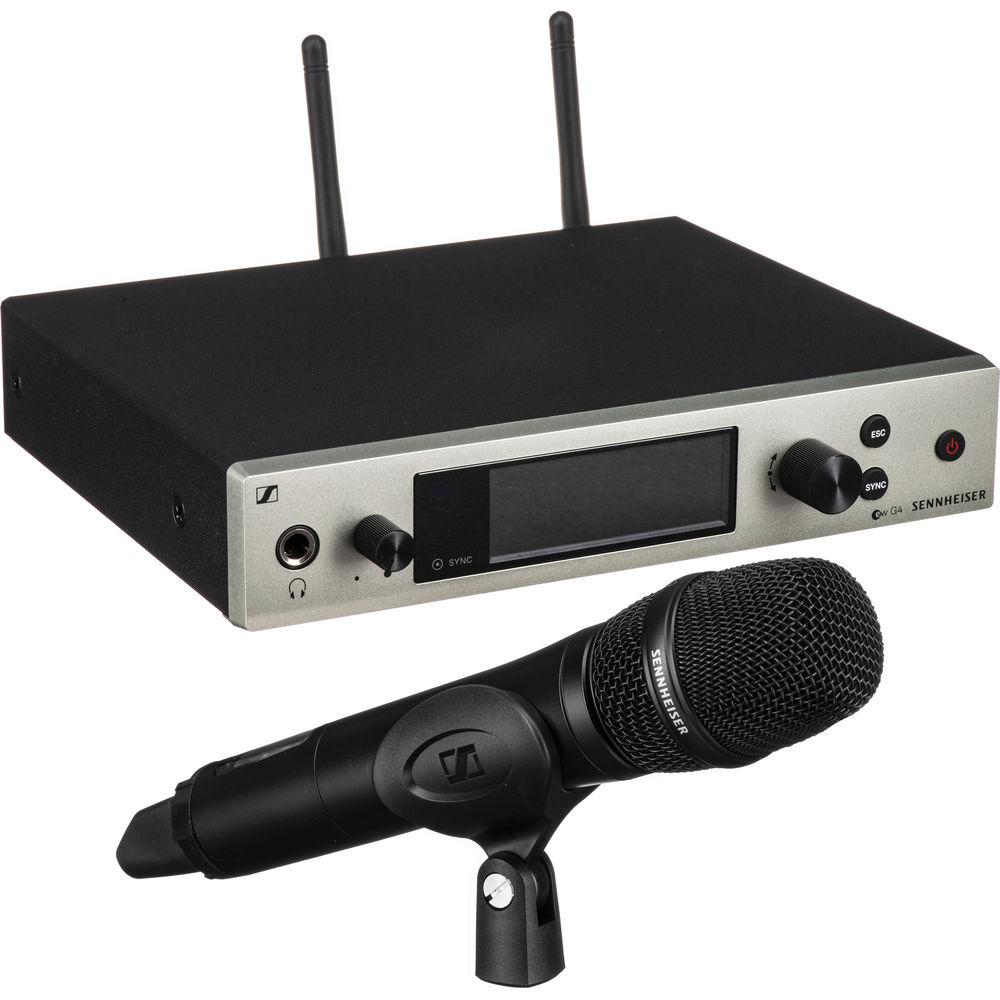

Sennheiser ew 500 Wireless G4 Handheld

User Manual for Sennheiser ew 500 Wireless G4 Handheld Microphone System with e965 Capsule GW1

• Product category: Wireless Systems Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Wireless Systems

Product description

• EM 300-500 G4 Wireless True Diversity Receiver GW1: (558 to 608 MHz)
  • evolution wireless G4 Tutorial An Introduction I Sennheiser

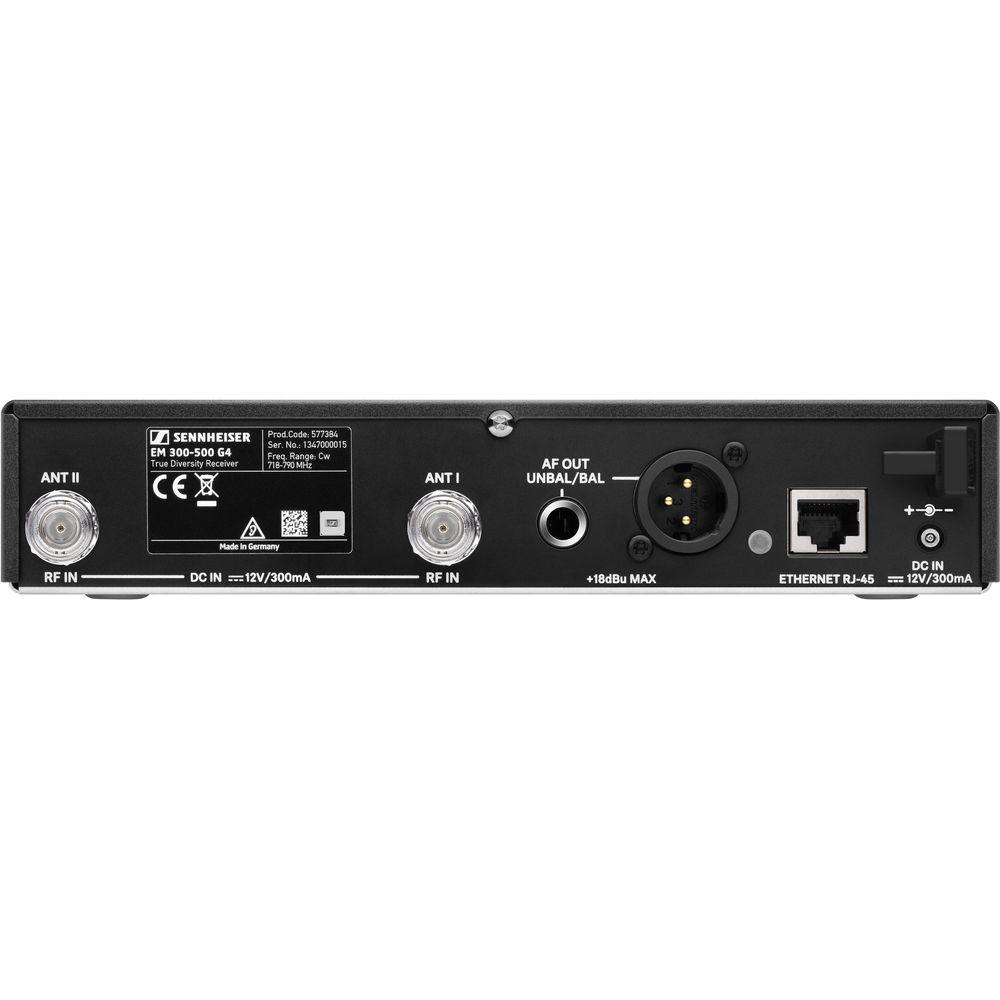

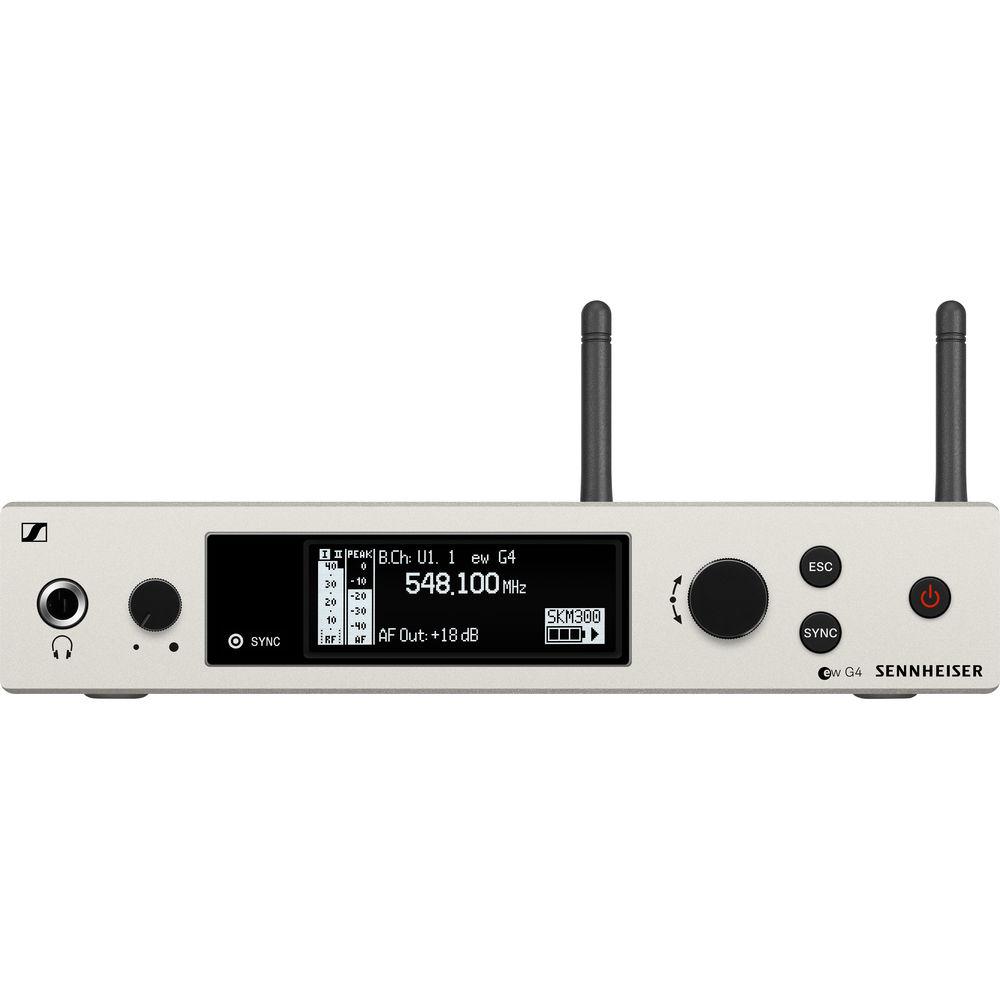

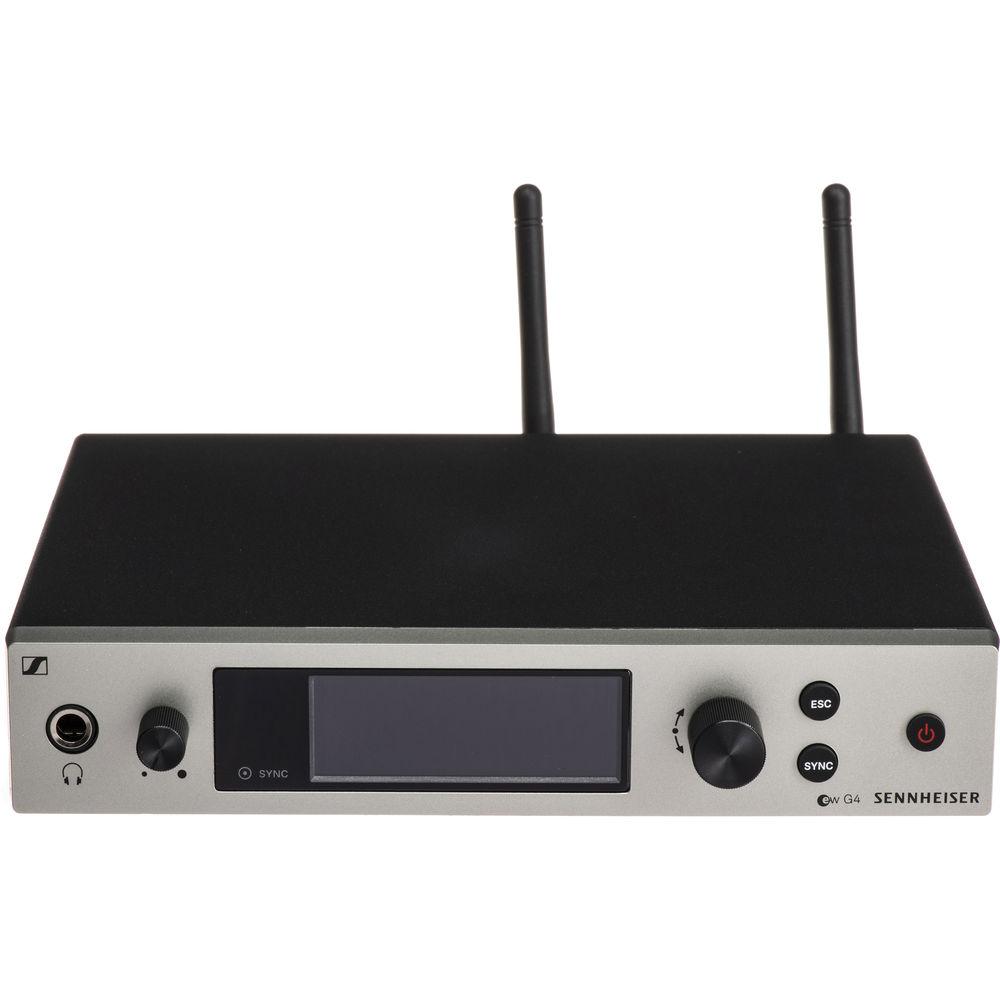

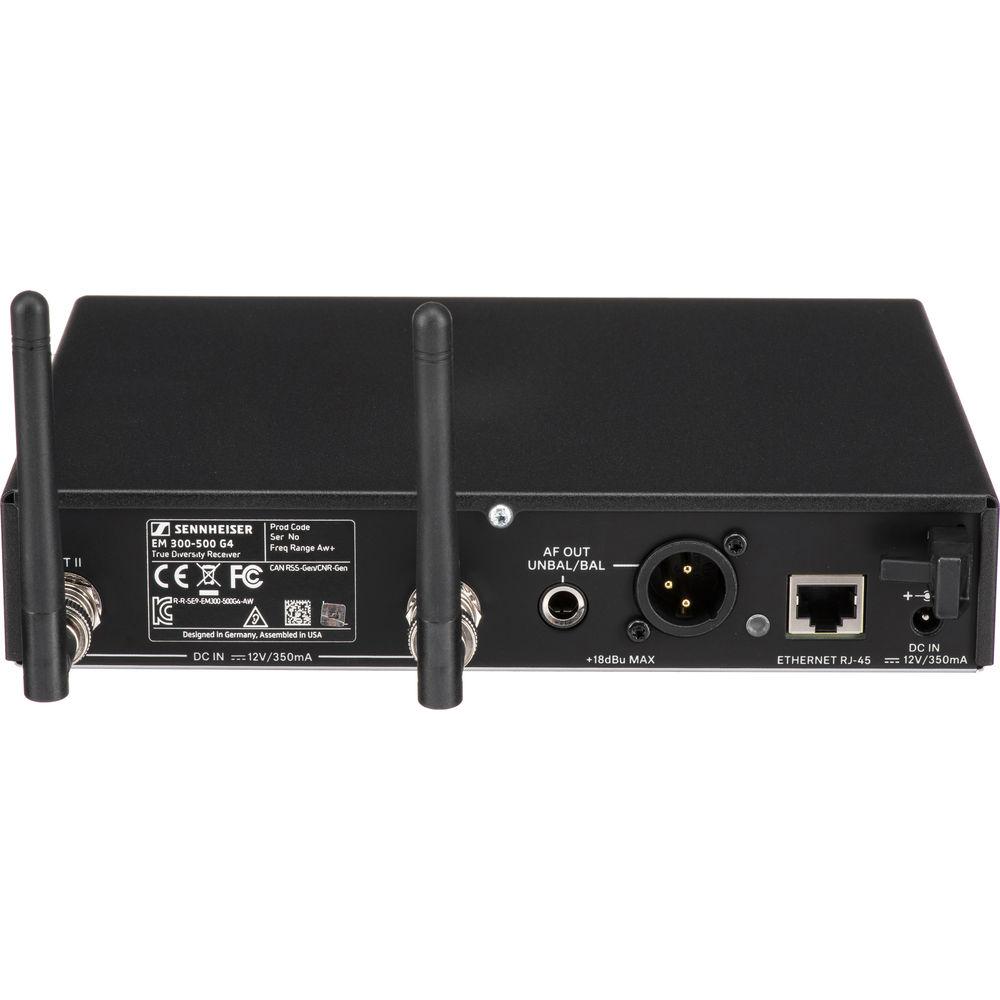

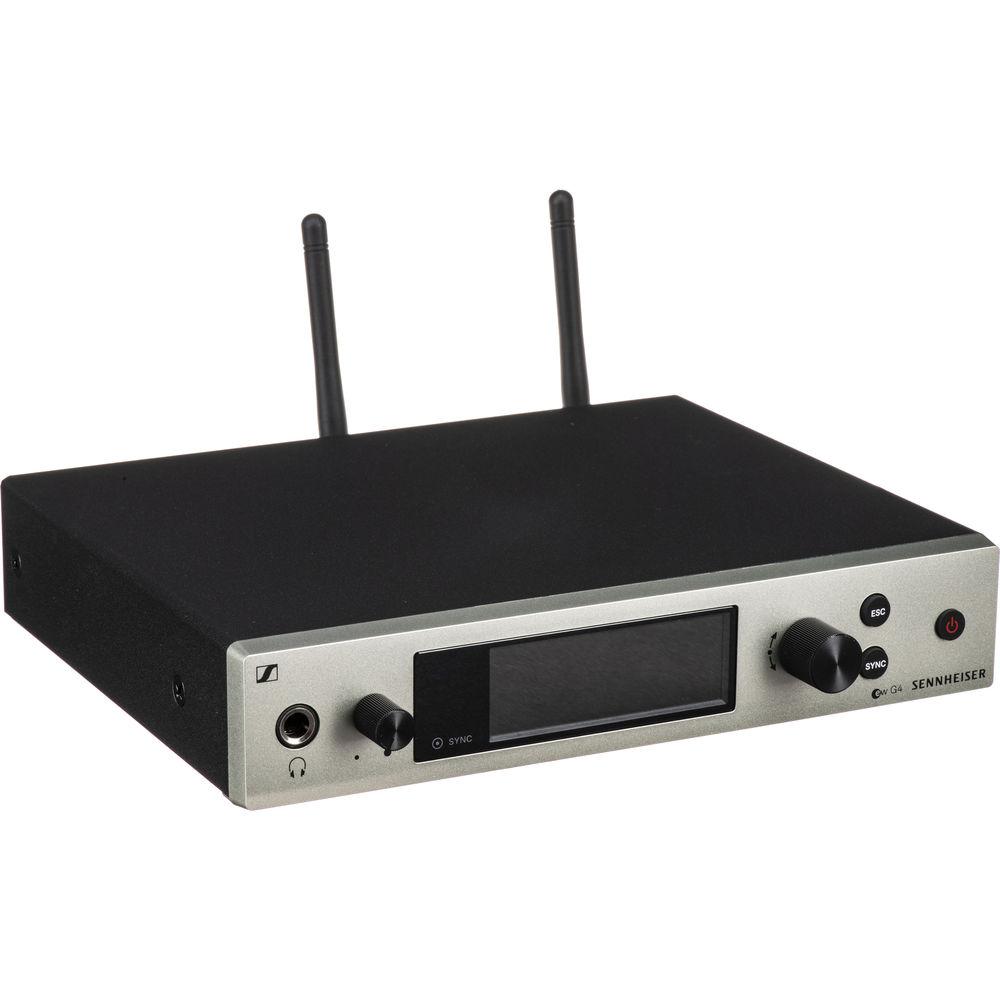

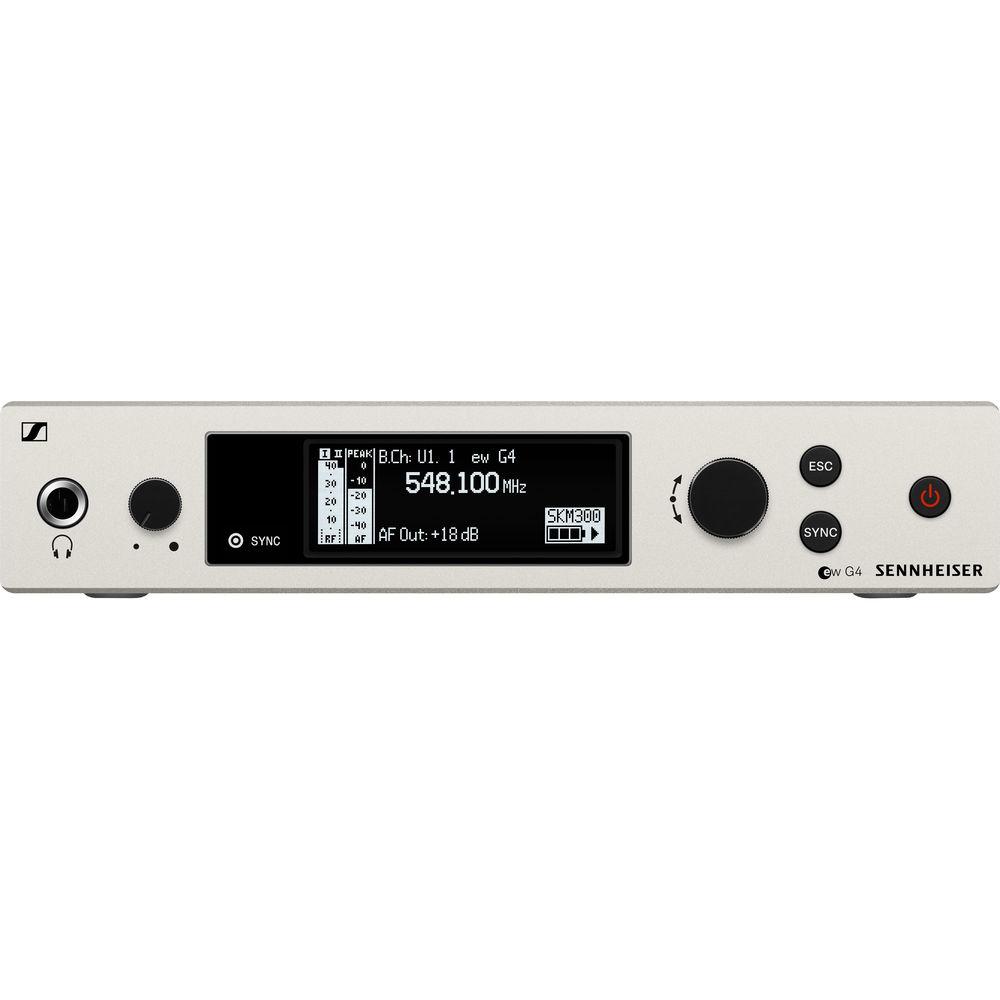

  The EM 300-500 G4 Wireless True Diversity Receiver from Sennheiser is the latest addition to their evolution series of wireless receivers. It operates in the UHF frequency range and can be used with a companion transmitter and microphone (sold separately), as part of a wireless RF transmission system for live stage, theater, and presentation applications. The half-rack receiver features 2000 frequencies and is tunable in 25 kHz steps. There are 20 fixed frequency banks with up to 32 compatible frequency presets and 6 user banks with up to 32 user programmable frequencies. This receiver is built with a menu-driven backlit OLED display showing current frequency, frequency bank and channel number, metering of RF level, volume level, line output level, lock status, battery status, muting function, and more. Enclosed in a rugged metal housing, the EM 300-500 G4 receiver is equipped with a balanced XLR-3M audio output along with an unbalanced 1/4" audio output. A 1/4" headphone output with headphone volume control is provided along with an Ethernet port (RF45) for remote network-based monitoring and control, using Sennheiser's Wireless System Manager software. Two BNC-type sockets are for connecting the antennas. Finally, the half-rack receiver operates on the included 12V power supply and includes a GA3 rackmount set.
  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 50 MHz bandwidth with 2000 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50mW, adjustable in three steps 10/30/50) depending on country regulations
  UPC: 615104316423

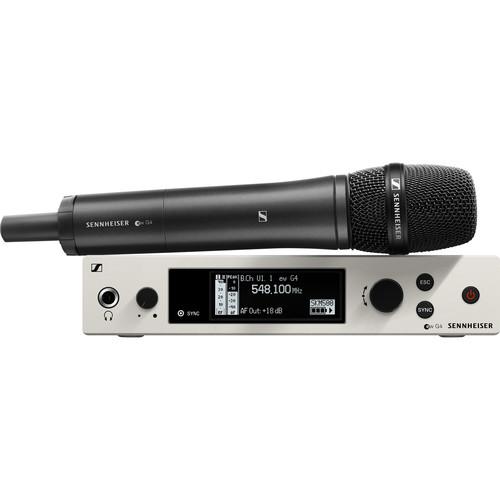

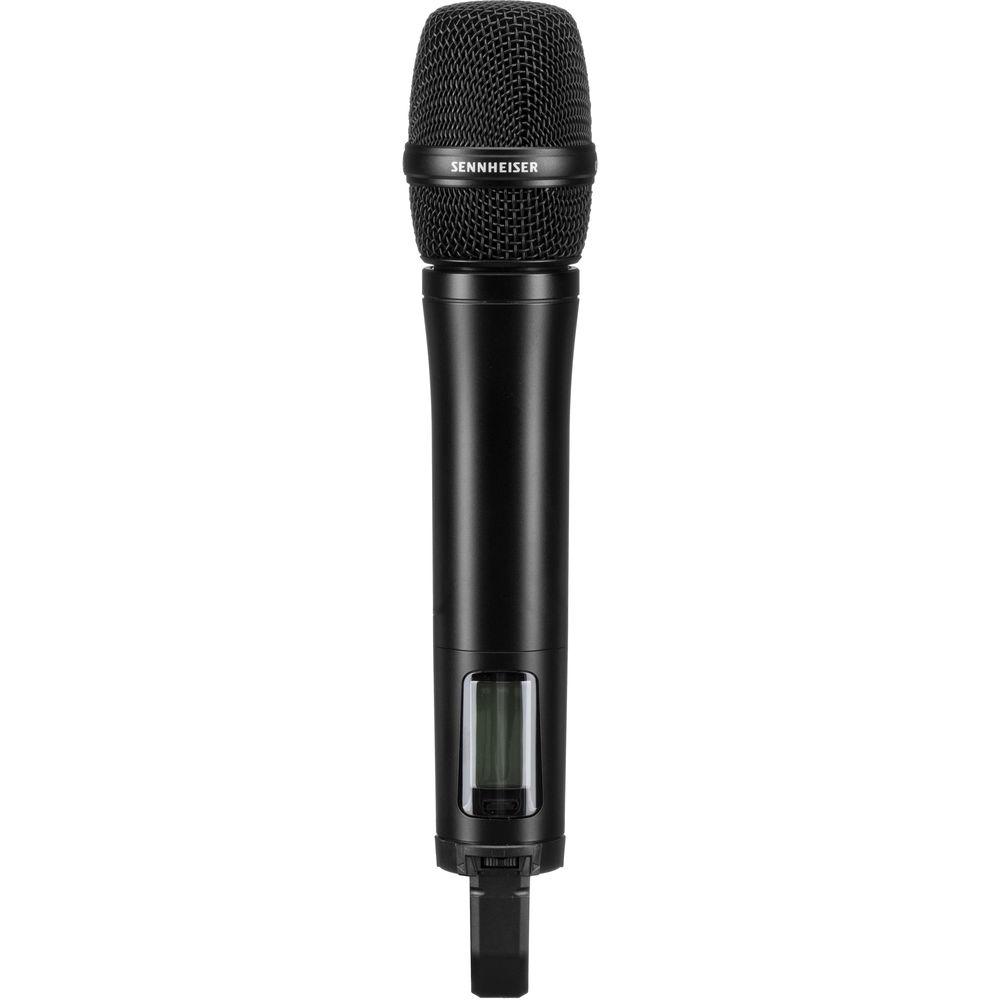

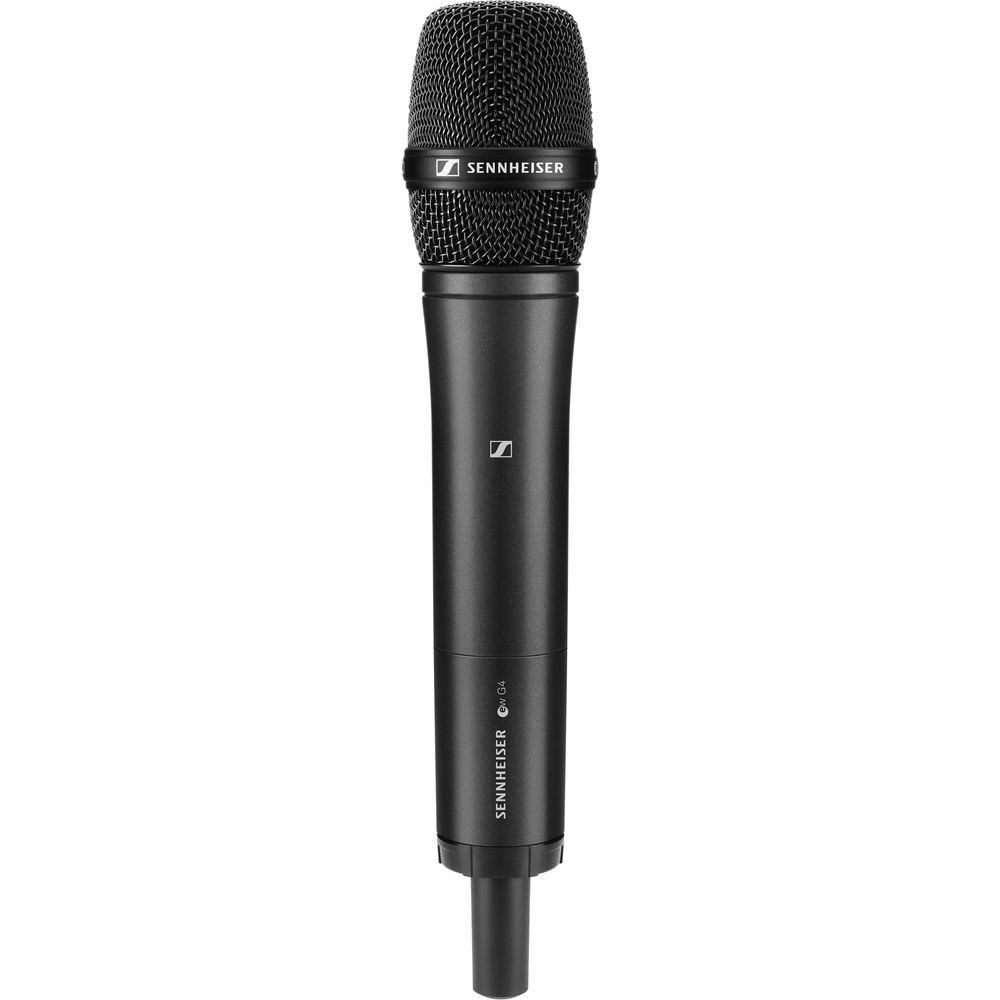

• SKM 500 G4 Wireless Handheld Transmitter, No Capsule GW1 (558 to 608 MHz) The SKM 500 G4 Wireless Handheld Transmitter, No Capsule from Sennheiser is the latest addition to their evolution series of wireless transmitters. It operates in the UHF frequency range and can be used with a companion receiver and microphone capsule (sold separately) as part of a wireless RF transmission system for live stage, theater, and presentation applications. It features 2000 frequencies that are tunable in 25 MHz steps and equipped with 20 fixed frequency banks with up to 32 compatible frequency presets, and 6 user banks with up to 32 user-programmable frequencies. The transmitter's menu-driven backlit LCD display shows the current frequency, frequency bank and channel number, metering of AF level, transmission status, muting function, battery status, and more. Furthermore, the SKM 500 G4 handheld transmitter's frequency response ranges from 80 Hz to 18 kHz and power is supplied by two 1.5V AA size batteries, or by one Sennheiser's BA 2015 rechargeable accupack. Also, an e 935, e 945, or e 965 microphone capsule is required (sold separately). Finally, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy.
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 50 MHz bandwidth with 2000 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50mW, adjustable in three steps 10/30/50) depending on country regulations
  • Compatible with Control Cockpit Software
  • Requires an e 935, e 945, or e 965 microphone capsule (sold separately)
  UPC: 615104316416
• MMK 965-1 Condenser Microphone Module (Black) The black MMK 965-1 from Sennheiser is a versatile dual-membrane, large-diaphragm condenser microphone. The mic can withstand sound pressure levels up to 150 dB and the pick-up pattern can be switched between cardioid and super-cardioid. The MMK 965-1 installs in seconds without tools and is compatible with all handheld transmitters from the ew G3, 2000, and Digital 9000 series. UPC: 615104148185

• 2 x Rod Antennas

• Power Supply

• GA 3 Rackmount Kit for G3 100/300/500 Series

• Limited 2-Year Warranty

• MZQ1 Microphone Clamp

• 2 x AA Batteries

• Pouch

• Limited 2-Year Warranty

• Limited 2-Year Warranty
