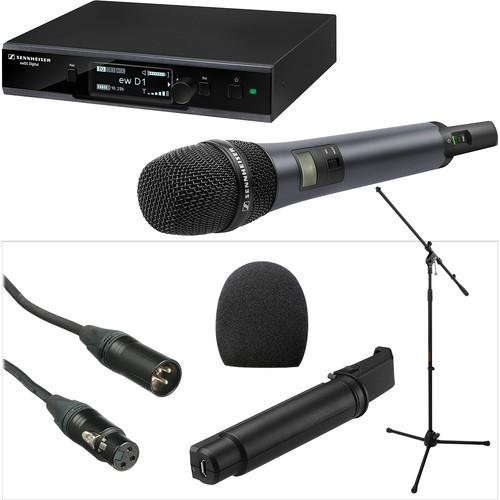

Product description The Sennheiser ew D1-835-S Digital Wireless Vocal Set & Handheld Transmitter Kit from includes a Sennheiser EM D1 digital receiver, a Sennheiser SKM D1 handheld transmitter with an e835 cardioid capsule, a MZQ mic clamp, and a transport case. Accessories include a premium XLR M to XLR F mic cable, a BA 10 rechargeable battery pack, an Auray MS5230F tripod mic stand with fixed boom, and an Auray WHF-158 foam windscreen for 1-5/8" diameter microphones. This kit can capture audio for vocal, lecture, live stage, musical performance, and theater applications. The Sennheiser digital wireless system is designed for reliability, sound quality, and user-friendliness. It can support up to 15 D1 systems simultaneously under optimal conditions, and it operates in the license-free 2.4 GHz band. Featuring automatic frequency management, a built-in equalizer, de-esser, and automatic gain control, the wireless system offers flexibility with a natural sound. Furthermore, everything you need to get up and running straight out of the box is included with the accessories such as: mic cable, mic stand and boom, battery pack, travel case, and a foam windscreen. This kit can make your performance a memorable one. - Sennheiser ew D1-835-S Digital Wireless Vocal Set with Handheld Transmitter & e835 Cardioid Capsule The ew D1-835-S from Sennheiser is a digital wireless vocal system that features an EM D1 rackmount digital receiver and an SKM D1 handheld microphone transmitter with an e835 cardioid capsule. Ideal for live stage use, this professional system can accommodate a plethora of vocal applications, such as musical performances and lectures.
The ew D1-835-S is designed for reliability, sound quality, and user-friendliness. It can support up to 15 D1 systems simultaneously under optimal conditions, and it operates in the license-free 2.4 GHz band. -
- Transmitter features mute-switch for convenience on-stage
- Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band
- Automatic frequency management
- Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth
- Built-in equalizer, de-esser and automatic gain control for fine tuning
- iOS app for remote control and monitoring of the system
- Sturdy metal housing
- Includes case for safe storage and transport
UPC: 615104242487 - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558267 - Sennheiser BA 10 Rechargeable Battery Pack The BA 10 from Sennheiser is a rechargeable battery pack for the evolution wireless SKM D1 or AVX Handheld Transmitter (sold separately). It can be used to replace the two AA size batteries that power the transmitter-unit. The BA 10 uses a lithium-ion 3.7V rechargeable battery. UPC: 615104248717
- Auray MS-5230F Tripod Microphone Stand with Fixed Boom The Auray MS-5230F Tripod Microphone Stand with Fixed Boom features durable, steel construction. The 31.5" boom arm allows you to angle the mic however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and nonslip feet keep it firmly and sturdily in place. The Auray MS-5230F mic stand collapses for easy transport. UPC: 847628015586
- Auray WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black) The black Auray WHF Series Foam Windscreens are designed to reduce unwanted broadband wind noise and vocal pops with minimal high frequency loss. This WHF-158 Foam Windscreen is designed for use with many common handheld microphones with a 1-5/8" diameter head. The density of the specialty acoustic foam is optimized to help protect the microphone element from air bursts without muffling the sound. When used on a handheld microphone, this windscreen is effective in minimizing wind noise and plosive sounds. It is most effective in calm to light breeze conditions (0-7mph), and can be used indoors for protection against drafts caused by air-conditioners. Users can generally expect a 4dB to 8dB reduction in wind noise, with very slight dampening of high frequencies. For most applications, the very slight high frequency dampening is a worthwhile exchange for the notable wind noise reduction. The WHF-158's foam is hypoallergenic and washable and helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Shure, Electro-Voice, AKG, Audio-Technica, Audix, Beyerdynamic, Sennheiser, Neumann and others. The WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones is an effective solution for basic wind protection.
- Fits these and other similar-sized microphones:
-
- Shure SM58, Beta 58, Beta 87A, Beta 87C, PG58, PG48, SM48, SM96, VP88, SM87, SM53, SM54, PE85, PE86, BG3.0, PE15, PE75, 12a, 14A, 587, 587SB
- Electro-Voice RE50/B, BBK1, Co5, Co7, Co9, DS35, MC100, 150, 300, MT200, N/D200, N/D247, 257, 267, N/D357, 367, 457, 757, N/D767, PL50, PL60, PL70, PL77, PL80, RE11, RE16, RE18
- Sennheiser e825S, e865, MD21, 200, MD400, 425, 427, 429, MD511, 512, 515, 516, 735, MD736, ME65, MKE44, SKM3072, SKM5000, SKM100, SKM300, SKM500, SKP30
- Audio-Technica AE3300, 4100, 5400, 6100, ATM23, 25, 29, 31, 41, 61, ATM91, AT801, AT802, AT813, AT814, ATW7375, ATW-T602, MB1000, Pro-1a, Pro-2ax, Pro-3, Pro-4, Pro-5, Pro-10
- Audix OM-2, OM-3, OM-5, OM-6, OM-7, VX-10
- AKG C900, D40, D50, D60, D80, D90, D95, D125, D130, D190, D200, D310, D321, D330, D590, D770, D880, C535, CK4, D3700, D3800, D5900
- Beyerdynamic BM85, EM85, M01, M59, M69, M260, M300, M400, M500, MCE81, TGX-20, TGX-40, TGX-58, TGX-60, TGX-80
- Neumann KMS105, KMS140, KMS150
- Nady SP-1, SP-3, SP-4, SP-5, SP-9, SP10, WHT14, WHT15, UH10
- Peavey Celebrity, PAA250, PVM835, PVM880, PV, PVi
- Telex HT700, SH100, FMR150, FMR450, EN6100, H12E, VR12E
UPC: 847628562868 In the Box - ew D1-835-S Digital Wireless Vocal Set with Handheld Transmitter & e835 Cardioid Capsule bxtwwvazwsdwccucetrabrqcqzrevzf
- evolution wireless EM D1 Stationary Digital Receiver
- SKM D1 Handheld Transmitter with e835 Cardioid Capsule
- MZQ Microphone Clamp
- Transport Case
- Limited 2-Year Warranty
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black
- BA 10 Rechargeable Battery Pack
- Auray - MS-5230F Tripod Microphone Stand with Fixed Boom
- Auray - WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser ew D1-835-S Digital Wireless Vocal Set & Handheld Transmitter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser ew D1-835-S Digital Wireless Vocal Set with Handheld Transmitter & e835 Cardioid Capsule
| | | Frequency Response | 20 to 20,000 Hz | | Dynamic Range | > 135 dB (A) | | Total Harmonic Distortion (THD) | Typ. < 0.1 % | | Audio Sampling | 24-bit / 48 kHz | | Signal-to-Noise Ratio | ≥ 105 dB (A) | | RF Frequency Range | 2,400 to 2,483.5 MHz | | Modulation | GFSK with back channel | | Transmission Method | TDMA, time diversity, frequency diversity, fast switching antenna diversity | | Latency | 3.9 ms | | Audio Codec | APT-X Live | | Operating Temperature | 14 to 131°F (-10 to +55°C) | | Storage Temperature | -4 to 158°F (-20 to +70°C) (The temperature range is influenced by the battery characteristics) | | | | Frequency Response | 50 to 20,000 Hz | | RF Output Power | Adaptive, up to 100 mW (country-specific) | | Display | LCD | | Input Sensitivity | Automatic sensitivity adjustment | | Battery | 2 x AA size battery (1.5 V)
Operating Time: typical 6 hours | | Optional Accessories | Accupack: BA 10 (Li-Ion, 3.7 V)
Operating Time: typical 11 hours | | Weight | 9.9 oz (280 g), incl. microphone head | | | | Latency | Multi-frequency targets | | RF Sensitivity | <- 90 dBm | | Audio Output | Mic/line level switch -24 dB/0 dB, XLR, balanced max +18 dBu, jack, unbalanced/balanced max +12 dBu/max +18 dBu | | Low-Cut Filter | -3 dB at 120 Hz | | Equalizer | 7-band graphic equalizer | | Automatic Gain Control | Compression/expansion with automatic make-up gain function | | Display | OLED | | Connection | XLR / 1/4" (6.3 mm) jack | | Antenna Connector | 2 x Rev-SMA | | Network | RJ45 | | Network Protocol | Media Control Protocol, TCP/IP IPv4 (DHCP, Manual)/IPv6 | | Power Supply | 12 VDC hollow jack | | Current Consumption | 350 mA | | Weight | 1.82 lb (824 g) | | | | Box Dimensions (LxWxH) | 17.1 x 14.3 x 3.7" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 6' / 1.8 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 3.5 x 0.9 x 0.2" | - Sennheiser BA 10 Rechargeable Battery Pack
| Battery Type | Lithium-Ion | | Output Voltage | 3.7 V | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.15 x 3.6 x 1.3" | - Auray MS-5230F Tripod Microphone Stand with Fixed Boom
| | | Height | 36.2 to 63" / 91.9 to 160 cm | | Base Type | Tripod | | Base Dimensions | 25.6 x 25.6" / 65 x 65 cm | | | | Material | Steel | | Weight | 4.5 lb / 2 kg | | | | Box Dimensions (LxWxH) | 33.5 x 4.0 x 4.0" | - Auray WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black)
| Compatible Mic Diameter | 1.62" / 4.13 cm | | Material | Foam | | | | Box Dimensions (LxWxH) | 2.6 x 2.6 x 1.8" |
