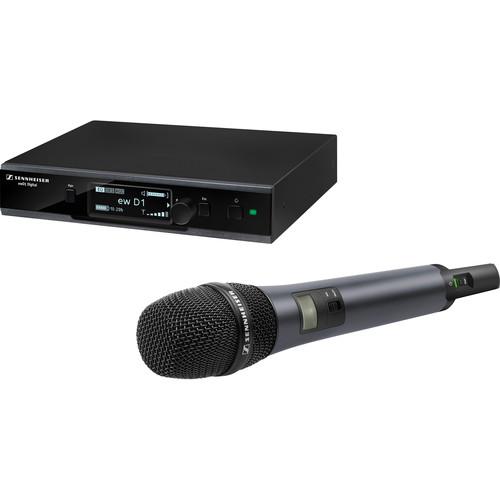

User Manual for Sennheiser ew D1-835-S Digital Wireless Vocal Set with Handheld Transmitter & e835 Cardioid Capsule Click to enlarge the picture
Contents of the user manual for the Sennheiser ew D1-835-S Digital Wireless Vocal
- Product category: Wireless Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Systems
 |
User manual for the Sennheiser ew D1-835-S Digital Wireless Vocal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

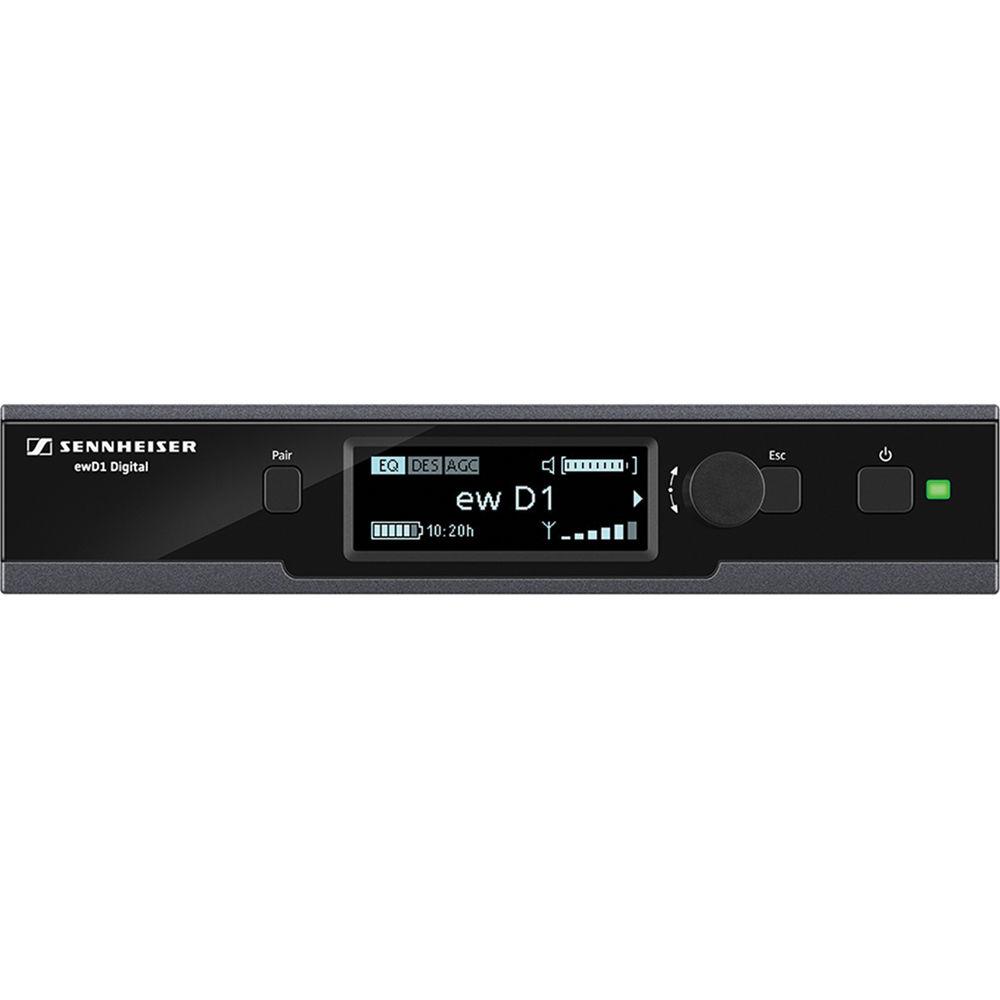

Product description The ew D1-835-S from Sennheiser is a digital wireless vocal system that features an EM D1 rackmount digital receiver and an SKM D1 handheld microphone transmitter with an e835 cardioid capsule. Ideal for live stage use, this professional system can accommodate a plethora of vocal applications, such as musical performances and lectures.
The ew D1-835-S is designed for reliability, sound quality, and user-friendliness. It can support up to 15 D1 systems simultaneously under optimal conditions, and it operates in the license-free 2.4 GHz band. -
- Transmitter features mute-switch for convenience on-stage
- Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band
- Automatic frequency management
- Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth
- Built-in equalizer, de-esser and automatic gain control for fine tuning
- iOS app for remote control and monitoring of the system
- Sturdy metal housing
- Includes case for safe storage and transport
UPC: 615104242487 In the Box Sennheiser ew D1-835-S Digital Wireless Vocal Set with Handheld Transmitter & e835 Cardioid Capsule evolution wireless EM D1 Stationary Digital Receiver SKM D1 Handheld Transmitter with e835 Cardioid Capsule MZQ Microphone Clamp Transport Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser ew D1-835-S Digital Wireless Vocal Set with Handheld Transmitter & e835 Cardioid Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser EW D1-835S Specs | | | Frequency Response | 20 to 20,000 Hz | | Dynamic Range | > 135 dB (A) | | Total Harmonic Distortion (THD) | Typ. < 0.1 % | | Audio Sampling | 24-bit / 48 kHz | | Signal-to-Noise Ratio | ≥ 105 dB (A) | | RF Frequency Range | 2,400 to 2,483.5 MHz | | Modulation | GFSK with back channel | | Transmission Method | TDMA, time diversity, frequency diversity, fast switching antenna diversity | | Latency | 3.9 ms | | Audio Codec | APT-X Live | | Operating Temperature | 14 to 131°F (-10 to +55°C) | | Storage Temperature | -4 to 158°F (-20 to +70°C) (The temperature range is influenced by the battery characteristics) | | | | Frequency Response | 50 to 20,000 Hz | | RF Output Power | Adaptive, up to 100 mW (country-specific) | | Display | LCD | | Input Sensitivity | Automatic sensitivity adjustment | | Battery | 2 x AA size battery (1.5 V)
Operating Time: typical 6 hours | | Optional Accessories | Accupack: BA 10 (Li-Ion, 3.7 V)

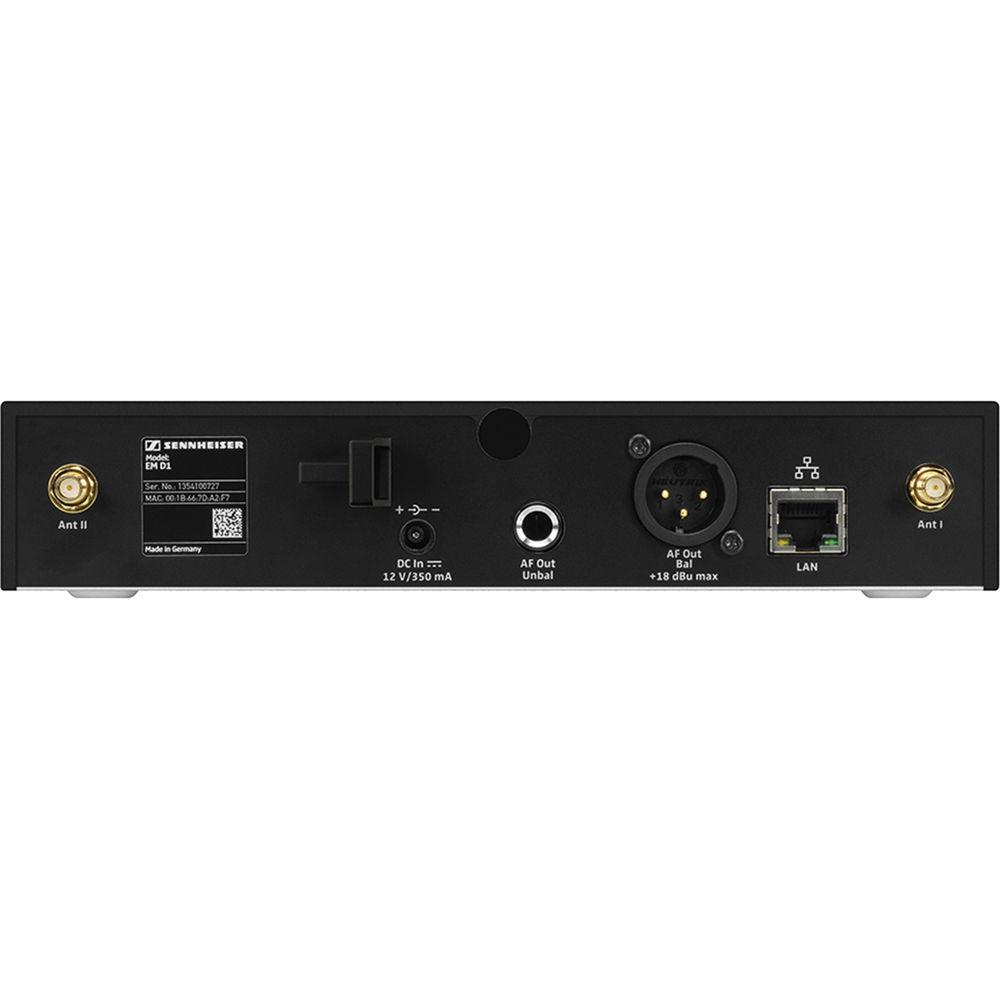

Operating Time: typical 11 hours | | Weight | 9.9 oz (280 g), incl. microphone head | | | | Latency | Multi-frequency targets | | RF Sensitivity | <- 90 dBm | | Audio Output | Mic/line level switch -24 dB/0 dB, XLR, balanced max +18 dBu, jack, unbalanced/balanced max +12 dBu/max +18 dBu | | Low-Cut Filter | -3 dB at 120 Hz | | Equalizer | 7-band graphic equalizer | | Automatic Gain Control | Compression/expansion with automatic make-up gain function | | Display | OLED | | Connection | XLR / 1/4" (6.3 mm) jack | | Antenna Connector | 2 x Rev-SMA | | Network | RJ45 | | Network Protocol | Media Control Protocol, TCP/IP IPv4 (DHCP, Manual)/IPv6 | | Power Supply | 12 VDC hollow jack | | Current Consumption | 350 mA | | Weight | 1.82 lb (824 g) | | | | Package Weight | 8.35 lb | | Box Dimensions (LxWxH) | 17.1 x 14.3 x 3.7" |
