User Manual for Sennheiser ew IEM G4-Twin Wireless Monitor System Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser ew IEM G4-Twin Wireless Monitor
- Product category: In-Ear Monitoring Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser In-Ear Monitoring Systems
 |
User manual for the Sennheiser ew IEM G4-Twin Wireless Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|

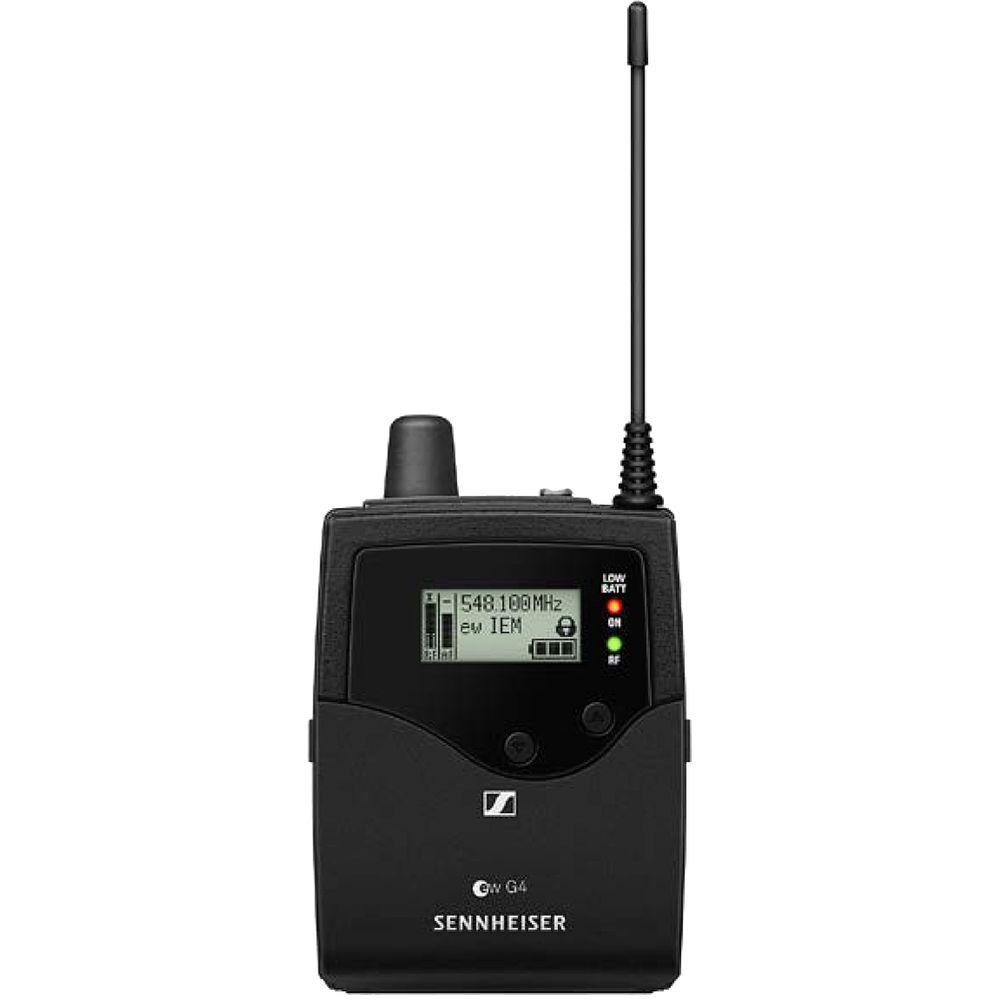

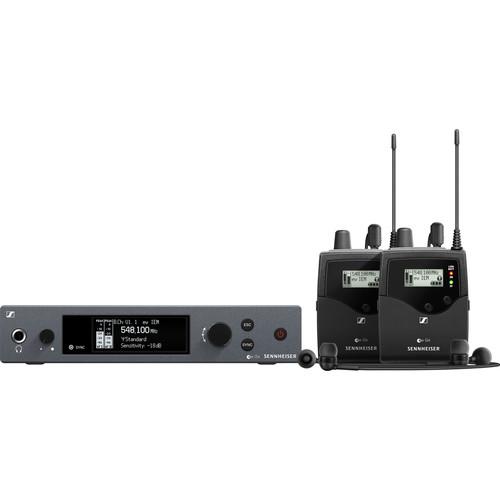

Product description The ew IEM G4-Twin Wireless Monitor System Kit from Sennheiser is an addition to Sennheiser's evolution family of wireless monitor systems. It includes an SR IEM G4 transmitter, two EK IEM G4 stereo receivers, two pairs of IE 4 earphones, a rod antenna, a GA 3 rackmount kit, and four AA batteries. This kit can be used as a rugged two-person, all-in-one wireless in-ear monitoring system for applications in live stage, theater, or house of worship performances. - EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (A: 516 to 558 MHz) The EK IEM G4 Stereo Bodypack Receiver with IE4 Earphones from Sennheiser is an addition to their evolution series of wireless systems. It features adaptive diversity technology and can be used when paired with a companion transmitter as part of a wireless RF monitoring system for live stage, theater, and rehearsal applications.The stereo receiver is equipped with 1680 frequencies tunable in 25 MHz steps and has 20 fixed frequency banks with up to 16 compatible frequency presets and another 6 user banks with up to 16 user-programmable frequencies. The receiver's menu-driven backlit display shows current frequency, frequency bank and channel number, metering of RF level, metering of AF level, lock status, and battery status. An auto-lock feature is provided to prevent settings from being accidentally altered.Furthermore, this receiver includes a switchable high-boost and a multi-level limiter. The limiter is adjustable from -18 dB to -6 dB in 6 dB steps or defeatable (off). Built in a rugged metal housing, it is powered by two 1.5V AA sized batteries or by a Sennheiser BA 2015 rechargeable accupack. The earphone output uses a 3.5mm stereo jack socket.
- Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage.
- Easy and flexible wireless synchronization between transmitter and receiver via infrared.
- Compatible with Sennheiser WSM control software for flexible frequency allocation.
- Up to 16 compatible channels.
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range.
- Range: Up to 100 meters / 300'.

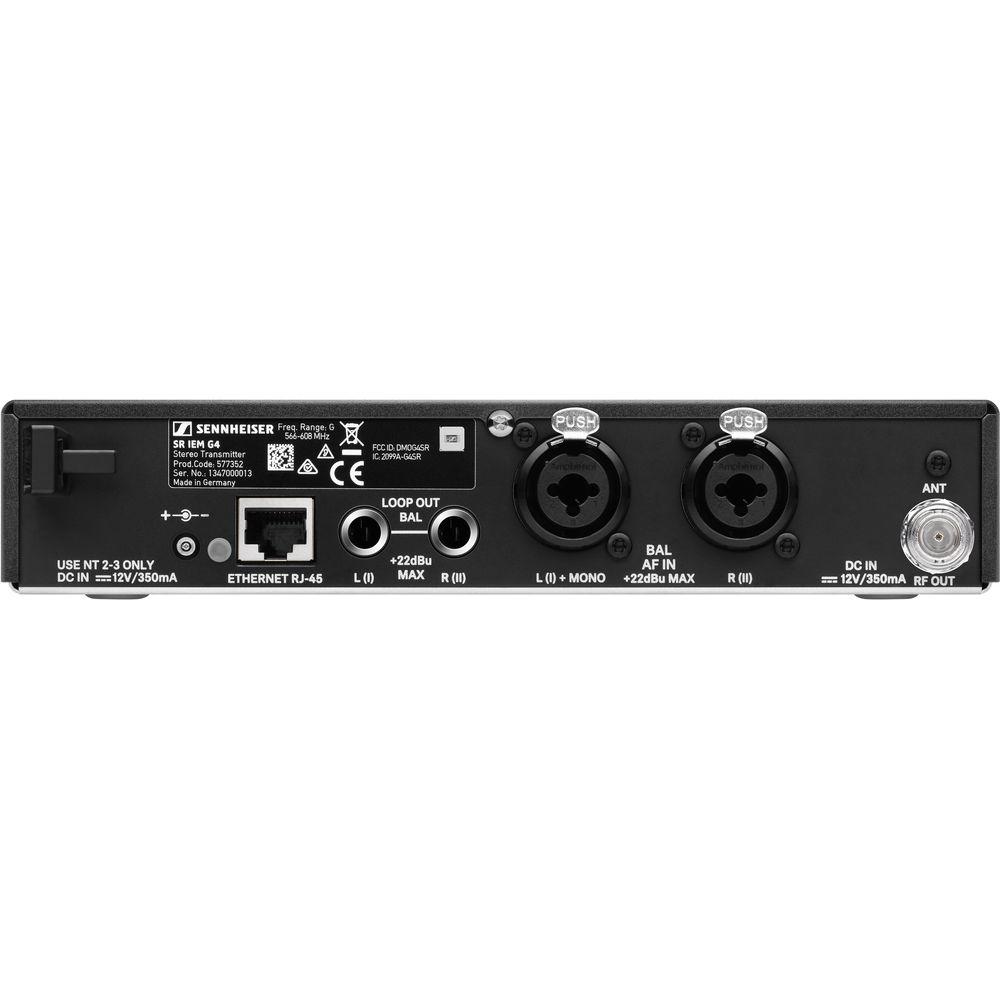

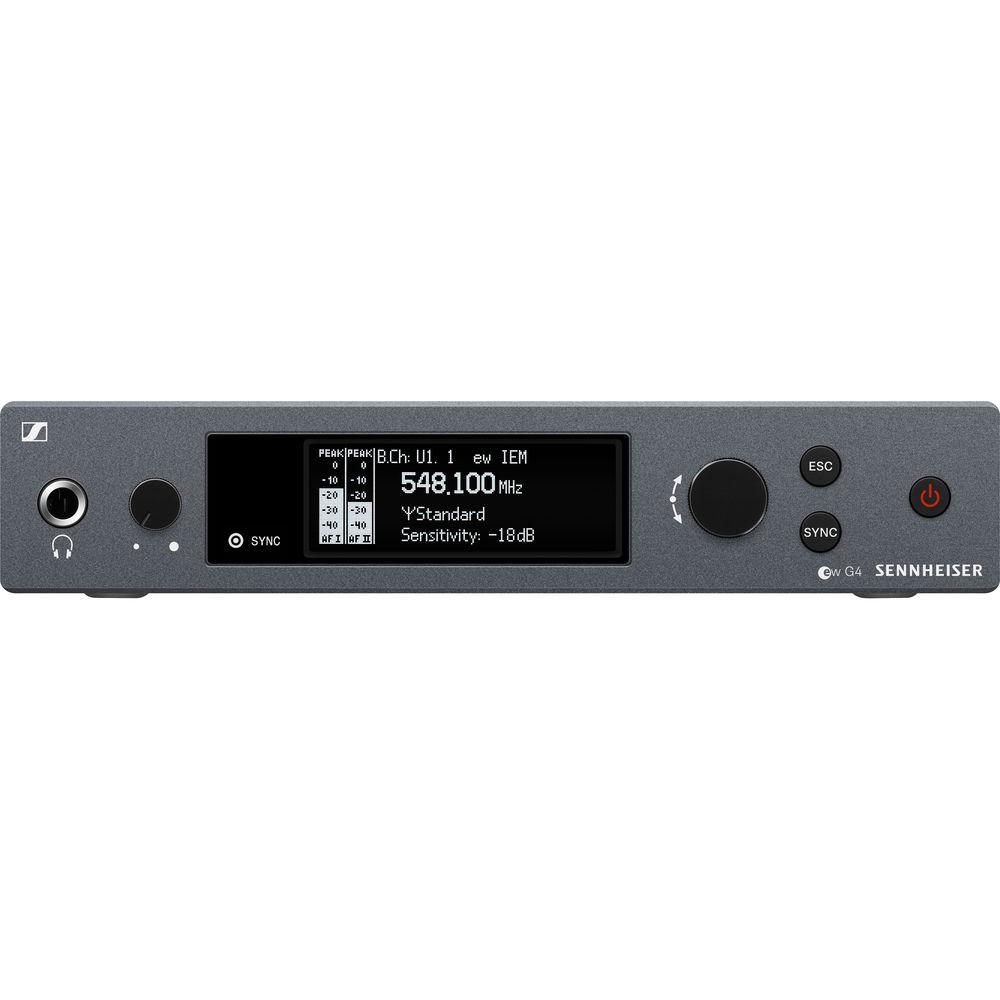

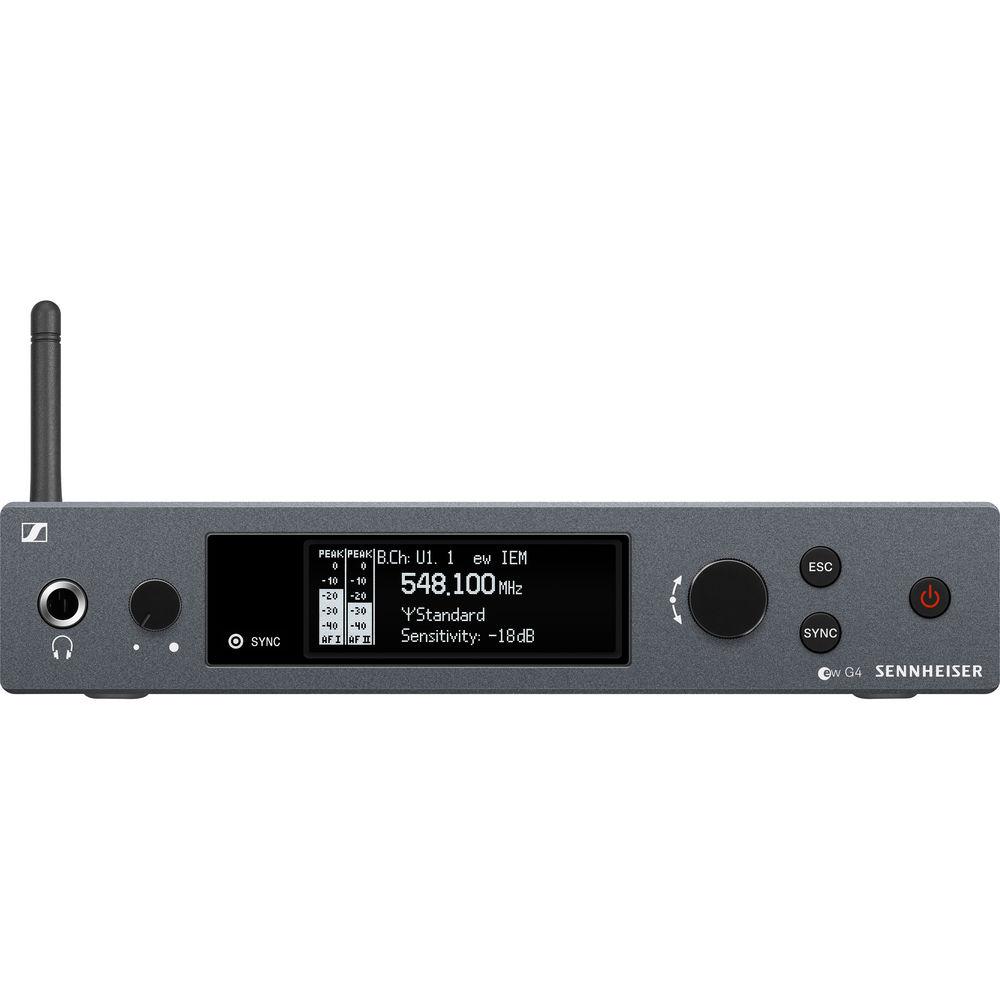

UPC: 615104311756 - SR IEM G4 Stereo Transmitter (A: 516 to 558 MHz) The SR IEM G4 Stereo Transmitter from Sennheiser is an addition to their evolution series of wireless systems. It features wideband FM stereo modulation and can be used when paired with a companion receiver as part of a wireless RF monitoring system for live stage, theater, and rehearsal applications.The stereo transmitter is equipped with 1680 frequencies tunable in 25 kHz steps and has 20 fixed frequency banks, with up to 16 compatible frequency presets and 6 user banks with up to 16 user-programmable frequencies. The receiver's menu-driven backlit OLED display shows current frequency, frequency bank and channel number, metering of AF level, transmission status, equalizer settings, lock status, and input sensitivity. An auto-lock feature is provided to prevent settings from being accidentally altered.Additionally, associated receivers can be synchronized with the transmitter via an integrated infrared interface. This transmitter is built with two electronically balanced XLR/1/4" combo sockets, a 1/4" headphone output with headphone volume control, an Ethernet port (RJ-45 for remote network-based monitoring), and a 50 Ohm BNC-type antenna input. Finally, it has a rugged metal housing and includes a 12 V power supply and a GA 3 rackmount kit.
- Half-rack stereo transmitter in a full-metal housing with OLED display for full control.
- Easy and flexible wireless synchronization between transmitter and receiver via infrared.
- Compatible with Sennheiser WSM control software for flexible frequency allocation.
- Up to 16 compatible channels.
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range.
- Transmission Range: up to 100 meters / 300'.
- High RF output power (up to 50 mW) depending on country regulations.

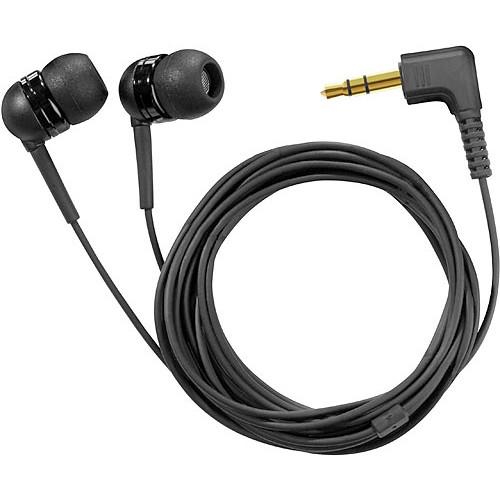

UPC: 615104311688 In the Box Bundle Items 2 x EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (A: 516 to 558 MHz) fvyvzcdsfwxcedac - IE 4 In-Ear Stereo Earphones for Wireless Monitor Applications
SR IEM G4 Stereo Transmitter (A: 516 to 558 MHz) - GA 3 Rackmount Kit for G3 100/300/500 Series
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser ew IEM G4-Twin Wireless Monitor System Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (A: 516 to 558 MHz)
| | | Frequency Band | A: 516 to 558 MHz | | Receiving Frequency | Maximum 1680 receiving frequencies, adjustable in 25 MHz steps
20 frequency banks, each with up to 16 factory-preset channels, no intermodulation
6 frequency banks with up to 16 programmable channels | | Switching Bandwidth | Up to 42 MHz | | Nominal/Peak Deviation | ±24 kHz / ±48 kHz | | Receiver Type | Adaptive diversity | | Sensitivity | < 4 μV, typ. 1.6 μV for 52 dBA (with HDX, peak deviation) rms s/n | | Adjacent Channel Selectivity | Typically ≥ 65 dB | | Intermodulation Attenuation | Typically ≥ 70 dB | | Blocking | ≥ 80 dB | | Pilot Tone | Squelch: Can be switched off | | Squelch | 5 to 25 dB
