Sennheiser ew IEM G4 Wireless Monitor

User Manual for Sennheiser ew IEM G4 Wireless Monitor System

• Product category: In-Ear Monitoring Systems Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser In-Ear Monitoring Systems

Product description

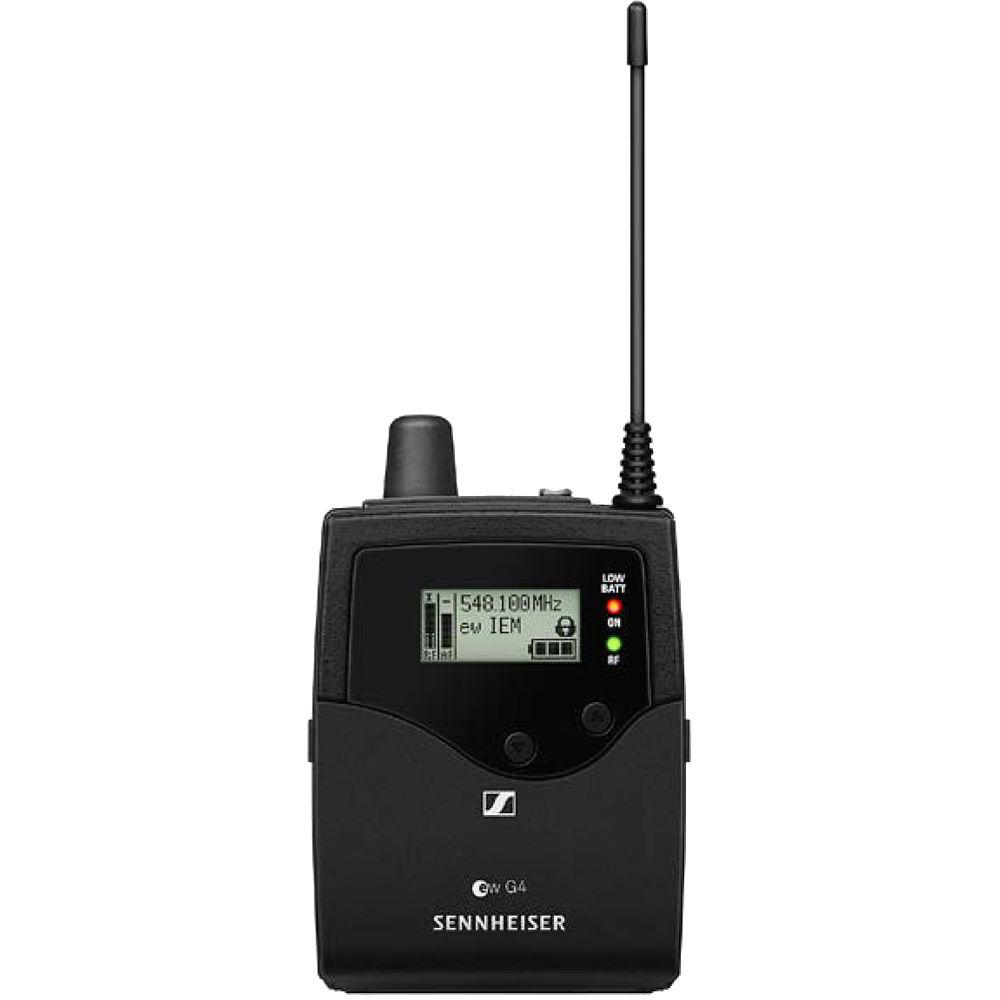

• EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (G: 558 to 608 MHz) The EK IEM G4 Stereo Bodypack Receiver with IE4 Earphones from Sennheiser is an addition to their evolution series of wireless systems. It features adaptive diversity technology and can be used when paired with a companion transmitter as part of a wireless RF monitoring system for live stage, theater, and rehearsal applications.The stereo receiver is equipped with 1680 frequencies tunable in 25 MHz steps and has 20 fixed frequency banks with up to 16 compatible frequency presets and another 6 user banks with up to 16 user-programmable frequencies. The receiver's menu-driven backlit display shows current frequency, frequency bank and channel number, metering of RF level, metering of AF level, lock status, and battery status. An auto-lock feature is provided to prevent settings from being accidentally altered.Furthermore, this receiver includes a switchable high-boost and a multi-level limiter. The limiter is adjustable from -18 dB to -6 dB in 6 dB steps or defeatable (off). Built in a rugged metal housing, it is powered by two 1.5V AA sized batteries or by a Sennheiser BA 2015 rechargeable accupack. The earphone output uses a 3.5mm stereo jack socket.
  • Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage.
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared.
  • Compatible with Sennheiser WSM control software for flexible frequency allocation.
  • Up to 16 compatible channels.
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range.
  • Range: Up to 100 meters / 300'.
  UPC: 615104311770

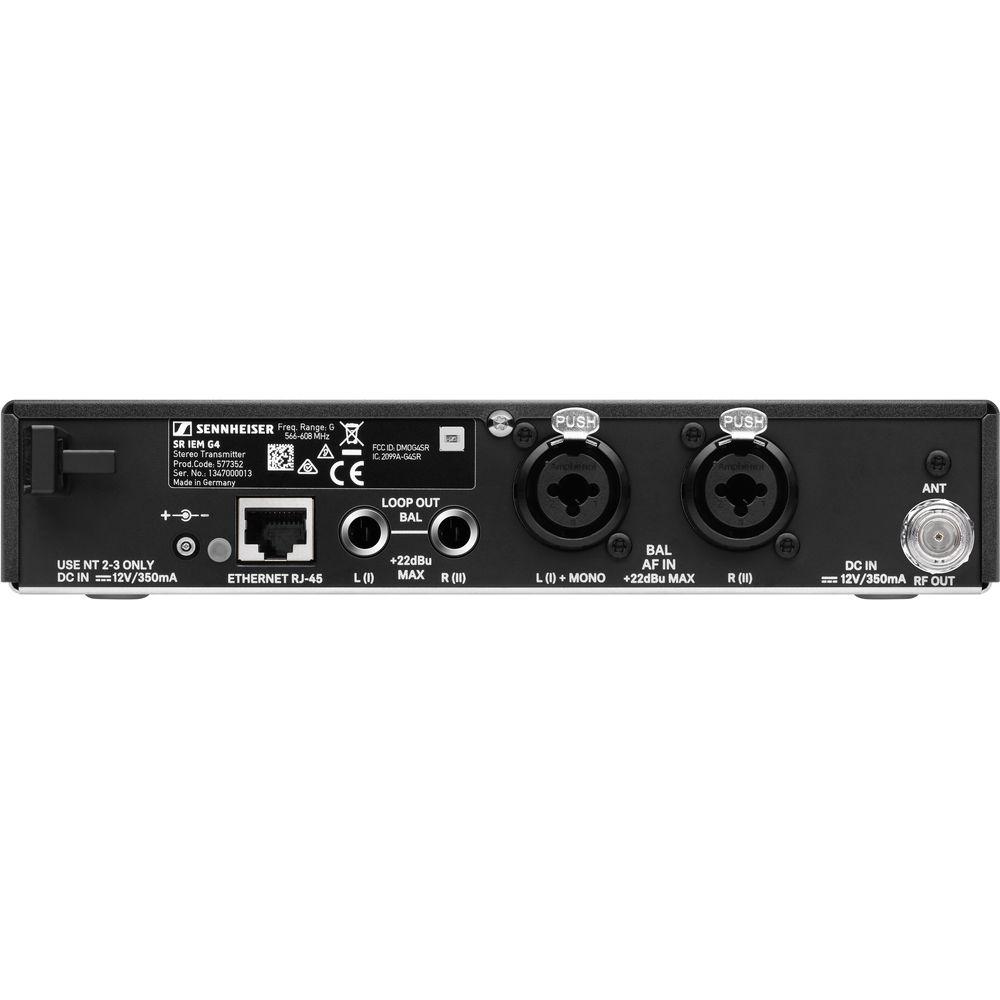

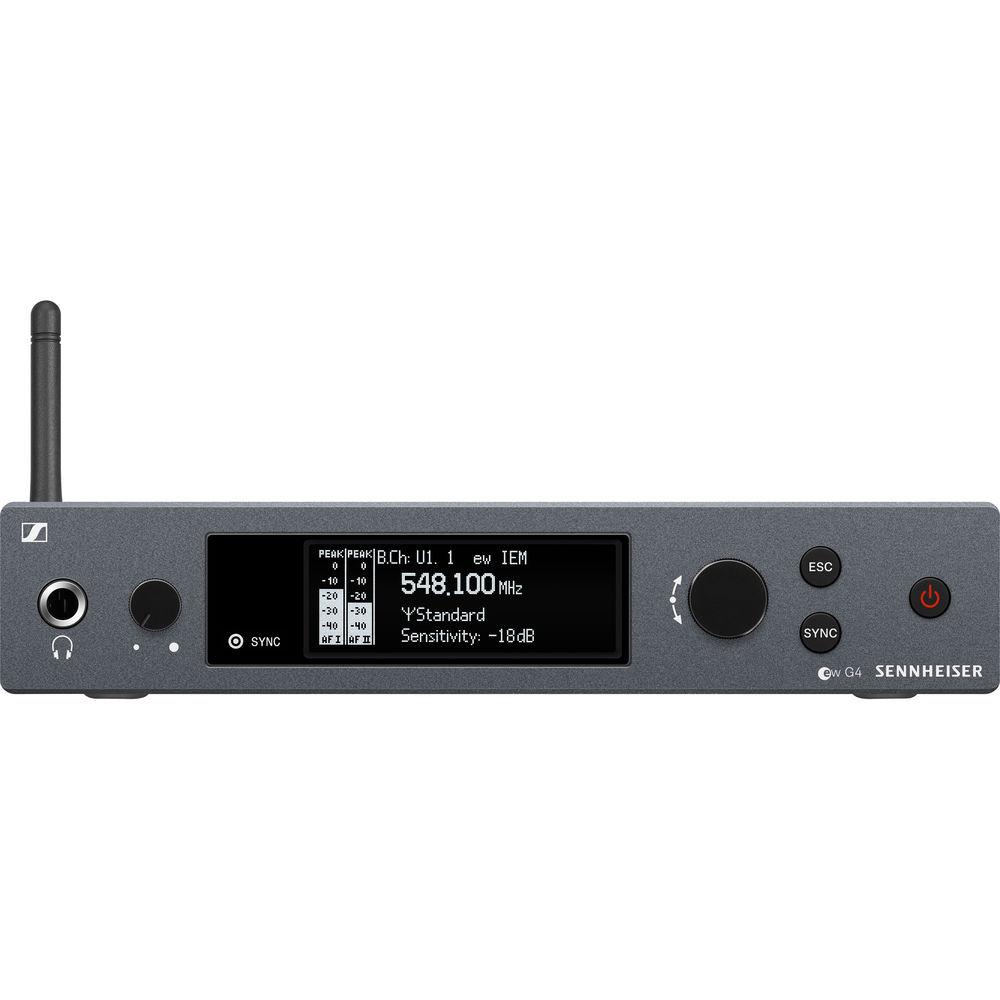

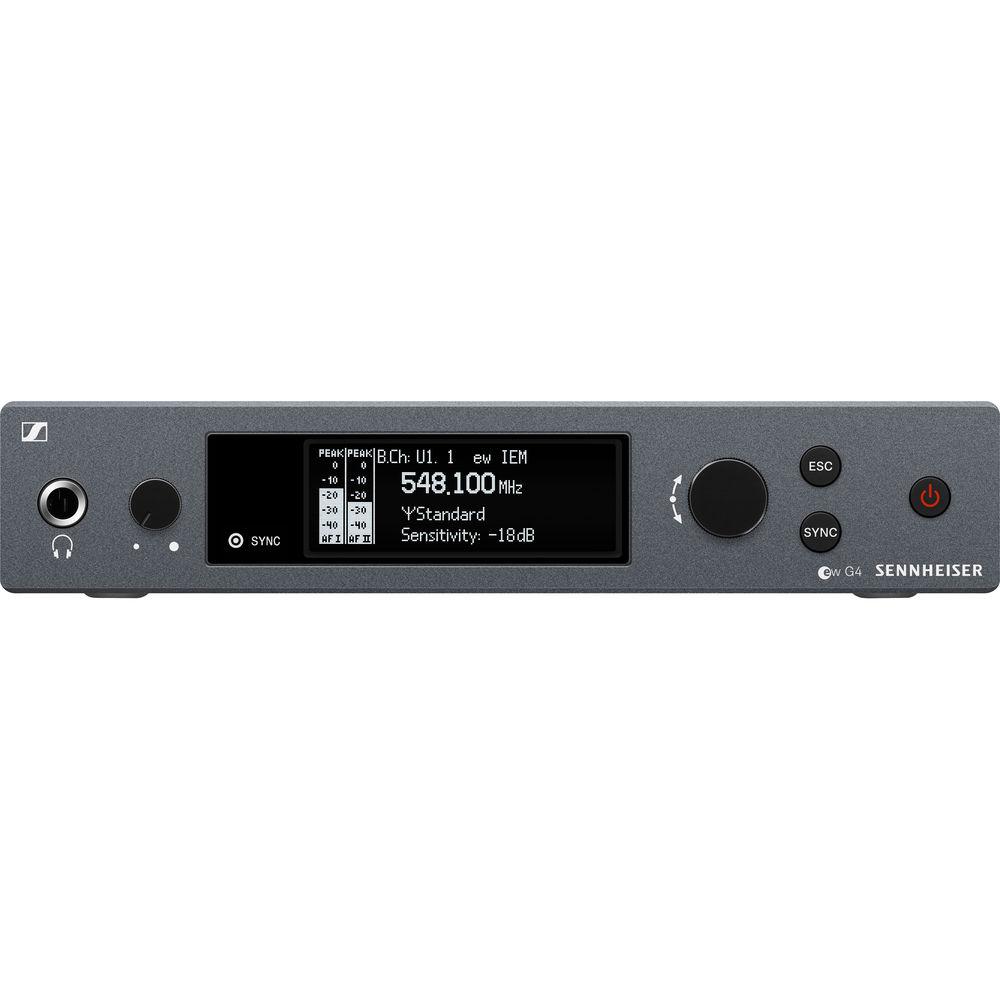

• SR IEM G4 Stereo Transmitter (G: 566 to 608 MHz) The SR IEM G4 Stereo Transmitter from Sennheiser is an addition to their evolution series of wireless systems. It features wideband FM stereo modulation and can be used when paired with a companion receiver as part of a wireless RF monitoring system for live stage, theater, and rehearsal applications.The stereo transmitter is equipped with 1680 frequencies tunable in 25 kHz steps and has 20 fixed frequency banks, with up to 16 compatible frequency presets and 6 user banks with up to 16 user-programmable frequencies. The receiver's menu-driven backlit OLED display shows current frequency, frequency bank and channel number, metering of AF level, transmission status, equalizer settings, lock status, and input sensitivity. An auto-lock feature is provided to prevent settings from being accidentally altered.Additionally, associated receivers can be synchronized with the transmitter via an integrated infrared interface. This transmitter is built with two electronically balanced XLR/1/4" combo sockets, a 1/4" headphone output with headphone volume control, an Ethernet port (RJ-45 for remote network-based monitoring), and a 50 Ohm BNC-type antenna input. Finally, it has a rugged metal housing and includes a 12 V power supply and a GA 3 rackmount kit.
  • Half-rack stereo transmitter in a full-metal housing with OLED display for full control.
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared.
  • Compatible with Sennheiser WSM control software for flexible frequency allocation.
  • Up to 16 compatible channels.
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range.
  • Transmission Range: up to 100 meters / 300'.
  • High RF output power (up to 50 mW) depending on country regulations.
  UPC: 615104311701

• 2 x AA Batteries

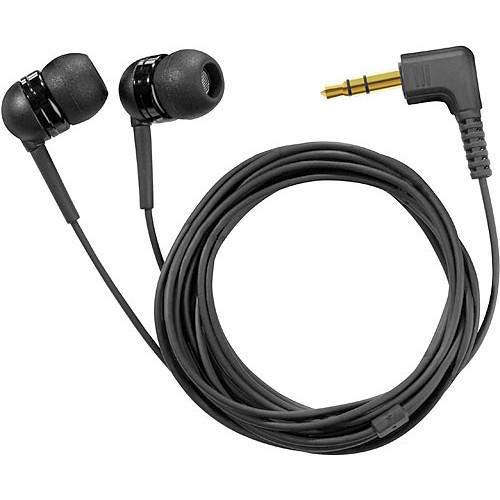

• IE 4 In-Ear Stereo Earphones for Wireless Monitor Applications

• Limited 2-Year Warranty

• Rod Antenna

• Power Supply

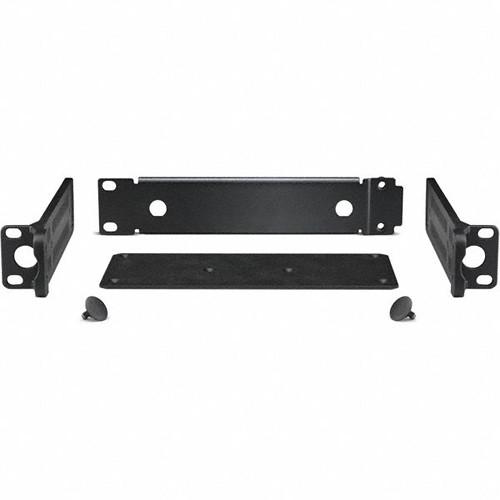

• GA 3 Rackmount Kit for G3 100/300/500 Series

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones (G: 558 to 608 MHz)

  Frequency Band	G: 558 to 608 MHz
  Receiving Frequency	Maximum 1680 receiving frequencies, adjustable in 25 MHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 6 frequency banks with up to 16 programmable channels
  Switching Bandwidth	Up to 42 MHz
  Nominal/Peak Deviation	±24 kHz / ±48 kHz
  Receiver Type	Adaptive diversity
  Sensitivity	< 4 μV, typ. 1.6 μV for 52 dBA (with HDX, peak deviation) rms s/n
  Adjacent Channel Selectivity	Typically ≥ 65 dB
  Intermodulation Attenuation	Typically ≥ 70 dB
  Blocking	≥ 80 dB
  Pilot Tone	Squelch: Can be switched off
  Squelch	5 to 25 dB Rating 90% users recommend this product to others. And what about you? This product has already been rated by 46 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
