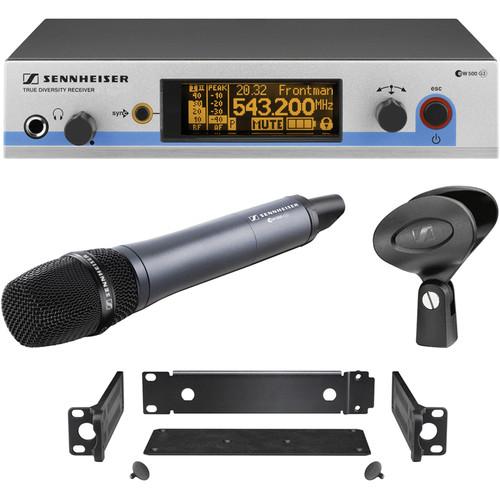

User Manual for Sennheiser EW500-945 G3 Wireless Handheld Microphone System with E945 Mic Click to enlarge the picture
Contents of the user manual for the Sennheiser EW500-945 G3 Wireless Handheld Microphone
- Product category: Wireless Systems Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Wireless Systems
|
User manual for the Sennheiser EW500-945 G3 Wireless Handheld Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Sennheiser EW500-945 G3 Wireless Handheld Microphone provides dependable performance for both speech and performance applications and includes a UHF diversity receiver and handheld transmitter. The transmitter and receiver synchronize channel and frequency at the touch of a button. An Ethernet port is featured on the EM500 rackmount receiver for remote operation with Wireless Systems Manager (WSM) software from a PC.The handheld microphone allows you to charge the (optional) rechargeable pack while it remains in the transmitter. The receiver's back-lit display allows for easy operation under dimly-lit conditions and its user friendly menu makes operation quick and easy. The EW500-945 G3 is at home in theaters, clubs, town halls, houses of worship, DJ applications and more.In addition, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy. - The E945 features a professional dynamic element with a supercardioid polar pattern
- Sturdy metal housing (transmitter and receiver)
- 42 MHz Bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 32 compatible frequencies
- Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
- High-quality true diversity reception
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Automatic frequency scan feature searches for available frequencies
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitter parameter from receiver
- User-friendly menu operation with more control options
- Illuminated graphic display, receiver also shows transmitter settings
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter features battery indication in 4 steps, also shown on receiver display
- Easy-exchangeable microphone modules from evolution series
- Integrated Equalizer and Soundcheck mode
- Contacts for recharging BA 2015 accupack directly in the transmitter
- Wide range of accessories adapts the system to any requirement
UPC: 615104158078 In the Box Sennheiser EW500-945 G3 Wireless Handheld Microphone System with E945 Mic (Frequency G: 566 to 608 MHz) UHF Diversity Receiver Handheld Transmitter with E945 Capsule MZQ Microphone Stand Mount GA 3 Rack Mount Kit NT 2 Power Supply Unit 2 x Antennas 2 x Stacking Elements 2 x AA Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser EW500-945 G3 Wireless Handheld Microphone System with E945 Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSennheiser ew 500-945 Specs | | | Type of System | Handheld diversity UHF | | RF Carrier Frequency Range | Frequency G: 566 to 608 MHz | | Approx. Working Range | Not Specified By Manufacturer | | Overall Frequency Response | 80 Hz to 18 kHz | | Signal-to-Noise Ratio | > 115 dBA | | # Of Channels | 1680 | | # Of Simultaneous Systems | Not Specified By Manufacturer | | | | Type of Receiver | EM500 UHF Diversity | | Type of Outputs | Balanced XLR
Unbalanced 1/4" / 6.3 mm | | Headphone Monitoring | Yes, 1/4" / 6.3 mm with volume control | | Power Requirements | 12 V, 350 mA | | Battery Type/Approx. Life | No | | Display | Illuminated graphic display | | Mounting Options | Rack-mounted (hardware included) | | Antenna Type | Dual - BNC type | | Dimensions | 8.3 x 8 x 1.7" / 212 x 202 x 43 mm | | Weight | 2.2 lb / 980 g | | | | Type of Transmitter | SKM 500-945 | | Type of Microphone | Dynamic | | Polar Pattern | Supercardioid | | Interchangeable Mic Heads | Yes | | Battery Type/Approx. Life | 2 x AA Alkaline | | Mute Switch | Yes | | Level Control | No | | Antenna Type | Integral | | Display | Illuminated graphic display | | Dimensions (LxDiameter) | 10.4 x 2" / 265 x 50 mm | | Weight | 2.2 lb / 980 g | | | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 17.7 x 15.0 x 3.1" |
