Sennheiser G4 300 Series Wireless Lavalier

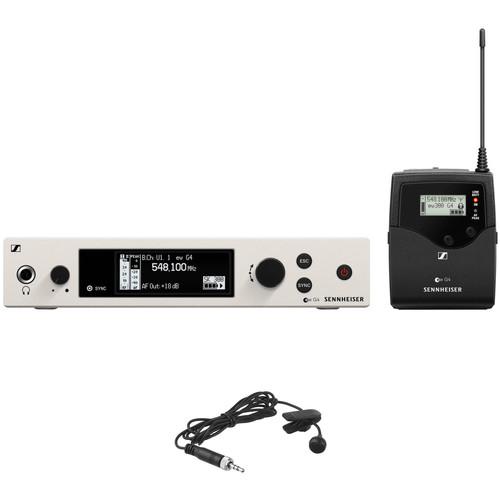

User Manual for Sennheiser G4 300 Series Wireless Lavalier ME 4 Microphone Bundle Kit, GW1

• Product category: Wireless Systems Sennheiser
• Brand: Sennheiser
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sennheiser Wireless Systems

Product description

• Sennheiser ew 300-Base SK-RC Bodypack Base Set with No Microphone, GW1: (558 to 608 MHz)
  • evolution wireless G4 Tutorial An Introduction I Sennheiser
  The ew 300-Base SK-RC Bodypack Base Set with No Microphone from Sennheiser includes an SK 300 G4-RC bodypack transmitter, an EM 300-500 wireless true diversity receiver with power supply, a GA3 rackmount kit, two rod antennas, and four AA batteries. It can be used to capture audio in several environments such as broadcast TV, presentation, education, and business applications when paired with a lavalier or headset microphone (sold separately). The G4 300 Series uses the power of an increased switching bandwidth of 50 MHz. This allows you to operate multi-channel setups with dozens of channels while securing reliable operation. The ew 300 G4-Base SK-RC Bodypack Base Set ensures hands-free operation even during the longest congress or lecture event. In addition, Sennheiser Control Cockpit Software (download) offers easy handling, control, and maintenance for the Digital Wireless System. It provides a global overview of all network-enabled devices, shows all status information, and makes setting adjustments very easy.
  • Compatible with Control Cockpit Software
  UPC: 615104316300
• Sennheiser ME 4 Cardioid Lavalier Condenser Microphone for EW Series Transmitters
  • evolution wireless G4 Tutorial An Introduction I Sennheiser
  The Sennheiser ME 4 is a cardioid lavalier condenser microphone designed for use with select Sennheiser bodypack transmitters in interviews, conferencing, television, and live stage applications. Optimized for speech intelligibility, it delivers a high maximum SPL and a 50 Hz to 18 kHz frequency response. Its cardioid polar pattern minimizes pickup of off-axis sound and enhances feedback rejection. The attached 5.2' cable is terminated with a 3.5mm TRS output connector for compatibility with EW G3, EW G4, SpeechLine Digital Wireless, and XS Wireless transmitters. The ME 4 is supplied with a clip for easy attachment to clothing.
  • 3.5mm TRS output connector
  • Compatible with Sennheiser EW (evolution Wireless) G3/G4 SK, SpeechLine Digital Wireless, and XS Wireless bodypack transmitters
  • 120 dB maximum SPL
  • 50 Hz to 18 kHz frequency response reduces the transmission of sub-bass frequencies from rumble and proximity effect
  UPC: 615104050204

• ew 300-Base SK-RC Bodypack Base Set with No Microphone, GW1: (558 to 608 MHz) ttdfdwzuxsr
• EM 300-500 G4 Wireless True Diversity Receiver GW1: (558 to 608 MHz)
• SK 300 G4-RC Bodypack Transmitter GW1: (558 to 608 MHz)

• ME 4 Cardioid Lavalier Condenser Microphone for EW Series Transmitters

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sennheiser EM 300-500 G4 Wireless True Diversity Receiver GW1: (558 to 608 MHz)

  Modulation	Wideband FM
  Frequency Band	GW1: (558 to 608 MHz)
  Receiving Frequency	Maximum 2000 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
  Switching Bandwidth	Up to 50 MHz
  Nominal/Peak Deviation	±24 kHz / ±48 kHz
  Principle of Operation	True diversity
  Sensitivity	< 2.5 μV for 52 dBA eff S/N (with HDX, peak deviation)
  Adjacent Channel Selectivity	Typically ≥ 75 dB
  Intermodulation Attenuation	Typically ≥ 70 dB
  Blocking	≥ 75 dB
  Squelch	Off, 5 to 25 dB μV in steps of 2 dB
  Pilot Tone Squelch	Can be switched off
  Antenna Inputs	2 x BNC sockets
  Compander	Sennheiser HDX
  EQ Presets	Switchable, Act on Line and Monitor Outputs) Preset 1: Flat Preset 2: Low cut (-3 dB at 180 Hz) Preset 3: Low cut/high boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High boost (+6 dB at 10 kHz)
  Signal to Noise Ratio	(1 mV, peak deviation) Line: ≥ 115 dBA
  Total Harmonic Distortion (THD)	≤ 0.9%
  Maximum AF Output Voltage	1/4" (6.3 mm) Jack Socket: +12 dBu (unbalanced) (at peak deviation, 1 kHz AF) XLR Socket: +18 dBu (balanced) (at peak deviation, 1 kHz AF)
  Output Level Range	48 dB (3 dB steps)
  Temperature Range	14 to 131°F (-10 to 55°C)
  Power Supply	12 VDC
  Current Consumption	350 mA
  Dimensions (L x W x H)	8.0 x 8.3 x 1.7" (202 x 212 x 43 mm)
  Weight	2.2 lb (980 g)

  Box Dimensions (LxWxH)	16.3 x 14.0 x 3.1"

• Sennheiser SK 300 G4-RC Bodypack Transmitter GW1: (558 to 608 MHz)

  Modulation	Wideband FM
  Frequency Range	GW1: (558 to 608 MHz)
  Transmission Frequencies	2000 frequencies adjustable in 25 MHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
  Switching Bandwidth	Up to 88 MHz
  Peak Deviation	Nominal: ±24 kHz / ±48 kHz
