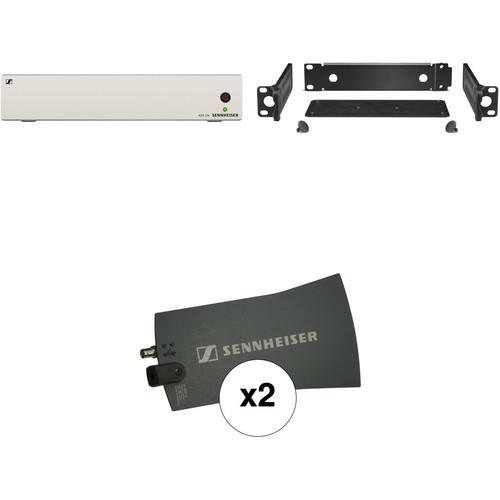

User Manual for Sennheiser G4 ASA 214-UHF Active Antenna Splitter Bundle 3 Kit Click to enlarge the picture
Contents of the user manual for the Sennheiser G4 ASA 214-UHF Active Antenna
- Product category: Antenna Accessories Sennheiser
- Brand: Sennheiser
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sennheiser Antenna Accessories
|
User manual for the Sennheiser G4 ASA 214-UHF Active Antenna contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!
|
Product description The Sennheiser G4 ASA 214-UHF Active Antenna Splitter Bundle 3 Kit from includes a Sennheiser ASA 214-UHF active antenna splitter with DC power distribution, a Sennheiser GA 3 rackmount kit for G3/G4 100, 300, and 500 series wireless systems, two Sennheiser A1031U omnidirectional UHF antennas for evolution series, an NT 1-1 power supply, and eight BNC cables. This kit can be used in live stage, theater, and rehearsal applications to receive multiple wireless frequencies through a pair of antennas, split and amplify those signals, and route them to their receiver units via coaxial cables. - Sennheiser ASA 214-UHF Active Antenna Splitter with DC Power Distribution and NT 1-1 Power Supply The ASA 214-UHF Active Antenna Splitter with DC Power Distribution and NT 1-1 Power Supply from Sennheiser is for the ew G3 and ew G4 wireless receivers (sold separately). The ASA 214-UHF splitter can be used to receive multiple microphone signals through a pair of antennas, split and amplify those signals, and send each signal to their respective receiver via coaxial cable. Also included are eight BNC cables. UPC: 615104314504
- Sennheiser GA 3 Rackmount Kit for G3 100/300/500 Series The Sennheiser GA 3 Rackmount Kit is ideal for use with G3 100/300/500 Series Wireless Monitoring Systems.
- Use only genuine Sennheiser replacement parts
UPC: 615104149793 - 2 x Sennheiser A1031U Omnidirectional UHF Antenna for Evolution Series The Sennheiser Omnidirectional Antenna is designed for use with the G2 series rack-mount receivers or RF distribution amplifiers. The omnidirectional RF pick up enables use in applications where the transmitters are constantly in motion, and RF signal is generated from various directions within a room. UPC: 615104046450
In the Box - ASA 214-UHF Active Antenna Splitter with DC Power Distribution and NT 1-1 Power Supply syrztbwcrccqaf
- NT 1-1 Power Supply
- 8 x BNC Cables
- Limited 2-Year Warranty
- GA 3 Rackmount Kit for G3 100/300/500 Series
- 2 x A1031U Omnidirectional UHF Antenna for Evolution Series
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sennheiser G4 ASA 214-UHF Active Antenna Splitter Bundle 3 Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sennheiser ASA 214-UHF Active Antenna Splitter with DC Power Distribution and NT 1-1 Power Supply
| Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 13.75 x 8.5 x 3.25" | - Sennheiser GA 3 Rackmount Kit for G3 100/300/500 Series
| Compatibility | G3 100/300/500 Series Wireless Monitoring Systems | | | | Box Dimensions (LxWxH) | 10.2 x 4.3 x 2.4" | - 2 x Sennheiser A1031U Omnidirectional UHF Antenna for Evolution Series
| Frequency Range | 430 - 960MHz | | Angle of Coverage | 360° | | Gain | 0dB | | Mount | 5/8" Thread, 3/8" Thread Adapter | | Connector | BNC Socket, 50 ohms | | Max Input Signal | 10W | | Temperature | -20° - +80° C | | Dimensions | 10.63 x 5.12 x 1.38" (27 x 13 x 3.5cm) | | Weight | 5.29 oz | | | | Box Dimensions (LxWxH) | 15.6 x 13.1 x 1.5" |
