Sennheiser GSX 1200 PRO Audio Amplifier

Search your instruction manual in PDF to download

User Manual for Sennheiser GSX 1200 PRO Audio Amplifier

Click to enlarge the picture
Sennheiser GSX 1200 PRO Audio Amplifier Contents of the user manual for the Sennheiser GSX 1200 PRO Audio Amplifier
  • Product category: Computer Speakers & Mic Accessories Sennheiser
  • Brand: Sennheiser
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Sennheiser Computer Speakers & Mic Accessories

Sennheiser GSX 1200 PRO Audio Amplifier Sennheiser GSX 1200 PRO Audio Amplifier Sennheiser GSX 1200 PRO Audio Amplifier
User manual for the Sennheiser GSX 1200 PRO Audio Amplifier contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Sennheiser product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!



Product description

The GSX 1200 PRO Audio Amplifier from Sennheiser enhances the audio coming from your computer with a dedicated DAC chip to make it suitable for gaming environments. The amplifier connects to your Windows or Mac system via an included USB cable and creates 7.1 virtual surround sounds for your audio peripherals. In addition, the GSX 1200 PRO can also operate as a Chat Link, utilizing an included chat link cable and two 2.5mm chat link jacks, for connecting up to eight GSX 1200 PRO audio amplifiers together for hard-wired, lag-free communication.

Sennheiser has outfitted the GSX 1200 PRO with three 3.5mm audio jacks so you can have your headset and speakers connected at the same time. To adjust sound levels, speaker focus, and EQ settings quickly, an LED touch display and an aluminum volume wheel are on board. Additionally, the touch panel lets you switch between headphones and speakers on the fly.
    Gaming Audio
  • The GSX 1200 PRO audio amplifier comes with a binaural rendering engine that features a 7.1 virtual surround algorithm for delivering simulated surround sounds. The GSX 1200 PRO comes with enough jacks so you can have a headset and a pair of speakers connected at the same time. It can also be connected to eight other GSX 1200 PROs, letting you create a hard-wired, lag-free communication setup between your teammates.
    Sound Settings on the Fly

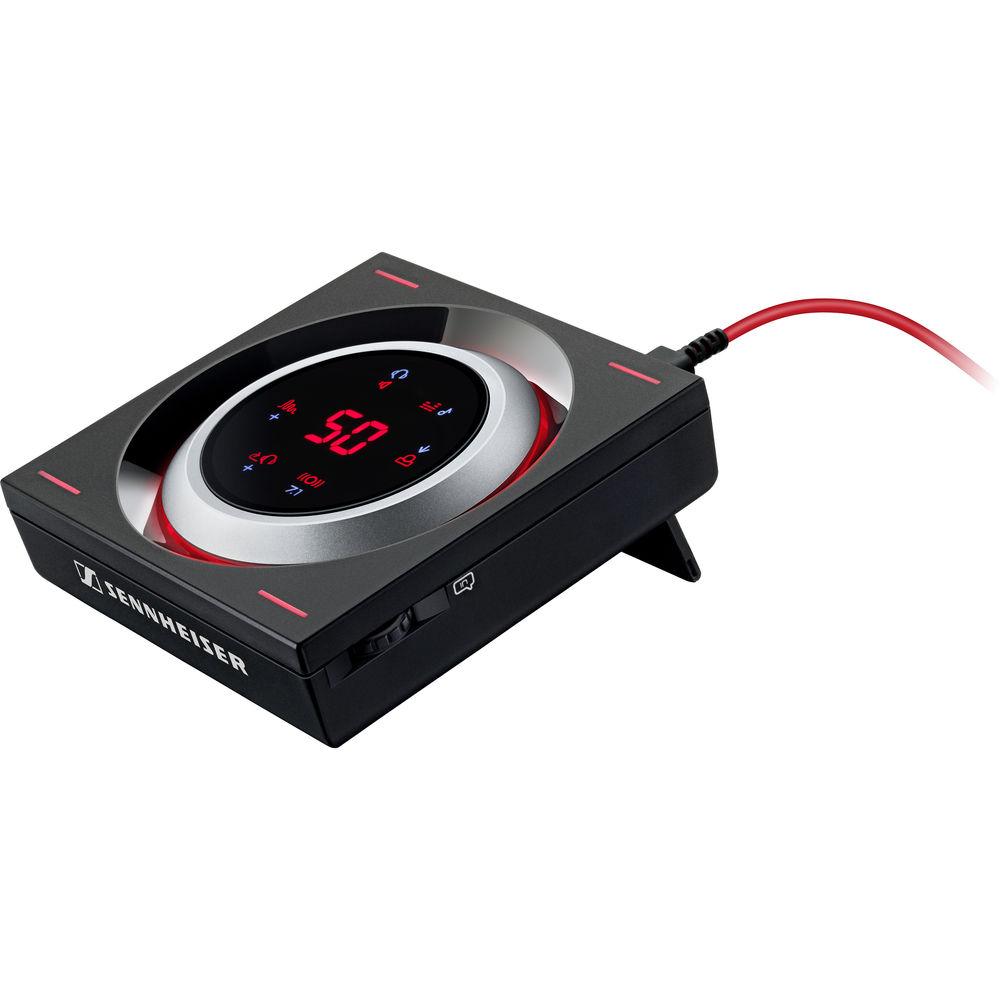

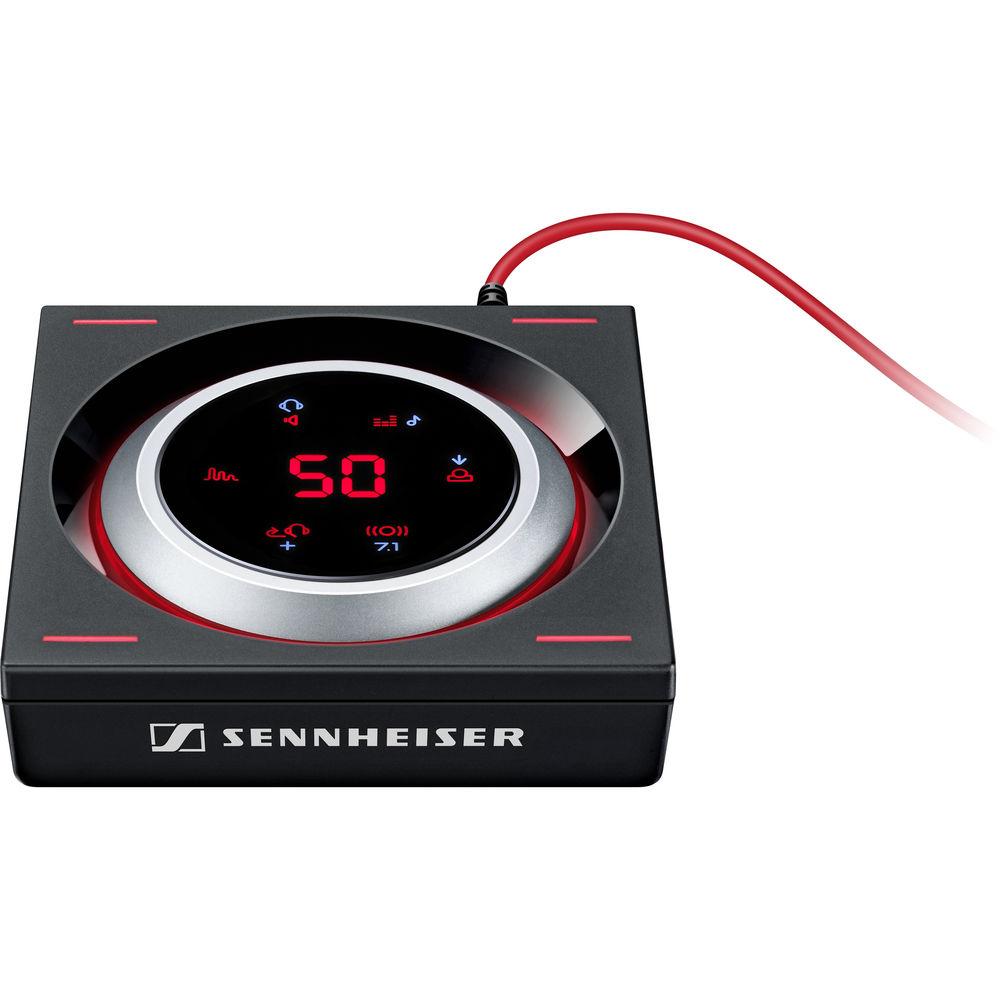

  • Featuring a red LED-lit touch display and an aluminum volume wheel, the GSX 1200 PRO lets you rapidly adjust sound on the fly. The red-on-black display dims down when not in use to cut down distractions, and brightens the instant it senses your hand is near. It allows you to adjust the Sidetone, which changes how loud your own voice sounds, and switch between your headset and speakers without unplugging cables.
    Sound Quality
  • The GSX 1200 PRO has been designed with a dedicated DAC chip that requires no additional drivers. The amplifier gives you precise control of both game and communication sounds, allowing for separate adjustment and USB inputs for each. Besides the range of EQ settings, it is possible to set Reverberation levels to change how the user feels in physical spaces of the game, and even increase the surround speakers for back and front speaker focus.
UPC: 615104276727 In the Box Sennheiser GSX 1200 PRO Audio Amplifier
  • Chat Cable
  • USB Cable
  • Limited 2-Year International Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Sennheiser GSX 1200 PRO Audio Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Sennheiser GSX 1200 Specs

    USB USB 2.0 full speed and USB 1.0 audio
    Total Harmonic Distortion 0.005% @ -3 dBFS

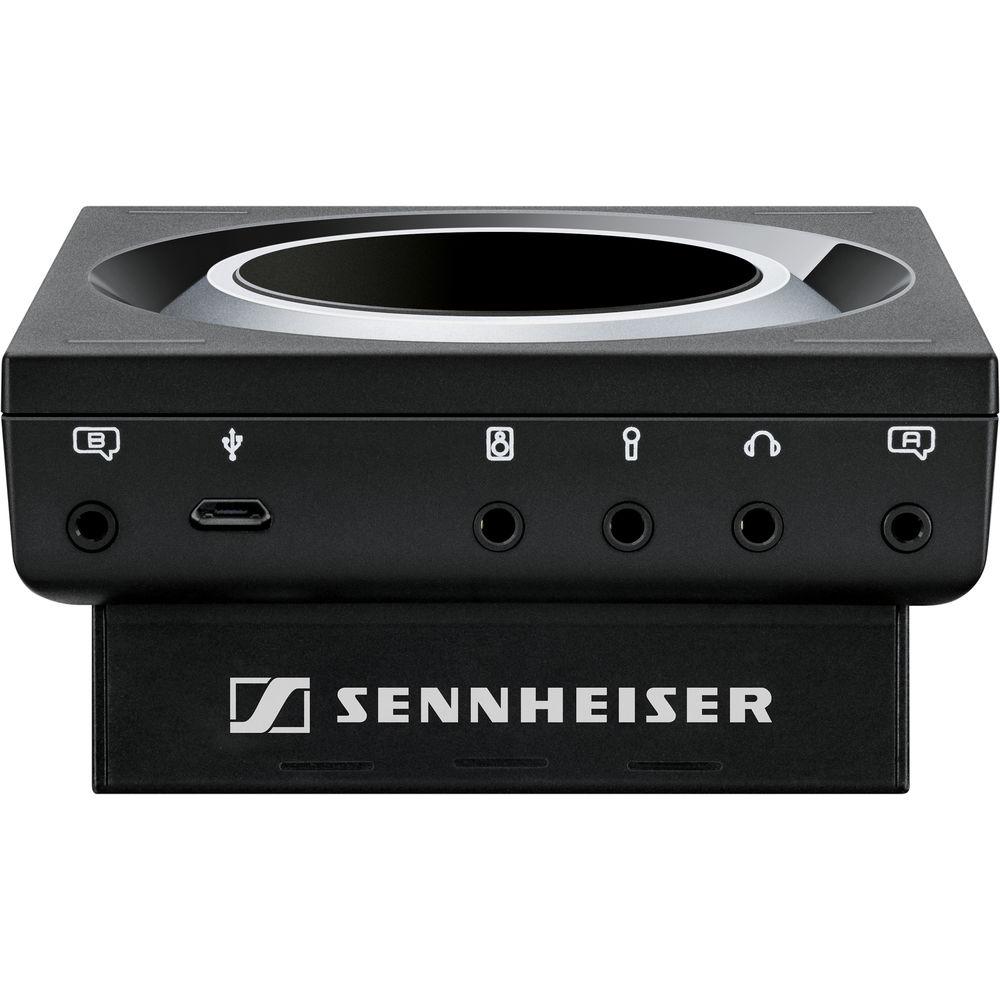

    Ports 1 x 3.5 mm headset
    1 x 3.5 mm microphone
    1 x 3.5 mm loudspeaker
    1 x mini-USB
    1 x 2.5 mm chat interface (socket A)
    1 x 2.5 mm chat interface (socket B)
    Supported Sample Rate Main Audio:
    7.1: 44.1 kHz @ 16-bit, 48 kHz @ 16-bit
    2.0: 44.1 kHz @ 16-bit, 48 kHz @ 16-bit, 96 kHz @ 24-bit
    Main Audio HD:
    2.0: 96.0 kHz @ 24-bit
    Communication Audio:
    1.0: 16 kHz @ 16-bit
    Headphone Outputs Frequency Response: 0 to 48 kHz
    Impedance: 16 to 150 Ohms
    Max. Output Voltage: 1 V RMS @ 32 Ohms
    Headphone: DC coupled and dual rail power supply
    Line Out Frequency Response: 1.5 Hz to 48 kHz
    Max. Output Voltage: 1 V RMS @ 10 Ohms
    Cable Length USB Cable: 3.9' / 1.2 m
    Chat Cable: 6.6' / 2.0 m
    Package Weight 0.905 lb
    Box Dimensions (LxWxH) 5.75 x 5.65 x 2.7"
